Rebar Cage Making Machine – High-Efficiency Automated Solution for Modern Construction

When infrastructure projects demand precision, speed, and reliability, a rebar cage making machine becomes essential. Shandong Zhongji Luyuan Machinery Co., Ltd., established in 2016 with a registered capital of RMB 50 million, specializes in manufacturing enterprise-grade CNC rebar processing equipment. Our advanced system processes rebar diameters from 6 to 40 mm and produces cages ranging from 500 to 2500 mm in diameter with lengths up to 12 meters.

Trusted by China Railroad Gather, CRCC, CSCEC, and CCCC, our machines convey 8 cages per 10-hour move with fair 1-2 administrators. With trades to about 100 nations, we give solid arrangements that diminish labor costs by up to 60% whereas guaranteeing reliable welding quality and dimensional precision for heap establishments, bridges, and high-speed railroad projects.

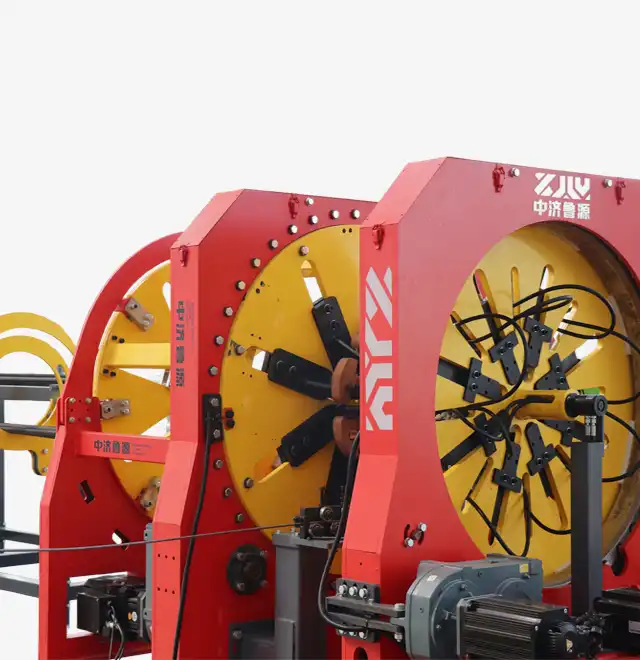

What Is a Rebar Cage Making Machine?

A rebar cage making machine is a CNC-controlled automated system designed for fabricating cylindrical reinforcement cages used in bored piles and deep foundation engineering. It integrates mechanical, hydraulic, and electrical systems to wind spiral stirrups onto longitudinal bars automatically.

Traditional manual manufacture endures from conflicting quality, tall labor costs, and fabric squander. Our robotized arrangement dispenses with these issues by guaranteeing standardized cage geometry and predominant basic integrity.

The machine works through PLC control with a touchscreen interface. You can alter winding pitch, cage breadth, and welding parameters with accuracy. This innovation is basic for high-load framework like bridges, burrows, and high rises where basic security cannot be compromised.

Technical Specifications

Key Advantages

Exceptional Production Efficiency

Your project timeline demands speed without sacrificing quality. Our rebar cage making machine doubles production capacity compared to manual methods. With fully automatic operation, you achieve 8 cages per 10-hour shift.

The PLC control framework guarantees exact synchronization between the pivoting plate and welding trolley. This dispenses with delays caused by manual alterations and keeps your generation plan on track.

Superior Welding Quality

Inconsistent welding compromises auxiliary security. Our gas-shielded welding strategy conveys uniform, high-strength joints over each cage. The top-mounted programmed welding framework produces straighter, more steady welding focuses with zero burn-through on primary reinforcement.

Each weld spot experiences shear quality testing to surpass the malleable quality of the rebar itself. This ensures long-term solidness in seismic zones and high-load applications.

Significant Labor Cost Reduction

Labor deficiencies and rising compensation increment your operational costs. Our framework requires as it were 1-2 administrators compared to 6-8 specialists for manual manufacture. This diminishes labor costs by up to 60% whereas dispensing with security dangers related with overwhelming manual work.

The instinctive touchscreen interface requires negligible preparing. Your group can ace operation inside days, not weeks.

Versatile Application Range

Whether you're working on heap establishments, bridge docks, or burrow back structures, our machine adjusts to your determinations. It handles cage breadths from 500 mm to 3000 mm and fundamental bar distances across from φ16 mm to φ50 mm.

Custom plan choices oblige project-specific necessities, counting amplified cage lengths past 12 meters and non-standard rebar grades.

Robust Construction and Reliability

Construction locales request hardware that withstands unforgiving conditions. Our heavy-duty steel outline structure and fortified components guarantee steady execution amid persistent 24/7 operation.

The servo control framework keeps up ±10 mm pitch exactness indeed beneath overwhelming loads. Measured plan streamlines support and minimizes downtime.

Why Choose Shandong Zhongji Luyuan Machinery?

Proven Track Record

We've joined forces with China's driving foundation companies for major ventures counting high-speed railroads, atomic control stations, and urban rail travel frameworks. Our machines have handled millions of meters of support cages for basic applications.

Global Reach

With sends out to about 100 nations over Asia, Africa, the Center East, and past, we get it differing administrative necessities and location conditions. Our worldwide involvement guarantees your hardware meets nearby standards.

Comprehensive Support

Our across the country benefit organize gives quick specialized help and upkeep bolster. We react rapidly to minimize your operational disturbances and maximize gear uptime.

​​​​​​​

Frequently Asked Questions

Q: How does a machine progress quality control?

A: The machine experiences thorough quality control counting mechanical exactness tests, welding keenness assessments, and framework solidness checks. Dimensional resilience reviews confirm concentricity and distance across consistency utilizing laser estimation. Each unit completes a 48-hour ceaseless stack test and electrical security reviews some time recently delivery.

Q: What applications advantage most from robotized cage production?

A: High-speed railroad establishments require strict resilience on winding pitch for seismic security. Large-scale bridge building needs larger than average cages for deep-water wharfs. Urban metro and tunneling ventures advantage from fast pre-fabrication that matches burrow boring machine operation pace.

Q: Can the machine handle non-standard specifications?

A: Yes. Our hardware suits custom cage lengths past 12 meters, different rebar grades, and non-standard breadths. We give custom fitted arrangements based on your project's geotechnical prerequisites and auxiliary designs.

Q: What preparing is required for operators?

A: The PLC control framework with touchscreen interface is planned for ease of utilize. Most administrators ended up capable inside 3-5 days of hands-on preparing. We give comprehensive operation manuals and on-site instruction amid installation.

Q: How do I confirm welding quality amid production?

A: The framework incorporates real-time checking of welding parameters. Visual assessment windows permit quality checks amid operation. We prescribe occasional shear quality testing on test joints to affirm reliable weld judgment all through generation runs.

Contact Us

Ready to transform your reinforcement cage production? Our technical team is here to help you select the optimal configuration for your rebar cage making machine requirements.

Email us at sales2@shandongluyuan.com for detailed specifications, quotations, and custom solutions today.
