How Does Industrial Rebar Bending Machine Help Fabricators Handle Complex Reinforcement Designs?

An industrial rebar bending machine helps fabricators handle complex reinforcement designs by delivering programmable precision, consistent angle control, and high-volume throughput that manual bending simply cannot match. These machines process high-tensile steel grades like HRB400 and HRB500, bending diameters from 6mm to 55mm with angle accuracy within ±1 degree. For bridge contractors, metro builders, and precast factories facing tight schedules and strict structural tolerances, this equipment removes the bottlenecks caused by labor dependency and human error, keeping every stirrup, hook, and seismic cage within specification from the first piece to the ten-thousandth.

Understanding Industrial Rebar Bending Machines and Their Role in Fabrication

What These Machines Actually Do

Engineers in charge of building structures tell the machine what shape to make out of support bars. It then uses either an electric motor (3kW to 7.5kW) or a hydraulic system to make the bars bend in that direction. Work plates and bent pins are made of alloy steel that has been melted under pressure to a Rockwell hardness of 58 to 62. They can work nonstop, 24 hours a day, seven days a week, because of how they are built. They never get too hot. Because of this, they are useful for big job sites and processing centers with more than one shift.

Electric vs. Hydraulic Mechanisms

Electric types can bend things more quickly and use less energy per bend, so they are good for jobs that need to be done over and over, like making stirrups. Large bars (40mm–55mm) are used in bridge pier caps and tube parts. When hydraulic types are used, these bars have more torque. Both types of benders are better for business use than manual ones. For example, a skilled worker who bends 12mm stirrups by hand can make around 40–60 pieces per hour, but an automated machine can make over 600 pieces per hour in the same conditions.

Why Procurement Teams Pay Attention?

Infrastructure contractors and equipment managers rate these machines based on three things that can be measured: how much work they get done in a shift, how well they measure each piece, and how much it costs to maintain them for each hour they're running. Sending shaped bars from one rebar processing center to several active project sites has an effect on the construction schedule's dependability, which in turn has an effect on the choice of capital equipment.

How Industrial Rebar Bending Machines Overcome Fabrication Challenges?

Managing Diverse Shapes and Strict Tolerances

Different types of bars, like earthquake stirrups, 135-degree hooks, and multi-point offset bars, need to be bent in the same way on thousands of pieces. Bending tools that are controlled by CNC have a PLC that saves angle programs. Users can choose a shape code and run all of them at once, without having to measure again. Spring-back compensation is part of the program. The machine over-bends by a certain amount based on the grade of steel that is put in. After elastic recovery, the final angle meets the standards.

Handling Large-Scale Production Demands

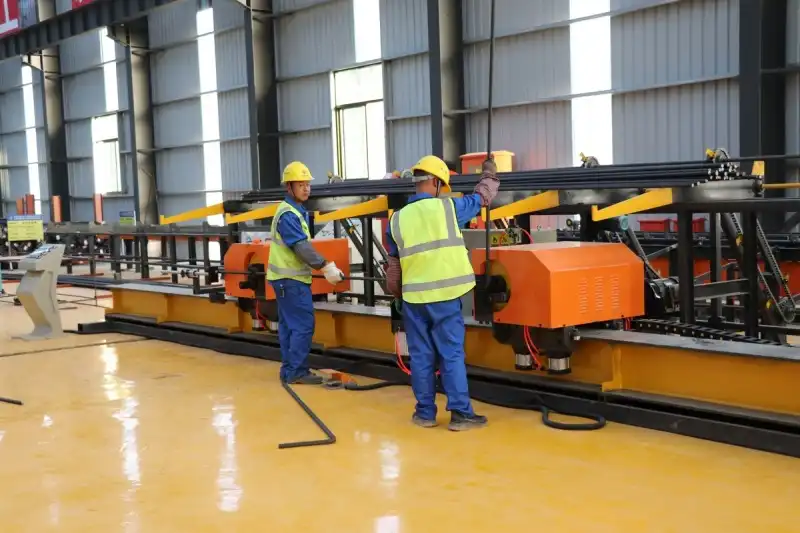

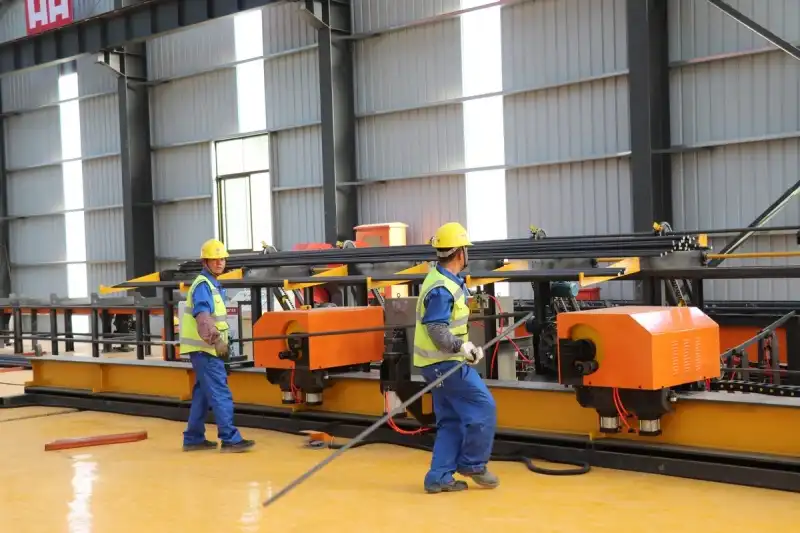

Every month, a lot of rebar is worked on in companies that make precast concrete and on high-rise building projects. An industrial rebar bending machine has two pedals that work together to bend the bar in both directions without moving it. This makes each piece run faster. A heavy-duty enclosed gearbox that runs in an oil bath keeps the temperature stable, even when the machine is running all the time. This cuts down on unplanned downtime, which is a big worry for people who are in charge of getting plans built.

Safety Features That Protect Operators

When it comes to industrial bending tools, there are emergency stop circuits, overload safety switches, and guards that go around the rotating bending disk. When you work with high-tensile bars that are under a lot of mechanical force, these features make it less likely that you will get hurt. Operators learn how to use the PLC interface that is unique to their machine. If you make a mistake during setup, you might reject a bent bar or, even worse, have a safety incident on a busy factory floor.

Key Factors to Consider When Choosing an Industrial Rebar Bending Machine

Match Machine Capacity to Your Rebar Sizes

Before buying equipment, fabricators should check to see what diameters of rebar they can use and how much the machine can hold. A 40mm single-bar bending industrial machine can usually handle three 12mm bars or two 16mm bars at the same time, as long as the total cross-sectional area stays within the scope of the machine. A piece of equipment that is too small will slow you down, and a piece of equipment that is too big will waste your money.

Evaluate CNC Control and Angle Accuracy

When projects need to be accurate over and over again at the ISO 9001 level, CNC integration is a must and can't be skipped. People who want to buy something should ask the firm to do a full-load test and a no-load run for 48 hours. As part of the load test, accurate angle models should be used to check how well the angle limit switch works. This step makes sure the machine meets the ±1-degree standard before it is sent out.

After-Sales Support and Spare Parts Availability

A broken rebar processing line costs money because bars might not get to the job site on time, which can cause concrete pours and other construction milestones to be pushed back. Buyers should check with different sellers how quickly they can help with technical issues, whether wear parts like bending pins, center pins, and rollers are available in the area, and whether the seller offers installation, training for operators, and a written maintenance plan.

Maintenance and Safety Tips for Long-Term Efficiency

Gearbox and Lubrication Schedule

For an industrial rebar bending machine, the enclosed gearbox should have its gear oil changed every 500 hours of use. After that, it needs to be changed every 1,500 to 2,000 hours. Bad bits can get into the oil from the bent steel and speed up gear wear if the plan slips. If the surfaces of the bending pins and rollers have changed shape, you should check them every week. As long as the contact face of the pin is worn, it should be changed before it changes the angle.

Calibration and Angle Verification

When the machine is in production, the angle limit switch and encoder should be checked again against a real angle pattern at least once a month. Most of the time, a worn center pin or a weak limit block is to blame for an uneven bending angle. It takes a while for this problem to show up. Making sure to check once a month can help you catch drift early and keep it from getting so bad that it costs a lot of time and materials.

Operator Training and Emergency Protocols

When someone works with steel bar bending equipment, they need to learn how to enter PLC programs, set off emergency stops, and free a stuck bar without turning off the safety circuit. Safety gear like safety glasses, steel-toed boots, and gloves that won't cut must be worn when loading and unloading. It takes less time to handle an emergency when clear instructions are posted at the machine.

Future Trends Shaping Industrial Rebar Bending Machines

CNC and IoT Integration

There are more and more machines on the market for rebar processing tools that can use the Internet of Things (IoT) to track bend numbers, cycle times, and error rates. These tools send information to a main screen. They can keep an eye on the health of their equipment and plan repairs for when they break down with this information. Better and better, CNC systems can now read digital bar schedules that come straight from BIM (Building Information Modeling) software. This keeps people from making mistakes when they enter data by hand between design and production.

Energy Efficiency and Sustainability

Equipment makers are changing motor systems so they use less power when they're not in use. They are also adding variable-frequency drives (VFDs) to make sure the motor output fits the load. Losing a few pounds of energy per ton of processed rebar can really change the costs of running a processing center with three shifts and the amount of carbon that is reported. That being said, these two things are getting more important to big contractors who have to meet their ESG responsibilities.

Flexible Procurement and Customization

Big EPC firms and engineering groups owned by the government are asking for tool sets that are more and more tailored to the projects they work on. For example, they want machines that can handle a certain range of widths, have bar straightening built in, or work with automatic feeding systems. When suppliers have their own technical teams, they can set up tools that meet these needs faster than anyone else.

Conclusion

When fabricators work on difficult plans for making things stronger, they need an industrial rebar bending machine that always works well when it is under a lot of stress. The three biggest problems in the process of making rebar can be solved by getting the right steel bar bending machine, making sure it's well taken care of, and getting help from a technically skilled supplier. These problems are the need for manual labor, angles that aren't always accurate, and unplanned downtime. Firms and processing centers that can handle large amounts of high-tensile rebar properly and correctly will have a clear advantage in the market as building projects get bigger and more involved.

FAQ

Can these machines process stainless steel or epoxy-coated rebar?

To keep the covering from getting broken at the bend, most industrial tools rated for HRB400/HRB500 should be used to bend epoxy-coated rebar. The speed should be slowed down a bit, though. Stainless steel has more spring-back than carbon steel, so you need tools with more torque to work with it.

How long does a typical industrial rebar bending machine last?

Heavy-duty machines with vacuum-heated alloy steel parts can be used for more than 10,000 hours without breaking if they are well oiled and wear parts are changed as they become worn.

What power supply is required?

Most setups use three-phase 380V/50Hz. To work with the power lines in your area, motors can be set up for 220V, 440V, or 60Hz systems. This helps with projects in North America, where 60Hz is the normal frequency.

When should I choose an industrial machine over a manual bender?

If you work with more than 500 pieces every day, need to be able to repeat angles to within ±3 degrees, or work shifts that never end, an industrial machine will give you a faster return on your investment than hand tools.

What warranty coverage is standard?

Most trustworthy sellers offer a 12-month warranty on important mechanical parts. They will also show you which wear parts, like pins, rollers, and disk plates, are not covered by the warranty because they break down over time.

Connect With Zhongji Luyuan — Your Industrial Rebar Bending Machine Supplier

Nearly 100 countries have bought CNC rebar manufacturing tools from Zhongji Luyuan since 2016. In the past, they've worked with China Nuclear Power, China Railway, and China State Construction. We make industrial rebar bending machines and are a dependable company. We make sure that the machines we send you have the right diameter range, power source, and production volume for your project. You can email our expert team at sales2@shandongluyuan.com or visit shandongluyuan.com to get prices and more information.
