What Benefits Can LYGL-350D Bring to Contractors Handling Bridge Pier and Foundation Reinforcement?

If you are managing bridge pier or foundation reinforcement projects and still relying on manual cage assembly, you already know the cost—in time, labor, and rework. The stirrup cage welding machine LYGL-350D from Zhongji Luyuan addresses these exact problems. Running on a fully automatic PLC control system with a touch screen interface, it produces up to 24 cage sections per 10-hour shift at 6 meters per section. One operator handles the entire process. For contractors under schedule pressure, that kind of output is a direct answer to a real operational problem.

Understanding the LYGL-350D Stirrup Cage Welding Machine

What It Is and Who It Is Built For

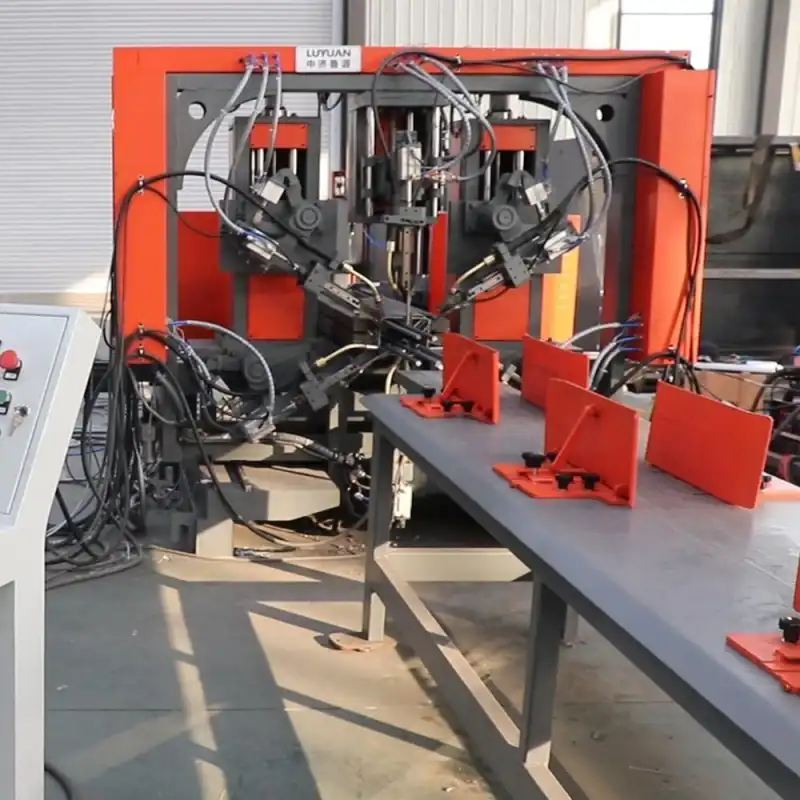

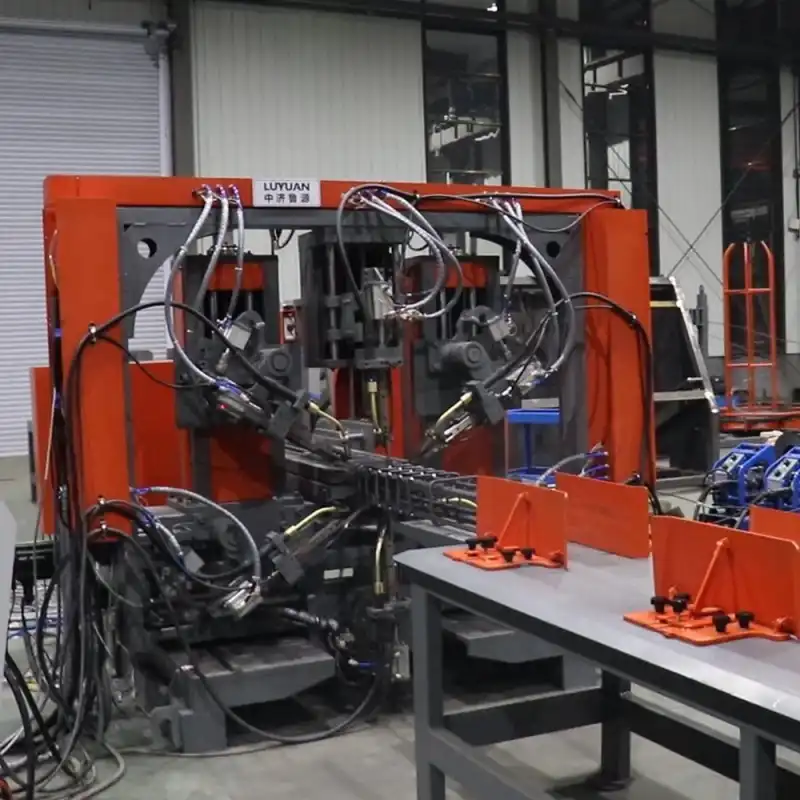

The LYGL-350D is a fully automatic machine for making reinforcement cages for bridge columns, pile foundations, and beam reinforcement. It works with cages that are 150 mm to 350 mm wide, main bars that are 10 mm to 20 mm wide, and leg bars that are 6 mm to 12 mm wide. The cage's length is set to 6 meters by default, but it can be changed. The machine can handle different types of projects because its stirrups can be set up in triangular, rectangular, or custom-shaped ways.

How the Welding Process Works

To connect the stirrup bars to the main longitudinal bars, the machine uses both gas-shielded welding and spot welding. Automatic control of spinning, pitch spacing, and the welding process is done by the PLC system. The stirrup spacing can be set to ≥ 30 mm, and the main bar spacing must be at least 100 mm. This makes a fully made cage in one pass, with uniform angles and no need for corrections after the weld.

Safety, Compliance, and Power Requirements

With a regulated power of 14.5 KW and a welding power of 100 KW, the LYGL-350D runs on 380V, 50Hz, 3-phase power. The air pressure needs to stay at 0.8 MPa. The high-strength steel frame keeps the machine from shaking while it's in use. Incomplete welds are stopped from going through the production cycle by built-in PLC logic. This directly supports structural compliance on regulated infrastructure projects.

Common Challenges in Bridge Pier and Foundation Reinforcement Welding

Manual Welding Bottlenecks

A four-person team manually welds about six to eight cages every day on a typical bridge pier project. The process is slowed down a lot by fatigue, poor skill, and moving the materials around. A 2019 study in the Journal of Construction Engineering and Management says that putting together rebar by hand causes up to 30% of schedule delays on-site in big infrastructure projects.

Quality Inconsistency and Structural Risk

Manual welds vary in how deep they go, how well they space things out, and how strong the joint is. Weak spots are found on bridge foundations that are subject to earthquakes or a lot of traffic. Inconsistent weld quality causes these spots, which inspectors mark as problems that contractors must pay to fix. According to field reports from highway building workers, rework on rebar cages takes 8–12% of the total time it takes to make the cages when they are put together by hand.

Labor Cost Pressure in the U.S. Market

As of 2023, the U.S. Bureau of Labor Statistics says that skilled ironworkers make between $30 and $55 an hour, depending on where they work and any union agreements. When multiple people work together to put together cages, the cost of labor per cage quickly adds up. Any answer that cuts down on group size without lowering output directly raises the project margin.

The stirrup cage welding machine LYGL-350D solves all of the above issues in a way that can be measured. When it comes to base strengthening, these are the main benefits this machine brings:

Core Benefits of LYGL-350D for Contractors

The LYGL-350D addresses each of the problems above in a measurable way. Here are the core advantages this machine brings to foundation reinforcement workflows:

• Single-operator productivity: The automated control system allows one technician to manage the full production cycle. With 24 sections completed in a 10-hour shift, this dramatically reduces crew requirements versus manual assembly.
• Dimensional accuracy: Cages exit the machine square, free from distortion, with precise stirrup spacing and consistent angles—no manual correction before installation.
• Flexible configuration: Supports 3 to 6 main bars, multiple stirrup shapes, and customizable cage lengths, which makes the machine suitable across pile foundations, bridge piers, and column reinforcement.
• Compact footprint: At 16 m × 3 m, the machine fits within most precast yards and jobsite fabrication areas without major rearrangement.

These advantages translate directly to lower per-unit production costs and faster project delivery. Contractors who have adopted automated cage welding systems report labor cost savings of 40–60% on rebar cage production compared to manual methods, according to field data from prefabricated construction benchmarks in East Asia and Southeast Asia.

How LYGL-350D Compares with Other Stirrup Cage Welding Machines

LYGL-350D vs. LYGL-300

Smaller cage diameters and fewer main bar configurations can be handled by the LYGL-300. The LYGL-350D has a wider range of cage diameters (up to 350 mm), can handle larger main bar diameters (up to 20 mm), and can support different-shaped stirrup forms than the LYGL-300. For work on bridge piers and foundations, where cage sizes change a lot depending on the load, the LYGL-350D gives buying teams more options without having to buy more than one machine.

LYGL-350D vs. Manual Welding

Teams that weld by hand make six to eight cages every day. Every 10-hour shift, the stirrup cage welding machine LYGL-350D makes 24 parts. In addition to speed, the machine gets rid of the differences in quality that come with doing work by hand. When tolerances are tight on bridge and tunnel projects, an automated system's consistent output cuts down on inspection failures and waste.

Total Cost of Ownership

The purchase price is only one part of the estimate for getting something. With a power level of 14.5 KW, the LYGL-350D keeps energy costs low during each production run. When the group size goes down, ongoing labor costs go down. It's easy to take care of electrodes. Every 500 hours of use, they should be cleaned and checked for rust. The system's IoT module allows for online software changes and troubleshooting, which cuts down on the need for service trips to the site.

Procurement and Support for the LYGL-350D

Global Purchasing Channels

South Korea, Malaysia, Thailand, Kazakhstan, Israel, South Africa, and almost 100 other countries have bought equipment from Shandong Zhongji Luyuan Machinery Co., Ltd. For contractors in the United States, you can send a purchase inquiry straight to zjly2025.aixdb.cn or sales2@shandongluyuan.com through the company website. The team offers technical advice, help with custom configuration, and reasonable prices based on the size of the project.

Delivery, Installation, and Training

As part of the delivery package, Zhongji Luyuan gives installation advice and operator training. Because the machine only needs one operator, training takes very little time. The company maintains a full network of after-sales service providers and makes sure that extra parts are always available so that busy project sites don't have to wait.

Warranty and Long-Term Support

Equipment sold by Zhongji Luyuan comes with a warranty and free professional help for as long as you own it. The IoT diagnostics module lets the service team find problems from afar and send answers more quickly than with standard on-site service methods. This support structure lowers operational risk for contractors who run operations at more than one site.

Conclusion

For bridge pier and foundation reinforcement, quality must be consistent, production must be quick, and labor costs must be kept low. All three are met by the stirrup cage welding machine LYGL-350D. Because it has gas-shielded welding, fully automatic PLC operation, single-operator control, and a flexible cage configuration, it can meet the production needs of infrastructure contractors who are working on tight deadlines. With its global service network and track record, Zhongji Luyuan makes it easy for U.S.-based project teams to buy products. If you are looking at rebar cage welding tools for a project coming up, the LYGL-350D is one that you should talk to the team about directly.

FAQ

1. How fast does the LYGL-350D produce cages?

The machine completes 24 cage sections per 10-hour shift, with each section measuring 6 meters. Welding speed reaches 20–30 joints per minute depending on rebar diameter and spacing settings.

2. Can the machine handle different cage shapes?

Yes. The LYGL-350D supports triangular, rectangular, and special-shaped stirrup configurations. The PLC system allows rapid parameter changes between job types without requiring physical retooling.

3. How many operators does it require?

One trained technician manages the full production cycle from the control console. This is one of the key labor-saving features for contractors looking to reduce crew size on rebar processing tasks.

4. What maintenance does the machine need?

Electrodes should be dressed every 500 operating hours. The hydraulic and pneumatic systems require routine pressure checks. The IoT module supports remote diagnostics, which reduces unplanned downtime between scheduled maintenance intervals.

5. Is the machine suitable for U.S. infrastructure project standards?

The LYGL-350D produces cages with consistent dimensional accuracy and stable weld quality, compatible with the structural requirements of bridge pier and foundation projects. For project-specific compliance requirements, the Zhongji Luyuan technical team can provide documentation and configuration guidance.

Request a Quote for the LYGL-350D — Contact Zhongji Luyuan Today

Zhongji Luyuan has helped companies in almost 100 countries that work for China Railroad, China State Construction, and other large infrastructure groups. The stirrup cage welding machine LYGL-350D provider team is ready to give you prices, configuration suggestions, and delivery times that are unique to your project. You can email sales2@shandongluyuan.com to make a request and get a full technical quote for your bridge pier or foundation reinforcement project.
