Why choose Pile cage welding machine LYGH-1250D for pile foundation work?

Choosing the right tools for making reinforcement cages has a big effect on the results of projects in the energy, rail transit, and building sectors. For use in pile foundations, the Pile cage welding machine LYGH-1250D offers great efficiency, accuracy, and dependability. This machine has fully automatic PLC control and top-mounted double-gun welding technology, which makes it less reliant on workers while keeping the quality of the cages the same. It can work with main bars from φ16 to 40 mm and spiral bars from φ6 to 12 mm. It can make cages up to φ1250 mm in diameter, which makes it perfect for highway bridges, metro stops, nuclear sites, and big industrial developments that need strong, deep foundation systems.

Understanding the LYGH-1250D Pile Cage Welding Machine

For modern building projects, support bars that meet strict building standards and tight deadlines are needed. Weld quality isn't always consistent with manual methods; it takes too long to do, and workers who have to do the same thing over and over again are at risk of getting hurt. These problems can be fixed with automated equipment that makes pile cages by combining smart control systems with precise machines.

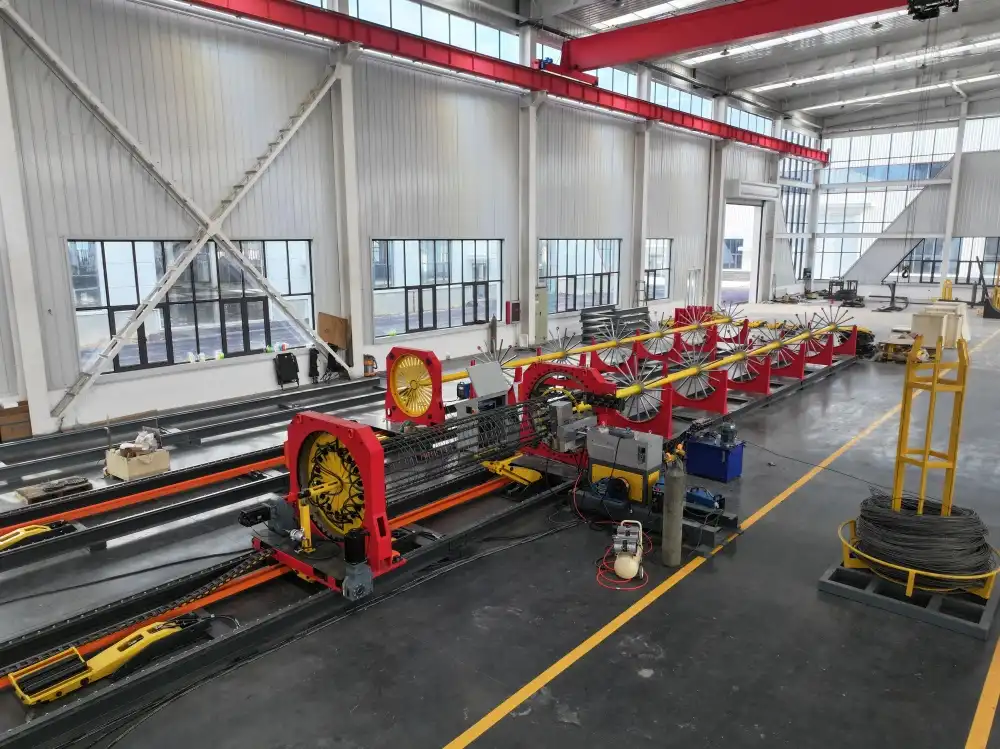

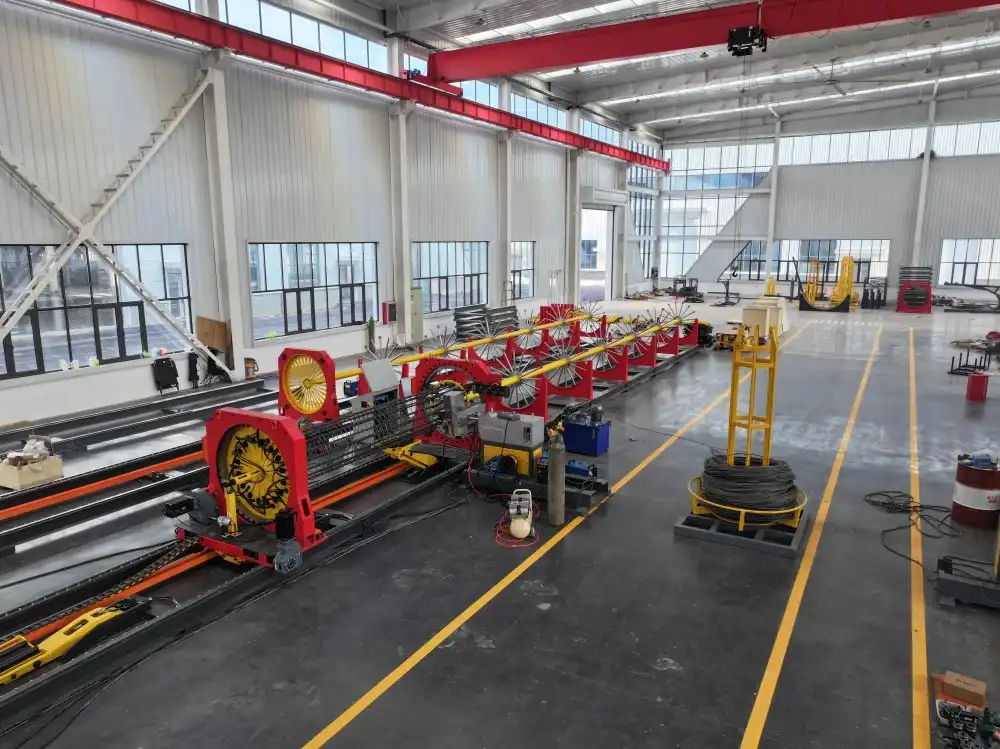

The Pile cage welding machine LYGH-1250D is a clever way to put together a cage because it has electrical, hydraulic, and gas systems all built into a high-strength steel frame. Its PLC controller and touch screen interface make it easy for workers with little training to set the cage's width, length, and spiral spacing. Once the settings are made, the machine places longitudinal rebars automatically, winds spiral reinforcement at set times, and welds using two pneumatic welding guns that are placed above the moving assembly platform.

Technical Specifications That Meet Infrastructure Demands

This machine needs 380V three-phase power and uses a total of 60 KW, with 30 KW set aside for welding. For a strong grip on the rebar, hydraulic pressure can reach 16 MPa, and the welding guns are powered by 0.8 MPa of compressed air. Standard production allows for 12-meter-long cages, but customization goes beyond this size for different base levels. The 28 m × 8 m footprint fits in most fabrication yards at rebar processing centers and on-site batch plants, so builders can use this option without having to make major changes to the building.

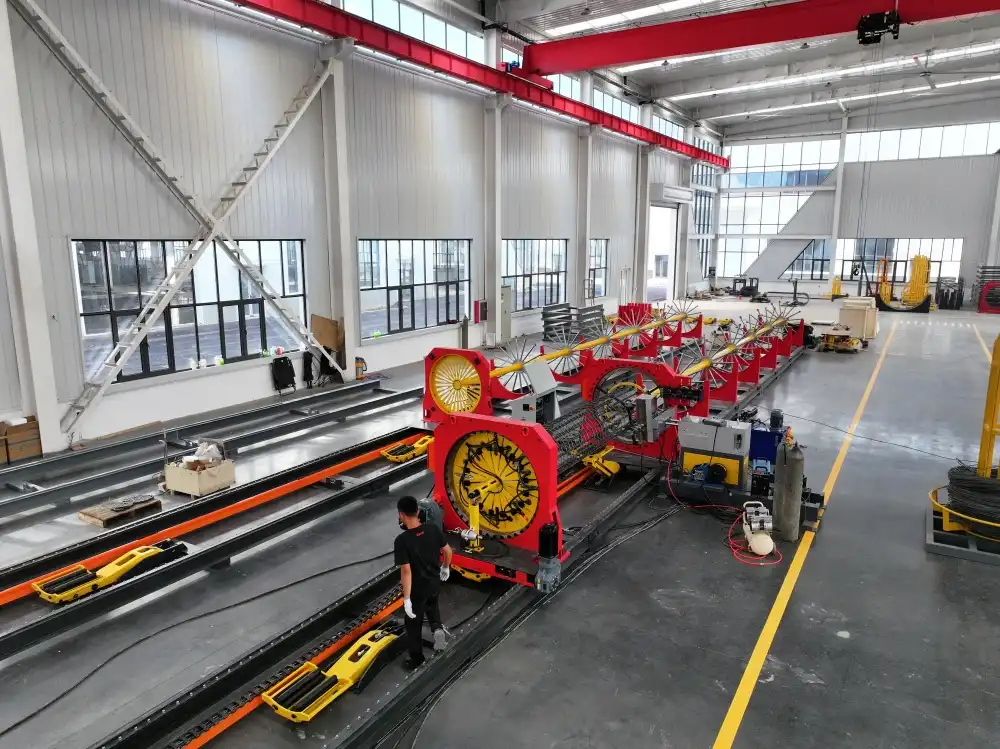

With a two-person crew—one person running the control interface and the other taking care of feeding the material—eight 12-meter pieces can be made in ten hours. This output is many times higher than that of manual crews. This shortens project timelines for high-speed train viaducts, subway stops in cities, and bridge pier foundations, where delays increase costs very quickly.

Overcoming Manual Welding Limitations

In the old way of putting together cages, trained welders had to physically attach longitudinal bars to spirals, which could go wrong. Uneven weld penetration damages the structure, uneven spiral spacing doesn't meet engineering standards, and mistakes caused by tiredness get worse as shifts go on. The jobs of Equipment Manager and Plant Manager give priority to methods that get rid of these factors. The Pile cage welding machine LYGH-1250D automated workflow takes away the need for human judgment during the manufacturing process. This results in consistent weld strength at every joint and accurate spiral pitch along the length of the cage, which is important for load transfer in seismic zones and high-stress foundation uses.

Core Features and Benefits of the LYGH-1250D Welding Machine

Modern building tools need to be able to automate tasks while also being easy to use. When project directors are thinking about buying capital equipment, they look at how the new machinery will fit in with current processes, how it will affect crew productivity, and how it will fit with long-term operating strategies. This automatic welding system's design theory takes all of these concerns into account by making smart engineering choices.

Automation and Precision Control Systems

The PLC-based control platform of the Pile cage welding machine LYGH-1250D can save different cage setups, which lets it quickly switch between different pile specs without having to re-calibrate everything by hand. Through a touch screen, operators enter the main bar count, spiral width, spacing gaps, and cage measurements. The device instantly figures out the feeding rate, rotation speed, and timing of the welding gun. This smart way of making things cuts down on setup mistakes that happen with traditional methods and lets workers with less experience do expert-level work after just a little training.

When compared to side-mounted setups, top-mounted double-gun welding is more stable. Gravity helps the electrode contact pressure, which makes the weld spots straighter and more consistent, and meets the standards for shear strength, topping 1.5 times the strength of the base material. Longitudinal ribs stay in place during the welding process, which stops the cages from bowing and bending that can happen when they are made by hand. Technical Directors who care about dimensional limits, like how this level of accuracy cuts down on field changes and problems with pouring concrete.

Rugged Construction for Demanding Site Conditions

Equipment used on infrastructure projects is subject to extreme temperatures, vibrations from nearby heavy machinery, and the rough surroundings of steel production operations. The high-strength steel frame structure doesn't bend or move out of place under these situations. Hydraulic parts are made to work continuously, and electrical systems are designed to keep dust out, which is common in processing plants. This means that the equipment will be up and running for longer, which is important for Operations Managers who are keeping an eye on repair budgets and production continuity measures.

Labor and Operational Cost Reduction

As the cost of trained workers goes up, building companies are forced to find the best way to assign their crews. Five to seven workers might be needed per shift to put together a cage by hand, but the Pile cage welding machine LYGH-1250D works well with just two people. This 60–70% drop in labor costs has a direct effect on the economy of the project, especially on building projects that last more than one year and where labor costs add up over time. Aside from saving jobs, automated welding uses electrodes and power more effectively than human arc welding, which lowers the cost of consumables per cage unit. When procurement managers figure out the total cost of ownership, they find that payback times for medium to big project portfolios are usually between 18 and 24 months.

Enhanced Safety and Reduced Operator Fatigue

Arc flash, smoke, and physical strain are all caused by welding. When the welding process is automated, workers are no longer directly exposed to these dangers. Instead of moving heavy welding tools around rotating cages, operators watch the work from a control desk. This improvement to safety cuts down on workers' compensation claims and is in line with how safety programs are being looked at more closely by companies that are taking on government contracts and partnerships with state-owned enterprises.

Pile cage welding machine LYGH-1250D can work with cages that are between φ350 mm and φ1250 mm in diameter, which makes it useful for a wide range of pile types, from thin friction piles used in home foundations to large-diameter drilled shafts that support bridge towers and high-rise cores. This range lets workers use a single main platform for fabrication instead of keeping up with a bunch of different specialized tools. This makes it easier to train operators and keep spare parts on hand.

LYGH-1250D vs Other Pile Cage Welding Machines – A Rational Choice

Evaluating the Pile cage welding machine LYGH-1250D from the perspectives of technical ability, purchase costs, and long-term support infrastructure is part of choosing equipment. There are a number of different automatic cage welding options on the market, each with its own design philosophy and set of capabilities. Knowing where this model stands in comparison to others on the market helps Procurement Managers and Technical Directors make smart choices.

Performance and Output Efficiency

When competing medium-diameter machines try to get better at one measure, they often have to give up either production speed or weld quality. Some high-speed systems have faster rotation rates, but the accuracy of the weld isn't as good because they only have one gun, and the cage has to rotate more than once for each weld. Others put more emphasis on weld strength by using slower, more careful methods that slow down production. The dual-gun design is balanced; welding at different cage points at the same time doubles output while keeping spot uniformity and penetration depth. This engineering method makes sure that the daily output of eight sections is met without making workers choose between quality and quantity.

Comparing Manual vs. Automated Methods

Welding by hand is still popular in places where labor is cheap or on smaller jobs where buying tools doesn't seem worth it. But even in places where price is important, quality control problems caused by manual methods add up to secret costs. Cages that are rejected because of mistakes in measurements, repairs that need to be done on the job site to fix welding problems, and plan delays caused by inconsistent production rates often cost more to run than automatic equipment. These problems can be fixed by the Pile cage welding machine LYGH-1250D, which has reliable process control that gets rid of differences in shifts, teams, or welder skill levels.

Customization and Operational Flexibility

The normal configuration works for most tasks, but for some unique projects, the specs need to be changed. For hydropower dam foundations, cages that are longer than 12 meters may be needed. For nuclear containment structures, spiral spacing may need to be tighter. For marine pier projects, corrosion-resistant treated rebars may need different welding parameters. The machine's design can be changed to fit these needs. Longer conveyor sections can handle cages that are longer, customizable welding processes can be changed to work with different bar coatings, and the distance between spirals can be set below the maximum of 300 mm, depending on the needs of the project. Having this flexibility means that the tools can be used for a wide range of projects instead of just a few unique ones.

Transparent Assessment of Capabilities

An honest review of the Pile cage welding machine LYGH-1250D reveals that no piece of equipment is perfect for every situation. If you need cages with very small diameters (less than 350 mm) or very large diameters (more than 1250 mm), this machine isn't the best choice, as other types are better suited for those requirements. In the same way, businesses that only produce three or four cages a week may find that manual methods are more cost-effective, even though they are less efficient. Matching the capabilities of tools to the needs of a project demonstrates the level of technical expertise that Engineering Directors look for in long-term supplier relationships.

Procurement & After-Sales Support: Making a Confident Purchase

Aside from technical specs, buying capital equipment also involves thinking about how reliable the provider is, how the service system works, and the business terms that protect the value of the investment. When Supply Chain Managers look at providers of welding tools, they look at the whole ownership experience.

Global Distribution and Purchase Flexibility

Shandong Zhongji Luyuan Machinery works with approved dealers in more than 100 countries to make sure that foreign projects have local support. This network not only makes it easier to send equipment, but it also keeps extra parts in stock in different areas, which cuts down on downtime when parts need to be replaced. When businesses buy things from each other, the approval processes and funding plans are often very complicated. The company can handle bulk orders from contractors who are setting up multiple job sites at the same time, and they work with equipment lending partners to set up payment terms that work with the project's cash flow and billing plans for milestones.

Comprehensive Warranty and Maintenance Support

Pile cage welding machine LYGH-1250D Standard guarantee coverage includes flaws in the manufacturing process and broken parts during the first few months of use, giving buyers confidence in the build quality. After the warranty expires, proactive maintenance guidance helps crews carry out regular inspections, lubrication schedules, and necessary adjustments to prevent minor issues from developing into failures that could interrupt production. When technical problems occur, responsive customer support can provide online troubleshooting or arrange for field service technicians to carry out on-site repairs. This support system is especially important for projects in remote locations where machine downtime can directly impact the scheduling of critical operations.

Delivery Timelines and Implementation Support

When equipment needs to come, be set up, and production can begin, all of these things must happen during specifically scheduled mobilization times for infrastructure projects. Clear promises of delivery give project planners the confidence to safely schedule base work. Installation support makes sure that the base is properly prepared, utilities are connected, and the equipment is calibrated for the first time once it arrives. Operator training programs teach people how to do their jobs well by teaching them not only how to do everyday tasks but also how to fix common problems, check for quality, and know when to ask for expert help. This implementation helps speed up the time it takes to go from delivering the tools to full production capacity.

Operating the LYGH-1250D – Practical Guidelines and Safety

To get the most out of your equipment's value, you need to know the best ways to run it so that it consistently performs well and is reliable over time.

Step-by-Step Operation and Training Resources

Before starting production, the materials are prepared. Longitudinal rebars are cut to the right lengths, and the spiral wire stock is checked for rust and other things that could affect the quality of the weld. When operators put the main bars into the setting fixings, they make sure that they are evenly spaced around the cage's perimeter. The touch screen makes it easy to enter parameters like the total length, the diameter of the cage, the width of the circular bars, and the distance between them. Once set, the automated cycle starts. The spinning platform spins at a controlled speed as spiral wire comes from the supply spool. Welding guns drop at set times to join the wires together. During commissioning, these steps are covered in training materials that include both hands-on teaching and operational manuals that list upkeep schedules and how to make adjustments.

Safety Compliance and Risk Mitigation

The control system of the Pile cage welding machine LYGH-1250D has built-in safety features like emergency stop buttons in several locations, interlocks that stop operation when safety guards are open, and an automatic shutdown function if the welding current or hydraulic pressure falls below safe levels. Operators are trained to use appropriate safety equipment, such as safety glasses and hearing protection, even though automation reduces direct contact with the machine. The equipment complies with international workplace safety standards for metalworking tools, providing the necessary documentation to support safety audits conducted by project owners and regulatory authorities.

Troubleshooting and Maintenance

Common practical problems, like welds that don't look the same, spirals that aren't spaced out evenly, or feeding that gets stuck, are usually caused by simple things like worn welding tips that need to be replaced, spiral wires that aren't taut enough, or contamination building up on the guide wheels. Helpful troubleshooting information helps workers figure out what's wrong and fix it without having to call for help. As part of routine maintenance, hydraulic seals are checked, electrical contacts are cleaned, the position of the rotation platform is checked, and the pressure in the air system is tested. Following these rules makes parts last longer and keeps the quality of the welding over thousands of production runs.

Conclusion

In conclusion, for making pile cages, choosing the right tools means finding a balance between production capacity, quality consistency, work efficiency, and long-term dependability. More and more, infrastructure workers, rail transit makers, and energy project developers are being pushed to meet tighter deadlines while keeping costs low and quality high. These needs are met by automated reinforcement cage welding, which uses repeated steps that get rid of the need for human error. The Pile cage welding machine LYGH-1250D's combination of dual-gun welding accuracy, PLC-controlled automation, wide diameter range, and strong construction makes it a clear winner. It cuts down on the need for a crew, speeds up production, keeps cage sizes constant, and makes the workplace safer. This equipment is a smart investment for construction companies that have to compete in quality-sensitive, time-sensitive markets because it comes with full after-sales support and has been used successfully in a wide range of situations, from high-speed rail viaducts to nuclear facility foundations.

FAQ

What makes the LYGH-1250D superior for precision welding compared to manual methods?

The double-gun design on top and the PLC control system get rid of human error. Every weld gets the same amount of electrode pressure, current length, and accuracy in placement. Automated timing makes sure that spot spacing is the same along the whole length of the cage, and set parameters stop the dimensional drift that happens when work is done by hand, where welding tiredness lowers quality as shifts go on.

Can the machine be customized for specialized project requirements?

Customization does allow cage lengths longer than 12 meters, different bar diameter ranges, different spiral spacing intervals, and specific welding settings for covered rebars used in corrosive environments. Engineering teams work with clients to change normal configurations to fit the special needs of marine building, nuclear power plants, and other tough environments.

What after-sales support ensures continuous operation?

Full support includes warranty coverage, training for operating teams on maintenance tasks, help with troubleshooting from afar, and dispatching field service workers when needed. Authorized dealers keep extra parts in stock in their own regions, and the maker provides technical paperwork on how to do regular maintenance tasks that keep systems from going down without warning. This support system protects the value of the equipment investment for as long as it works.

Partner with a Trusted Pile Cage Welding Machine LYGH-1250D Supplier

Zhongji Luyuan wants equipment managers, project leaders, and procurement professionals to look into how automated cage manufacturing can improve the speed and quality of foundation building. Since 2016, we've helped China Railway, China State Construction, and infrastructure projects in South Korea, Malaysia, Thailand, Kazakhstan, and other places with CNC reinforcement processing. Research-driven innovation and strict quality control are combined at our factory in Shandong Province to make equipment for the high-speed train, nuclear power, and commercial building markets that demand top-notch performance. Email our team at sales2@shandongluyuan.com to get full specs, production demonstrations, or proposals for customizing our products for your project. We offer the technical know-how and support systems that turn capital investment into a long-term competitive edge, whether it's setting up a steel processing center or putting in automated manufacturing at project sites. Find out how the right pile foundation tools supplier can help you finish your job faster and better.
