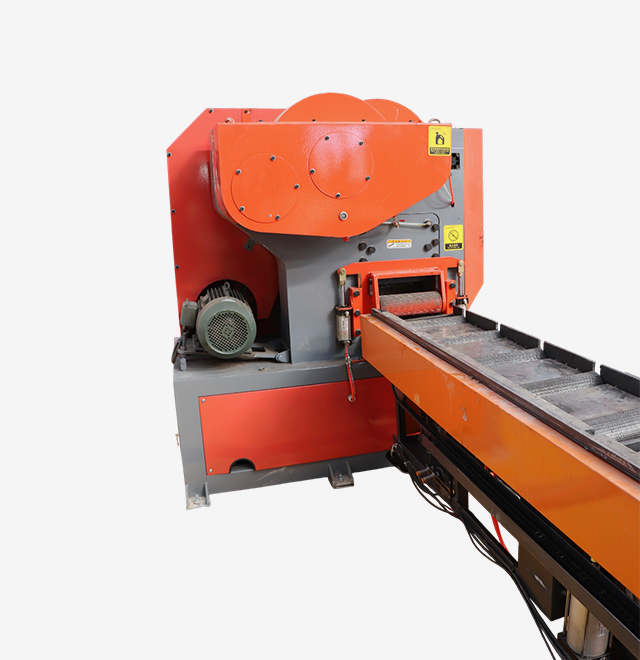

Automatic Rebar Cutting Production Line
2.Operation Mode: Fully automatic CNC system
3.Shearing Mode: Electric cutting and sawing integration
4.Rebar Diameter Range: φ10–40 mm
5.Shearing Length Range: 0.7–12 m
6.Shearing Precision: ±2 mm
7.Power Supply: 380V / 50Hz / 3-phase
8.Control System: CNC + touch screen control panel
9.Production Efficiency: 80–120 pieces/hour
10.Main Materials: Heavy-duty steel structure frame
11.Application: Bridge, building, and infrastructure rebar processing
Product Description
Automatic Rebar Cutting Production Line: High-Precision CNC Steel Processing Solution
Modern construction and infrastructure projects demand precision, speed, and efficiency in steel reinforcement processing. The Automatic Rebar Cutting Production Line from Shandong Zhongji Luyuan Machinery Co., Ltd. delivers enterprise-grade performance through fully automated CNC integration. Handling rebar diameters from φ10–40 mm with precision of ±2 mm, this intelligent system achieves 80–120 pieces per hour while maintaining exceptional cutting quality.
Established in 2016 with enlisted capital of RMB 50 million, our company specializes in high-end CNC rebar preparing hardware trusted by China Railroad, CRCC, CSCEC, and sent out to about 100 nations around the world. Our cutting generation line kills manual estimation blunders, diminishes labor costs, and guarantees reliable bunch quality over requesting applications from bridges to atomic control facilities.
What is an Automatic Rebar Cutting Production Line?

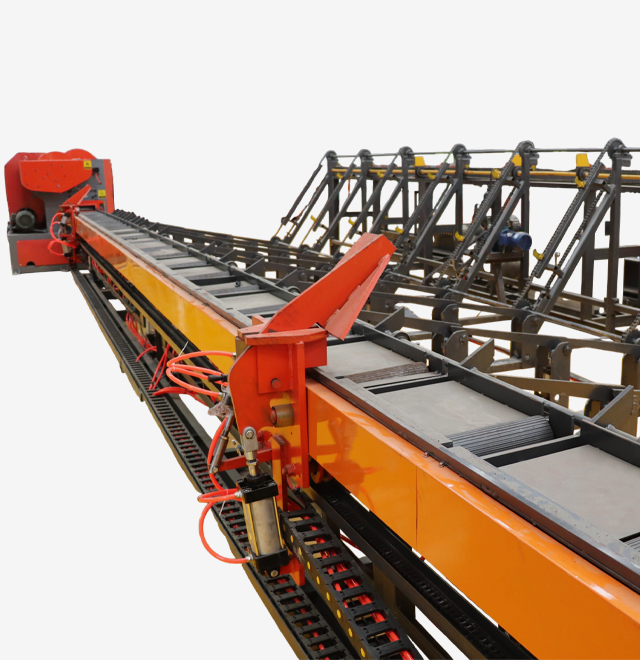

An Automatic Rebar Cutting Production Line represents a comprehensive CNC-integrated industrial system engineered for large-scale reinforcing steel processing. The system integrates loading racks, servo-controlled feeding mechanisms, heavy-duty shearing units, and automated discharge systems into one streamlined workflow.
You'll appreciate how this innovation addresses basic industry challenges. Conventional manual cutting makes fabric squander through estimation blunders and postures noteworthy security dangers. Your administrators confront weakness amid monotonous assignments, whereas generation consistency endures over shifts.
Our PLC-controlled synchronization guarantees millimeter-level precision all through high-volume cycles. The touch screen control board rearranges parameter alterations, permitting fast changeovers between determinations without specialized specialized training.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Steel Bar Diameter Range | φ10–38 mm |
| Shear Length Range | 750–12,000 mm |
| Length Tolerance | ±5 mm |
| Shearing Precision | ±2 mm |
| Processing Capacity (φ10 mm) | 10 bars simultaneously |
| Processing Capacity (φ32 mm) | 1 bar |
| Shear Times per Minute | 20 cuts/min |
| Conveying Speed | 50 m/min |
| Production Efficiency | 80–120 pieces/hour |
| Total Power | 14 KW (including air compressor) |
| Average Power Consumption | 8 KW/h |
| Power Supply | 380V / 50Hz / 3-phase |
| Equipment Footprint (L×W×H) | Approx. 26×3.2×1.5 m |
| Receiving Bin Configuration | 3×2 arrangement |
| Effective Blade Width | 200 mm |
Key Technical Advantages
Fully Integrated Automation
Your production line operates continuously from feeding through final discharge. The system automatically straightens, measures, and cuts without manual intervention between stages.
Superior Cutting Quality
You'll receive smooth, burr-free cuts with flat ends requiring no secondary processing. This quality directly affects subsequent threading and welding operations in your workflow.
Intelligent Control System
The PLC-based controller with touch screen interface allows rapid parameter adjustment. You can store multiple cutting programs and switch between specifications in seconds.
Multi-Diameter Flexibility
Processing diameters from 10 mm to 38 mm means you handle diverse project requirements without equipment changes. The system adapts to different steel grades including HRB400 and HRB500.
Labor Efficiency
Only one operator supervises the entire production line. This dramatically reduces your labor costs while improving safety by minimizing direct material handling.
24/7 Operational Stability
The heavy-duty steel structure and robust hydraulic system support continuous operation. You maintain consistent output during extended production runs without performance degradation.
Material Waste Reduction
Batch cutting consistency minimizes off-spec pieces. Precise length control means you optimize raw material usage across large orders.
Primary Application Scenarios
Large-Scale Infrastructure Projects
Your bridge construction, high-speed rail, and highway projects require massive quantities of fixed-length rebar under strict tolerances. This Automatic Rebar Cutting Production Line operates reliably in open-air, high-dust environments typical of major infrastructure sites.
Professional Rebar Fabrication Plants
When your facility processes multi-batch, multi-specification orders daily, minimal changeover time becomes critical. The system's quick parameter adjustment and stored programs maximize your daily throughput.
Precast Concrete Component Factories
Integration with ERP systems enables synchronized production for just-in-time delivery. You coordinate reinforcement cage production with casting schedules, reducing inventory costs while maintaining tight construction timelines.
Quality Control and Performance Standards
Positional Accuracy Testing
Servo-motor and encoder feedback loops undergo rigorous validation. Cumulative length error testing ensures your system maintains specification across thousands of cuts.
Shearing Surface Inspection
Cut end quality directly impacts your downstream processes. We inspect for deformation or burrs that could compromise threading or welding operations.
Hydraulic System Integrity
Pressure-drop tests and leak detection under maximum load verify system reliability. You receive equipment capable of sustained performance under demanding production schedules.
Control System Stability
PLC software undergoes stress testing against power fluctuations and emergency stop scenarios. Recovery protocols ensure minimal production disruption during unexpected events.
Material Compatibility Verification
Testing against high-tensile grades confirms shearing capacity across your material specifications. The system handles variations in hardness without adjustment requirements.
Why Choose Shandong Zhongji Luyuan
You partner with a manufacturer backed by substantial engineering resources and proven industry experience. Our equipment serves China's leading construction enterprises in projects ranging from nuclear power facilities to urban rail transit systems.
Global export to nearly 100 countries demonstrates our equipment's adaptability to diverse market requirements and regulatory environments. You benefit from continuous product refinement driven by international feedback.
Our nationwide service network provides professional technical support and maintenance assistance. Fast response mechanisms minimize your downtime and protect production schedules.
Frequently Asked Questions
Q: How does the system process different steel grades like HRB400 versus HRB500?
A: Adjustable hydraulic pressure and specialized high-strength alloy blades ensure clean cuts across material hardness variations. You don't need manual adjustments when changing between grades during production.
Q: What causes length inaccuracies and how are they prevented?
A: Feeding roller slippage and encoder wear are primary factors. Our dual-point measurement system and high-friction polyurethane rollers eliminate these issues, maintaining your specified tolerances throughout extended runs.
Q: Can you customize the production line for limited floor space?
A: Yes. The modular design accommodates L-shaped, I-shaped, or U-shaped configurations. We work with your existing facility footprint to optimize workflow without compromising performance.
Q: What maintenance schedule do the shearing blades require?
A: Blades typically need rotation every 5,000-10,000 cuts depending on average diameter processed. After four rotations, replacement ensures continued cutting quality. This predictable schedule simplifies your maintenance planning.
Q: Does the system offer remote diagnostic capabilities?
A: Our latest CNC units include IoT modules for real-time fault code monitoring and remote software updates. You reduce downtime through proactive maintenance and immediate technical support access.
Q: How quickly can operators learn the control system?
A: The intuitive touch screen interface with visual prompts enables basic operation training within hours. Your existing staff can manage the system without extensive technical backgrounds.
Q: What power infrastructure does installation require?
A: Standard 380V three-phase power with 14 KW total capacity including air compressor. Most industrial facilities accommodate these requirements without electrical upgrades.
Q: Can the line integrate with our existing production management software?
A: Yes. The PLC controller supports standard industrial communication protocols. We configure integration with your ERP or MES systems for seamless production data flow.
Contact Us
Ready to enhance your rebar processing efficiency? Our technical team provides customized solutions matching your specific Automatic Rebar Cutting Production Line requirements.
