A One-of-a-Kind automatic cage welding machine for large parts

Large-scale infrastructure projects demand precision, speed, and reliability in rebar cage fabrication. An automatic cage welding machine specifically engineered for large parts revolutionizes how contractors approach pile foundation construction, bridge development, and tunnel reinforcement. Unlike conventional manual welding methods prone to inconsistency and safety hazards, this advanced CNC-controlled equipment automates the entire process—from longitudinal bar positioning to spiral bar winding and precision welding. By handling oversized components with diameters up to 2500mm and lengths reaching 12 meters, these specialized machines eliminate human error while delivering exceptional structural integrity required for high-stress load-bearing applications.

Introduction

Infrastructure contractors all over the US are under more and more pressure to cut costs and speed up project timelines. Making rebar cages by hand is still a problem because it takes a lot of work, mistakes are common, and the tolerances needed by modern engineering standards are not met [^1]. By combining synchronized rotation systems with high-frequency welding technology, rebar cage welding equipment made for large parts directly solves these problems. This guide is for equipment managers, project directors, and procurement workers who want to find smart manufacturing options that will change the way they make things. Knowing the technical details, operational benefits, and integration needs of these systems helps people make decisions about which equipment will give them the best return on investment (ROI) through lower costs, faster work, and better weld quality on infrastructure projects for highways, rail transit, and energy.

Understanding Automatic Cage Welding Machines for Large Parts

Core Technology Behind Large-Part Cage Fabrication

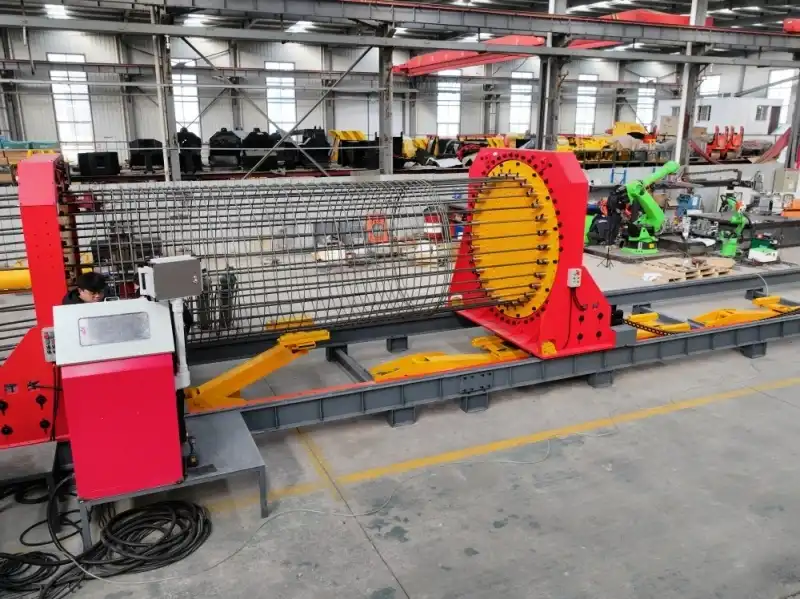

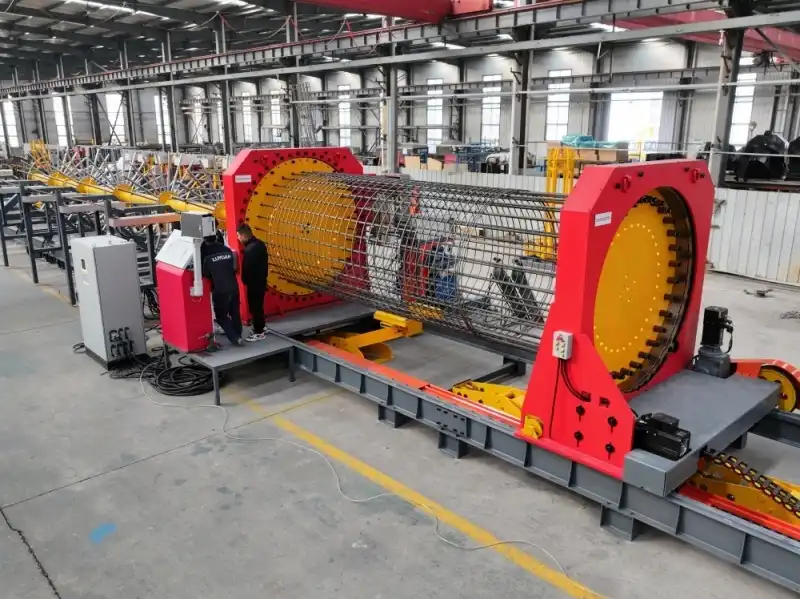

Programmable logic controllers (PLC) and easy-to-use touch screens run the coordinated mechanical systems that make rebar cage welding platforms work. The LYZD-GJL2500 model is an example of this technology. It has a fixed disk that rotates and a mobile disk that moves. These disks work together to place longitudinal bars correctly, and spiral reinforcement wire flows through servo-driven mechanisms. With gas-shielded arc welding, the fusion points between crossing bars are always the same, and the penetration levels meet ASTM A615 standards for structural reinforcement[^2]. This fully automatic mode gets rid of the placement problems that come with hand welding, where environmental factors and tired operators can lower the quality of the joint.

Technical Specifications That Define Performance

The capacity of the equipment affects how well it works for different job sizes. Modern cage welding systems can work with main bar widths ranging from 18mm to 40mm and spiral bars ranging from 8mm to 16mm. The diameters of the cages can be adjusted from 700mm to 2500mm. The 12-meter length capacity meets the needs of most pile foundations and doesn't require any mid-section joints that lower the strength of the structure. These machines use 380V three-phase power and 30kW of total power (not counting the 100kW of power used for welding). They can make 13 full cages in a 10-hour shift. During the welding cycle, rigid holding force is provided by hydraulic pressure systems that reach 16 MPa, and wire feeding accuracy is maintained within ±2mm pitch accuracy by air controls at 0.8 MPa.

Differentiating Automation Levels for Procurement Decisions

Semi-automatic systems need help from an operator to load the bars and make adjustments to their positions between cycles. These systems work well for fabrication centers that deal with a range of specifications and moderate volumes. Fully automatic setups, such as an automatic cage welding machine, include robotic loading systems and constant wire feeds that improve speed for large production runs where changes to specifications do not happen very often. Advanced models only need one operator, which cuts the need for labor by 80% compared to manual welding teams. This helps building companies across the country deal with the lack of skilled workers [^3]. PLC programming stores different cage specifications, so it's easy to switch between projects quickly without having to wait for mechanical reconfiguration.

Advantages of Using a One-of-a-Kind Automatic Cage Welding Machine

Measurable Production Efficiency Gains

Changing from manual welding to automated cage manufacturing completely changes the cost of the job. A normal welding crew of six people makes four to five 12-meter cages per shift, but the quality of their work varies. One technician can run automated equipment that makes 13 standard cages in the same amount of time. This triples the effective output and cuts down on the costs of extra labor. This speeding up has a direct effect on project schedules. For example, highway contractors who finish laying bridge pier foundations can cut critical path duration by 40%, which keeps expensive schedule overruns and penalty clauses from happening.

Here are the main ways this technology helps with production:

• Labor Cost Reduction: Single-operator functionality decreases staffing requirements from six skilled welders to one trained technician, cutting direct labor expenses by approximately $180,000 annually on medium-scale projects while eliminating recruiting challenges for specialized welding certifications.
• Weld Quality Consistency: Gas-shielded arc welding maintains uniform penetration depth and fusion characteristics across thousands of connection points per cage, eliminating the cold joints and incomplete fusion defects that cause field rejection and rework costs averaging $15,000 per failed cage inspection.
• Material Utilization Optimization: Precision wire feeding systems achieve 98% material efficiency compared to 85% manual cutting waste, translating to $25,000 in steel cost savings per 500-ton project volume through reduced scrap generation and exact specification adherence.
• Workplace Safety Enhancement: Automated welding eliminates manual arc welding exposure, reducing burn injuries, respiratory hazards from welding fumes, and repetitive strain injuries that contribute to worker compensation claims averaging $40,000 per incident in construction environments.

All of these benefits help contractors make money even though labor costs are going up and productivity is staying the same. Projects ranging from building train tunnels in cities to building hydropower dams show that investments in tools pay for themselves within 18 to 24 months by saving time and money on labor.

Long-Term Reliability and Maintenance Economics

How to Select the Best Automatic Cage Welding Machine for Large Parts

Defining Procurement Requirements Based on Project Portfolio

Before you choose equipment, you should look at your output needs in a number of different areas. When highway contractors are working on bridge foundations, they need the highest diameter capacity (2500mm) to fit large-diameter drilled shafts. Tunnel builders, on the other hand, care more about the length capacity for strengthening diaphragm walls. Depending on how much production is expected, either semi-automatic or fully automatic versions will save the most money. Fully automatic systems with robotic loading are needed for projects that need more than 500 cages a year. On the other hand, production shops that work on a variety of smaller contracts benefit from semi-automatic flexibility that lets them make quick changes to specifications between orders [^4].

Comparing Operational Efficiency Across Equipment Classes

Manual welding takes 12 to 15 hours of work per cage, and the quality of the results depends on how skilled the crew is. With mechanized movement and guided wire feeding, semi-automatic systems cut this time down to 6 to 8 hours per cage, giving better regularity. For standard 12-meter cages, fully automatic CNC cage welding machines can complete a cycle in 45 minutes, which is 93% faster than doing it by hand. An analysis of energy use shows that automated systems with a total load of 130kW (including welding power) use $18 per cage in industrial-rate electricity, compared to $12 per cage for manual labor electricity costs and $280 in direct labor costs. This shows that automated systems have huge operational cost advantages beyond the initial capital investment.

Technical Support and After-Sales Service Considerations

Not only does the quality of the manufacturing affect how reliable the equipment is, but so does the infrastructure for supporting suppliers. Shandong Zhongji Luyuan Machinery was founded in 2016 and has worked with China Railroad, China State Construction, and foreign projects in over 100 countries. It is a great example of a company that can provide a wide range of services. When evaluating a supplier, it's important to make sure they can supervise the installation, offer operator training programs that cover PLC troubleshooting and preventive maintenance protocols, and make sure parts are available and can be delivered within 48 hours for critical components. A warranty that lasts for three years and includes on-site service response takes care of the risks of downtime that operations managers who have to keep building schedules worry about.

Budget Considerations and Investment Return Modeling

Large-scale rebar cage welding equipment, including an automatic cage welding machine, costs between $180,000 and $350,000, based on how automated it is and the maximum cage diameter it can handle. When conducting a financial study, contractors need to evaluate both direct cost savings and indirect benefits. A typical metropolitan infrastructure contractor processing 800 cages annually can save $220,000 in labor costs, $40,000 through reduced material waste, and $60,000 in schedule acceleration value. These savings can result in a 16-month payback period with a 78% internal rate of return over the equipment’s service life. Contractors managing multiple projects simultaneously can also improve cash flow flexibility through financing options, such as equipment leasing with monthly payments of $4,500.

Practical Guide to Integrating Your Automatic Cage Welding Machine Into Production

Logistics Planning and Installation Requirements

For large-scale welding equipment to arrive, the site must be carefully prepared before the shipment arrives. The LYZD-GJL2500 type needs a 30-meter by 8.5-meter base made of reinforced concrete with anchor bolt holes for vibration separation. The electrical system needs to be able to handle 380V three-phase power with 200A of capacity and separate circuit protection. For a 0.8 MPa compressed air supply, you need a screw compressor with at least 50 CFM of output and filtration to get rid of moisture and particles that make it hard for the pneumatic control valve to work. For 12,000 pounds of equipment to be shipped, it needs to be on a flatbed truck that can unload with a crane. This needs to be organized with installation workers from the seller, who work for three days to finish mechanical assembly, electrical connections, and initial calibration.

Operator Training and Production Workflow Optimization

To switch to automated fabrication, workers need to learn more than just how to use the equipment. In-depth training programs teach students how to use the PLC interface, enter specification parameters for cage sizes and bar spacing, fix common fault codes, and do routine maintenance tasks like adjusting the tension on the wire feeder and replacing the welding electrode. To make sure that material staging doesn't stop the machine from running, upstream bar cutting and shaping processes need to be coordinated. Forklifts or overhead cranes that can handle 2,500-pound cage weights are needed for downstream handling. Storage areas are designed to keep unsupported cages from deforming while they wait for project delivery.

Establishing Preventive Maintenance Protocols

Maintaining equipment reliably over time requires following strict repair schedules that are in line with maker instructions. Every day, checks are made to make sure that the welding gas cylinders are full, the hydraulic oil levels are correct, and the air pressure stays stable. Cleaning the wire feeding guides once a week keeps steel dust from building up and causing jams. Other weekly tasks include checking electrical connections for rust or looseness and making sure the emergency stop works. For monthly maintenance, servo motor bearings need to be oiled, welding transformer connections need to be checked for overheating signs, and gauge measures are used to calibrate the accuracy of the pitch spacing. A full service once a year checks for fatigue cracks in high-stress mounting points in the structural frame and replaces the hydraulic system fluid. The electrical system insulation is also fully tested. These protocols keep operational availability above 95% and make sure that parts last as long as they're supposed to.

Conclusion

FAQ

What factors determine the production capacity of cage welding machines?

The main things that determine production speed are the width, length, and space between spiral bars of the cage. When set up with standard 300mm spiral spacing, the LYZD-GJL2500 type can finish 13 cages that are 12 meters long in a 10-hour shift. Increasing the number of welding points by lowering the spacing to 150 mm for seismic zone requirements increases the cycle time to about 8 cages per shift. Larger diameter cages (2500mm vs. 700mm) need more welding spots and more turning time, which also lowers output.

How do cost comparisons favor fully automatic versus manual systems?

Automated systems require an initial investment of $180,000 to $350,000 for equipment, while manual welding operations require very little money. However, the annual operating costs are very different. For example, manual methods need $280,000 a year in direct labor for 800 cages, while automated systems only need $35,000 a year for operator wages plus $15,000 a year for electricity and maintenance. This means that automated systems save $230,000 a year and pay for themselves within 18 months.

Are energy-efficient models available for sustainability goals?

Modern rebar cage welding equipment uses servo motors with variable frequency drives, which use 40% less power when not in use than older versions that used fixed speeds. Gas shielded arc welding uses 30% less power than older resistance welding methods and can go deeper into the material. When buying equipment, people should make sure that the inverter-based welding power sources they are considering meet the Energy Star standards for industrial equipment. This will help companies meet their sustainability goals and cut their carbon footprints by about 12 tons of CO2 per machine per year[^5].

Partner With Zhongji Luyuan for Advanced Rebar Cage Welding Solutions

To change the way big parts are made, you need to work with an automatic cage welding machine maker that has both proven technical know-how and a full support network. With eight years of experience working with building firms in the energy, rail transit, and highway sectors, Zhongji Luyuan has worked as an engineer with some of China's biggest state-owned construction companies. Our LYZD-GJL2500 fully automatic rebar cage welding workstation gives equipment managers and project directors the production speed, consistent weld quality, and operational dependability they need to meet tight deadlines while keeping labor costs low. Procurement pros can make sure that choices about capital equipment are in line with strategic growth goals when they have access to detailed technical specs, flexible configuration options, and clear ROI modeling. You can email our technical sales team at sales2@shandongluyuan.com to set up a full consultation, go over application-specific configurations that meet the needs of your project, and get competitive prices on automatic cage welding machines for sale with flexible payment terms. You can look at our full line of products and read case studies that show how they've improved performance in a variety of infrastructure applications by going to zjly2025.aixdb.cn.
