Automatic Rebar Cage Welding Workstation in foundation and constrcution

Precision, speed, and dependability are all things that modern infrastructure needs. An Automatic Rebar Cage Welding Workstation consistently provides all of these things. The way builders make reinforcement cages for pile foundations, bridge piers, and tall buildings is changing because of these new fabrication methods. By combining PLC control systems with gas-shielded welding technology, these machines make structurally stable cages faster than human methods can, which helps with critical labor shortages while keeping dimensions within ±1mm tolerances.

Understanding Automatic Rebar Cage Welding Workstations

Core Components and Operational Framework

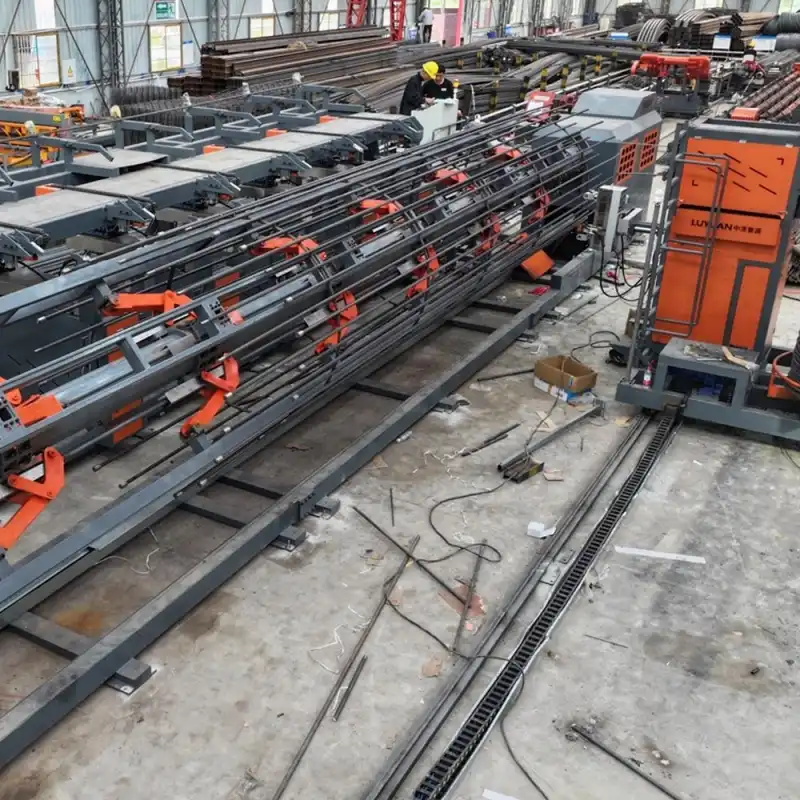

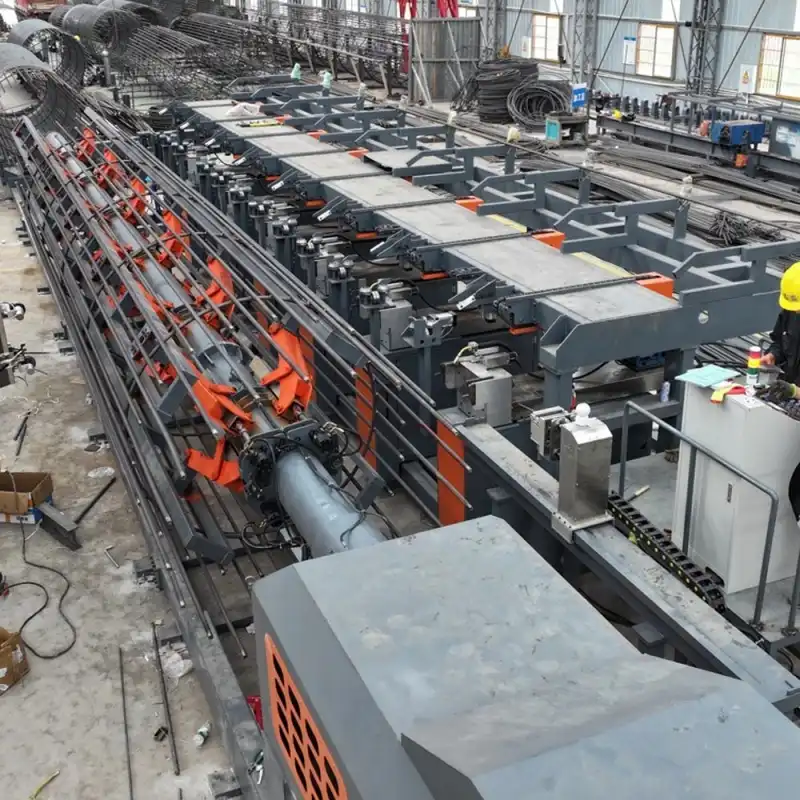

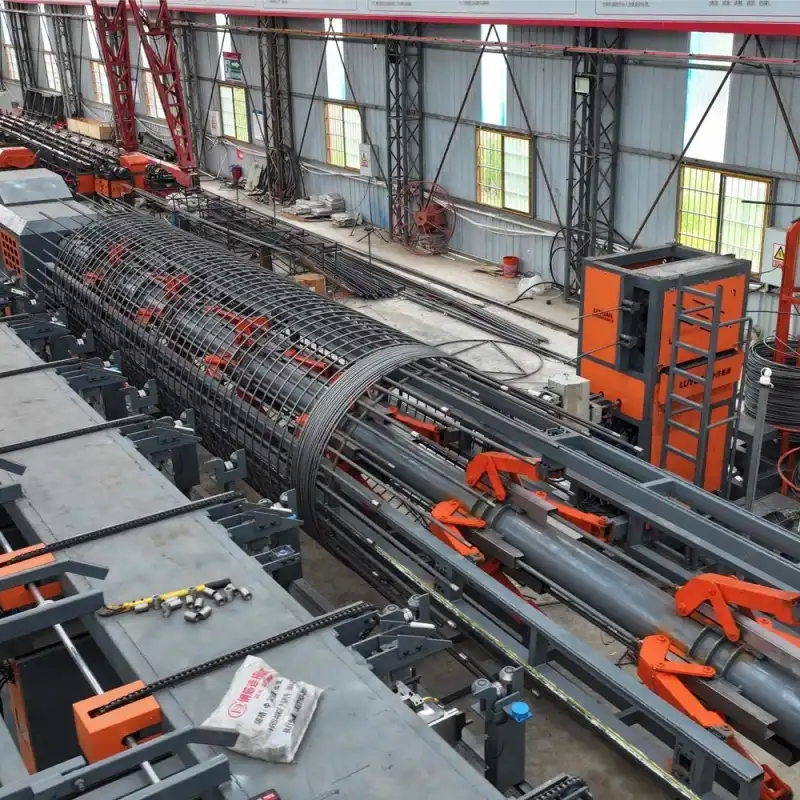

An Automatic Rebar Cage Welding Workstation is made up of several parts that work together in sync. Gas-shielded welding, usually with CO2 or a mix of gases, is done by the welding heads to fuse the horizontal bars and spiral supports together. Servo-driven spinning plates and variable-frequency motors in the positioning system make sure that everything is lined up perfectly. The PLC control unit coordinates these moves through a touch screen interface. This lets users set the cage's diameter (from 500mm to 2500mm), length (up to 12 meters), and spiral spacing parameters. This unified method gets rid of mistakes made by humans in important measures and makes quality consistent across production batches.

Distinguishing Automation Levels in Welding Solutions

There are three different types of Automatic Rebar Cage Welding Workstations on the market. Because trained welders have to position and join each intersection point by hand, the quality of the welds isn't always uniform, and production cycles are long. Semi-automatic methods help with filling and rotating, but the welding has to be done by a person who knows what they're doing. Automatic Rebar Cage Welding Workstations like the LYZD-GJL2500 model do the whole process by themselves, from feeding the rebar to spiral winding to final welding. They only need one person to oversee the whole process. When project managers look at labor prices, training needs, and production scalability for big infrastructure contracts, this difference is very important.

Industry 4.0 Integration and Real-Time Monitoring

Modern Automatic Rebar Cage Welding Workstations have digital connections that are in line with the ideas behind smart production. There are sensors built in that check the welding settings, hydraulic pressure (up to 16 MPa), and air supply steadiness (0.8 MPa) all the time. The PLC system keeps track of production data, which lets you track quality and plan repairs ahead of time. When managers of equipment look at performance data, they can see cycle times, how much material is being used, and possible problems. This method is based on data and supports efforts to keep making things better. It also helps operations managers explain the purchase of new tools by showing proof of improved efficiency.

Benefits and Value of Automatic Rebar Cage Welding Workstations in Foundations

Accelerated Production and Precision Fabrication

In building tasks with tight deadlines, speed is what gives you a competitive edge. When making 12-meter parts, an Automatic Rebar Cage Welding Workstation can make about 13 cages in 10 hours, which is a lot faster than a human crew that could only finish three or four units in the same time. In addition to raw output, dimensional uniformity is also very useful. Automated systems keep the accuracy of the spiral pitch within millimeter ranges, making sure that it meets engineering standards like ACI 318 or project-specific structure plans. This accuracy cuts down on redo and material rejects, and it speeds up installation on-site because cages fit into bored piles or foundation forms without needing to be adjusted.

Financial Returns Through Labor and Material Optimization

When purchasing managers look at big purchases like capital goods, they consider the total cost of ownership as well as the price of the item itself. There are measurable cash gains in many areas that come from using an Automatic Rebar Cage Welding Workstation. When one operator takes the place of four to six skilled welders, labor costs drop by a huge amount. This fixes both the problem of rising wages and the ongoing lack of trained workers. Programmable cutting gets rid of the waste that comes with measuring and shaping by hand, so more of the material is used. When equipment managers figure out how long it will take to get their money back, they usually find that the savings on labor alone make the investment worthwhile within 18 to 24 months on busy building projects. Other benefits, like less waste and faster project turnover, make the return profile longer.

Enhanced Safety Standards and Regulatory Compliance

Safety on the job site is still the most important thing for project leaders who are responsible for handling liability and the well-being of their workers. Automatic Rebar Cage Welding Workstations have many safety features, such as emergency stop systems, safety interlocks on moving parts, and shielded welding zones that keep sparks and fumes out. When operators work from control stations that are away from pinch points and hot work areas, the risk of getting hurt is lower than when workers put together cages by hand and have to move heavy rebar sections near where welding is happening. International standards, like CE machinery instructions and OSHA guidelines, help workers stay in line during regulatory reviews. This equipment also promotes a safety culture at work, which helps keep employees and protects the company's image.

Comparing Automatic Rebar Cage Welding Workstations: Making the Right Choice

Automatic Versus Manual Fabrication Methods

Whether rebar cages are made automatically or by hand depends on the size, length, and availability of the workers. Manual methods are good for small projects with specific needs because they can be customized and don't need a lot of money to get started. Their quality isn't always consistent, though, and they can't produce as much as they'd like. For example, Automatic Rebar Cage Welding Workstations are great for making things over and over again, where standard cage designs are used, like in the supports of highway bridges, metro station pilings, and residential tower projects. Technical leaders who are thinking about this choice should look at the expected number of cages, the number of skilled workers who are available, and the project's deadlines to see which option works best for them.

Performance Benchmarks and Manufacturer Differentiation

Leading equipment sellers show off their technical skills with reference project files and performance data that can be checked. The Automatic Rebar Cage Welding Workstation from Zhongji Luyuan can handle main bar widths ranging from 18mm to 40mm and spiral reinforcements ranging from 8mm to 16mm. These are the sizes that most structural foundations need. The system can handle both single and double main bar setups, and for high-load situations, it can also handle double spiral wrapping. Production engineers like that it only uses 30kW of power when it's not in use and can weld up to 100kW at full power, which is a good balance between energy efficiency and strong joining ability. When procurement teams compare makers, they should ask for demonstration videos, set up site visits to see setups that are already up and running, and get in touch with current users to confirm the claimed production rates and reliability measures.

Procurement Models and Service Commitments

Strategies for buying capital tools depend on how an organization's finances are set up and what projects it is working on. Outright buy works best for contractors whose cage production needs stay the same over several years. This way, the asset can depreciate while the contractor learns how to run the business. Companies that are short on cash or want to try automation before making a full investment, such as leasing arrangements. Rental choices help builders who need to meet short-term, high-volume needs for certain mega-projects. After-sales help has a big effect on the long-term value of tools, even after the sale. Zhongji Luyuan offers full setup, operator training, and quick technical support. These services keep production running smoothly and increase the life of the equipment. When reviewing seller offers, purchasing managers should look at how long the warranty covers, how easy it is to get spare parts, and how quickly the supplier promises to respond to service requests.

Operation, Maintenance, and Troubleshooting Best Practices

Standard Operating Procedures for Optimal Performance

Getting constant cage quality starts with setting up the Automatic Rebar Cage Welding Workstation correctly and following the rules for how to run it. Before starting a production run, operators check the specs of the rebar material, enter the settings for the cage into the PLC, and make sure that all of the safety interlocks work properly. During use, the Automatic Rebar Cage Welding Workstation automatically sends longitudinal bars through positioning rings, spins the assembly at set speeds, and welds each crossing point while adding spiral reinforcement. Operators keep an eye on the touch screen for alerts and look over finished areas visually. Manufacturers usually provide training materials like operation manuals with step-by-step instructions, video tutorials showing standard workflows, and hands-on coaching during equipment installation. These are all investments that help operators become more proficient faster and cut down on mistakes made early in the production process.

Preventive Maintenance Scheduling

Common Issues and Resolution Protocols

Even when precautions are taken, technical problems can sometimes stop production. Welding problems like not enough penetration or too much spatter are usually caused by the wrong wire feed speed, bad shielding gas flow, or dirty rebar surfaces. These problems can be fixed by changing some parameters or making the material better prepared. Dimensional errors in spiral pitch usually mean that guide components are worn out or that the PLC's calibration has shifted, which needs to be fixed mechanically or by recalibrating the software. When fixing goes beyond what an operator can do, they need to get help from the maker. Zhongji Luyuan keeps up technical service teams that can do online troubleshooting through connected control systems or send field engineers to help out on-site. This keeps downtime costs as low as possible, which can be thousands of dollars an hour on busy building projects.

Future Trends and Innovations in Rebar Cage Welding Technology

Artificial Intelligence and Adaptive Control Systems

The next generation of Automatic Rebar Cage Welding Workstations has machine learning algorithms built in that change settings in real time to make the best use of changing materials and environmental conditions. These smart systems look at data about welding current, voltage, and wire feed to change settings automatically. This keeps the quality of the joint even if the surface conditions of the rebar change. Computer vision technology allows for automated quality checking, which finds bad welds right away instead of finding problems later on during assembly. When B2B clients plan multi-year infrastructure projects, investing in AI-capable equipment puts their operations at the cutting edge of output. This reduces their reliance on specialized knowledge that is becoming harder to find and increases the rate at which defects are found beyond what humans can do.

Robotic Integration and Modular Production Lines

Robotic arms are now used to move materials around in advanced manufacturing facilities. These arms work smoothly with Automatic Rebar Cage Welding Workstations to make fully automated production cells. Robots pick up rebar packages from storage racks, place bars in feeding mechanisms, and move finished cages to marked staging areas. This gets rid of the need for people to move materials by hand, which is time-consuming and can lead to injuries. Contractors can increase production capacity by adding stations as project numbers rise. Layouts can then be changed to fit different cage specs without having to make major changes to the infrastructure. This adaptability is especially helpful for EPC workers who are in charge of a wide range of projects that need flexible manufacturing rather than set installations that only do one thing.

Sustainability and Circular Economy Alignment

As building companies commit to carbon reduction goals and environmentally friendly practices, environmental concerns play a bigger role in their buying choices. Modern Automatic Rebar Cage Welding Workstations use less energy because they have better power control systems, make less trash because they use materials more efficiently, and are built with recyclable parts in mind. Gas-shielded welding is better for the air quality in factories than older flux-cored ways because it creates fewer emissions. Equipment managers who keep an eye on sustainable data can include these benefits in company reports and meet client needs for green building standards at the same time. As industry standards move toward circular economy ideas, companies that were quick to adopt efficient manufacturing technology will have an edge when they try to get contracts for environmentally friendly infrastructure.

Conclusion

Automatic Rebar Cage Welding Workstations are very useful for building builders who are having trouble finding workers, meeting quality standards, and finishing projects on time. The LYZD-GJL2500 system shows how PLC control, gas-shielded welding, and intelligent automation can work together to make output rates three to four times faster than with manual methods while still keeping the exact measurements needed for structure stability. When purchasing managers look at these systems, they should compare the original capital needs to the total cost of ownership, which includes savings on labor, better use of materials, and less work that needs to be redone. As the building industry moves toward digital manufacturing and environmental concerns, companies that invest in automatic fabrication technology set themselves up to have a long-term edge in the foundation engineering markets.

FAQ

What safety features does an automatic cage welding workstation include?

Safety features include emergency stop keys that can be reached from several places, interlocking guards on spinning parts that stop the machine from working when they are opened, and shielded welding areas that contain sparks and UV rays. Operators are kept away from pinch spots and hot work areas by control posts. Systems that meet CE and OSHA standards are put through a lot of tests to make sure their safety features work reliably in both regular and emergency situations.

How quickly do labor savings justify the equipment investment?

Payback times are usually between 18 and 36 months, but they depend on the size of the job and the cost of workers in the area. An Automatic Rebar Cage Welding Workstation that replaces four welders on infrastructure projects with continuous cage production usually pays for itself in less than two years just through direct labor savings. Additional returns from less material waste and faster project completion add to the equipment's financial benefits over its entire operational life.

Can these systems handle custom cage specifications?

Modern Automatic Rebar Cage Welding Workstations have customizable control systems that let them be set up in a variety of ways. Operators enter factors like cage diameter, length, spiral pitch, and bar sizes to make designs that are exact copies of structural plans for a particular project. Systems that handle both single and double main bars with variable spiral spacing give foundation users the freedom they need while keeping the benefits of automated production.

Partner with Zhongji Luyuan for Advanced Rebar Fabrication Solutions

Zhongji Luyuan machinery is one of the best Automatic Rebar Cage Welding Workstation manufacturers. They have worked with big building companies in almost 100 countries and have a track record of success. With only one person, our Automatic Rebar Cage Welding Workstation can produce 13 cages in a 10-hour shift, which is very high productivity. We work closely with China Railway, China State Construction, and other top engineering firms, which shows that we are dedicated to being reliable and providing the best expert services. In addition to supplying equipment, we offer full support that includes commissioning on-site, training for operators, and quick technical help to make sure that your investment is fully utilized. You can email our team at sales2@shandongluyuan.com to talk about unique setups that fit the needs of your project, get full technical documentation, or set up a demonstration at our site. Find out how our smart processing solutions for strengthening can change how efficiently foundations are built and set up your business for a long-term competitive edge.
