How Can a Automatic Rebar Cage Welding Workstation Improve Work Efficiency

An Automatic Rebar Cage Welding Workstation changes the way reinforcements are made by combining precision engineering, CNC control systems, and coordinated welding robots into a single, simplified process. These tools get rid of the problems that come with putting together cages by hand, like uneven weld quality, slow production cycles, and the need for a lot of skilled labor. By automating the positioning, spinning, and welding of longitudinal and spiral bars, these machines make sure that every cage is the same and cut cycle times by a large amount. Because of this, there is a noticeable improvement in throughput, accuracy in measurements, and cost-effectiveness. This directly answers the problems that building companies face when they are working on projects with short deadlines.

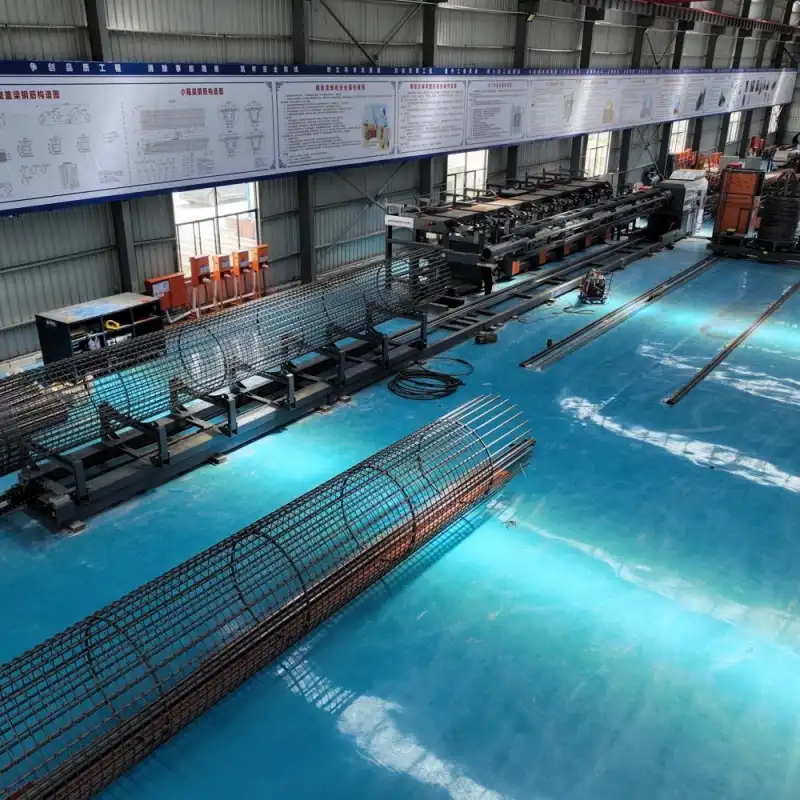

Understanding the Automatic Rebar Cage Welding Workstation

Today's methods for making reinforcements need accuracy and speed that can't be achieved by hand. When it comes to solving real-world building problems, automated welding systems are where mechanical engineering and computer control meet.

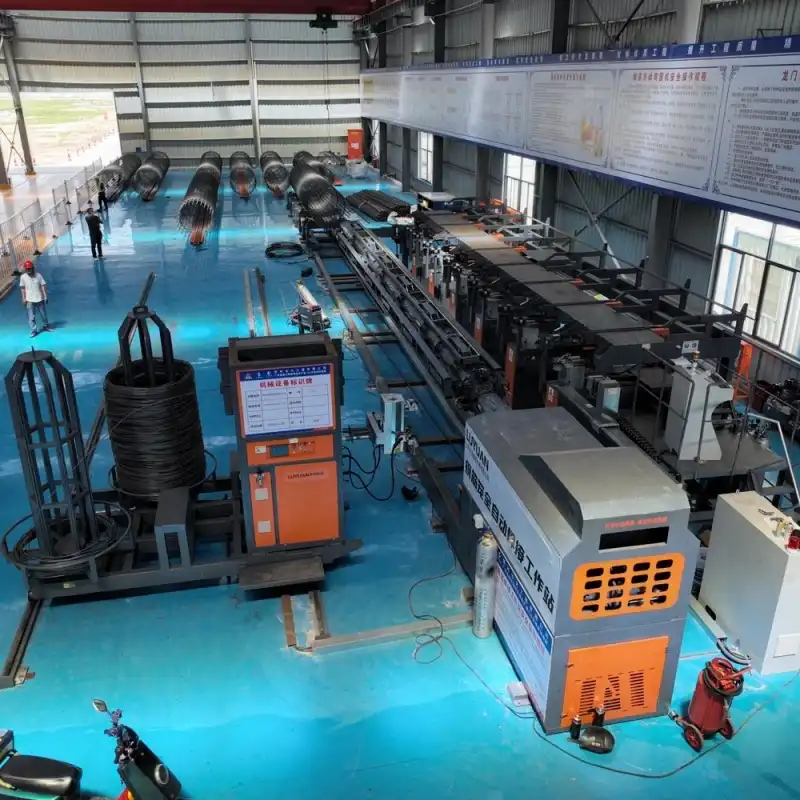

Core Components and Operation

The system has several parts that are all in sync with each other and work together. A frame made of high-strength steel gives the structure stability and holds both fixed and moving discs that turn the cage while it is being made. The feeding mechanisms are coordinated by the PLC control system, which makes sure that the horizontal bars stay evenly spread and that the spiral reinforcement winds at exact intervals. Gas-shielded welding heads move along tracks and apply the same amount of heat and penetration at every place where two tracks meet. Cages can have a width of 700 mm to 2500 mm, a length of up to 12 meters, and main bar sizes ranging from 18 mm to 40 mm. The system memory can store these specs directly through touch screens.

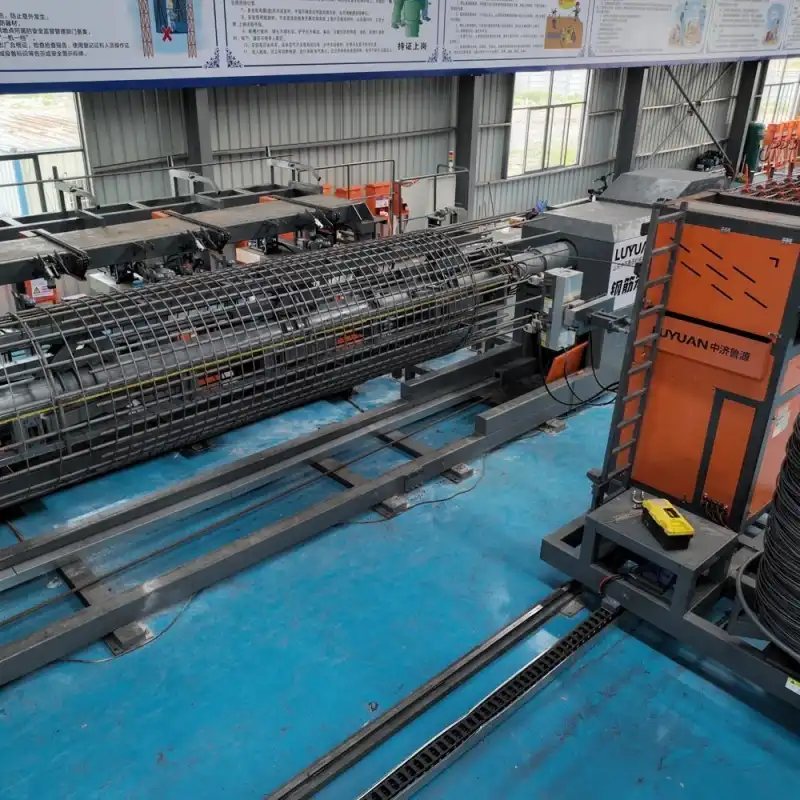

Workflow Automation

The first step in the manufacturing process is to put the main bars on the moving rack. As soon as the user checks the cage parameters on the HMI panel, the machine places bars around the edge based on the design spacing. While the moving disc starts to turn, hydraulic clamps hold the bars in place. At the same time, the spiral bar feeder moves the wire forward at set pitch intervals, which can be adjusted down to 50 mm steps. As the cage turns, welding keeps going. Gas protection stops rust and makes sure the joints are strong enough for structural use. The whole process, from setting up the cage to finishing it off, doesn't need any human help. This means that one person can oversee production that used to need four to six welders.

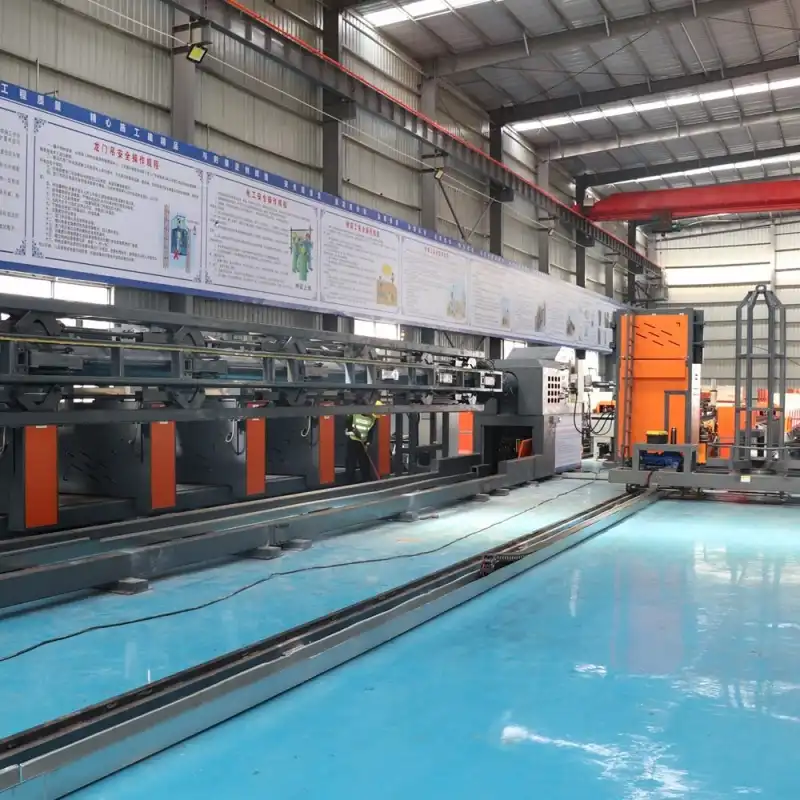

Machine Categories and Applications

Rotary workstations are good for large-diameter cages used for bridge pier supports and bored piles in high-rise buildings. Their strong disc systems can handle the twisting forces that come from working with 2500 mm diameter cages that have 40 mm main bars. Compact models are used in prefabrication yards where limited space requires making the best use of available space while keeping the quality of the output. Integrating upstream cutting and bending lines with modular setups creates fully automated production cells that get rid of handling delays between processes.

Key Benefits of Using Automatic Rebar Cage Welding Workstations for Work Efficiency

When you switch from human to automated production, you can see changes in a number of business measures. Knowing these benefits helps buying teams show that an investment is worth it and predict the long-term return on investment (ROI).

Production Throughput Enhancement

The Automatic Rebar Cage Welding Workstation significantly changes the production process compared with manual methods. Putting together a cage by hand usually takes three to four hours for a 12-meter unit, including bar placement, tack welding, and final continuous seam finishing. In contrast, automated machines greatly shorten this schedule. The LYZD-GJL2500 type can complete 13 cages in a 10-hour shift, which means each cage takes about 46 minutes to set up. This improvement comes from eliminating the need for manual bar alignment, enabling multiple welding points to be completed simultaneously, and allowing the machine to operate continuously without slowdowns caused by worker fatigue. For companies responsible for tunnel boring or metro station construction, this efficiency helps them meet tight foundation construction schedules without the need for additional labor costs.

Weld Quality Consistency

For rebar cage joints, structural engineers set strict rules, such as the minimum shear strength and entry depth needed according to ACI 318 and other related codes. Welding by hand can be different depending on the welder's skill, amount of tiredness, and the conditions of the work area. At every joint, automated devices keep the voltage, wire feed rates, and position of the torch steady. Gas protection keeps the liquid pool clean from airborne particles, which stops holes and slag inclusions that weaken the structure. Third-party reviews show that rejection rates drop from 8–12% when work is done by hand to less than 2% when welding is done automatically. This cuts down on wasted materials and repair delays.

Labor Optimization and Cost Reduction

There are never enough certified welders in the US building business, where hourly rates are higher than $35 to $45 in many places. With automated workspaces, only one equipment user is needed instead of several skilled welders. When pay, benefits, and training costs are added up over the course of a normal project's life, this staffing cut saves more than $180,000 per workstation each year. Besides lowering direct labor costs, technology also lowers the risks that come with staff turnover and schedule problems that stop production.

Safety Improvements

In traditional cage manufacturing, workers are at risk of arc flash, metal fume inhalation, and repeated strain injuries from having to handle bars by hand. With automated systems, the welding process is contained within safe walls, so operators are not directly exposed to UV rays and spatter. With mechanical feeding systems, workers don't have to lift and place heavy packages of rebar, which cuts down on claims of musculoskeletal injuries. Following OSHA rules is easier when common types of violations are automatically taken care of by software. This also helps keep better safety records for insurance checks.

How to Choose the Right Automatic Rebar Cage Welding Workstation for Your Business

To choose technology that fits operational needs, you have to compare technical specs with project portfolios and growth predictions. If something goes wrong in this phase, the capacity that isn't being used or output problems happen.

Matching Capacity to Project Demands

When evaluating an Automatic Rebar Cage Welding Workstation, project managers should look at past cage needs for recent contracts and write down diameter ranges, length distributions, and monthly volume peaks. For foundation work on highway bridges, cages with a width of between 1200 mm and 1800 mm are usually needed, and they need to be made in steady batches, so mid-range types work best. Nuclear power plant projects need larger 2000–2500 mm cages in smaller batches, which is why it makes sense to buy machines with the highest capacities even though they are not used as often. By understanding these patterns, companies can avoid overinvesting in capacity that goes unused or underinvesting in equipment that forces outsourcing during peak production periods.

Technical Specification Evaluation

Check more than just the diameter and length numbers. Also, look closely at the control system's skills and how well the machine works. The PLC platform should be able to store recipes for more than 50 different cage setups. This way, projects can be switched quickly without having to be recalibrated by hand. Variable frequency drives on rotation motors let you fine-tune the speed, which is very important when working with light cages that need to be handled more gently versus big pile cages that need strong drive power. Welding power output (usually 80–120 kW) must match the highest bar width requirements to make sure that 40 mm bars can be penetrated properly without overheating 18 mm wires.

Supplier Evaluation Criteria

Post-sale support system is a big part of how reliable the equipment is. Teams in charge of buying things should check to see if suppliers have wear parts like welding tips, drive wheels, and hydraulic seals that can be delivered in less than 72 hours. Training programs should include more than just the original licensing. They should also include ongoing skill development as employees leave. The warranty terms should be carefully read, especially the length of time that major parts like PLC modules, hydraulic systems, and structural frames are covered. Referrals from current customers in similar markets give you information about uptime and service response that you can't get from marketing materials.

Optimizing Maintenance and Troubleshooting to Maximize Workstation Efficiency

Structured repair plans are needed for even the most reliable tools to keep working as designed over long service lives. Not taking care of preventative maintenance increases wear and causes unplanned downtime.

Daily Inspection Routines

At the start of each shift, operators should look over key wear spots. Welding wire feed wheels pick up junk that makes the wire move at uneven speeds, which makes the joints weak. It only takes five minutes to clean these rollers, but it saves hours of work. Daily checks are needed to make sure that the hydraulic fluid levels are correct; low fluid causes pressure drops that weaken the clamping force, letting the bar slip during spinning. Lubricating rotation disc bearings at the times recommended by the maker keeps them from getting too hot and breaking early, which can cost thousands of dollars to repair.

Weekly and Monthly Service Tasks

In an Automatic Rebar Cage Welding Workstation, electrical connections that are exposed to metal dust should be checked and cleaned with compressed air once a week to stop arcing and signal loss. Calibration of the welding settings once a month keeps things consistent as contact tips wear out and part specifications change. Testing safety interlocks and emergency stop circuits ensures that protective systems are still functioning properly, meeting both legal standards and risk management requirements. Inspections of hydraulic hoses help identify early signs of wear and cracking so that catastrophic failures do not occur and pressurized fluid does not spray across the work area.

Troubleshooting Common Issues

Problems with the ovality of the cage are usually caused by uneven bar loading in the feed rack or worn guide rollers that cause the cage to rotate in an eccentric way. To fix these, hardware adjustments are needed instead of software updates. Weld penetration that isn't constant is usually a sign of a low gas supply or contaminated shielding gas, which can be fixed by checking the valve and replacing the cylinder. When the PLC fails, troubleshooting logs that can be accessed through the touch screen show which sensors aren't working or there are connection problems. This lets repairs be targeted instead of trying to fix everything by swapping parts. Setting up direct lines of contact with technical support teams at companies like Zhongji Luyuan makes sure that complicated problems get expert help, which cuts down on extended downtime.

Future Trends and Innovations in Automatic Rebar Cage Welding Technology

The future of building automation is for fabrication systems to become smarter, more connected, and able to work with larger digital project environments. Knowing about these changes helps buying plans stay flexible.

IoT Integration and Predictive Maintenance

Sensor networks built into next-generation computers keep an eye on sound patterns, temperature patterns, and power use in real time. This stream of data is analyzed by machine learning algorithms that can tell when a part will break before it does. This changes maintenance from being reactive to being proactive. Connecting to the cloud lets maker workers do online diagnostics by accessing machine data and finding the root causes of performance degradation without having to visit the site. For workers who work on multiple projects and have equipment in different places, centralized fleet tracking lets them see how much equipment is being used and when it needs to be serviced, which helps them make the best use of their assets.

AI-Driven Quality Assurance

Computer vision systems now check the quality of the welds as they are being made. They do this by using cameras and image recognition to find cases of missing fusion or too much spatter as the cages come off the workbench. Automatic refusal of faulty units keeps non-conforming products from getting to job sites, which lowers the costs and risks of field inspections and change orders. Production analytics use real-time quality data to find links between weather conditions, material batches, and failure rates that help improve the process.

Sustainability and Energy Efficiency

Demand for equipment that has less of an impact on the environment is driven by government rules and companies' ESG obligations. Modern welding power sources are 90% or more efficient, which means that less electricity is used per cage that is made. Fume extraction devices with multiple stages of filters collect fumes from welding, meeting stricter standards for air quality. Energy tracking built into control systems finds patterns in how much energy is used. This lets workers plan production for times when utility rates are lower, which saves money and keeps the grid stable.

Conclusion

Automation in the production of rebar cages, centered around the Automatic Rebar Cage Welding Workstation, is more than just a small step forward; it completely changes how workers do base and structural work. The most important problems in infrastructure building right now can be solved by combining speed, uniformity, and labor economy. Equipment like the LYZD-GJL2500 improves performance and meets the high-quality standards needed for bridge engineering, trench construction, and high-rise buildings. As IoT connections and AI integration continue to improve technology, early users will be able to take advantage of competitive benefits that can't be matched by manual processes.



FAQ

How much faster is automated welding compared to manual methods?

When compared to human ways, automated workstations cut the time it takes to make a cage by about 70%. With automation, a 12-meter cage that would have taken four hours of work by hand can be finished in less than fifty minutes, including setup and quality checks. This speedup comes from welding at multiple places at the same time, not having to position the bars by hand, and working nonstop without breaks.

What training do operators need?

After three to five days of hands-on training, most people are ready to go into action. The PLC touch screen interface makes it easier to enter parameters, and automatic processes require less skill than qualified welding. During installation and commissioning, manufacturers usually give full training on how to use the machine, do regular upkeep, and fix basic problems.

Can these machines handle custom cage designs?

Modern workstations can be customized in a lot of ways, such as by changing the spiral pitch, making double-helix shapes, or making the bar spacing patterns less regular. The PLC keeps a lot of cage recipes, which makes moving between jobs easy. Custom measurements outside of normal ranges usually require mechanical changes, but they can still be met with help from the manufacturer's engineering team.

Partner with a Trusted Manufacturer for Superior Rebar Fabrication Solutions

Zhongji Luyuan machinery is a trusted Automatic Rebar Cage Welding Workstation source that has worked with infrastructure companies all over North America and the world. Our LYZD-GJL2500 model has the performance numbers that procurement managers want: 13 cages per shift, efficiency with a single operator, and precision within ±1 mm for dimensions. Since 2016, we've supplied big projects for China Railway, China State Construction, and foreign builders in over 100 countries. This has helped us build a reputation for dependability that goes beyond the initial delivery. Our full after-sales support includes fast delivery of extra parts, remote tests, and expert help on-site when problems get really tough. Get in touch with us at sales2@shandongluyuan.com to talk about how our automated welding systems can help you make more things and make your projects more competitive. If you ask, we'll send you detailed specs, examples of past work, and personalized offers.

References

1. American Concrete Institute. (2019). Building Code Requirements for Structural Concrete (ACI 318-19). Farmington Hills, MI: American Concrete Institute.

2. Chen, W., & Liu, Y. (2021). Automation in Reinforcement Fabrication: Efficiency Analysis of CNC Welding Systems. Journal of Construction Engineering and Management, 147(8), 04021089.

3. National Institute for Occupational Safety and Health. (2020). Preventing Injuries in Metal Fabrication Operations. Cincinnati, OH: NIOSH Publications.

4. Prasad, R., & Kumar, A. (2022). Quality Control Methodologies for Automated Rebar Cage Production in Infrastructure Projects. Construction and Building Materials, 315, 125742.

5. Smith, J. D., & Thompson, M. (2020). Cost-Benefit Analysis of Construction Equipment Automation. New York: McGraw-Hill Professional.

6. Zhou, H., Wang, S., & Zhang, L. (2023). IoT-Enabled Predictive Maintenance in Construction Equipment: A Case Study Approach. Automation in Construction, 148, 104761.
