Cost-Effective Cage Welding Machine for Factory Production Needs

Choosing the right cage welding machine for your factory hinges on balancing initial capital outlay with long-term production gains. These automated systems transform how construction material suppliers and infrastructure contractors fabricate reinforcement cages, reducing labor dependency by up to 80% while maintaining millimeter-level accuracy. Whether you manage a rebar processing center or oversee bridge foundation projects, understanding how these machines deliver consistent weld integrity and throughput—without sacrificing budget—empowers smarter procurement decisions that align with project timelines and profitability targets.

Understanding Cage Welding Machines and Their Role in Factory Production

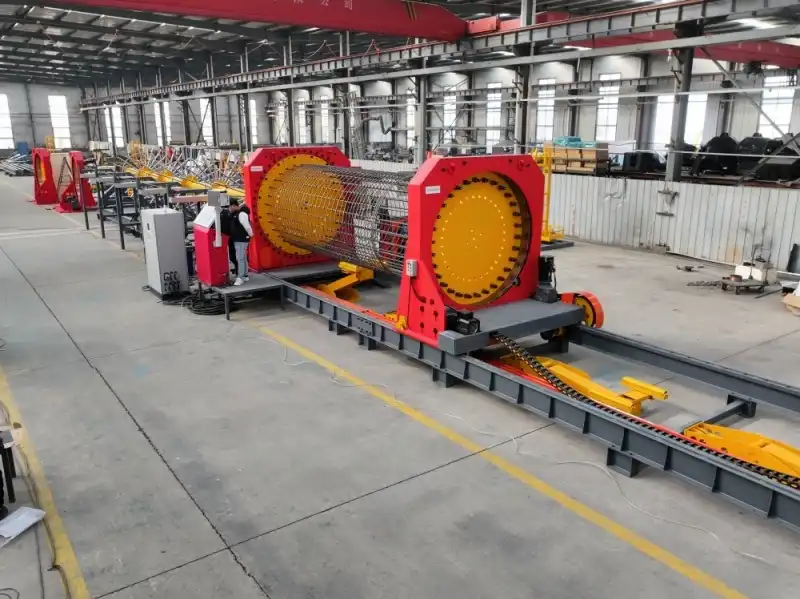

The needs of today's infrastructure have changed how we make reinforcements. A cage welding machine is a computerized, high-precision device that turns longitudinal rebar while wrapping and welding stirrup wires around it to make cylinder- or polygonal-shaped steel cages. This method takes the place of the old way of tying things by hand on factory floors. It provides consistent quality that is needed for deep foundation piles, prefabricated concrete elements, and underground transit systems.

Core Components and Operational Architecture

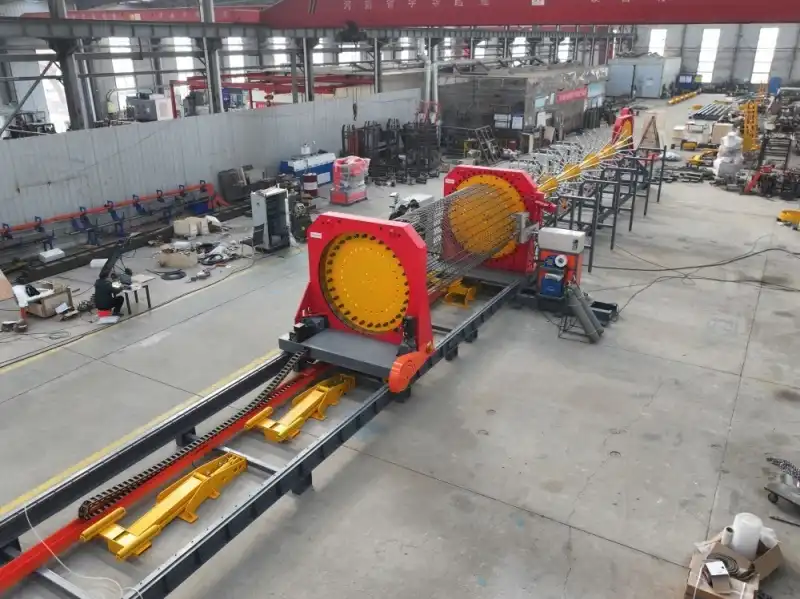

Every reliable system has several parts that work together. High-frequency resistance or CO2-shielded arc technology powers welding heads that join stirrups to main bars at exact intervals. CNC control screens set the spinning speed, pitch spacing, and feed rates, making sure that all hundreds of cages in a shift are the same size. Wire feeding systems make sure that materials are always available, so there are no breaks in production that cause project plans to slip. When longitudinal bars are rotated, hydraulic clamping systems keep them in place and prevent misalignment that could weaken the structure. Knowing about these parts helps people in charge of tools decide if a machine can handle the diameter ranges and output volumes at your site.

Categorizing Automation Levels for Different Production Scales

The level of automation has a direct effect on both the initial investment and the efficiency of operations. Fully automatic models do the whole welding process, from loading the bar to ejecting the finished cage, with little to no help from a person. This makes them perfect for processing centers that handle a lot of work at once and serve multiple construction sites. Semi-automatic models need workers to add materials and start cycles, but the welding step is done automatically, making them a cost-effective way for mid-sized contractors to increase their output. Even though smaller workshops still use manual cage fabrication, it can't keep up with the speed and regularity needed for big building projects, where every hour of delay leads to big cost increases. Managers of procurement should make sure that the amount of automation matches the current output needs and plans for future growth.

Precision and Speed in Industrial Welding Workflows

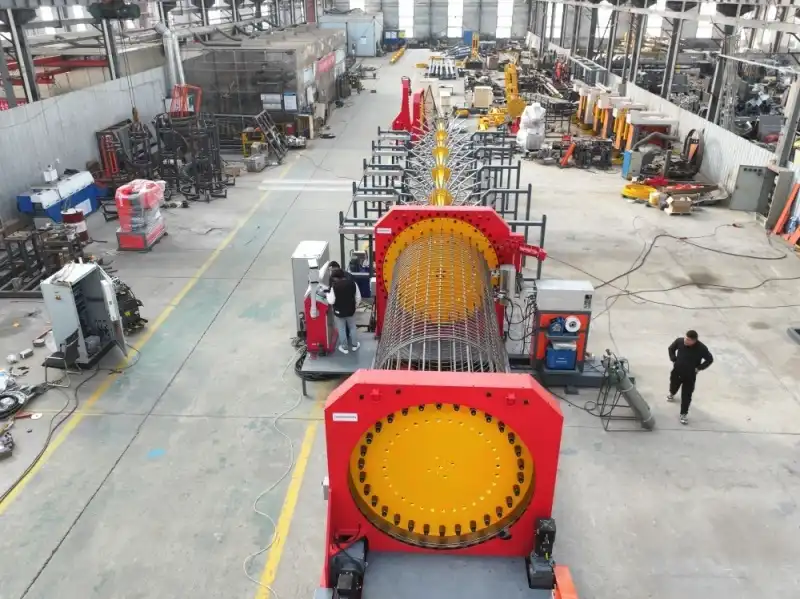

The steps in the welding process are carefully planned out. The longitudinal rebars are put in place and clamped. They are then rotated at set speeds while the stirrup wire feeder moves forward. High-frequency welding heads make fusion points at set times. For standard 12-meter cages, cycle times are usually between 3 and 5 minutes, but this depends on the diameter and density of the reinforcement. This accuracy gets rid of the mistakes in spacing that happen when people work by hand, where tiredness and differences in skill lead to tolerances that aren't acceptable for structures that are meant to withstand earthquakes or nuclear power plants. Production engineers know that constant weld penetration, which can be checked with real-time amperage input, makes sure that cages can handle heavy loads without breaking. This keeps projects on schedule and protects contractors' names.

Key Factors to Consider When Selecting a Cost-Effective Cage Welding Machine

To find the best tools, you need to look at a number of performance factors in the context of how your building works. Cost-effectiveness includes more than just the price of the cage welding machine itself. It also includes how much it saves on energy use, how productive it is, and how predictable its maintenance will be over its 10 to 15-year life.

Productivity Metrics That Drive ROI

How quickly your processing center can meet project needs is based on its output capacity. Contractors can work on various places at the same time without any problems because machines can make 40 to 60 cages per 8-hour shift. Testing for shear strength and eye inspection standards make sure that the quality of the welding makes sure that the cages meet technical requirements. This cuts down on expensive rework and material waste. The level of automation affects how workers are distributed: fully automated lines need one operator to oversee several machines, while semi-automatic models need two to three workers per unit. Energy use varies a lot. For example, newer inverter-controlled welding systems use 30–40% less power than older transformer-based systems. This means that over thousands of hours of production each year, these systems save a lot of money on energy costs.

Balancing Automation Investment Against Production Volume

When choosing between automation levels, you should think about both present demand and future growth. Fully automated systems cost a lot—usually between $80,000 and $150,000, depending on the diameter of the cage—but they have the best throughput for big infrastructure contractors working on projects like expanding highways or building metro tunnels. Semi-automatic types that cost between $40,000 and $70,000 are good for regional builders who make a modest amount of things. They also pay for themselves faster when you consider the cost of labor. Scalability is important. Modular designs let you make improvements in the future as your project portfolio grows. This protects your initial investments and keeps up with changing market needs. To make sure their choice was the right one, operations managers should figure out when the company will break even by comparing the number of hours of work saved to the cost of financing the equipment.

Supplier Credibility and After-Sales Infrastructure

The manufacturing history and support networks of an item have a big impact on how reliable it is. Suppliers that have ISO 9001 recognition and clear records of working with large building companies, like state-owned engineering firms or EPC contractors, have shown they can do a good job in tough conditions. For example, a warranty that covers parts and remote diagnostics for two to three years shows that the manufacturer is confident in the product's durability. In the U.S. market, where mechanical problems need to be fixed quickly to avoid project delays, after-sales service networks are very important. Check to see if the providers have regional service centers, keep important spare parts in stock in the United States, and offer English-language technical paperwork along with training programs for operators. All of these things affect whether your investment helps with ongoing production or causes expensive downtime.

Optimizing Factory Production with Cage Welding Machines

To get the most out of your tools, you need to be proactive about maintenance and follow safety rules that protect both people and work plans. Machines that are well taken care of produce high-quality work for decades, while machines that aren't taken care of fail early and cause projects to be late.

Preventive Maintenance Protocols for Sustained Performance

Setting up structured maintenance routines for a cage welding machine keeps welding precise and extends the life of equipment. Wire feeding tension, welding head alignment, and metal debris in the spinning systems should all be checked every day. Lubricating the drive chains and hydraulic cylinders once a week keeps them from wearing out too quickly, and calibrating the CNC controls once a month makes sure that the accuracy of the measurements stays within the error bands. Electrical connections and cooling systems are checked every three months to find problems before they become severe enough to stop production. Maintenance logs that keep track of these tasks are very helpful for troubleshooting because they provide a history of what happened that can help technicians identify trends and determine when a part needs to be replaced. When equipment managers set aside 3 to 5 percent of the machine's value every year for repair supplies and service contracts, they usually achieve 95% uptime rates that meet tight project deadlines.

Safety Standards and Operator Training Requirements

When using high-frequency welding equipment, there are certain risks that need to be carefully managed. Operators need to be trained in arc flash safety and know how to use heated gloves and face shields that are approved for use in welding settings. Lockout-tagout procedures keep machines from starting up by accident while they are being serviced. This keeps technicians safe from moving parts that could seriously hurt them. Welding fumes contain metal oxides, and proper ventilation systems remove them. This makes sure that OSHA air quality standards are met, which protects long-term lung health. Comprehensive training programs that cover both operating procedures and emergency shutdown steps lower the number of accidents and boost production efficiency by helping skilled workers find the best machine settings for each cage.

Industry 4.0 Integration for Competitive Advantage

Forward-thinking contractors are putting in digital technologies that turn cage welding from a separate process into a connected production ecosystem. IoT-enabled monitoring systems keep an eye on performance metrics like cycle times, weld quality scores, and energy use in real time. They send this information to cloud platforms where managers can look at trends across multiple facilities. Predictive maintenance algorithms use data from sound sensors and thermal imaging to figure out when parts will break down weeks in advance. They then schedule repairs for planned downtime so that problems don't happen at the worst possible time. Automated production scheduling works with project management software to make sure that the building of the cage fits in with the plans for pours and deliveries. With these skills, manufacturers will be able to meet the needs for smart manufacturing that are being included in more and more large infrastructure RFPs. In these cases, digital integration becomes a competitive differentiator that sets qualified bidders apart from outdated competitors.

Cost Comparison and Procurement Strategies for Bulk Purchases

By understanding how prices are set and how to buy things, buyers can get better terms that make the project more profitable. The way the market works in 2024 is affected by how technology is changing and how the global supply chain works, which affects both the cost and availability of equipment.

Current Market Pricing Analysis and Cost Drivers

Starting prices for semi-automatic cage welding machines with widths up to 1500 mm are usually between $35,000 and $55,000. These machines are good for regional builders who do foundation work for homes and smaller business projects. Mid-level automated systems with CNC controls that can handle 2000 mm diameters cost between $70,000 and $110,000, making them appealing to established processing centers that work on a wide range of projects. Premium models with 3000mm widths cost between $130,000 and $180,000, which is because they are made to last and have more automation features. These models are needed for super-tall building foundations and major bridge piers. Welding technology sophistication (inverter-based systems cost more but use less energy), control system intelligence (touchscreen interfaces with programmable recipes vs. basic manual controls), and structural capacity (frames that can handle larger diameters need to be stronger and drive systems that can handle more torque) are some of the things that affect the cost. The reputation of a brand also affects its price. For example, manufacturers with a lot of infrastructure project references charge more, but this is because they have shown that their products are reliable in high-stakes situations.

New Versus Used Equipment Evaluation

Used machines can save you a lot of money—often 40 to 60 percent off the price of a new one—but they need to be carefully inspected for technical issues. Buyers should check maintenance records to see how many hours of production were actually done, look at welding heads to see if the electrodes are worn down, and try CNC controls to make sure they can program. Frame wear or electrical system degradation are examples of problems that might not show up during short demos but lead to expensive fixes after the sale. Check to see if replacement parts are still available for older models, since machines can't work without parts that are no longer made. New equipment comes with full warranties, the newest automation features, and better energy efficiency that saves money over 10 or more years of use. Leasing is an alternative way for workers who don't have a lot of cash to get equipment, though the total payments usually go over the cost of buying the equipment directly. You can get volume discounts of 10-15% when you buy in bulk, which can be done by coordinating orders across different sites or teaming up with other businesses in the same field.

Regional Supplier Considerations for U.S. Buyers

For sourcing choices, the skills of the tools must be weighed against the needs of transportation and support infrastructure. U.S. makers offer quick service response and technical help in English, but their prices are usually 20–30% higher than those of imports. Asian suppliers, especially those from China, offer low prices and advanced automation features. However, buyers should make sure that the products they buy meet UL electrical standards and ANSI safety certifications, which are needed for insurance and legal reasons. Delivery times vary: items from domestic sources usually ship within 4 to 6 weeks, but orders from other countries take 10 to 14 weeks, which includes ocean freight and customs clearance. Find out if the providers keep parts in stock in the U.S. and have field service techs who can train and commission equipment on-site. These logistics issues have a big effect on the total cost of ownership and operational risk. When looking at offers, supply infrastructure is just as important as machine specs.

Why Choose Zhongji Luyuan for Your Cage Welding Machine Needs

Zhongji Luyuan is well-known among building builders and rebar processing centers for coming up with engineering solutions that work in the real world of production. When structural integrity can't be compromised, our automated cage welding systems give you the dependability and accuracy you need.

Proven Performance Across Demanding Applications

Our range of tools is used in the roughest construction sites. Our LYGH line is used by high-speed railroad builders to make very long pile cages that meet strict verticality tolerances for seismic zones. Metro construction companies use our systems to make segmental lining cages for TBM tunnel operations. Consistency in dimensions is important for putting the cages together correctly in high-pressure soil. Heavy-duty models designed to work with corrosion-resistant rebar in maritime staging areas are helpful for offshore bridge projects. These real-world examples, which include high-speed rail, urban transit, and energy infrastructure, show that our machines can keep working under the tight deadlines and high quality standards that characterize modern infrastructure development.

Comprehensive Support Infrastructure

We know that the value of tools goes beyond their basic specs. Our expert teams oversee the installation, making sure that the base is properly mounted and that the electrical systems are properly connected so that the system doesn't fail too soon. Operator training programs teach both basic operation and advanced fixing, so your employees can start being as productive as possible right away. Parts and online diagnostic help are both covered by the warranty, so when problems happen, there is less downtime. Keeping spare parts in stock locally speeds up fulfillment and avoids the weeks-long delays that often happen with overseas suppliers. This support system shows that we're committed to long-term relationships where the success of your production makes our name.

Engineering Expertise and Customization Capabilities

We've been focusing on CNC reinforcement processing innovation since the beginning of our business in 2016. Our research and development efforts have led to useful changes, such as better welding algorithms that can handle different types of rebar, easy-to-use control panels that cut down on training time for operators, and modular designs that can be expanded in the future. Our engineering team creates custom solutions when standard setups don't meet the needs of a specific project. These could be changed diameter ranges, specialized wire feeding systems, or quality inspection units that are built in. Because we are flexible, we have been able to work well with China Railroad, China State Construction, and international contractors from almost 100 countries, building reference portfolios that show our technical skills.

Conclusion

To find a cheap cage welding machine, you need to carefully consider how much it will cost to own, how well it will work with your suppliers, and how much it can automate. With the right tools, fabrication that requires a lot of manual work can be turned into a constant, efficient process that meets tight project deadlines while keeping costs low. Equipment managers and procurement professionals can confidently choose systems that give a measurable return on investment (ROI) if they understand the machine architectures, maintenance needs, and procurement strategies described here. As more money is spent on infrastructure across the U.S., automated reinforcement processing is no longer just a way to save time; it's also a competitive necessity for companies working on big projects where accuracy and speed decide profits.

FAQ

What is the typical lifespan of a cage welding machine under heavy use?

When properly maintained, high-quality machines with strong frames and industrial-grade parts usually last 12 to 15 years of useful service. Heavy-use situations—processing 50 or more cages every day—may need major part replacements around year 8, such as welding head replacements and hydraulic system overhauls. Preventive maintenance practices have a big effect on how long something lasts. Facilities that follow the manufacturer's service times often go beyond these standards, while neglect speeds up wear and tear that cuts useful life to 7–9 years.

How does automation level affect both cost and production output?

Fully automated systems cost 60–80% more than semi-automatic models, but they have 2-3 times more output because they don't need to be loaded by hand and can run continuously. When one operator oversees several automated machines instead of two to three workers per semi-automatic unit, labor cost savings usually pay for themselves in 18 to 24 months for large projects. When project pipelines don't allow for high-end automation investments, semi-automatic equipment is better for operations with moderate demand because it gives a faster initial return on investment.

What safety protocols are critical when operating cage welding equipment?

Arc-rated PPE, such as insulated gloves, face shields with the right shade ratings, and flame-resistant clothing, must be worn by operators. During repair, facilities should use lockout-tagout processes, make sure there is enough airflow to deal with welding fumes, and set up clear no-go zones around rotating parts. Regular safety audits and operator certification renewals keep businesses in line with OSHA rules and lower the risk of injuries that can slow down production.

Partner with Zhongji Luyuan for Advanced Cage Welding Solutions

Zhongji Luyuan can help you improve your ability to work with reinforcements by giving you cage welding machine systems that are designed to work in tough production settings. Big infrastructure contractors and state-owned construction companies trust us to provide them with tried-and-true automation solutions and full technical support. Our sales team at sales2@shandongluyuan.com would love the chance to talk about your specific project needs, set up equipment demonstrations at our facility, and make custom quotes that fit your budget and time frame. Find out how our smart production systems can cut down on labor costs, make sure the quality of every cage is the same, and speed up project delivery dates. Visit zjly2025.aixdb.cn to see all of our products and get in touch with engineering experts who know how to solve the production problems that the building industry is having right now.
