Difference between the rebar cage welding workstation and the Rebar Cage
Aug 25, 2026
When procurement managers evaluate equipment for large-scale infrastructure projects, understanding the distinction between a rebar cage and the equipment that produces it becomes essential. The rebar cage welding workstation represents specialized fabrication machinery that automates the production of rebar cages, which are the reinforced steel structures embedded within concrete foundations. While the cage itself is the end product installed in bridges, tunnels, and high-rise buildings, the workstation is the precision manufacturing system that determines production efficiency, dimensional accuracy, and ultimately, your project's timeline and budget.
Introduction
Rebar cages give concrete structures their skeletal strength. They are used in the foundations of highway bridges and the building of metros in cities across the United States. On the other hand, behind every carefully designed cage is the production equipment that allows for high-volume, quality-controlled production. Equipment managers, project leaders, and procurement specialists are under a lot of pressure to cut costs on labor while still meeting tight building schedules. Being able to tell the difference between the product and the production tool is very important to them. Understanding how automated welding systems turn raw steel bars into load-bearing assemblies can change how you plan to spend your capital, which will have a direct effect on your operational workflow, quality control procedures, and position in bid situations. The choices you make today about fabrication equipment will have an effect on how quickly you can finish projects for years to come.
Understanding the Fundamentals: What Are Rebar Cages and Rebar Cage Welding Workstations?
Defining the Rebar Cage
A rebar cage is made up of long steel bars that are arranged in circles or rectangles and connected at set points by spiral or hoop stirrups. These groups give concrete parts in pile supports, drilled shafts, bridge piers, and diaphragm walls their tensile strength. Cage widths are usually between 700 mm and 2500 mm, and lengths can go up to 12 meters, based on what the engineers want. The main bars, which are usually 18mm to 40mm in diameter, hold the main loads. The 8mm to 16mm spiral reinforcement keeps the shape of the cage and fights shear forces.

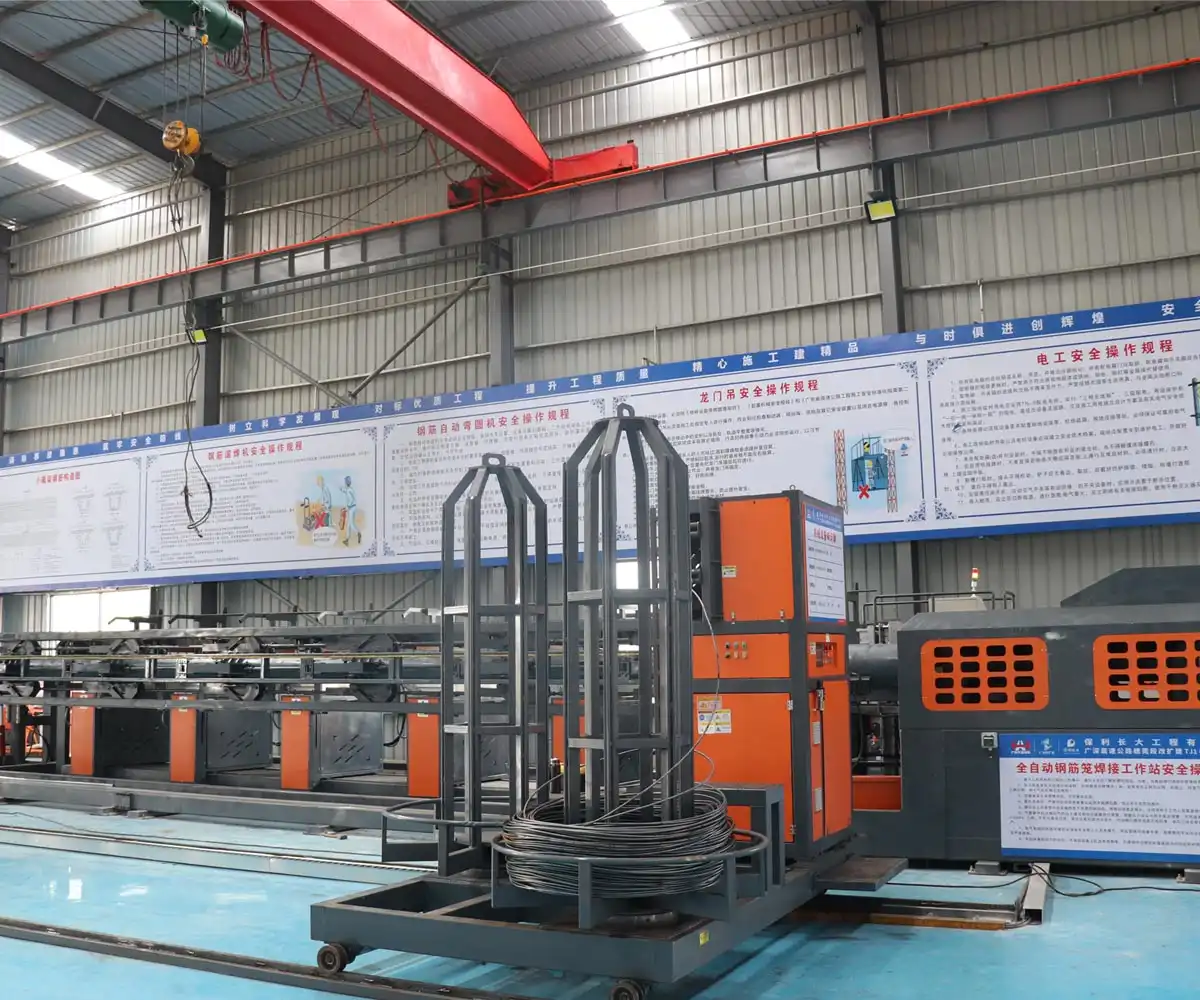

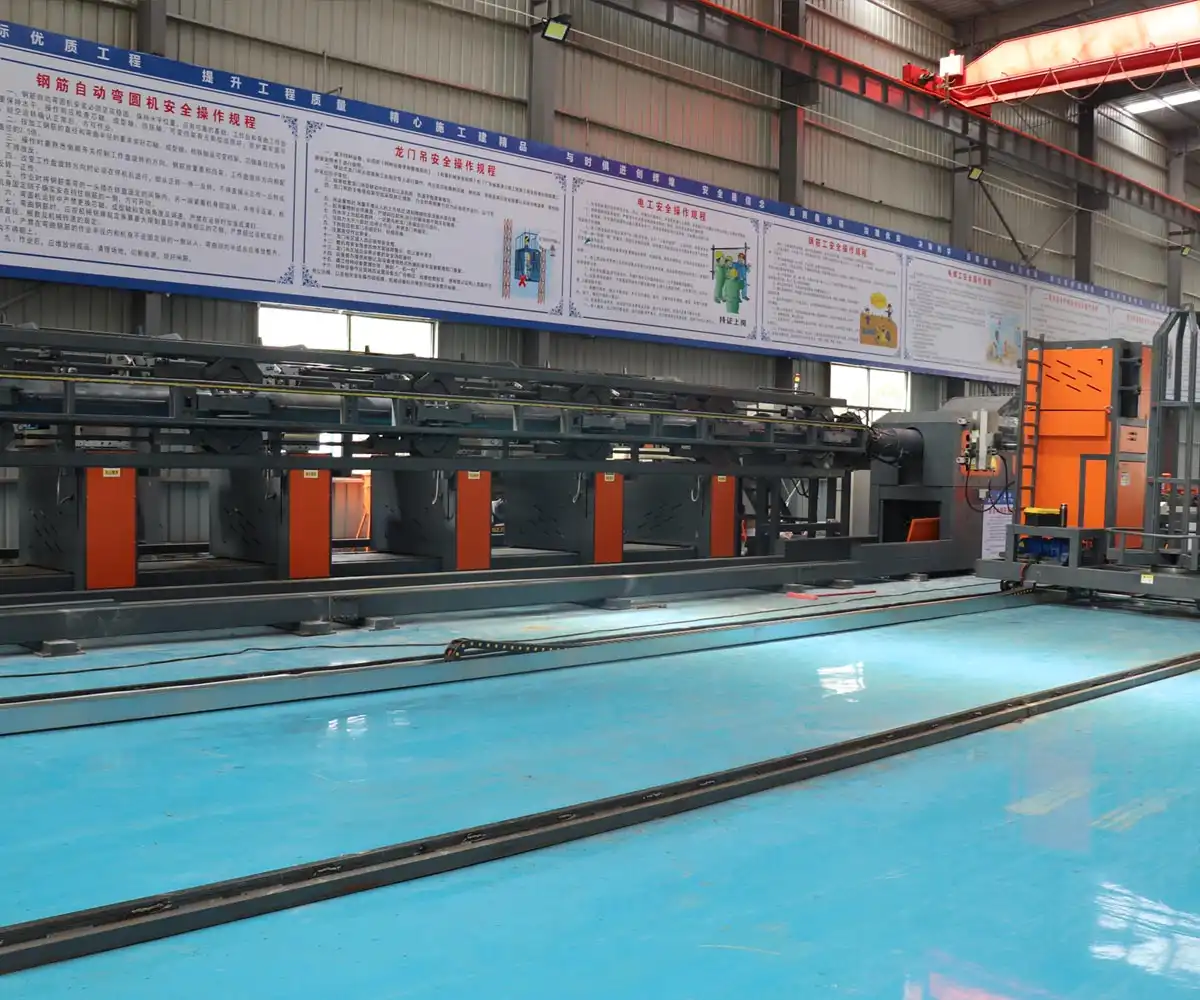

Understanding the Welding Workstation
An industrial robotics system called a rebar cage welding workstation is meant to put together these complicated steel structures with little help from a person. In the past, workers would tie or weld bars on trestles by hand. Today, automated workstations combine rotating mechanisms, precise positioning systems, and CNC-controlled welding units onto a single platform. This technology is shown by the LYZD-GJL2500 model, which uses PLC tablet control to plan the whole manufacturing process. Gas shield welding technology makes sure that the penetration depth and joint strength stay the same, and servo-driven systems keep the spiral pitch spacing exact. The workstation can handle both single and double main bar setups, as well as different stirrup patterns. It can also make 13 cages in a 10-hour shift, which is a huge improvement over human methods.

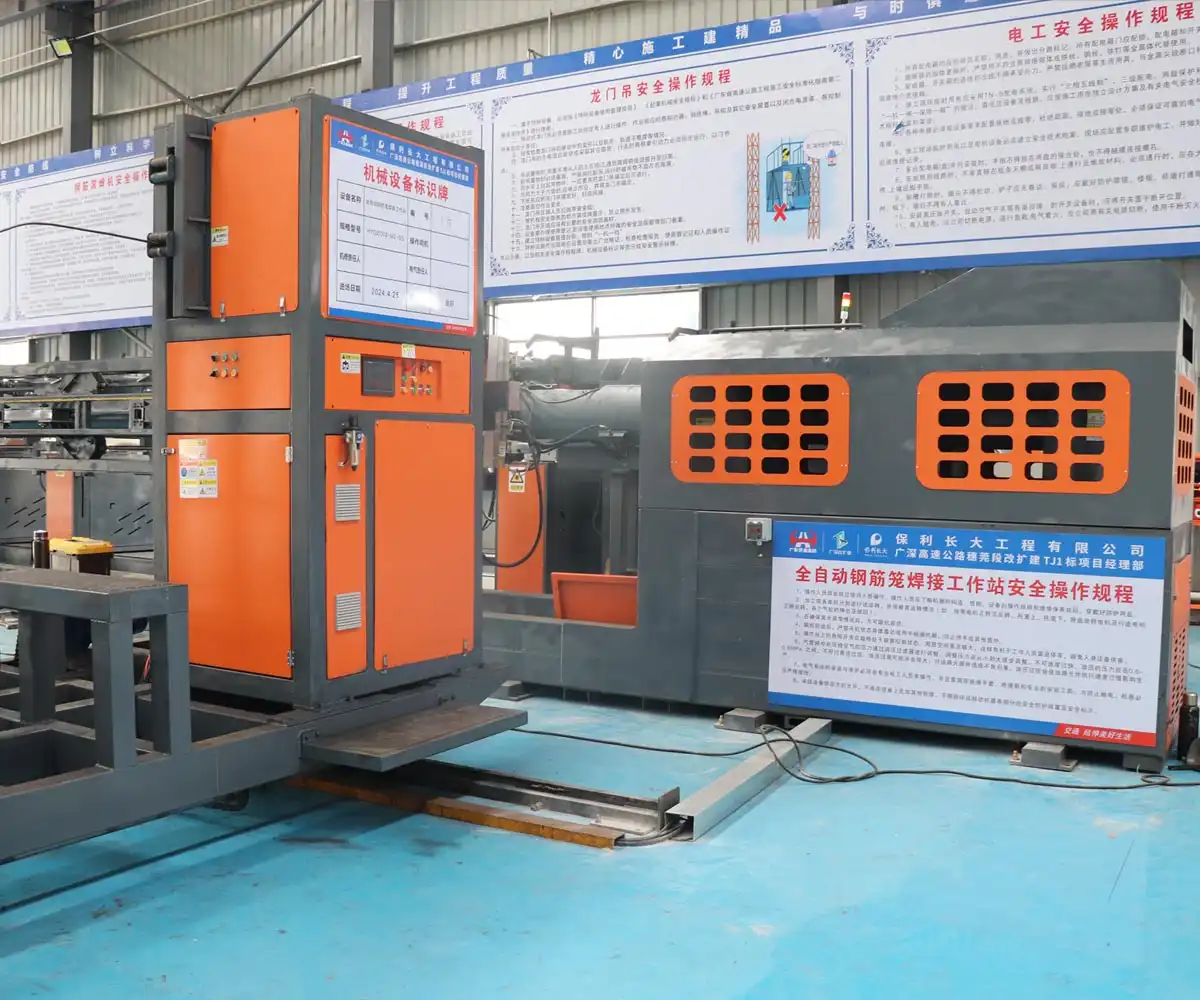

Core Components and Operational Principles
At the heart of these systems is a heavy steel frame that is designed to work hard for a long time. The cage assembly is turned by high-torque drive motors, and longitudinal bars feed through clamps that can be adjusted for position. Automated welding heads move along the length and apply the same amount of heat and filling material at every place where the two pieces meet. 16 MPa hydraulic systems provide the clamping force needed to keep the bars straight while welding, and pneumatic controls manage the stirrup feeding mechanism. The PLC controller makes sure that all movements are in sync with the programmed cage specifications. This gets rid of the differences in size that come with making things by hand.
Key Differences Between Rebar Cages and Rebar Cage Welding Workstations
Product Versus Production Tool
The main difference is between function and lifetime. A rebar cage is the end product; it is a structural part inside a concrete element that has a set service life. On the other hand, the welding workstation is a piece of capital equipment that is meant to be used continuously on many projects over many years. While individual cages are only used for one project, the workstation is a commodity that can be used again and again, creating value as production rounds happen.
Material Handling and Output Characteristics
Functional Roles Within Construction Workflows
Cages get to the building site on time and are ready to be put into drilled holes or foundations that have been dug out. Their only job is to support the structure, which is exactly what the engineering calculations say they should do. Welding workstations are further up the supply chain and can be found in fabrication facilities or on-site processing yards. They have an effect on more than just output; they set quality standards, figure out processing capacity, and have a direct effect on how workers are assigned.
Investing in high-tech automated machines changes the economics of output in ways that can be measured. When contractors switch from hand tying to automated welding systems, their direct labor costs drop by 60%. Dimensional consistency gets a lot better—spiral pitch accuracy reaches ±5mm tolerance, up from ±25mm or more when done by hand. This accuracy gets rid of the need for expensive field corrections and makes sure that the concrete covers the reinforcements perfectly. Predictable production plans are helpful for projects that need hundreds of cages, which is something that human methods can't do, especially when skilled welders are hard to find.
Exploring Types and Technologies of Rebar Cage Welding Workstations
Automation Levels and Control Systems
Workstations on the market come in a range of setups, from partially automated to fully automated. Semi-automatic systems work best for smaller businesses with changing production needs because workers have to manually position longitudinal bars and start welding cycles. Fully automatic platforms like the LYZD-GJL2500 run whole fabrication sequences from a single PLC program. All that needs to be done is to load materials and take away the finished cage. The touchscreen interface lets operators save different cage specifications, so they can quickly switch between projects without having to make any mechanical changes.
Power Source and Welding Technologies
Modern manufacturing shops mostly use electric arc welding machines because they are fast and consistently make good welds. Using CO2 or mixed gas atmospheres in gas shield welding technology keeps the molten weld pool clean from airborne contaminants, making joints that are stronger in both tensile and shear loads. The 100kW welding power supply has the energy density needed for main bar diameters ranging from 18mm to 40mm. It can keep the arcs stable even when the bar surfaces are dirty from mill scale. A 16 MPa hydraulic power unit powers the extra tasks like material clamping, head positioning, and cage extraction, which are done by hydraulic actuators.
Mobility and Installation Configurations
Fixed setups work well for dedicated rebar processing centers and big builders who need to make a lot of cages all the time. A rebar cage welding workstation is attached directly to foundations made of reinforced concrete, which makes it very stable when heavy cage assemblies are rotating at high speeds. The reinforced frame construction keeps vibrations to a minimum, which is important for maintaining weld quality and increasing the service life of the parts. The 30m length and 8.5m width take up a lot of room, but the modular structure design makes maintenance easier and allows future expansion by replacing individual parts instead of the whole system.
Advanced automatic integration is the next big thing in the technology used to make cages. Servo-controlled welding heads change approach angles instantly, making the best use of heat for different bar crossings. Vision systems can check where the stirrups are placed before the welding starts, which stops mistakes that would otherwise mean having to throw away finished cages. These smart features cut down on the need for human intervention, making the workplace safer and getting levels of regularity in production that are impossible with manual methods.
Practical Insights: Operating, Maintaining, and Optimizing Rebar Cage Welding Workstations
Operational Efficiency Strategies
Getting the most out of throughput starts with preparing the materials correctly. By cutting longitudinal bars and spiral reinforcement to size ahead of time, delays in the middle of the cycle are avoided. Putting staging cut bars next to loading stations helps operators keep the production flow going. Because modern computers are designed for a single person to use them, getting the right training has a direct effect on output. Operators quickly learn how to use the touchscreen interface, but it takes a lot of training and ongoing practice to understand how to fix problems and change parameters for different bar grades.
Maintenance Practices for Equipment Longevity
As part of daily maintenance, the welding head is cleaned to get rid of spatter buildup that makes the arc less stable. Every week, you have to do things like check the amounts and quality of the hydraulic fluid and calibrate the wire feed system. Roller alignment checks should be added to monthly schedules to make sure that the bars stay in the same place during the rotation cycle. The flexible structure design makes it easier to get to parts, so maintenance teams can change worn parts without taking apart major structural parts.
Preventive maintenance makes equipment last a lot longer. Unexpected breaks can be avoided by lubricating the bearings that move the machine, checking the electrical connections for signs of burning, and testing the limit switches and sensors. Quality desks have a low failure rate because they were built well in the first place and are maintained according to the rules. Contractors should work with equipment suppliers that offer quick technical support so that problems can be fixed quickly and with as little downtime as possible.
Safety Features and Process Optimization
Modern workstations have many safety interlocks that stop the machine from working if the guards are opened or if the material feed gets stuck. Multiple emergency stop buttons placed around the outside of the equipment make sure that workers can quickly stop using it if they need to. When compared to manual welding, the top-mounted automatic welding setup makes the workplace safer by limiting the operator's exposure to welding flash and fumes. Integrated dust collection systems handle the tiny particles that are released into the air when welding. This meets environmental standards and protects the health of workers.
To improve the process, you have to look at the production data that the PLC system collects. Keeping an eye on the welding parameters over time can show changes in the performance of consumables or the output of the power supply in a rebar cage welding workstation. This lets you fix the problem before it leads to quality issues. By keeping track of cage cycle times, you can find problems with how the materials are handled or how the parameters are set up, which helps you make continuous improvements.
Procurement Considerations: Choosing the Right Rebar Cage Welding Workstation for Your Business
Capacity Matching and Technology Selection
The right amount of workstation power can be found by looking at your project flow. Fully automatic systems save time and money by increasing output and reducing the need for human work in operations that need 10 to 15 cages every day. Smaller workers who only need cages sometimes might want to look into semi-automatic equipment, which costs less to buy. The diameter range must be compatible with your typical project needs, whether it's 700mm to 2500mm or smaller. For specific uses in bridge pier or offshore foundation work, customization choices like the ability to use two main bars or longer lengths than the normal limit of 12 meters may be needed.
Evaluating Supplier Credibility and Support
Reliability of equipment depends a lot on the engineering quality of the manufacturer and the infrastructure for support after the sale. Suppliers who have worked with big building contractors in the past can show that their tools will last in tough production conditions. The fact that Zhongji Luyuan works with China Railroad and China State Construction and sells to almost 100 countries shows that their LYZD-GJL2500 and similar models work well in real life. As part of the evaluation process, the plant should be visited to see how quality control is done, and operational experiences should be discussed with current clients.
The terms of the warranty and the availability of technical support have a big effect on the total cost of ownership. Full warranties that cover major parts for long periods of time protect your investment from breaking down too soon. Technical support that is quick to respond, whether it's through remote diagnosis or quick on-site service, keeps production from stopping too often. Training programs that fully prepare your operators will cut down on the time it takes to learn how to use your equipment at the start-up and over time.
Financial Analysis and Acquisition Strategy
When figuring out the return on investment, you should include direct wage savings, higher production capacity, better quality, and the chance of making more money by taking on bigger project contracts. Most contractors who keep up a steady level of production see a return on their investment (ROI) in 6 to 12 months. Financing choices, such as leasing agreements for tools, can lower the amount of money you need to pay for it all at once and give you tax breaks too. When expanding operations to more than one location or negotiating regional supply agreements, it makes sense to buy things in bulk.
Shipping operations and wait times need to be planned for ahead of time, especially when buying things from other countries. Shipping containers, clearing customs, and getting the goods to your plant within the country can add several weeks to the arrival time. Coordinating installation and testing services makes sure that the startup goes smoothly. Experienced techs make sure that everything is put together correctly and train operators at the same time.
Conclusion
Knowing the difference between rebar cages as structural products and the specialized tools used to make them helps people in the infrastructure and construction industries make better buying decisions. The rebar cage welding workstation determines your competitiveness by affecting labor costs, production speed, dimensional accuracy, and the stability of project schedules. The cage itself provides load-bearing capacity within concrete elements. Automated systems like the LYZD-GJL2500 are tried-and-true technologies that solve important problems in the construction industry, such as a lack of skilled workers, the need for consistent quality, and the constant pressure to cut down on construction timelines. When procurement workers are aware of these differences, they can help their companies take advantage of infrastructure investment cycles by making better products and running their businesses more efficiently.
FAQ
Can workstations handle varying rebar specifications within a single project?
Of course. Modern CNC-controlled systems can save more than one cage program. This lets workers choose from a variety of diameter combinations, lengths, and stirrup patterns using tablet menus. The roller systems can be adjusted, and the welding settings can be programmed to work with main bars from 18mm to 40mm and spiral bars from 8mm to 16mm without having to be mechanically rearranged. This adaptability is very helpful for complicated projects that need a lot of different cage designs.
What quality control measures ensure consistent weld integrity?
Automated welding systems are naturally consistent because they don't require humans to change the amount of heat applied or the dwell time. Porosity and flaws that weaken joints can't happen with gas shield protection. Testing sample joints for tensile strength on a regular basis makes sure that welds meet or go beyond the AWS D1.4 structural welding code's requirements for shear and tensile strength. Ultrasound testing that doesn't damage the joint can be used on important load-bearing joints when the project requirements call for more proof.
How difficult is operator training, and what skill levels are required?
The easy-to-use touchscreen interface and design for a single operator make training much faster than with traditional manual welding. After one week of hands-on training, most operators are able to do basic tasks well. Because the equipment is automatic, even entry-level workers can make quality cages right away. This solves the problem of not having enough approved skilled welders that affects traditional ways of making things. Over the next few months, you'll get better at advanced debugging and parameter tuning.
Partner With Zhongji Luyuan for Advanced Rebar Processing Solutions
With its tried-and-true automatic cage welding technology, Zhongji Luyuan is ready to help you with your infrastructure manufacturing needs. Since 2016, we've sent smart steel processing equipment to major contractors working on high-speed rail, metro, bridge, and nuclear power projects in almost 100 countries. The LYZD-GJL2500 workstation is an example of how committed we are to making machines that are easy to use while also being highly reliable and efficient. If you need to buy a rebar cage welding workstation right away or want to make changes to the configurations for a specific project, our engineering team can help with all of it. They can also help with installation and provide quick service after the sale. Email us at sales2@shandongluyuan.com right now to talk about how our automated fabrication systems can change the way you make things and cut down on the time it takes to finish projects. By going to zjly2025.aixdb.cn, you can read full specs, watch videos of demonstrations, and get in touch with our technical experts who know how hard it is to build infrastructure.
