How Does CNC Stirrup Bending Machine Support Faster Reinforcement Preparation for Construction Teams?

A CNC stirrup bending machine supports faster reinforcement preparation by automating the entire process of straightening, measuring, bending, and cutting rebar in one continuous operation. Powered by high-torque servo motors and programmable CNC controls, it produces stirrups at traction speeds of up to 100m/min with length accuracy of ±1mm and angular precision of ±1°. For construction teams managing tight project schedules—whether on bridge foundations, metro tunnels, or prefabricated building frames—this level of speed and consistency directly reduces processing time, cuts labor dependency, and keeps production running without interruption.

Understanding CNC Stirrup Bending Machines and Their Working Principles

It's good to know how training works before you buy any tools for it. A CNC rebar twisting device does several jobs that would normally have to be done by hand. This makes the process of making things much better.

Core Components That Drive Performance

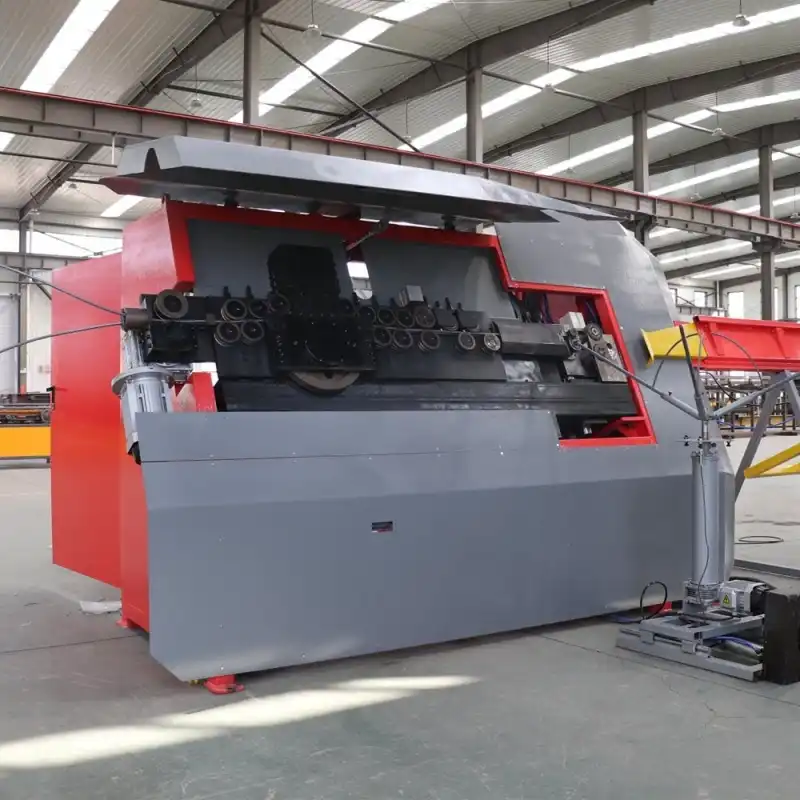

It has a high-speed servo bending head, an air cutting system, a wire-feed pulling unit, and a straightening assembly with more than one roller. To make a full stirrup, each part must be put together in a certain way. Warm rollers (HRC 58–62) completely straighten the rebar before it gets to the station where it is bent.

How the Automated Workflow Operates?

That's right, shape parameters are put right into the CNC interface, which can store hundreds of pre-set programs. Each command is read by the system, which then feeds the rebar to the exact length that was measured, bends it at the right angle, and cuts it cleanly. No changes need to be made by hand between pieces.

Integration With Design Data

These days, CNC stirrup machines can work directly with CAD design files. They can change the stirrup's shape from the design software to the machine controls in this way. This cuts down on mistakes caused by people transcribing and speeds up the process of setting up parts with different specs.

Limitations of Traditional Manual Stirrup Bending and the Evolution to CNC Solutions

Many building teams still remember the problems that came with having to bend over by hand, such as slow work, uneven quality, and workers who were tired. Those issues really do exist, and they cost projects both time and money.

Where Manual Methods Fall Short

How much rebar can be bent by hand depends on how skilled and strong the workers are. Pieces should have different sizes, and parts that need to be changed because of wrong measurements happen all the time. When big building projects need thousands of stirrups every day, a CNC stirrup bending machine helps reduce this waste and prevents delays to the plan.

What Automated Rebar Processing Changes

When bending, a CNC-controlled machine takes away the chance of making a mistake. A trained worker can make a lot fewer stirrups that are all the same, but one person can run a machine that makes 500 or more stirrups that are all the same every hour. Reports from the industry say that automatic rebar handling can cut the amount of work needed per unit by up to 60% when a lot of them are being made at once.

Real-World Performance Gains

In just two weeks, a metro construction company in Southeast Asia that used to bend metal by hand got three times as much done every day with CNC stirrup equipment. The number of rework requests dropped from about 8% to less than 1%. This cut down on waste and kept the building plan on track.

Key Benefits of CNC Stirrup Bending Machines for Construction Teams

When you switch to automatic stirrup bending, you get more than just speed. It is possible to measure how quality, safety, and long-term costs go down for building teams.

These are the main reasons why you should buy this gear:

• Higher throughput per shift: With traction speeds reaching 100m/min and bending angle repeatability of ±1°, teams can fulfill large daily quotas without adding headcount. This matters most on high-speed rail and highway projects where rebar demand is continuous.
• Consistent dimensional accuracy: The CNC encoder provides real-time feedback during each cycle, preventing cumulative length errors across long production runs. Each stirrup matches the programmed specification, reducing structural rework and material waste.
• Reduced physical injury risk: Automated handling removes workers from repetitive heavy lifting and manual bending motions. Ergonomic machine design and protective enclosures keep operators safe throughout the shift.
• Built-in self-diagnostic capability: Advanced PLC control interfaces monitor system performance in real time. The machine flags abnormalities before they cause breakdowns, giving maintenance teams advance notice rather than reactive repair.

Advanced PLC control interfaces always keep an eye on how the system is working, so it can solve problems on its own. Service teams can fix problems before they happen because the machine lets them know about them.

Selecting the Right CNC Stirrup Bending Machine for Your Procurement Needs

There are different kinds of machines on the market. Purchasing teams need clear evaluation standards so they can match the specs of tools to the needs of the project.

Machine Type and Processing Range

Rebar sizes range from 5 mm to 13 mm in single-wire models. Double-wire models, on the other hand, can handle smaller diameters at the same time to double output. For big construction projects that need stirrups of different sizes, make sure the machine can handle all of them.

Control System and Software Quality

It's easier to learn how to use a CNC controller that you can trust and that has a user interface that is simple and easy to understand for a cnc stirrup bending machine. If you want to buy a system, make sure it has at least 200 shape libraries, lets you change settings in real time, and can send in popular CAD formats.

Energy Efficiency and Operating Costs

As long as the loads at the end are the same, servo-electric drives use a lot less power than hydraulic drives. A business with more than one shift will save a lot of money on energy costs over the life of the equipment.

The CNC rebar processing equipment that Zhongji Luyuan makes is approved by CE and meets the requirements of ISO 9001 for manufacturing. Big builders in China, such as China Railway, China State Construction, and China Communications Construction, have bought equipment from the company. Every year, it also sends goods to more than 100 countries and regions. People from other countries who buy this product have some faith in its dependability and the regularity of its supply chain because of its track record. To find out everything about a product, visit zjly2025.aixdb.cn.

Implementation Best Practices and Troubleshooting Tips

If you make sure the machine works right from the start, it will last longer and cost less to fix. It pays off quickly to set up and teach people in a structured way.

Site Preparation and Power Requirements

The floor of the area where the machine will be put in should be stable, level, and able to support its weight. Before the machine is sent to you, make sure that the voltage and phase of the power in your building are right for it. Power sources that aren't stable are a big reason why control systems go wrong.

Operator Training and Daily Checks

Hire specialized workers who get training from the manufacturer before they start making things. You should check the shape of the flattening rollers, the wear on the cutting blades, and the amount of oil before each shift. Keep track of service records by writing down repair logs. This will help you find problems early on, before they get worse.

Troubleshooting Common Issues

To fix changes in length of more than ±1 mm, either the encoder input drifts or the traction rollers slip. This can be done by adjusting the machine. Different angles in a batch are generally caused by bending pins that are worn out or control software settings for spring-back adjustments that are off. This is something that Zhongji Luyuan's after-sales service team can help with, and they have a full spare parts program to back them up.

Conclusion

Making sure that all the parts are of the same high quality is easy with cnc stirrup bending machine technology. This saves time and money for the building teams. The case for automated bending equipment is based on real project results and data that can be measured. This is true whether you are in charge of a rebar processing center, a metro construction program, or buying things for a big EPC contractor. When the right machine is set up and taken care of properly, it always gets work done at all times. To make a big purchase work better for you in the long run, you must first make sure that the tools fit your project's needs.

FAQ

How much faster is a CNC stirrup machine compared to manual bending?

It is possible for a CNC machine to slide at speeds of up to 100m/min, and one person can make more than 500 of them in an hour. As long as the shape isn't too complicated, each person can bend between 40 and 80 pieces an hour. Even more work gets done when you use complicated multi-bend shapes.

What maintenance does the machine require?

Daily checks are done to see how the blades, rollers, and oil are doing. The system usually gets a full service every 500 hours of use. This includes calibrating the encoder and checking the hydraulic and pneumatic systems. When you buy tools from Zhongji Luyuan, they give you a list of scheduled maintenance tasks.

Can the machine process different stirrup shapes without hardware changes?

Yes. The CNC interface lets workers change between shape types that have already been programmed. They don't have to change the tools for most plans. In shape files, the system can keep hundreds of different ways that shapes can be put together.

Is customization available for specific project requirements?

The machine configurations that Zhongji Luyuan makes are different for each job and depend on the range of diameters, the amount of output, and the need for automation integration. Write to sales2@shandongluyuan.com to talk about your project in more depth.

Get a Customized CNC Stirrup Bending Machine Quote From Zhongji Luyuan

An honest CNC stirrup bending machine maker since 2016, Zhongji Luyuan works with big infrastructure companies in almost 100 countries. Our tools are tough because they are ISO 9001-approved and have been used by China Railway and China State Construction. Email our team at sales2@shandongluyuan.com or visit shandongluyuan.com right away to get a personalized price or expert advice.
