How does LYGH-1500~3000 pile cage welding machine improve production efficiency?

The Pile cage welding machine LYGH-1500~3000 dramatically improves production efficiency by replacing labor-intensive manual fabrication with automated, CNC-controlled processes. This equipment reduces crew requirements from over 15 workers to just 2-3 operators while accelerating welding speeds up to 2000mm per minute. Its programmable logic controller ensures precise stirrup pitch accuracy within ±2mm, eliminating costly rework and material waste. Continuous operation capability and dual-drive synchronization systems maintain consistent output for large-diameter reinforcement cages ranging from 1500mm to 3000mm, meeting the demanding schedules of infrastructure projects without compromising structural integrity or safety standards.

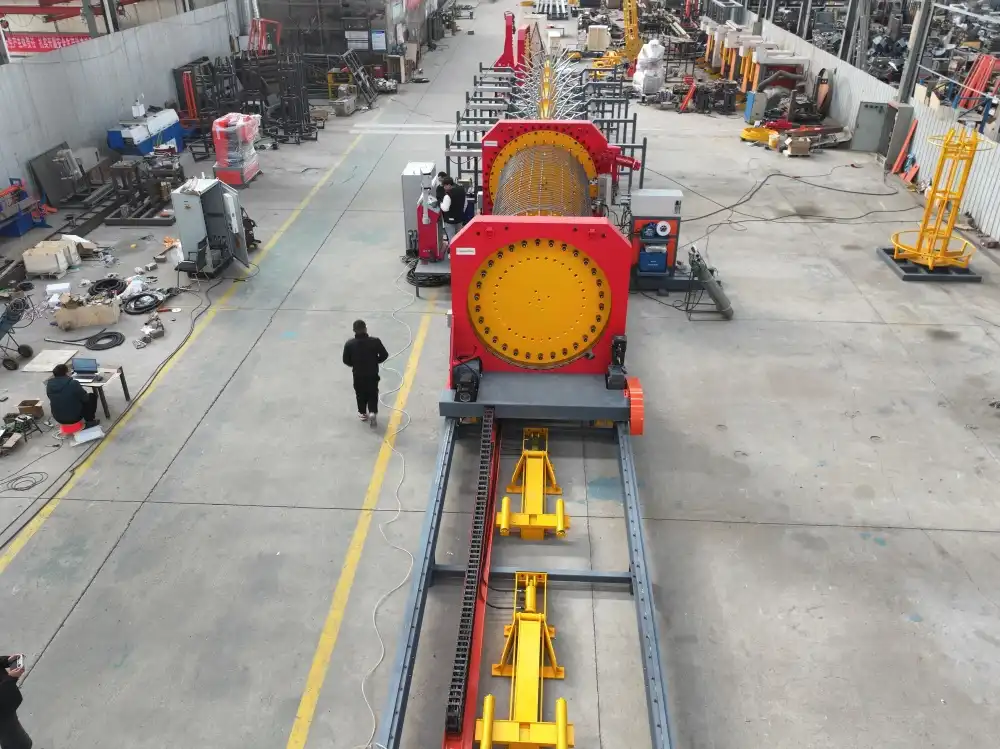

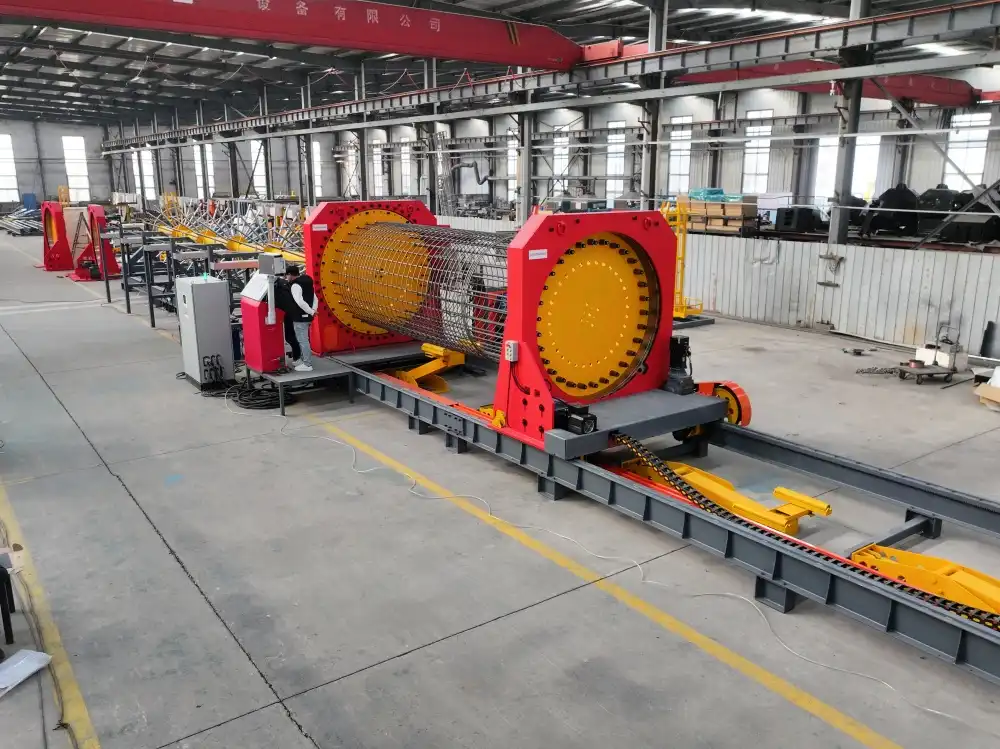

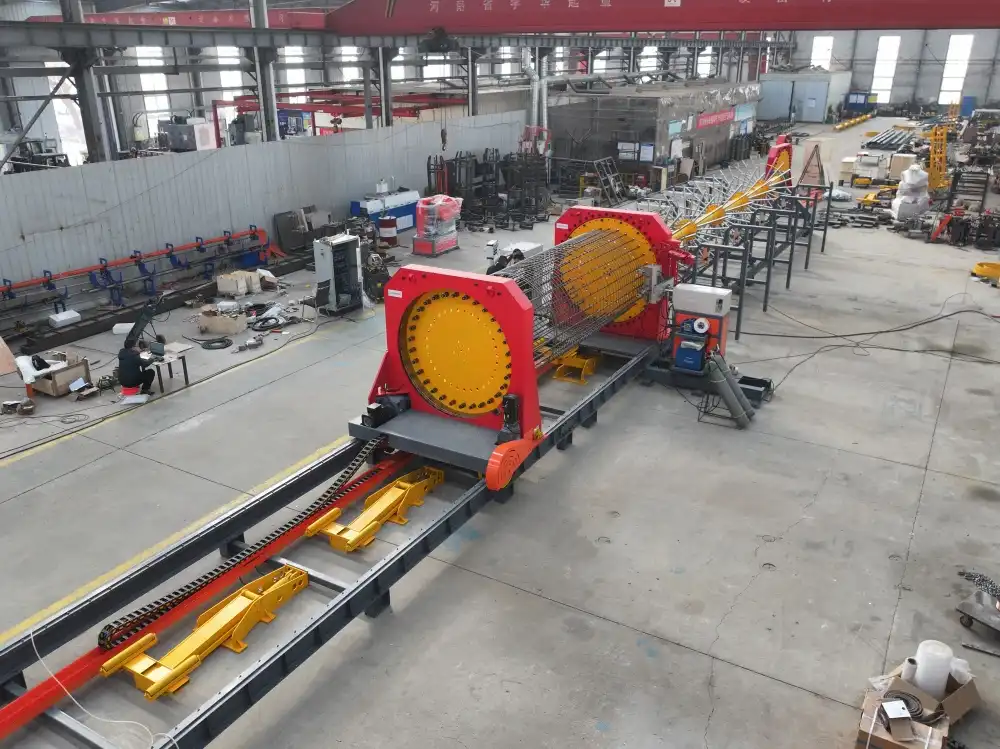

Understanding the LYGH-1500~3000 Pile Cage Welding Machine

Modern needs for infrastructure have shortened the time it takes to build things, and quality standards keep going up. When we look at deep base work for high-speed rail bridges or port facilities, making the reinforcement steel cages becomes a very important task that can make or break the project timeline.

This new Pile cage welding machine, LYGH-1500~3000 line, is a big step forward in automatic rebar processing technology, and it was made for big civil engineering projects. By combining advanced control systems with strong mechanical frames that can handle extreme loads and dimensional requirements, these tools change the way builders put together pile cages.

Core Technical Specifications

This machine works with cage widths ranging from 1500 mm to 3000 mm, meeting both normal infrastructure needs and ultra-large foundation needs. Through modular design, the longest cage can be extended to 27 meters, which can fit almost any deep base standard used in modern buildings. With a speed range of 0 to 2000 mm per minute, the welding machine can find the right mix between throughput, rebar thickness, and quality standards that are specific to the project.

The frequency conversion speed control makes the winding action precise, and the dual-drive timing system keeps the cage from deforming while it's being made. High-torque motors allow for continuous operation 24 hours a day, seven days a week on tough job sites. They are backed up by hydraulic support systems that are made to safely handle huge steel structures during the building process.

Certification and Quality Standards

Professional-grade tools are different from simple fabrication tools because they meet foreign standards. The LYGH line is CE certified and meets ISO9001 standards, which shows that it adheres to quality management systems that are known all over the world. High-quality metal electrodes provide better conductivity and longer wear resistance, which lowers the number of times consumables need to be replaced and keeps the stability of the weld across production runs.

Identifying Production Bottlenecks in Traditional Pile Cage Welding

To understand how to increase speed, we need to take a close look at the old ways of making things that are still used in many building projects. Assembling a pile cage by hand is hard for a number of reasons that are all linked and make it hard to get work done.

Labor Dependency and Skill Shortages

With traditional ways, you need a lot of trained welders and fabricators—usually 15 or more people for each production line. As more experienced craftspeople leave and younger workers choose different job tracks, it's getting harder to find and keep qualified welders. This lack of workers directly affects project timelines when making cages takes too long, and base work has to be put off.

The pile cage welding machine LYGH-1500~3000 is not available. Besides not being available, the cost of work keeps going up. Large manufacturing teams have a lot of ongoing costs that cut into project margins, like wages, benefits, insurance, and overhead. Any delays caused by bad weather or changes to the plan make these costs even higher because workers are still paid even when they aren't working.

Quality Inconsistency and Rework

There is a lot of variation in manual welding. There are differences in the penetration, strength, and placement of welds made by even skilled workers. The accuracy of stirrup spacing is lower when workers measure and place reinforcements by hand, which can cause mistakes in measurements that may need expensive fixes. Tolerances that can't be regularly met by hand are needed for bridge pier foundations and nuclear plant structures.

When quality problems are found during inspection, they have to be fixed. This takes more time, money, and supplies, and delays the next part of building. These problems throw off project plans, which could lead to liquidated damages and hurt the reputation of contractors.

Safety Risks and Physical Demands

Workers are at risk of getting hurt when they move big rebar sections and large cage assemblies. These risks include back strain, pinch spots, and falls. Long-term health problems at work can be caused by welding over and over again in strange situations. Safety events stop work, make insurance rates go up, and cause problems with the law that take management's attention away from the main goals of the business.

How the LYGH-1500~3000 Breaks Bottlenecks to Optimize Production Efficiency

Automation completely changes the costs and abilities of making pile cages. Each traditional bottleneck is fixed by LYGH equipment's built-in technological methods that make measured performance gains.

Dramatic Labor Reduction

The Pile cage welding machine LYGH-1500~3000 can be run by just two to three people: one person controls the CNC computer, and the other two handle loading the rebar. Compared to manual ways, this means that 80–85% fewer people are needed on the team. In addition to reducing the number of employees needed, the skills required change from specialized welding knowledge to operating tools. This is a training gap that can be more easily filled through organized programs.

When teams are smaller, they use less labor, which lowers costs and makes management easier. It's easier to plan, coordinate, and oversee work when there are three workers instead of fifteen welders. With this simplified method, project managers can focus their resources on tasks that are most important right now instead of worrying about how to make the parts.

Enhanced Production Speed and Throughput

Automated welding processes work at steady speeds that aren't affected by human error, tiredness, or changes in the weather. The speed of the welding can be changed up to 2000 mm per minute, so contractors can adjust the output to meet the needs of the job and the requirements of the material. With the LYGH method, a normal large-diameter cage can be built in two to three hours instead of eight to ten hours of hard work.

This speeding up has a direct effect on job plans. Foundation work that used to take weeks can now be done in just a few days, which lets us work on the top and start earlier. When more than one cage is needed, like in bridge pier groups or building foundation grids, the time savings add up and make a huge difference in how long the whole job takes.

Precision and Quality Consistency

The PLC-based control system uses laser motion sensors to keep the accuracy of the stirrup pitch within ±2mm along the whole length of the cage. This accuracy gets rid of the differences in size that happen when things are made by hand. The dual-drive timing system keeps the longitudinal bar alignment stable, which stops the "banana-shaped" deformations that can happen when doing things by hand.

Consistent electrode pressure, current application, and time all improve the quality of the weld. Testing for shear strength shows that automatic weld points are stronger than the yield strength standards for the parent metal. This dependability cuts down on inspection failures and rework cycles, which speeds up the approval process and keeps the building project moving forward.

Real-World Performance Evidence

Contractors for high-speed railways who use the Pile cage welding machine LYGH-1500~3000 for bridge pier foundation work say that the time it takes to make the cages is cut by 60 to 70%, and the dimensions are better too. In port development projects that use heavy-gauge rebar for deep-water berth supports, labor costs are cut by more than 50% while meeting strict welding requirements for corrosion protection that can't be met by hand.

Urban building projects that need foundation piles up to 3000 mm in diameter praise the equipment's ability to keep geometric accuracy in soft soil situations where strict structural limits are needed. These validations from the real world show how automation turns theoretical benefits into real bottom-line gains.

Comparing LYGH-1500~3000 with Other Pile Cage Welding Machines

When making a purchase choice, you need to carefully consider all of your tool options to make sure they meet your needs and your budget. Knowing where the LYGH series fits in the market as a whole helps buyers make smart decisions.

Model Range Differentiation

The LYGH lineup has a wide range of capacities to meet the needs of normal infrastructure to very big civil engineering projects. For projects with cage widths between 1500mm and 2000mm, the 1500 model is good for making foundations and smaller bridges. This setup works well for general builders who do a variety of work in homes and businesses.

Infrastructure workers who work on highway bridges, rail transit systems, and medium-sized marine sites are the target market for the mid-range 2000 type. The width of the cage can go up to 2500 mm, which is big enough to fit most traffic infrastructure needs for regional and national projects.

The 3000 number stands for the highest capacity, which is made for specific uses like foundations for nuclear power plants, big suspension bridge anchorages, and deep-water port buildings. Extreme diameters of up to 3000mm can be handled by this Pile cage welding machine LYGH-1500~3000, which has the structural strength and control precision needed for projects where failure would have serious effects and quality standards are strict.

Competitive Positioning Analysis

When compared to foreign competitors, the LYGH-1500~3000 offers similar technical performance at a price that is fair. This is because it is made more efficiently and has better supply chain management. European makers often charge higher prices, which is partly due to the history of the brand but isn't always based on real differences in core specs like welding speed, dimensional accuracy, or control system capabilities.

In real terms that affect long-term ownership costs, the framework for after-sales support sets suppliers apart. Zhongji Luyuan keeps up with large service networks that can be accessed remotely for diagnostics and quick repair via Ethernet and Wi-Fi. Authorized techs help with installation, train operators, and set up preventative maintenance programs that keep equipment running as much as possible during busy building periods.

Industry Validation and References

Working with big construction companies like China Railway, China Railway Construction, China State Construction, China Communications Construction, and China Nuclear Power Construction Corporation gives Zhongji Luyuan a lot of proof that its equipment works well and is reliable. Before accepting sellers for big projects, these groups follow strict rules for buying things and do a lot of research.

International deployments of Pile cage welding machine LYGH-1500~3000 in South Africa, Malaysia, Thailand, Kazakhstan, Israel, and South Korea demonstrate that the system can adapt to different operating conditions, power sources, and regulatory environments. This global presence gives potential buyers confidence that the equipment will perform reliably in a variety of job site scenarios, not only in ideal, controlled conditions.

Maintenance Tips and Best Practices to Sustain High Efficiency

Investing in capital equipment gives you value based on how much it is used and how long it lasts. Using disciplined repair routines protects the performance of equipment and cuts down on unplanned downtime that delays output.

Routine Preventive Maintenance Schedule

Before production starts, daily inspection routines should check the state of the electrodes, the amount of hydraulic fluid, and the response of the control system. Welding electrodes need extra care. A daily visual check shows wear patterns, and dressing them every 50 to 100 cages keeps the conductivity at its best and the quality of the weld uniform. When you don't take care of your electrodes, the weld strength goes down, and there are changes in the dimensions that make robots less useful for accurate work.

As part of weekly maintenance, the spinning frame assembly needs to be cleaned thoroughly, electrical connections need to be checked for corrosion and tightness, and the safety of the hydraulic system pressure needs to be confirmed. The dual-drive synchronization system works better when it is oiled on a regular basis, as directed by the maker. This keeps the bearings and other drive parts from wearing out too quickly.

Monthly routines incorporate laser measurement tools to check the calibration and make sure the stirrup pitch accuracy stays within the parameters. PLC software updates should be reviewed and installed as soon as they become available to fix any problems and improve performance. To make sure it is safe to use when moving big cage parts, the high-load hydraulic support system needs to be tested for pressure decay.

Troubleshooting Common Issues

Crews can quickly find and fix small problems before they become big ones when they know what kinds of problems are common in their jobs. Inconsistent stirrup spacing is often caused by timing drift between the drive motors. This problem can usually be fixed by recalibrating the dual-drive system through the control interface, which doesn't need any help from an expert.

Changes in the quality of the weld could mean that the electrodes are worn out, the current settings are wrong for the thickness of the rebar, or the bar surfaces are dirty. By systematically evaluating these factors, operators can find the reasons and make the necessary changes. Modern control systems have built-in monitoring screens that give real-time feedback that speeds up the process of finding problems.

When problems are too big for a person to handle, it's time to call in authorized service help. With remote diagnostic connection, techs can look at error logs, look at system performance data, and often fix software problems without having to go to the site. Response times are much shorter with this feature than with traditional service models, which require actual dispatch for every help request.

Operator Training and Skill Development

The possibilities of equipment are only theoretical until workers learn how to use the features that are available and manage production processes well. Comprehensive training programs should cover how to use the control system, how to handle materials, how to check the quality, and safety rules that are specific to automated cage welding tools.

Hands-on training with an experienced supervisor boosts an operator's confidence and teaches them good habits that keep safety standards high and protect tools. Knowing the connection between control parameters and output quality lets workers make smart changes that improve production for each project instead of just following preset plans.

Crews stay up to date on software updates, new features, and changing best practices by continuing to improve their skills. Investing in operator skill pays off because proper operation leads to better results, higher machine utilization, and lower repair costs.

Conclusion

There is proof that the Pile cage welding machine LYGH-1500~3000 changes the way foundation strengthening is made by automating tasks that are currently slowing down traditional methods. Labor cuts of more than 80%, speed boosts of 60–70%, and better accuracy that cuts down on costly rework all add up to a big return on investment (ROI) for building companies and rebar processing centers. The equipment's reliable success in high-speed trains, naval engineering, and skyscraper foundation uses shows that it can handle tough circumstances. With strict upkeep procedures and thorough training for operators, this automated solution helps building companies meet tight project deadlines while keeping costs low and quality high, which is something that manual methods can't always do.

FAQ

What cage diameter range does the LYGH-1500~3000 accommodate?

The machine can work with support bars that are 1500 mm to 3000 mm in diameter, which is big enough for most infrastructure needs and even some very large ones. Bridge piers for highways and train travel, marine buildings, and deep base pits for skyscrapers are all in this range. The modular design lets you add up to 27 meters to the length to fit almost any project's needs.

How does automated welding improve quality compared to manual methods?

Automating takes away the need for humans to make mistakes when placing electrodes, applying current, or timing. Using laser motion sensors, the PLC control system keeps the stirrup pitch accurate to within ±2mm, and the dual-drive synchrony keeps the cage from deforming. Shear testing methods show that joints made with consistent weld settings are stronger than the parent metal's yield strength. With this level of accuracy, inspection failures and rework processes are cut down.

What is the typical delivery timeline after order placement?

Standard design equipment usually ships between 60 and 90 days after an order is confirmed, but this depends on how quickly the equipment is being made and how much customizing is needed. Including operator training, installation, and testing takes an extra one to two weeks. Early in the planning process, procurement managers should talk to suppliers to make sure that the equipment supply fits with building plans. This is especially important for custom designs or times of high demand.

Partner With a Trusted Pile Cage Welding Machine LYGH-1500~3000 Supplier

Buying equipment is a smart choice that affects the length of a project, the quality of the results, and the long-term costs of running the business. Zhongji Luyuan has been working with CNC rebar processing solutions for more than seven years and has helped big building contractors in almost 100 countries. Working with China Railway, China State Construction, and China Nuclear Power Construction Corporation shows that we can be counted on to do a good job on difficult tasks.

The Pile cage welding machine LYGH-1500~3000 line gives you measurable production gains and backs them up with full expert support, remote diagnostics, and quick parts delivery. Our engineering team is ready to talk with Equipment Managers and Procurement Directors who want to cut down on the need for workers while speeding up foundation work plans. They can talk about the specific needs and configuration choices of your project. You can email our experts at sales2@shandongluyuan.com to set up a technical meeting, a demonstration of the tools, or to ask for specific quotes. You can look at our full selection of smart rebar processing systems at zjly2025.aixdb.cn and learn how automation can change the way you build things.
