What is Pile cage welding machine LYGH-1500~3000 used for in construction?

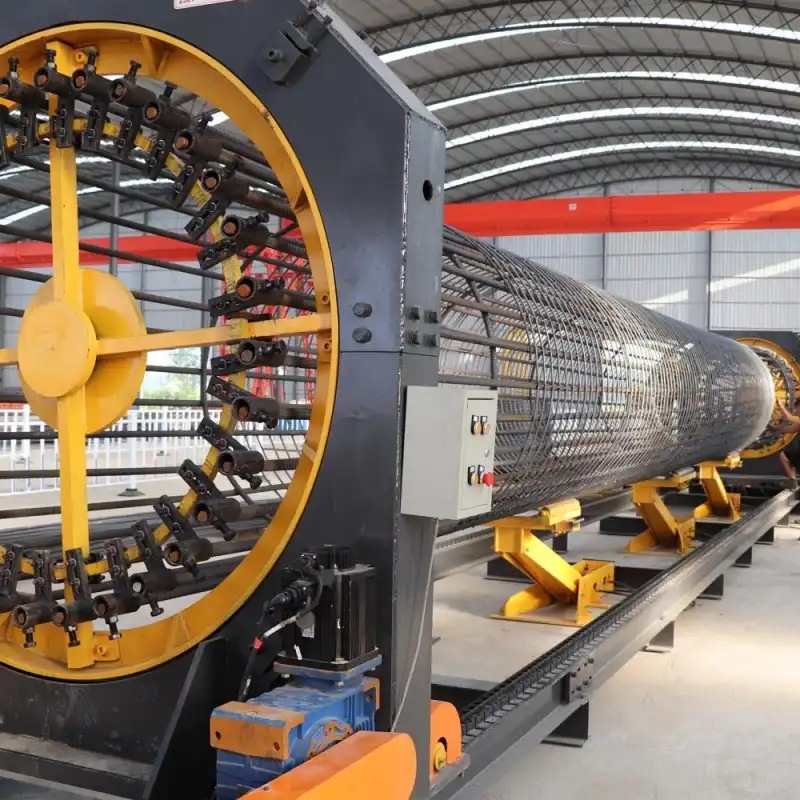

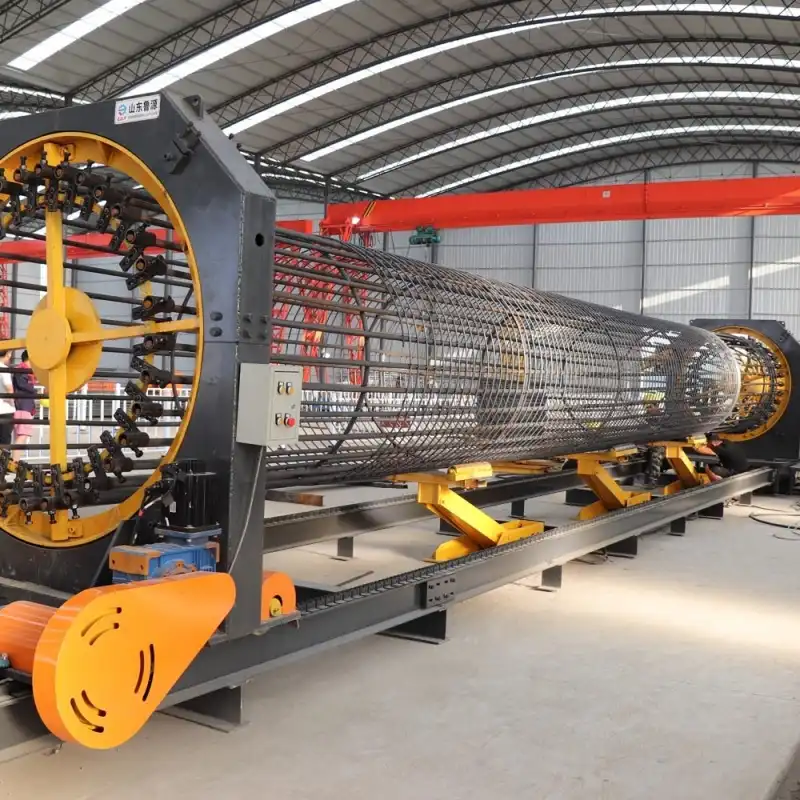

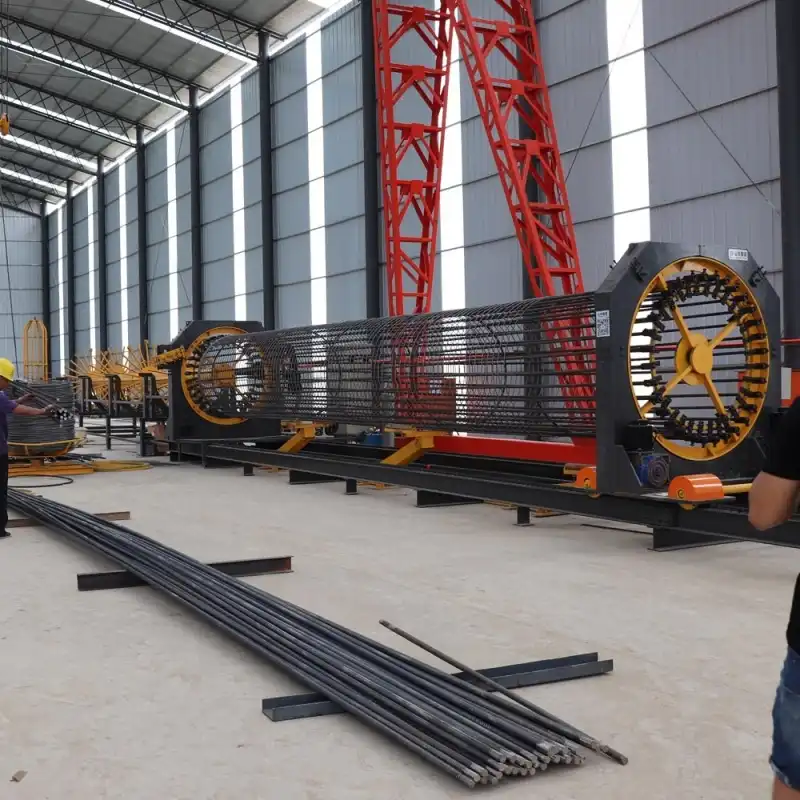

There is an automatic machine called the Pile cage welding machine LYGH-1500~3000 that can make reinforcement steel cages with a width of 1500mm to 3000mm. This CNC-controlled system changes the way building teams work on important infrastructure projects because it was made for deep foundation engineering. It meets the growing need for constant quality, speed, and safety in high-stakes building settings where foundation stability is key to project success by replacing labor-intensive manual welding with precise automation.

Understanding the Role of LYGH-1500~3000 Pile Cage Welding Machines in Construction

Today's building projects have problems that have never been seen before. Lack of skilled workers, tense project schedules, and higher quality standards have pushed the manufacturing industry toward smarter ways to make things. With automated rebar cage fabrication tools, builders can do foundation work in a whole new way, especially for projects that need to have very strong structures.

Revolutionizing Foundation Engineering Through Automation

The Pile cage welding machine LYGH-1500~3000 series makes the process of making reinforcement cages much easier by cutting down on the amount of work that needs to be done. Teams of 15 or more workers are needed for traditional methods that involve doing things by hand. Each worker does the same job over and over, which can lead to variation and mistakes. This machine cuts down on the number of workers to just two or three while still providing better accuracy. In addition to saving money on labor, project managers can now predict production rates, which helps them better plan their resources and stick to their schedules. When foundation work is on the key path, this predictability gives the company a straight edge over its competitors.

Addressing Infrastructure Scale and Complexity

Foundation systems for large-scale structures need to be able to hold a lot of weight. For high-speed train networks, bridge piers must be able to survive earthquakes and still be perfectly square. Deep-water ports need cages that don't rust and can handle the stresses of the sea climate. The roots of tall buildings in cities have to go through difficult dirt, and sometimes they have to go to great depths where normal building methods don't work. The Pile cage welding machine LYGH-1500~3000 line handles these situations by keeping the quality of the welding and the accuracy of the dimensions the same, no matter how complicated the cage is or how much is being made.

Meeting Modern Engineering Standards

In modern buildings, strict quality standards are followed. Building rules use performance-based standards more than prescriptive requirements. This means that builders have more responsibility to show that the structure is adequate. Automated cage manufacturing creates audit trails that meet legal requirements for process control. This ability to be tracked is especially useful for projects involving nuclear power plants, government buildings, and other areas where quality assurance paperwork is legally binding.

Core Features and Technical Specifications of the LYGH-1500~3000 Series

Procurement teams can figure out if this equipment will work better with their operations if they know what technical features make it work consistently. The Pile cage welding machine LYGH-1500~3000 line has a number of high-tech tools that work together.

PLC-Based Control Architecture

In the Pile cage welding machine LYGH-1500~3000, at the heart of the system is a configurable logic device that controls all of its functions. An easy-to-use interface lets operators enter the cage's width, length, stirrup pitch, and rebar layout. After that, the PLC controls the motor speeds, the time of the welding, and the material feed rates so that the designed process can happen. This computer control gets rid of the physical drift that comes with making things by hand, which happens when people get tired or make mistakes over time. The system can remember more than one cage profile, so it can quickly switch between different specs without having to wait for recalibration.

Dual-Drive Synchronization Mechanism

Mechanically, it's very hard to keep the perfect cylindrical shape while turning heavy rebar units. Both ends of the spinning frame have synced drive systems. This keeps the frame from twisting and deforming, which can happen when single-drive systems try to handle large-diameter cages. With frequency conversion motors, you can precisely control the speed of the welding process from 0 to 2000 mm/min. The motors instantly change the power delivery based on the width of the rebar and the welding current needs. This adjustable control makes sure that the quality of the weld stays the same, whether normal reinforcing bars or heavy-gauge material for specific uses are being worked on.

Heavy-Duty Hydraulic Support Framework

When they spin, large-diameter cages create strong rotational forces. The clamping system in the hydraulic support system is stable and can be adjusted to keep the unit in place without distorting the strengthening pattern. Monitoring the pressure makes sure that the clamping force stays the same, and as production goes on, changes in the weight of the cage are automatically taken into account. This focus on mechanical stability has a direct effect on the quality of the weld and the safety of the user, especially when making cages that are very large in diameter.

Welding System Performance

The machine uses electrodes made of high-grade alloys that are designed to carry electricity better and last longer. Welding settings change automatically based on the diameter of the rebar and the qualities of the material. This makes sure that each connection point has shear strength higher than the yield strength of the parent metal. This toughness is very important when putting down concrete, because moving the cage and vibrating it can put stress on individual welds. The machine's ability to feed two wires at once makes it more productive for large projects and makes the structure more rigid by making the weld patterns thicker.

The technical specs say that the working widths can be anywhere from 1500mm to 3000mm, and the cages can be as long as 27 meters in length by arranging them in modules. Depending on the type and configuration of the welding unit, the power needs can be anywhere from 25kW to 45kW, using a standard 380V/50Hz three-phase source. The equipment is CE-certified and meets ISO9001 quality control standards. This gives clients around the world proof that it meets the requirements.

Advantages of Using LYGH-1500~3000 Compared to Traditional Methods and Competitors

When evaluating expensive tools, it's not enough to know the specs; you also need to know how it will affect operations. The value offer includes many aspects that affect the cost and completion of the job.

Labor Efficiency and Cost Reduction

The stark difference between making cages by hand and using machines becomes even more evident when the Pile cage welding machine LYGH-1500~3000 is introduced into the production process. Getting rid of 12 to 13 people from a single production line saves money right away, and the savings grow as the project goes on. Insurance costs and safety issues go down when workers are less likely to be hurt. The remaining workers do less physically demanding jobs like welding and take on more work related to moving materials and checking quality. This makes the workplace safer. For workers who are handling multiple projects at the same time, this labor economy allows them to move resources around without affecting their ability to produce.

Production Consistency and Quality Assurance

The quality of manual welding depends on how skilled the welder is, how tired they are, and the conditions of the work area. This variation is taken care of by automated systems that make cages that meet technical standards to within ±2mm. This level of accuracy cuts down on rework and wasted materials while making sure that the structure works the way it was supposed to. During production, laser motion sensors constantly check the distance between the stirrups. This gives real-time proof that finds errors before they spread to the whole cage. This built-in quality control cuts down on the need for inspections later on and speeds up the handoff of projects.

Operational Flexibility and Project Responsiveness

Most construction jobs don't go exactly as planned. Production needs to be flexible because of changes to the design, new information about the place, and shifting schedules. Because its control system can be programmed, the Pile cage welding machine LYGH-1500~3000 can quickly adapt to new requirements. To change between different cage designs, all that needs to be done is to enter new values. No need to retrain workers or make new templates. This responsiveness helps workers keep their plan promises even when things on the project change.

Long-Term Reliability and Service Support

Durability of equipment has a direct effect on the continuation of a project. Shandong Zhongji Luyuan Machinery made the LYGH-1500~3000 series so that it can work nonstop, 24 hours a day, seven days a week, in tough building sites. When choosing components, wear resistance and maintainability are given top priority. Modular designs make replacing easy when service is needed. The company has a strong network of after-sales support services that offer technical help, operator training, and parts availability, all of which reduce the risk of downtime. This service infrastructure is especially helpful for foreign tasks where broken equipment could mean big fines for being late.

Tips for Maintaining and Optimizing the LYGH-1500~3000 Pile Cage Welding Machine

Systematic upkeep methods are needed to protect capital investments. Setting up regular practices makes tools last longer and improves the reliability of production.

Daily Inspection Protocols

Before starting production, operators should do pre-shift checks that cover all of the important systems. Weld quality is directly affected by the state of the electrode, which needs to be checked every day and dressed every 50 to 100 cages during high-intensity use to keep transmission at its best. To make sure that the holding force stays the same during the work shift, the hydraulic pressure levels need to be checked. Check the lights on the control panel for trouble codes or performance signs that show problems are starting to happen before they break down.

Preventive Maintenance Scheduling

For the Pile cage welding machine LYGH-1500~3000, maintenance that is done on a regular basis keeps small problems from getting worse and stopping production. As directed by the maker, lubrication spots need to be carefully watched over. Rotating parts and bearing assemblies need extra care. Electrical connections should be checked for rust and strength on a regular basis, especially in places that are damp, like outdoors. The PLC software allows for online diagnostics over Ethernet or Wi-Fi, so problems can be fixed before they happen, and software can be updated without having to visit the spot.

Performance Optimization Techniques

Depending on the features of the rebar and the needs of the project, the welding settings may need to be fine-tuned. Working with expert help to find the best current settings, welding speed, and cooling times for each material will ensure the best results. Putting money into training pays off because it makes operators better, which lets teams spot problems before they get out of hand and make small changes that keep quality from going off track. Comprehensive training programs that cover operation, basic fixing, and maintenance methods cut down on the need for calls to outside service providers while also improving internal capabilities.

Procurement Considerations for LYGH-1500~3000 Pile Cage Welding Machines

When buying strategic tools, you need to think about more than just the initial purchase price. Knowing the total cost of ownership and the steps needed to adopt something helps people make smart decisions.

Aligning Equipment Capabilities with Project Demands

The procurement team should look at the projects that are coming up to see what cage diameter ranges, output numbers, and mobility needs are needed. Contractors who mostly work on bridges and waterways may put an emphasis on the larger width range and corrosion-resistant parts. Urban foundation experts might stress how easy and quick it is to set up and how flexible the design can be. This makes sure that the investment in tools helps long-term business goals instead of just increasing production.

Evaluating Supplier Capabilities and Support Infrastructure

How well a company backs its products affects how reliable their products are. Shandong Zhongji Luyuan Machinery has long-term partnerships with big building companies like China Railway, China State building, and China Communications Construction, which shows that it can handle tough jobs. International setups in more than 100 countries show that the company can handle projects that span borders and have to follow different power standards, rules, and service demands. When evaluating a provider, you should pay close attention to the warranty terms, the availability of extra parts, and the expert response promises.

Financial Considerations and Procurement Terms

Buying capital tools needs careful planning of how the money will be spent. Contractors who use the same tools for multiple jobs may be able to get better deals on equipment when they buy it in bulk. To avoid confusion during implementation, payment terms, shipping plans, and installation help should all be made clear. When figuring out the return on investment, you should include the time and money saved on labor, the increased productivity, the decreased need for rework, and the increased competition in project bids that automated manufacturing makes possible.

Conclusion

The Pile cage welding machine LYGH-1500~3000 is more than just production equipment; it's a strategic reaction to how the building industry is changing. As projects get more complicated and quality standards get higher, automated manufacturing of reinforcement cages goes from being a competitive advantage to a practical necessity. This technology solves some of the biggest problems contractors face, like a lack of workers, inconsistent quality, inefficient production, and poor safety. It also provides the paperwork and tracking that modern projects need. Companies that want to improve their infrastructure can take advantage of opportunities that can't be reached with manual methods by investing in robotic solutions that have been shown to work.

FAQ

Can the Pile cage welding machine LYGH-1500~3000 handle double-wire winding for reinforced cages?

The machine has two wire feeding systems that make it more productive and make the structure more rigid for high-load pile uses. This design is especially useful for marine buildings and areas prone to earthquakes, where the increased strength of the cage adds to the safety margins.

What power requirements does this equipment need?

Standard setups use a three-phase 380V/50Hz power source and use between 25kW and 45kW of power overall, based on the model and welding layout. During the planning, the site's electrical equipment should be checked to make sure it has enough capacity.

How many operators are required for the Pile cage welding machine LYGH-1500~3000?

In a normal operation, two to three people are needed: one person to run the CNC computer and one or two people to load the rebar and take away the final cage. This is 80% less than when manufacturing teams worked by hand, which saves a lot of money on labor costs.

Does the machine support remote diagnostics?

The latest LYGH-1500~3000 types have built-in network connection, which lets problems be fixed and PLC software updated from afar. This feature cuts down on service response times and lets technical support figure out problems without having to visit the site, which keeps production running as smoothly as possible.

Partner with Zhongji Luyuan for Advanced Rebar Processing Solutions

With the best automatic cage fabrication technology in the business, Zhongji Luyuan is ready to help you with your building projects. As a reliable provider of the Pile cage welding machine LYGH-1500~3000, we offer both advanced production and full expert support to make sure that your equipment investment lasts. No matter if you're building high-speed train foundations, marine ports, or skyscrapers in the city, our engineering team works directly with your project managers to set up systems that meet your exact needs. Please email our team at sales2@shandongluyuan.com if you are a procurement manager, equipment head, or project engineer and want to talk about how the LYGH-1500~3000 line can help your production. You can look at application case studies, read full specs, and request quotes that are specifically made for your project pipeline by going to zjly2025.aixdb.cn. Our dedication goes beyond just delivering the equipment; we also offer operator training, upkeep guidelines, and quick, helpful service after the sale to protect your investment for as long as it is in use.
