How the Automatic Cage Welding Machine Works

In the three years I spent on a big bridge building site, I saw a group of twelve welders work all day to make just three reinforcement cages for a single pier foundation. It was too hot to stand, sparks were flying everywhere, and by evening, the quality tester had found gaps that didn't even need to be fixed. That scene stuck with me because it showed exactly what's stopping so many building projects today: using old-fashioned methods that can't keep up with the needs of modern construction. Today, I'm going to show you how automatic cage welding machines are changing this situation on highway projects, metro lines, and nuclear power plants across the United States.

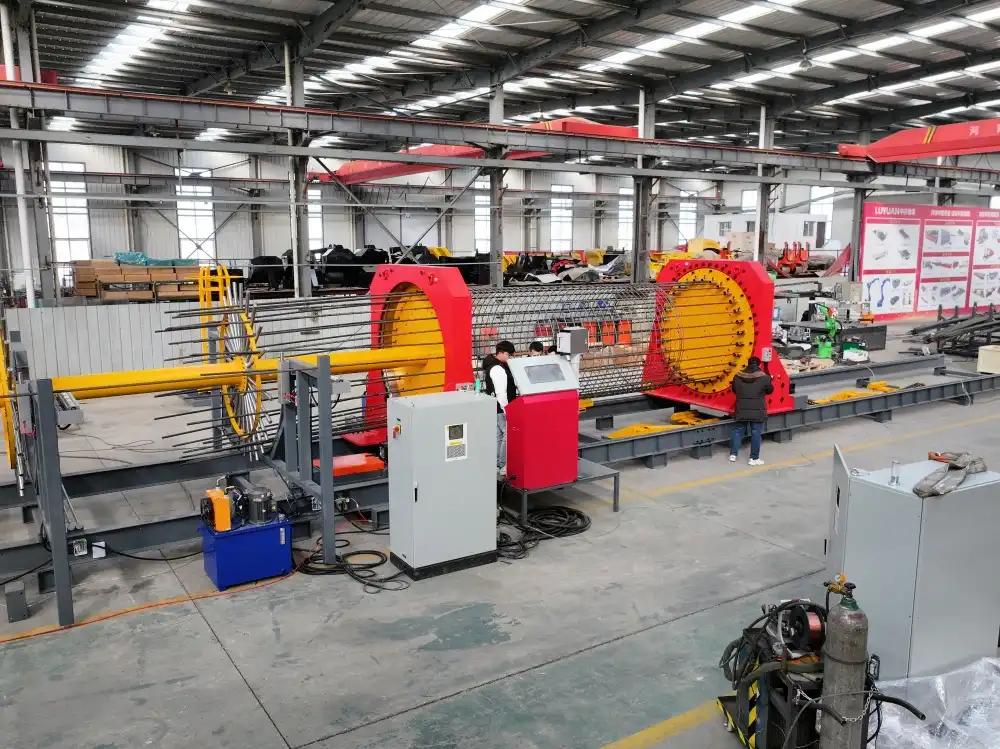

A CNC-controlled automatic cage welding machine makes cylinder-shaped reinforcement structures by timing the feeding of longitudinal rebar with the twisting of spiral bars, while continuously gas-shielded arc welding is done. Through a PLC touch screen interface, the machine handles the rotation speed, spiral pitch, and welding settings. It makes cages that are accurate to the millimeter and meet structural engineering standards for deep foundations and load-bearing beams. This automated method gets rid of the variations that come with making things by hand. It gives regular weld penetration and exact spacing, which are important for high-stress situations in rail transit and bridge building.

Understanding How Automatic Cage Welding Machines Work

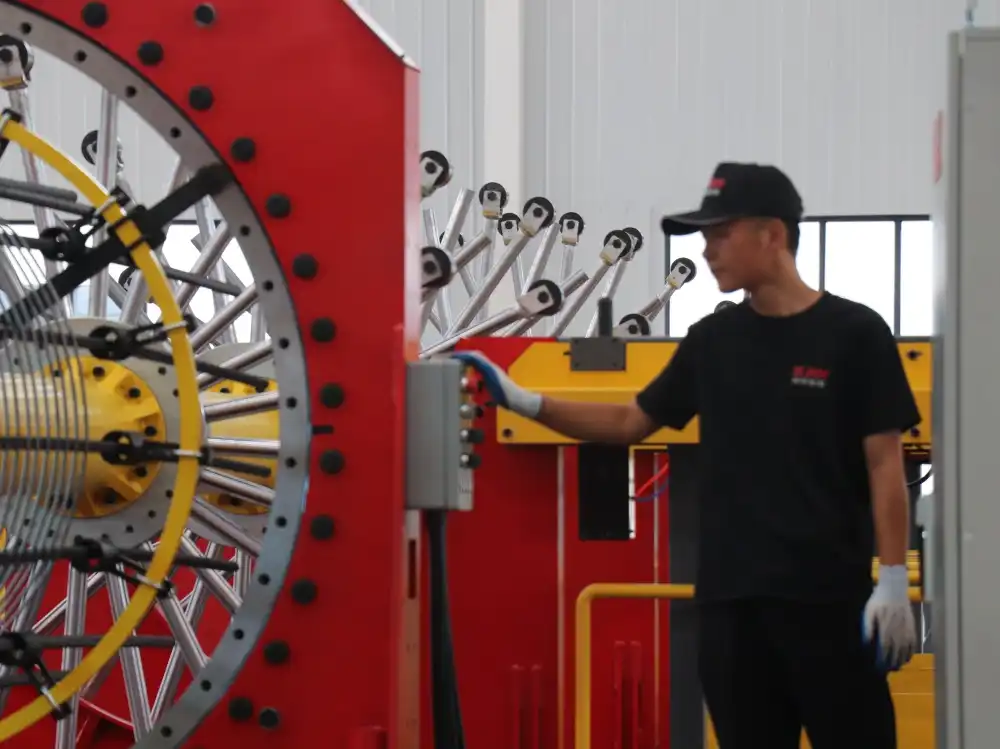

Together, mechanical accuracy and smart process control make up the basic idea behind these systems. There is a spinning device in the middle of the machine that keeps longitudinal rebars in place while a spiral bar feeder keeps going around them. Gas-shielded arc welding technology makes sure that the joints are strong when the spiral bar touches each longitudinal rebar crossing.

Core Components and Their Functions

The operating system is like the brain of the machine. Modern machines, like Zhongji Luyuan's LYZD-GJL2500 type, have PLC controls and easy-to-use HMI interfaces with touch screens. This lets a single user set the cage's diameter, length, bar spacing, and welding settings. The system figures out the spinning speeds and feed rates automatically so that the spiral pitch stays the same along the whole length of the cage.

The welding system is made up of several heads that are placed around the cage's edge. Gas-shielded arc welding is used in these heads. This type of welding makes joints that are stronger and more reliable than standard spot welding. The shielding gas stops rust from happening during the welding process. This makes clean welds that keep the rebar's structural integrity without weakening the base material.

The movement is controlled by mechanical drive systems. The main spinning mechanism is powered by hydraulic pressures of up to 16 MPa, and the spiral bar feeding is very precisely controlled by servo motors. With this setup, the machine can work with main bar widths ranging from 18mm to 40mm and spiral bars ranging from 8mm to 16mm, meeting the needs of a wide range of structural uses.

The Production Process Step by Step

Preparing the materials is the first step in production. Short, straight rebars are put into the holding clamps by the operator, who then feeds the spiral rebar through a belt. After entering information through the touch screen, the machine sets up all of its parts instantly in the way they were when it started.

As soon as it is turned on, the main rotation device starts to turn while also moving lengthwise to make the helical path. As it goes around the horizontal bars, the spiral bar feeder keeps the strain steady. When the spiral bar goes over a longitudinal rebar, sensors pick up on the crossing and fire the welding heads in the right order. This teamwork keeps happening as the cage gets longer, and the machine makes sure that there are exact spacing limits of ±2mm throughout the whole structure.

The automatic cage welding machine operates so that milliseconds before each weld, the gas protection system turns on, providing a safe environment that ensures the joints are clean and strong. With 100 kW of welding power, sufficient heat is generated to join the bars together without burning them or creating weak spots. The entire process is highly consistent and can produce cages up to 12 meters long, with diameters ranging from 700 mm to 2500 mm, depending on the model configuration.

Comparing Automatic Cage Welding Machines with Manual Solutions

When you walk through a standard manufacturing yard, you can see how different old and new ways of doing things are. To make cages by hand, skilled welders have to place spiral bars by hand, mark the spaces between them with chalk, and make hundreds of individual welds while staying focused in tough working conditions.

Labor and Efficiency Considerations

Five to eight people work in a cage when fabrication is done by hand, and a normal 12-meter section can be made in four to six hours. When making hundreds of similar weld points over and over again, worker tiredness becomes a major factor that affects quality consistency. There are also safety issues because welders are constantly exposed to UV rays, fumes, and bad posture from working in awkward poses.

This equation changes a lot when automatic cage welding machines are used. With just one person, the LYZD-GJL2500 type can make 13 cages in a 10-hour shift, which is about 80% less work than needs to be done by hand. The operator's job changes from physically hard welding to overseeing the touch screen interface and making sure there is enough material. This greatly lowers the risk of getting tired or hurt. This increase in efficiency directly leads to shorter project timelines, which procurement managers at large companies are becoming more and more aware of as being necessary to meet tight plans for building infrastructure.

Quality and Consistency Differences

There will always be some differences when welding by hand. Even skilled welders make joints that are slightly different in how deep they go, how fast they cool, and how accurately they place the pieces. These differences might not seem important on their own, but when added up over 300 to 500 weld points in a cage, they create measured quality issues that structural engineers have to take into account by adding more safety factors.

When you use automated welding, the conditions for every joint are the same. The machine keeps the voltage, amperage, travel speed, and flow of shielding gas consistent. This makes welds that, according to metallurgical tests, have the same level of penetration and shear strength. Because of this, engineers can be more precise in their designs because they know that the cages they make will work exactly as they predicted when they are loaded. The benefits of quality control go beyond individual projects. Documented process controls make it easier for precast sites to keep up with ISO approval standards.

Types and Specifications of Automatic Cage Welding Machines

The market for automatic cage welding machines has changed over time to meet the needs of different production sizes and applications. Knowing these differences helps procurement teams match the skills of tools to the needs of their operations.

Configuration Options by Size and Capacity

Small models with cage widths ranging from 300mm to 800mm are used for specific tasks, such as making precast concrete pipes and smaller base elements. These machines don't take up much space on the floor and aren't too hard to move, so they're good for jobs where the fabrication needs to happen close to where the installation will happen to save on shipping costs.

On the other end of the range are heavy-duty industrial equipment. Big building builders who work on bridge piers, large-diameter bored piles, and diaphragm wall reinforcements need machines that can make cages up to 2500 mm in diameter and up to 12 meters long. For example, the LYZD-GJL2500 model is a good example of this type. It has a reinforced steel frame that is made to last in harsh work settings. Its 30-meter by 8.5-meter size fits the mechanical systems needed to work with heavy rebar pieces while keeping the accuracy needed for high-quality output all the time.

Automation Levels and Control Systems

An automatic cage welding machine offers a middle ground between fully automated production and human methods with semi-automatic setups. An operator is needed to place the cage and start the welding process. If you compare these systems to standard methods, they require less labor and cost less in terms of equipment investment.

Fully automatic workstations combine loading, positioning, welding, and emptying of materials into a single, ongoing process that is managed by PLC code. The operator's job changes to that of a boss, keeping an eye on the touch screen interface for process factors and making sure that materials are available when they are needed. This amount of automation increases productivity the most, and based on the size requirements, it can make one to three cages per hour. In more advanced models, the servo control systems allow for positioning accuracy measured in fractions of a millimeter. This is very important in situations where the cage measurements need to meet very tight engineering standards.

Common Problems and Maintenance Tips for Automatic Cage Welding Machines

To keep production running smoothly, even automatic cage welding machines that are well-designed need to be properly maintained and troubleshooted. From talking to plant managers at a number of production facilities, I've learned about problems that keep coming up that workers should be aware of.

Welding Quality Issues and Solutions

Welds that don't look the same often have something wrong with the surface of the rebar. Mill scale, rust, or oil leftovers can get in the way of setting up an arc correctly and making shielding gas work properly. Getting rid of this source of flaws is as easy as wire brushing or grinding the material before putting it into the machine. Operators should also make sure that the gas protection system keeps the right flow rates, since joints become weaker when there isn't enough coverage.

Burn-through happens when the welding settings are too high for the thickness of the material to handle. The touch screen lets you change both the welding current and the speed of the journey. By slightly lowering the power or speeding up the movement, less heat is sent to each joint, which keeps the rebar from melting too much. On the other hand, cold welds that don't penetrate well enough need the opposite adjustment—either more current or a slower speed—to make sure they fuse properly.

Mechanical Maintenance Requirements

The spinning device is always under stress and needs to be checked regularly. According to the manufacturer's instructions, bearing systems should be oiled at least every 200 hours of use for heavy-duty types. If you listen for strange sounds during operation, you can often tell early on when bearings are wearing out before they fail completely.

When working with hydraulic systems, it's important to keep the fluid clean and the pressure stable. By checking the amount of hydraulic fluid every day and changing the filters as planned for upkeep, you can keep valves and cylinders from getting contaminated, which can damage them. Pressure gauges should always show readings that are within the range of 16 MPa or less. Changing numbers indicate that leaks or pump wear are happening and need to be looked into right away.

The servo motors that control spiral bar feeding have precise parts that can't handle dust buildup. Cleaning the motor housings with compressed air once a week as part of routine maintenance keeps them from burning when the cooling fins get clogged. Encoder wires need to be connected securely because vibrations can slowly loosen the terminals, which can lead to positioning mistakes that affect the accuracy of the spiral pitch.

Buying Guide: How to Choose the Best Automatic Cage Welding Machine for Your Business

To choose the right fabrication tools, you need to make sure that the automatic cage welding machine's skills match your business needs and project portfolio. A systematic review of a number of important factors can help with procurement choices.

Matching Specifications to Production Needs

Start by looking at the cage specs you've used in similar jobs in the past. Write down the range of bar sizes, widths, and lengths that you usually make. Machines that are designed for smaller cages usually can't handle large-diameter jobs, and equipment that is too big loses room and power when it's mostly making smaller parts. The LYZD-GJL2500 type has a width range of 700mm to 2500mm, which makes it useful for contractors working on a wide range of infrastructure projects, from building foundations to large bridge piers. This range gives contractors the freedom to adapt to changing project needs.

Projections of production volumes show whether investments in technology give good returns. Find out how much it costs to hire people to make cages right now, taking into account direct pay, perks, and overhead. Compare this to the gains in speed that come from using automatic cage welding machines. If a machine makes 13 cages per shift instead of maybe five cages by hand, it's clear that the machine will save money on labor costs, which speeds up the payback period, especially for facilities that stick to regular production plans.

Evaluating Technical Capabilities and Support

The complexity of a control system affects both how easy it is to use and how reliable it is in the long run. PLC-based systems with touch screen interfaces make it easy for workers to learn how to use the equipment quickly, which cuts down on the time needed for training when employees leave. Even better, these control systems allow for remote troubleshooting and software changes, which cut down on downtime when technical problems happen.

Quality of service after the sale is what separates equipment that is used and gear that sits around ready to be fixed. Before you make a final choice to buy, make sure that the supplier has an expert help infrastructure that is close enough to your location. Zhongji Luyuan has a network that spans almost 100 countries. This shows that they can provide help after years of installing products in a wide range of markets. Ask for references from current customers who run similar production scales, and be sure to ask about reaction times when pressing technical help is needed.

The certification paperwork shows that the equipment meets the necessary quality and safety standards. Machines that are sold in the United States should show that they follow all OSHA rules and electrical codes. Documentation of quality management systems, such as ISO approval, gives customers more trust in the regularity of manufacturing and the ways that parts are sourced.

Budget Considerations and Total Ownership Cost

The initial buying price is only one part of the economy of ownership. Different models use a wide range of amounts of energy, and more energy-efficient designs mean lower long-term costs for running the equipment. With 30 kW of working power (not counting welding), the LYZD-GJL2500 uses energy fairly well for how much it can make. Figure out how much energy you'll need each month by using the rates charged by your local power company and the number of hours you plan to be open.

The need for maintenance has a direct effect on both the cost of items and the availability of production. Modular designs make it easier to change parts, which means that repairs don't need as much skilled work. It's cheaper to keep equipment that uses parts that are easy to find, like standard hydraulic cylinders and industrial servo motors, than equipment that uses custom designs that need parts that are made just for that machine and take longer to get.

You should pay close attention to warranty terms and how easily they can be enforced. Full coverage that includes both parts and works for reasonable amounts of time protects against tools breaking down too soon. Just as important is how ready the source has shown itself to be to keep warranty promises quickly. Companies that have been around for a long time and have stable finances are less likely to break their warranties than companies that are just starting out.

Conclusion

Automatic cage welding machine technology solves some of the most important problems that building builders face today. Because these systems are accurate, consistent, and efficient, they turn the creation of reinforcements from a labor-intensive block into a controlled process. As projects get more complicated and time constraints get worse, it gets harder to ignore the benefits of technology. These tools are must-haves for workers who want to stay ahead of the competition because they can be used by a single person and produce consistent quality that can't be achieved by hand. When procurement teams know how these systems work, how often they need to be maintained, and what makes smart buyers make decisions, they can make investments that really change how things are made instead of just replacing human labor with expensive machines.

FAQ

How does an automatic cage welding machine improve production efficiency compared to manual methods?

Automatic cage welding machines change the speed of production by running all the time and getting rid of the time needed for human placement. A machine like the LYZD-GJL2500 can make 13 full cages in 10 hours with just one operator. In the same amount of time, five to eight people on a human crew can only make five to six cages. The speed gains come from rotating, feeding, and soldering, all happening at the same time, without having to be done one after the other. This means that productivity goes up by about 200% while labor costs go down by 80%, making it a very good deal for high-volume manufacturing operations.

What safety measures should operators follow when working with these machines?

Even though the welding process is automatic, operators must still wear the right safety gear, such as safety glasses, welding hats with the right shade ratings, leather gloves, and clothes that won't catch fire. Keeping clear areas around the spinning device stops people from getting tangled up, and the emergency stop buttons should always be easy to reach. The rules for electrical safety say that all tools must be properly grounded and that safety interlocks must not be bypassed. Leaks that can start fires can be avoided by checking gas insulation lines on a regular basis. Before doing any repair on powered systems, training programs should stress the importance of lockout/tagout processes.

Can these machines handle different wire diameters and cage sizes?

Modern mechanical systems give designers a lot of freedom in how they build them. The LYZD-GJL2500 can handle spiral bars from 8mm to 16mm and main bar widths from 18mm to 40mm. This is a wide range that should work for most building projects. The width of the cage can be changed from 700 mm to 2500 mm, and the longest length it can hold is 12 meters. To change between specs, the user has to use the touch screen to set new rotation speeds, feed rates, and welding parameters. For big changes in size, the mechanical parts may need to be physically adjusted. This usually only takes 15 to 30 minutes, compared to the hours of reconfiguring that older equipment required.

Partner with Zhongji Luyuan for Advanced Rebar Cage Solutions

That year, Zhongji Luyuan gave infrastructure builders in almost 100 countries smart reinforcement processing systems. They did this by teaming up with big names in the industry, like China Railway, China State Construction, and China Communications Construction. Our LYZD-GJL2500 automatic cage welding machine is the result of decades of engineering progress. It is reliable, which keeps projects on schedule, and precise, which is what structural engineers need. As a reliable producer with a full network of after-sales support services, we know that buying tools is an important investment in your business's ability to do its job. Our expert team offers personalized advice to help you match machine specs with your exact production needs. This way, you can get the best return on your investment by choosing the right equipment. Email us at sales2@shandongluyuan.com to talk about how our automatic solutions can help you with your manufacturing problems. We'll give you full technical documentation, set up demos of the equipment's capabilities, and make suggestions that are specific to your project portfolio and production volume needs. You can look at our full line of CNC tools for processing reinforcements at zjly2025.aixdb.cn and learn why contractors all over the world choose Zhongji Luyuan as their automation provider.
