Telescopic pile cage welding machine LYGH-1600T what are applications?

The Telescopic pile cage welding machine LYGH-1600T is a game-changer for deep foundation construction. It makes it possible to automatically build reinforced cages for highway bridges, metro tunnels, high-rise building foundations, and marine infrastructure projects. This fully automatic machine can work with main bars that are φ16–40 mm wide and spiral bars that are φ6–16 mm wide. It can make cages that are 400–1600 mm wide and up to 18 meters long. Its PLC-controlled system greatly lowers the need for human labor while still producing 8 sections per 10-hour shift. This makes it an essential tool for large-scale building builders who have to meet strict quality standards and tight project schedules.

Understanding the LYGH-1600T Telescopic Pile Cage Welding Machine

The needs of modern building have grown faster than the ability to use manual welding methods. This is especially true when projects need to make hundreds of uniform reinforcing cages in a short amount of time. By mixing mechanical precision with smart automation, the Telescopic pile cage welding machine LYGH-1600T changes the way builders build pile foundations in a big way.

Core Functions and Design Philosophy

At its core, this machine solves three problems that foundation engineers keep coming up against: consistent dimensions, consistent welding quality, and the ability to make more of the same thing. The flexible body design means that one piece of equipment can fit different cage sizes without the need for multiple specialized tools. This flexibility is especially helpful for builders who work on a wide range of projects, from bridge piers that need cages with a diameter of 1200 mm to building foundations that need setups with a diameter of 800 mm.

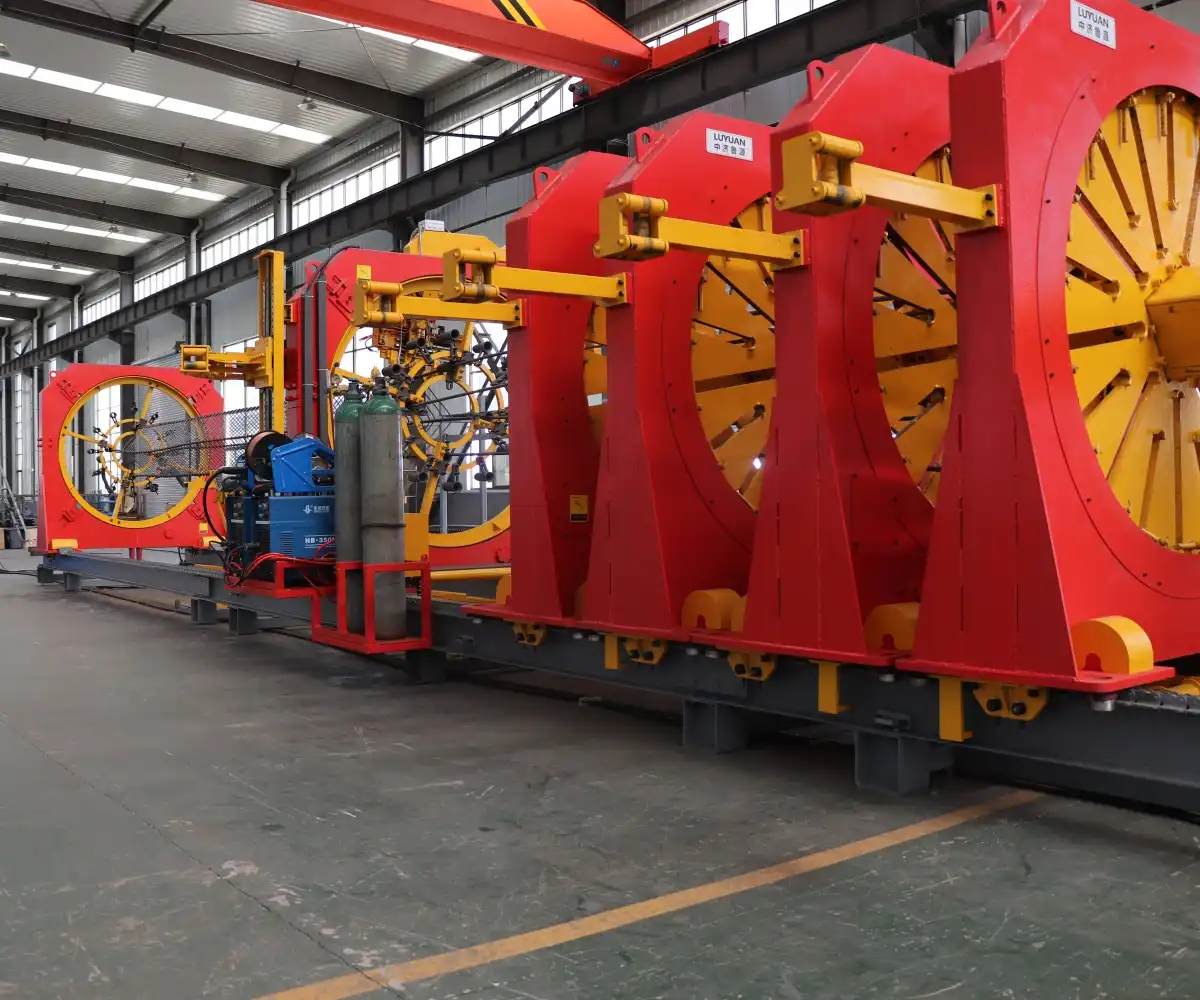

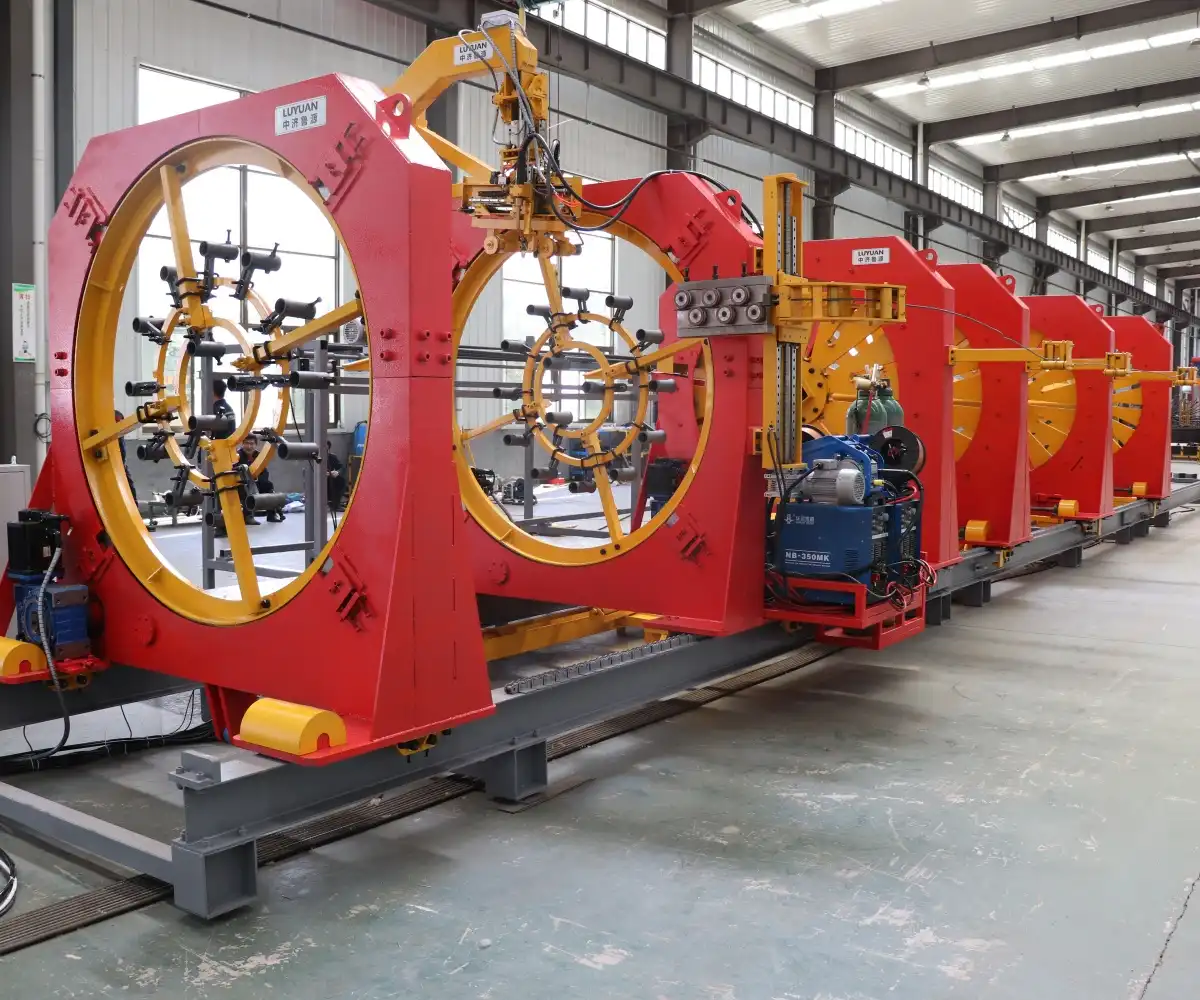

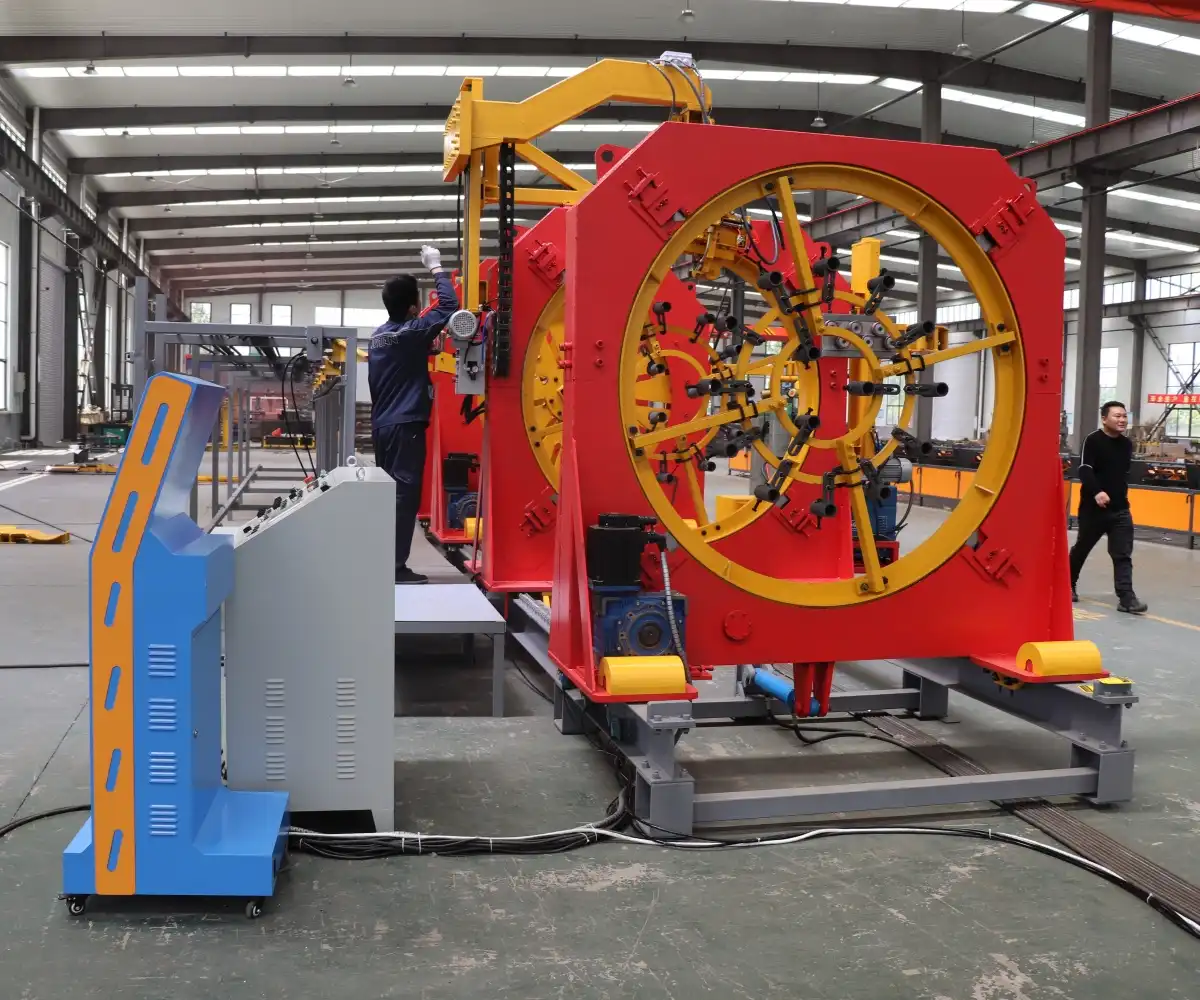

The equipment has a spinning main frame that spins the longitudinal reinforcement bars. On top of that, automated welding guns make exact welds to the spiral reinforcement at set times. This method gets rid of the mistakes that happen when things are done by hand, like when people are tired or their skills change, which can cause spiral spacing to be off and weld penetration to be weak. Structural engineers like this stability because it directly leads to reliable load-bearing performance, which is very important in seismic zones and high-rise uses.

Technical Specifications That Matter

When purchasing managers look at pile cage welding options, they pay close attention to the details that affect both short-term and long-term costs. The Telescopic pile cage welding machine LYGH-1600T uses standard 380V three-phase power and only 35 KW of energy, so even during long production runs, energy costs are kept under control. The PLC control system and touchscreen interface make it easier to train operators, which is very helpful because of the lack of trained workers in the global building market.

Metrics for measuring production efficiency tell an interesting story. The machine can make full 12-meter cages faster than six to eight trained welders working by hand, and it only needs two workers. The hydraulic system keeps the pressure at -16 MPa so that the flexible changes are smooth. The automatic welding guns are powered by the air supply system, which keeps the pressure at 0.8 MPa. These technical specs are the result of years of engineering work to find the best balance between speed and ease of upkeep.

The 20 m × 6 m footprint is a careful design choice for production yards that don't have a lot of room. A lot of urban building projects have to work within small areas where each square meter is highly valued. The flexible feature lets the machine fold up for transporting between project sites. This lowers the cost of movement and allows multiple nearby projects to use a central location for cage production.

Core Applications of the LYGH-1600T in Construction and Infrastructure

When buyers know where this equipment gives them the most value, they can figure out if it fits in with their project plans and long-term growth goals. Using automated pile cage construction is useful in many different types of infrastructure, each with its own set of technical requirements and operating limits.

High-Speed Railway and Bridge Foundations

For high-speed train projects, the foundations must be very stable, as even small settlements can affect the shape of the tracks and the safety of the passengers. For bridge piers and high guideway supports, the Telescopic pile cage welding machine LYGH-1600T makes reinforcement cages that meet strict standards. This equipment was used to build over 800 foundation cages in six months for a recent job that included a 45-kilometer elevated train section. The even spiral spacing made sure that the concrete cover was the same, which was important for meeting the 100-year design life requirement set by train officials.

Similar to building houses, building bridges benefits from the machine's accuracy. Cages that are 10 to 16 meters long are often needed for foundations with variable-length piles that hold approach lengths. The telescopic adjustment system lets specifications change quickly, so makers can change the length of the cages in minutes instead of hours. Because of this, workers can time the production of cages with driving operations and concrete placement activities, which has a direct effect on the schedule for the project.

Metro and Underground Transit Systems

When building an urban metro, there are special obstacles, especially when the work has to be done under current infrastructure. For train stops with deep basements, the foundations need a lot of temporary and permanent support. The Telescopic pile cage welding machine LYGH-1600T makes secant pile cages and diaphragm wall support with the precise measurements needed for these hard-to-reach underground jobs.

Metro workers who worked on recent projects in big cities said that both production speed and quality control got better in a way that could be seen. With automated welding, there were no more cold joints or weak links, which could happen with human ways. This dependability can't be negotiated when the integrity of the base directly impacts public safety and the security of the buildings nearby. The constant output of the machine made it easier for project engineers to figure out how to build things and cut down on the number of "what-if" factors that are usually used to account for variations in manufacturing.

Commercial Building and High-Rise Construction

Deep base options are still in high demand because of the rise in tall buildings in cities. More and more, 30–50-meter-deep bored pile supports are being used for high-rise buildings. For these uses, reinforcement bars are needed that keep the structure's stability during installation even when the soil conditions change.

The Telescopic pile cage welding machine LYGH-1600T works well with prefabricated building processes, which is something that general builders like. By building factories just for making cages, they take advantage of economies of scale to lower the cost of each unit while still keeping control of the supply chain. One big contractor who worked on several high-rise projects said that the cost of buying foundation cages dropped by 28% after they switched from outsourcing manufacturing to making them in-house with this equipment. Given how many projects were still going on, the financial payback time turned out to be surprisingly short.

Marine and Waterfront Infrastructure

For projects like building wharves and expanding ports, reinforcement bars that can handle harsh sea conditions are needed. The Telescopic pile cage welding machine LYGH-1600T can handle bars with a bigger diameter (up to φ40 mm), which are often needed for saltwater uses where a stronger concrete cover keeps chloride out. Maritime builders like that the machine can make longer cage pieces, which means that finished piles don't need as many joins.

The usefulness of the tools in marine settings was shown by a recent port development that used 200 berthing dolphin piles. The even shape of the cage made it easier to put into pre-drilled holes in the ground during high tide, which cut down on installation time and the costs of marine equipment. Over many years, these foundations' structural performance will be tracked, but initial load testing showed that the quality of the construction met the plan standards.

LYGH-1600T vs. Other Pile Cage Welding Machines: A Comparative Analysis

When making decisions about what to buy, it's helpful to do objective comparisons that show the real-world differences between different tools choices. A lot of different companies make pile cage welding tools, but key performance measures show important differences.

Performance and Durability Considerations

The Telescopic pile cage welding machine LYGH-1600T's frame is made of high-strength structural steel that has been treated with stress-relieving processes to keep it from deforming over time while it is being used continuously. Some competing models are made with lighter materials to save money at first, but after 18 to 24 months of regular use, this method often causes alignment problems. Maintenance managers know that frame warping leads to uneven welding and needs pricey recalibration or replacement of parts.

Energy economy is important for more reasons than just the power number on the label. The machine's optimized welding settings cut down on power use that isn't needed during each run. Over the course of a normal five-year business lifecycle, these improvements in efficiency add up to big cost saves. When equipment managers look at the total cost of ownership, they shouldn't just rely on theoretical specs, but should also ask for thorough data on how much energy the equipment uses in real-world production circumstances.

Return on Investment Analysis

Buying capital tools needs a strong financial case, especially for mid-sized contractors who want to grow their services. The Telescopic pile cage welding machine LYGH-1600T usually pays for itself in 18 to 30 months, but this depends on the size of the job and the cost of workers in the area. This time frame is based on the idea that the system will be used moderately for 120 to 150 working days a year, which is a likely situation for contractors who do steady building work.

The ROI estimate is more than just the amount of money saved on work. Better quality cages mean fewer problems during placement in the field, which saves money on delays and extra work. When a cage that was made by hand comes at the job site with measurements that are off, it can cause problems with the concrete placement, the time it takes to set up the crane, and the schedule. Most of the time, these secondary costs are higher than the main cost of fabrication. Most problems with quality in the field are eliminated by automated production, which adds value that financial models should take into account.

There are flexible payment choices and bulk purchase agreements for companies who want to buy more than one unit or set up regional fabrication centers. These business terms can have a big impact on the costs of a project, especially for large-scale programs run by joint ventures or consortiums. Early on, procurement teams should work with makers to set up ways to buy things that work with their cash flow needs and project timelines.

Client Feedback and Service Support

Dependability of equipment doesn't mean much if there isn't quick expert help when problems happen. Zhongji Luyuan has set up service networks that help with installation, train operators, and provide ongoing repair assistance. Standardized service standards that make sure the same level of help no matter where the client is appreciated by clients who work in more than one country.

User reviews from infrastructure companies show a few themes that keep coming up. Equipment managers like how stable the machine is and how little unplanned downtime there is when repair plans are followed. Project managers like that the production can be predicted, which makes making schedules and planning resources easier. Operations directors stress how quickly new workers learn how to do their jobs—in days instead of weeks for more complicated manual welding methods.

When buying something, you should carefully consider the guarantee coverage and the availability of extra parts. To keep equipment downtime to a minimum, it should be easy to get critical wear parts through area distribution outlets. Zhongji Luyuan keeps parts in stock in a way that helps the growing installed base. They do this because they know that having parts on hand has a direct effect on how happy their customers are and how much equipment they use.

Maintenance, Operation Guidelines, and Optimization Tips for LYGH-1600T

Disciplined operational practices are needed to get the most out of tools and keep the quality of the work uniform. Strong engineering in the Telescopic pile cage welding machine LYGH-1600T design reduces the need for upkeep, but basic preventative care can greatly increase the life of parts and lower running costs.

Essential Maintenance Procedures

Daily inspections only take about 15 minutes and keep operations running smoothly most of the time. Before starting production runs, operators should check the amounts of hydraulic fluid, make sure the welding gun is aligned correctly, and make sure that all safety interlocks are working properly. The PLC system has monitoring features that let workers know when problems are starting to happen before they become serious enough to break down the equipment.

More detailed checks of electrical connections, leak checks in the pneumatic system, and lubrication of moving parts are added to the weekly upkeep. Regular lubrication is especially helpful for the telescopic system because the moving surfaces are under a lot of stress when the width is changed. Following the manufacturer's recommended lubrication times stops premature wear that can affect the accuracy of placement.

Operational Best Practices

Even though the equipment is automated, the ability of the operator has a big effect on both output and product quality. Training should focus on the right way to handle materials, how to set up quickly, and how to check the quality of the work. As workers gain experience, they develop a sense of what parameters need to be changed to get the best results for different bar sizes and cage setups.

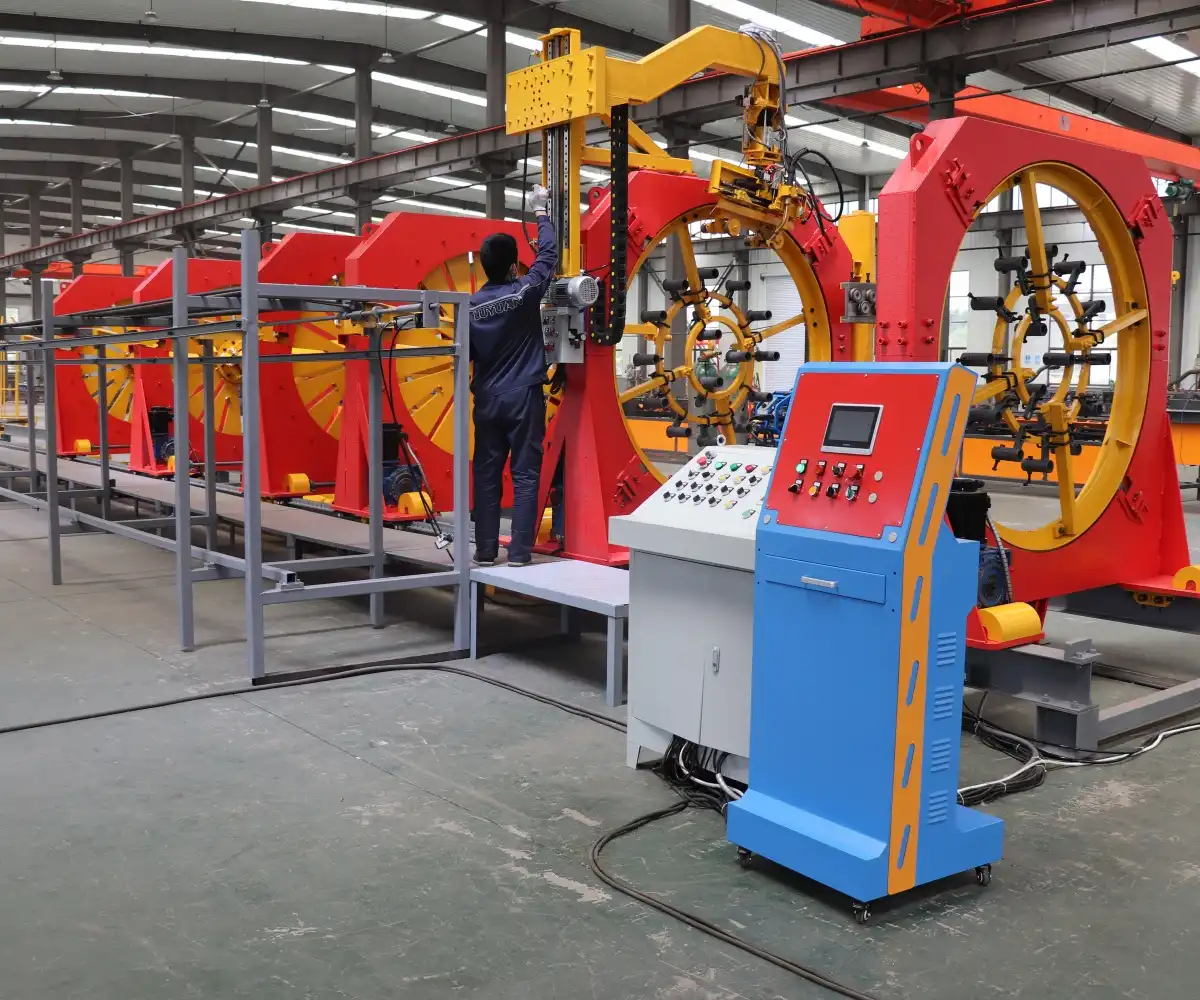

The PLC touchscreen interface lets workers save their best recipes for making cage specifications that are used a lot. This feature speeds up the process of switching between jobs and lowers the chance of making mistakes when entering data. Operators should keep organized files of recipes that match the needs of the current project. This way, they can respond quickly to changes in the plan or orders that need to be filled quickly.

Quality optimization is more than just running the machines as fast as they can go. Welding factors should be checked on a regular basis by breaking down sample cages to make sure there is enough depth and joint strength. The temperature and humidity in the air can change how well welding works, so yearly changes need to be made to the parameters to get consistent results. Technical support from Zhongji Luyuan can help you figure out how to optimize certain parameters for your individual working conditions.

Procurement Guide for LYGH-1600T: How to Buy and What to Expect

Buyers can get equipment that meets their technical needs and fits their budget and time constraints if they know how to easily navigate the buying process. Knowing the different ways to buy things and how transactions usually go lets you make smart choices.

Authorized Distribution and Direct Purchasing

Depending on the area, Zhongji Luyuan sells its products through both direct sales and approved wholesalers. People in the United States can use both platforms, and each has its own benefits. Working directly with the maker gives you the most technical support and customization choices, which is especially helpful for unique uses or large-scale purchasing programs.

Local market experience and possibly faster delivery times are two things that regional distributors bring to the table. They also keep stock of common configurations. The network of distributors also offers regional service support, which some buyers like for regular maintenance and restocking parts. Procurement managers should look at both routes based on the needs of the project and the company's ability to provide help.

Online contact tools have made the process of getting started easier. On the business website, buyers can give detailed requirements in order to get basic quotes and technical feasibility estimates. This digital method speeds up the evaluation phase, making it easier for procurement teams to quickly compare different equipment choices before getting into more specific negotiations.

Pricing Structure and Customization Options

The price of equipment depends on the exact design chosen, such as the cage diameter capacity, length range, amount of automation, and any extra features. While the normal Telescopic pile cage welding machine LYGH-1600T is the basic model, it can be customized for uses that need a longer length capacity, specific welding setups, or more advanced automation features.

Volume price works well for builders who are building more than one fabrication facility or for industry groups that want to make sure that all of their member companies use the same equipment. These structured plans can cut costs by a lot per unit while making sure that all setups follow the same technical requirements. Teams in charge of big acquisitions should work with makers early on to make deals that get the most value for money.

Delivery times are usually between 60 and 90 days after an order is confirmed, taking into account the time it takes to make the product, check it for quality, and ship it internationally. If a buyer needs fast delivery, they should talk about their choices during the first negotiations, because the production schedule may be flexible based on how many orders are already in. Planning ahead so that the arrival of equipment happens at the same time as building preparation and training for operators speeds up the execution process.

After-Sales Support and Long-Term Partnership

A buyer and a seller of tools have a relationship that goes far beyond the initial exchange. Implementations that go well rely on good installation support, thorough user training, and quick technical help throughout the lifecycle of the equipment. Zhongji Luyuan's service mindset puts more emphasis on partnerships than on transactions.

Installation teams go to client sites to make sure that the equipment is set up correctly, that the operating parameters are met, and that operators are trained in real time. This on-site presence during testing makes sure that the equipment works as expected and that workers feel confident in how to use it. Usually, the training lasts for a few days and covers normal activities, routine upkeep, basic troubleshooting, and safety rules.

Buyers are protected by warranties against flaws in the making process and early failure of parts. During contract talks, standard guarantee terms should be carefully looked over. Pay special attention to the length of coverage, the parts that are covered, and service response promises. Buyers who want extra safety may be able to choose from extended warranty choices, especially if they work in remote areas where getting service is hard.

Spare part plans make sure that important parts can be found and used for the whole life of the equipment. Buyers should plan their parts inventory in a way that balances the costs of keeping it on hand with the risks of downtime. Keeping an on-site collection of common wear items is a cost-effective way to handle situations where they are used a lot. Regional parts delivery centers cut down on the time it takes to restock, which supports strategies for keeping supplies low.

Conclusion

Infrastructure workers who want to cut down on labor costs, improve the quality of fabrication, and speed up foundation building plans can benefit from the Telescopic pile cage welding machine LYGH-1600T. Its proven success on high-speed train, metro, bridge, and marine applications shows how versatile it is, which is why medium- to large-sized building companies should invest in it. This equipment is a strategic tool for businesses trying to grow in building markets where quality and efficiency are becoming more and more important for success. Its telescopic flexibility, automated precision, and manageable upkeep needs make it a great choice.

FAQ

What makes the LYGH-1600T different from smaller capacity models?

The Telescopic pile cage welding machine LYGH-1600T can handle cages with a diameter of up to 1600 mm, while LYGH-1500T can only handle cages with a diameter of up to 1500 mm. For heavy-duty jobs like big bridge piers and high-rise building supports, this extra capacity is a must. The machine can also handle main support bars that are up to 40 mm thick and heavier, which meets the needs of buildings that need to be able to hold more weight. The 18-meter flexible range cuts down on the number of cage joints needed in deep foundations, which improves the performance of the structure and speeds up the installation process.

Can the machine be customized for project-specific requirements?

Customization choices can be used to meet a wide range of project needs, such as longer lengths (up to 18 meters), different welding configurations for unique reinforcement patterns, and easy integration with current manufacturing processes. During the first meetings, buyers should talk about their unique needs to find out if the project is possible and how much it will cost. The tech team at Zhongji Luyuan looks over unique requests to make sure that any changes don't affect the structure or the reliability of the system while still meeting the needs of the client.

How does automated welding compare to traditional manual methods in terms of energy efficiency?

Automated systems make sure that the right welding settings are used for each job, which cuts down on the wasteful use of energy that happens with human methods. The Telescopic pile cage welding machine LYGH-1600T's controlled welding processes get rid of the waste that comes with changing electrodes by hand, having uneven arc lengths, and taking breaks as the user works. Usually, 20 to 30 percent less energy is used per cage than when the same work is done by hand. This saves a lot of money over thousands of production rounds.

Partner With a Trusted Telescopic Pile Cage Welding Machine LYGH-1600T Manufacturer

Infrastructure builders, manufacturing centers, and project managers are all welcome to talk to Zhongji Luyuan about how the Telescopic pile cage welding machine LYGH-1600T can change the way you build foundations. As a well-known company with sites in more than 100 countries, we have a lot of experience with automated systems for processing reinforcements that work well in tough building settings. Our full support includes expert advice, custom configuration development, user training, and quick service after the sale to protect your investment in equipment. Email our team at sales2@shandongluyuan.com to talk about your unique application needs and get a detailed proposal that includes your project timeline, price, and performance goals. We are ready to show you why top builders around the world trust Zhongji Luyuan to make reliable pile cage welding tools with consistent quality.
