The application scope of the automatic cage welding machine

The automatic cage welding machine is a huge step forward in making reinforcements, and it solves major problems in energy and building projects. Through synchronized spinning, horizontal feeding, and precise welding technology, these systems make it easy to make cylindrical steel reinforcement cages on a large scale. Today, it is used for things like pile foundation work for bridges, building metro diaphragm walls, and making prefabricated concrete. By getting rid of mistakes made by hand in spiral bar spacing and making sure that thousands of joints all have consistent weld penetration, these tools cut down on the need for labor by up to 80% while still meeting the seismic and load-bearing standards needed in high-stakes engineering settings.

Introduction

Large-scale infrastructure development in the US is under more and more pressure to speed up project timelines while still meeting strict quality standards. Traditional hand-cage fabrication takes a long time, costs a lot, and the quality of the welds isn't always constant, which threatens the structure's stability. Procurement managers who are in charge of building high-speed train routes, fixing up bridges, and building nuclear power plants need solutions that are both precise and productive. This guide looks at how automated reinforcement cage systems with CNC-controlled production can help solve these problems. It gives equipment managers and project leaders useful information about choosing the right technology, how it can help with operations, and how to put it into practice strategically. We'll look at real-world examples in areas like energy projects, transportation infrastructure, and concrete manufacturing. Then, we'll give you technical details that match the building needs and return on investment goals of your project.

What is an Automatic Cage Welding Machine?

Core Technology and Components

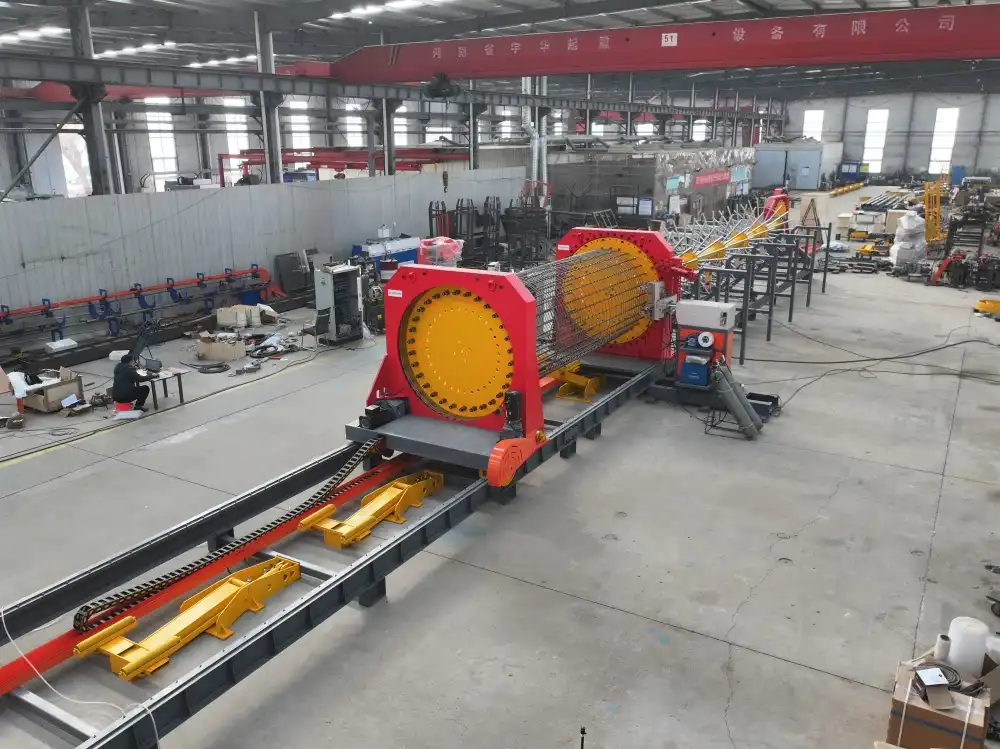

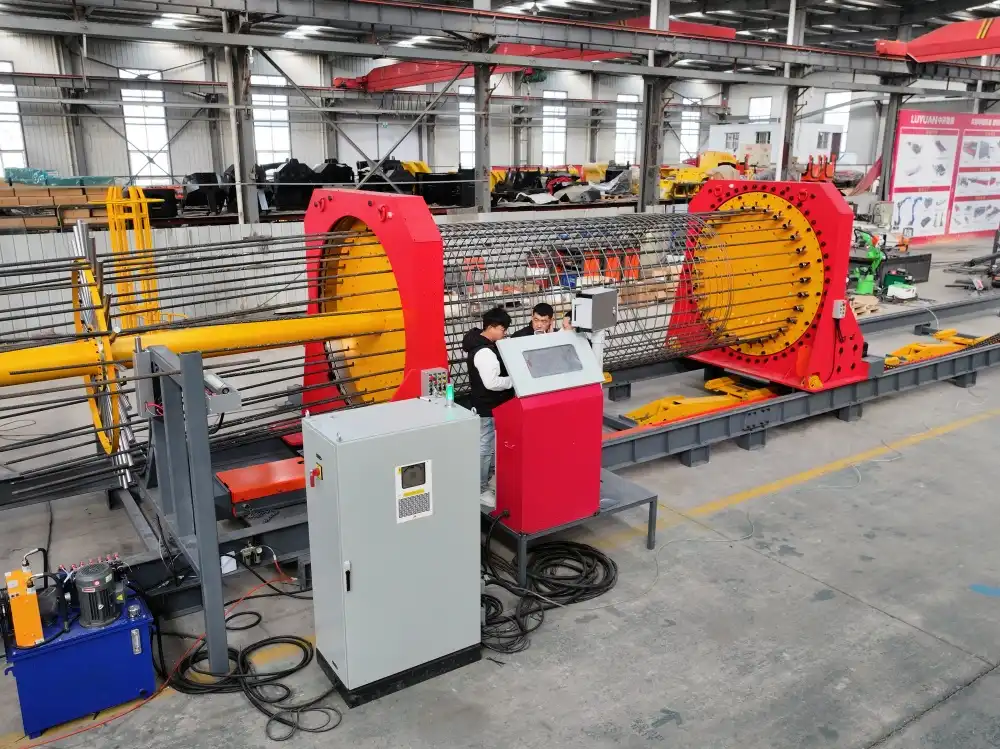

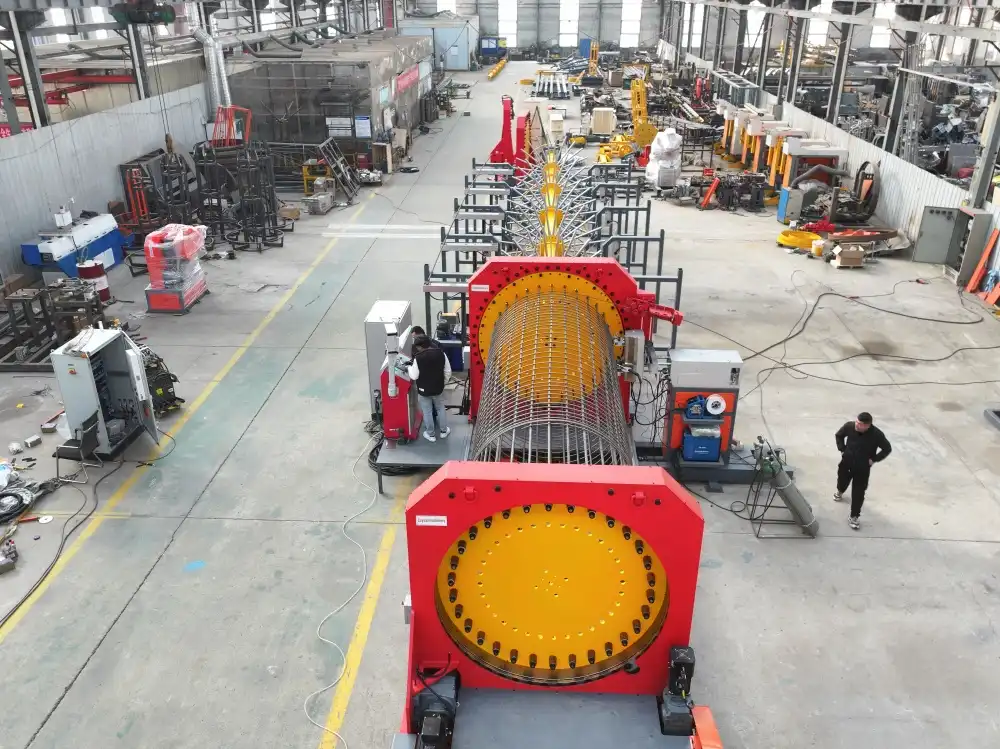

These days, fully automatic machines with PLC control systems and touch-screen HMI interfaces are used to make reinforcement cages. These systems have hydraulic devices that spin longitudinal rebars while servo-driven carts move spiral reinforcement along the length of the cage. Gas-shielded arc welding heads placed at regular intervals fuse the main bars and hoop steel together. Optical sensors check each weld point to make sure it's being done correctly. The LYZD-GJL2500 model is an example of how modern it is; it can handle main bar widths from 18mm to 40mm and spiral reinforcements from 8mm to 16mm. Heavy-duty steel construction of the frame keeps it stable during high-torque operations, and the 30kW power system ensures steady performance even when the cage specs change.

Operational Modes and Automation Levels

Operators have to load reinforcement materials and change the spacing settings between production runs on semi-automatic systems by hand. Fully automatic setups require little to no human input because they automatically feed rebar, change the width in real time, and control the pitch using a program. The PLC-based design lets workers save different cage specs and quickly switch between different diameter ranges, from 700mm to 2500mm, without having to change the way the cage is set up mechanically. This flexibility is very important for workers who have to work on a lot of different projects at the same time, like making thin piles for building supports and big cages for marine structures. When compared to standard three-person manual teams, single-operator control cuts labor costs by a large amount.

Precision Standards and Quality Metrics

The success of the equipment depends on keeping the spacing between the spiral bars within ±2mm along the whole length of the cage. During production, laser measurement tools constantly check the accuracy of the pitch and stop work automatically when variations reach set limits. Weld penetration uniformity meets the standards of the AWS D1.4 structural welding code. This makes sure that the joint shear strength is the same as or higher than the tensile strength of the base rebar. Concentricity readings make sure that the shape is cylindrical and not spiral, which is very important for cages that are put into drilled holes, where installation failures happen when they are not lined up correctly. As part of the testing procedures, destructive samples of weld joints and fatigue cycling under artificial load conditions are used to confirm that the structure will last for a long time in acidic groundwater settings.

Application Areas of Automatic Cage Welding Machines

High-Speed Rail and Bridge Infrastructure

Transportation building projects need cage production systems that can meet very strict requirements. To handle the dynamic loads from moving trains, high-speed rail bridge piers need support cages that are longer than 10 meters and have exact main bar alignment. The automatic cage welding machine's ability to make 13 cages in a 10-hour shift has a direct effect on project plans, since builders are penalized for taking too long to build the pier. Highway bridge repair projects can use the machine to make replacement cages that match the original structural plans and use modern rebar grades that don't rust. Field tests on California's high-speed rail project showed that automatic cage production cut the time needed for foundation work by 40% compared to ways that were done by hand.

Urban Rail Transit and Tunneling Operations

Metro building projects happen in crowded cities where noise and space limitations make it harder to do reinforcement work. The size of an automated welding workstation is 30 m x 8.5 m, so it can fit in a portable precast yard set up near tunnel-digging activities. The systems make diaphragm wall cages that keep rainwater out during drilling. Before they are put in place, ultrasonic testing makes sure that the welds are strong. Using these cages to make tunnel lining pieces gives them the consistent sizes needed for motorized erector arms, which gets rid of the need for fit-up delays during underground assembly. For Seattle's light rail growth, over 3,000 foundation elements were made using automatic cage production, which kept the project on track even though the soil conditions were tough.

Nuclear Power and Energy Infrastructure

The tightest quality control rules are put in place for projects in the energy industry. Foundations for nuclear containment structures need support bars that can be tracked back to each weld joint. This is a standard that can be easily met by logging production data on a PLC. The machine's gas-protected arc welding method creates clean fusion zones that don't have any slag inclusions that could weaken the radiation protection. When building a hydropower dam, the system's ability to make extra-large diameter cages (up to 2500mm) that are needed for huge foundation piles that are fixed into bedrock is helpful. Automated production was used in a recent wind turbine foundation project in Texas to make 150 foundation cages in just four months, meeting installation goals for green energy.

Precast Concrete Manufacturing Plants

In industrial concrete processes, these systems are built into production lines that make standard building parts. The telescopic body design lets makers change the length of the cages from 4m to 12m without having to retool. This means that orders for parking building columns, stormwater culverts, and utility vaults can all be made at the same time. When making thousands of similar parts for modular building projects, batch consistency is very important. The servo control system makes sure that the spiral spacing stays the same throughout the whole production run. This keeps the flow patterns of the concrete consistent while it is being made. A precast company in the Midwest reported a 35% increase in productivity after switching from hand cage assembly to automated welding. At the same time, workers' compensation claims for repeated motion injuries went down.

Benefits and Advantages of Using Automatic Cage Welding Machines

By switching from human to automated reinforcement manufacturing, operations get better in a number of ways that can be measured. Here are the main benefits this equipment gives to companies that build structures and make precast concrete:

Labor Efficiency and Cost Reduction: With single-operator control, three-person physical teams are no longer needed, which cuts direct labor costs by 75%. The automatic cage welding machine works nonstop during shifts without lowering quality due to tiredness. This is different from hand welders, whose output drops after long sessions of welding. Fewer staffing needs make it easier to hire people in places where there aren't enough skilled tradespeople, and it also lowers the cost of training new workers.

Production Speed and Output Capacity: It is possible for workers to stick to tight plans by finishing 13 cages in a 10-hour shift. Depending on the diameter and length, the machine can make one to three cages per hour, which is 200 to 300 times faster than human production. Real-time changes to parameters make it easy to switch quickly between different cage standards. This cuts down on downtime between production runs and helps with just-in-time delivery to job sites.

Weld Quality and Structural Integrity: Automated setting gets rid of mistakes made by people when placing spiral bars, making sure that the load is evenly spread across the support structure. Top-mounted welding heads make sure that all parts have the same entry depth. This stops the cold welds and missed spots that happen when doing things by hand. This dependability is very important during structural checks, because cages that are refused need expensive repairs and cause foundation pours to be delayed.

Workplace Safety Improvements: Lessening the amount of heavy reinforcing bars that need to be handled by hand lowers the risk of injuries from moving and placing materials. Automation in welding protects workers from spark flashes and welding fumes, making workplaces that meet OSHA standards. Touch-screen controls let you keep an eye on things from a safe distance while they're running, so you don't have to be close to them as you do in hand manufacturing zones.

All of these benefits make the project's return on investment better by shortening plans, lowering the cost of labor, and lowering the number of quality-related delays. Contractors say that payback times are usually between 18 and 24 months when equipment is used at low levels.

How to Choose the Right Automatic Cage Welding Machine for Your Business

Matching Equipment Capacity to Project Requirements

When you buy something, you should make sure that the automatic cage welding machine specs match the projects you usually work on. For building base work, contractors need systems that can handle diameter ranges of 700–1500 mm. For bridge and marine projects, they need tools that can make cages 2000–2500 mm in diameter. Compare the number of cages you need each year to the number of cages your system can make. For example, a system that can make 13 cages per shift can support 3,200 cages each year when it only works one shift. For projects that need cages longer than 12 meters, special designs or different ways of making them are needed.

Automation Level and Integration Compatibility

When labor costs more than $45 an hour or when tight project deadlines require production to be completed quickly, fully automatic systems are worth the extra money. Semi-automatic setups work well for businesses that already have skilled workers and want to boost output instead of hiring new workers. PLC control systems should be able to send data so that it can be used with project management software. This would allow for real-time tracking of production and syncing of material inventories. Compatible with current rebar cutting and bending tools, it speeds up work by getting rid of the need to move rebar between processing stations by hand.

Evaluating Supplier Technical Support and Service Networks

Reliability of equipment depends a lot on how quickly technical help can be provided during setup and ongoing use. When parts need to be replaced or calibrated, suppliers with established service networks in North America reduce downtime as much as possible. Because Zhongji Luyuan has worked with big infrastructure companies like China Railway and China Communications Construction, they know how to do well in tough project settings. Make sure that the providers you're considering offer full training for operators, preventative maintenance plans, and assured arrival times for replacement parts.

Financial Considerations and Customization Options

When investing in capital goods, it's important to look at the total cost of ownership, which goes beyond the initial buy price. Check how long the guarantee covers, especially for hydraulic systems and welding generators that get worn out after being used all the time. When project requirements don't follow standard cage shapes, like when the project calls for double main bar setups or non-standard spiral spacing, the ability to customize becomes important. Leasing programs may work for contractors whose cage production needs change from time to time, but owning a facility usually makes more sense if it is consistently used above 50%.

Maintenance and Safety Tips for Optimal Machine Performance

For sustained output, repair schedules must be followed to avoid failures that come up out of the blue. Checking the amount of hydraulic fluid should be done every day, and systems should be kept at a pressure of 12 to 16 MPa to get the best rotation force. Lubricating the rotation bearings and longitudinal drive chains once a week keeps them from wearing out too quickly, and setting the welding current correctly once a month makes sure that the fusion is the same for all types of rebar. When makers release changes for PLC software, they often include better diagnostic tools that find worn-out parts before they break in terrible ways.

Spiral bar feeding jams are common operating problems. They are caused by rust on the surfaces of the rebar and can be fixed by cleaning the materials beforehand. To keep the electrical transmission, the weld spatter that builds up on the electrode needs to be cleaned off every day. Operators should keep an eye on the output pressure of the air compressor and make sure it stays at 0.8 MPa so that the pneumatic locking mechanisms hold the main bars firmly while they rotate. The strengthened frame construction can handle heavy-duty use, but laser measurement tools should be used to check the line every so often.

Safety rules say that workers must get training from the manufacturer that covers how to shut down in an emergency and how to spot an arc flash danger. Using lockout/tagout methods during maintenance stops the automatic cage welding machine from turning on by mistake. Personal safety equipment that must be worn includes welding hats with the right shade ratings, steel-toed boots, and leather gloves for handling hot cages right after welding. Following the safety rules in OSHA 1926 Subpart J for welding saves both the workers and the business from potential lawsuits.

Conclusion

The automatic cage welding machine integrated into Automated reinforcement cage manufacturing technology solves the most important problems that building builders and precast makers face in today’s market. The machinery makes the work safer and more efficient while also speeding up production and improving the quality of the structures. For implementation to go smoothly, machine specifications and project requirements must be carefully matched, and strong technical support must be ensured through close cooperation between suppliers. As labor costs continue to rise and project timelines become shorter, businesses that adopt these systems early can take advantage of market opportunities that require fast, high-volume cage production. The technology’s successful use in major transportation, energy, and building projects demonstrates that it is an important capital investment for construction companies aiming to stay ahead of the curve.

FAQ

What diameter ranges can modern cage welding systems accommodate?

Modern automatic cage welding machines can work with main bar widths ranging from 18 mm to 40 mm and spiral reinforcements ranging from 8 mm to 16 mm. The width of a cage can usually be anywhere from 700 mm to 2500 mm, and its length can be up to 12 meters. If you need something that isn't in these common areas, you can get it in a custom configuration, but the lead time will be longer. PLC-controlled systems are flexible, so they can quickly change parameters without having to retool mechanically. This makes them useful for a wide range of project types.

How does automated production compare to manual welding costs?

Automated systems cut down on the number of workers needed from three-person teams to one operator, which saves about 75% in direct labor costs. Depending on how much the equipment is used, the amortization period is usually between 5 and 7 years, and the payback period is between 18 and 24 months for modest production levels. When you look at the total cost, you should include the savings on rework due to better quality stability and the time saved by faster production rates.

How long do workers need to be trained?

After getting hands-on training during machine startup, most employees are able to do their jobs well within three to five days. When compared to complicated mechanical controls, the touch-screen system is easier to learn. Operators who have used CNC tools before usually only need one to two days to get used to them. To get the most out of your tools, you should get ongoing training on how to do preventative maintenance and fix common operational problems.

Partner with Zhongji Luyuan for Advanced Cage Welding Solutions

Leading building companies in almost 100 countries trust Zhongji Luyuan's tried-and-true reinforcement processing technology. With just one person, our LYZD-GJL2500 automatic cage welding machine can make up to 13 precision-welded cages per shift thanks to its strong, heavy-duty construction and smart PLC control. Since 2016, we've worked on big projects for China Railway, China State Construction, and foreign companies that needed quality and dependability that could not be compromised. Our full range of services includes setup on-site, training for operators, quick technical support, and a large collection of replacement parts. Email our team at sales2@shandongluyuan.com to talk about the details of your project and find out how our tools can help you make your reinforcement manufacturing work better. We are a well-known supplier of automatic cage welding machines, and we can make options that fit your specific output needs and budget.
