Telescopic pile cage welding machine LYGH-1600T for deep foundation

While we're talking about deep base building, the Telescopic pile cage welding machine LYGH-1600T is a huge step forward in how we make rebar cages. This fully automated system solves the problems that building companies have been having for a long time, like rising labor costs, inconsistent weld quality, and constant pressure to finish projects on time. The Telescopic pile cage welding machine LYGH-1600T is a precision welding machine with PLC control and touch screen interfaces. It is used to make pile cages for bridges, tunnels, wharves, and foundations with piles of different lengths. Working with large building companies in almost 100 countries has shown us that this machine doesn't just replace human labor; it changes the limits of how efficiently prefabrication can be done and how reliable structures can be.

Understanding the LYGH-1600T Telescopic Pile Cage Welding Machine

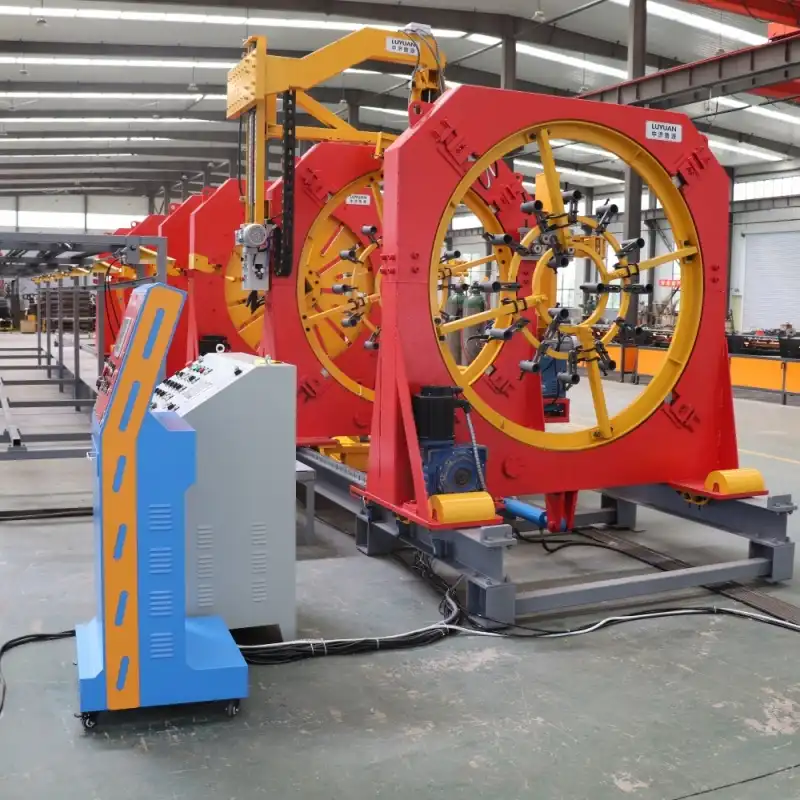

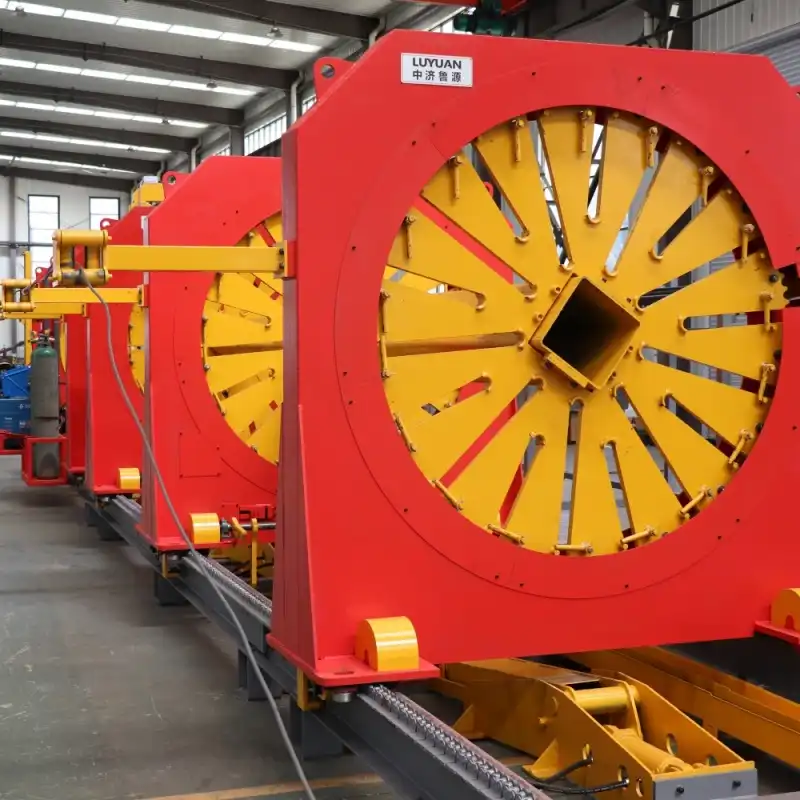

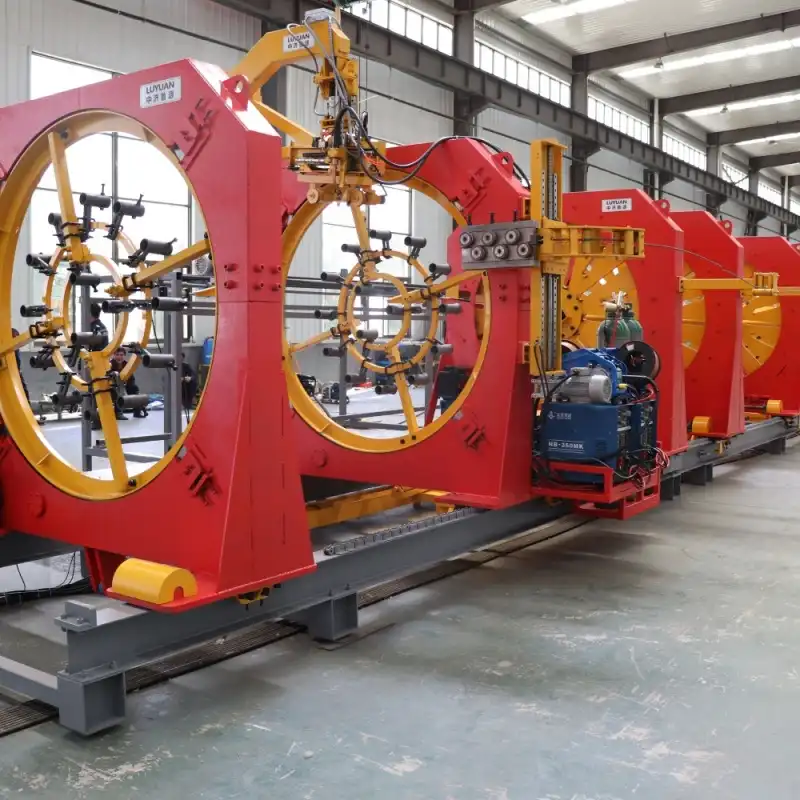

The Telescopic pile cage welding machine LYGH-1600T is based on a synced system that includes spinning gears, automatic wire feeders, and two top-mounted welding guns that all work together. The machine holds main longitudinal bars with a diameter of 16mm to 40mm and turns them at controlled speeds. At set times, spiral bars with a diameter of 6mm to 12mm are fed through and soldered. The flexible frame can easily be adjusted to fit cages with widths from φ300mm to φ1600mm and lengths up to 12 meters. Longer configurations can be made to fit your needs.

Technical Specifications That Matter

The engineering that went into making this equipment is the result of decades of work. With a total power usage of 35 KW and 380V three-phase, the system keeps the hydraulic pressure at 16 MPa and only needs 0.8 MPa of air for welding. The control design mixes PLC programming with an easy-to-use touch screen interface. This means that operators can change the spacing between spiral bars by up to 300 mm with little training. When making 12-meter cages, production efficiency hits eight sections per ten-hour shift, which means that big jobs can be finished faster.

The flexible body form of this machine makes it different from other welding stations. Because of this new structure idea, one unit can handle different cage sizes without having to be set up separately for each width. The small 20m × 6m footprint is very useful when there isn't a lot of room on the site, which is popular in metro building or retrofitting projects in cities.

Operational Benefits in Real Terms

The benefits go beyond technical details and can be seen in the form of real business results. Weld uniformity goes up a lot when processes are automatic. This is because each crossing gets the same amount of heat penetration and fusion quality. This level of regularity is very important when cages need to survive strong earthquakes or harsh marine conditions. Only two workers are needed instead of five or six skilled welders who would be needed to make the same amount of work by hand. The decrease in reliance on workers directly addresses the problem that many contractors have of not having enough trained welding techs.

LYGH-1600T vs. Competitors — Making the Right Choice

When comparing automated cage welding systems, it's important to look beyond the specs and see how the equipment works in real-life building situations. The Telescopic pile cage welding machine LYGH-1600T stands out because it has the right amount of automation, adjustment options, and dependability for everyday use. The LYGH series' earlier models worked well, but they didn't have the advanced PLC programming that lets you store recipes for different cage setups. When specifications change, competing machines from other makers often need to have their mechanics adjusted, which takes time that could be used for making more things.

Performance Benchmarks

Data from testing sites at installation sites shows clear differences. The Telescopic pile cage welding machine LYGH-1600T keeps the pitch accurate within ±2mm along the whole length of the cage. This meets the strict requirements for high-speed train viaducts. The welding speed can be changed from 0 to 15 meters per minute, so workers can find the best balance between speed and penetration depth for each bar width. The dual welding guns placed on top make sure that the heat is spread evenly, which stops the warping that can happen with single-point welding methods.

User input from equipment managers stresses how reliable the machine is when it comes to being online. Regular maintenance times work well with most project plans, and Zhongji Luyuan's world service network makes it easy to get new parts, which lowers the risk of downtime. Contractors working on nuclear power or water projects really like that the machine is CE certified and ISO9001 compliant, which means it meets strict regulatory requirements.

Automated Versus Manual Methods

When you look at safety measures and output curves, the difference between automated and manual welding is very clear. Workers who make cages by hand can get repeated strain injuries, welding flash burns, and ergonomic problems from moving heavy rebar structures around. By keeping workers away from the welding area and getting rid of the need to do heavy lifting, automated systems greatly lower these risks. Productivity tests show that automated fabrication makes three to four times as much every day as human teams, and the shapes are more consistently made.

Zhongji Luyuan backs the Telescopic pile cage welding machine LYGH-1600T with a full warranty and organized after-sales support that includes overseeing the installation, teaching the operator, and quick technical support. This service promise handles an important procurement issue: making sure that investments in capital tools give long-term value instead of not being used because operators aren't trained properly or there are problems with maintenance.

Procurement Guide — How to Buy and Implement LYGH-1600T

When buying workplace welding tools, there are more things to think about than just the price. Smart buying looks at the total cost of ownership, which includes installation costs, training costs, and upkeep costs over the product's lifetime. The price of the Telescopic pile cage welding machine LYGH-1600T represents the fact that it is a professional-grade automation option made for medium to big contractors who work on a lot of projects. Getting financing through equipment rental or vendor credit agreements can help make sure that project cash flows match up with capital expenditures.

International Ordering Process

Zhongji Luyuan has made cross-border buying easier so that it is less complicated for clients from other countries. Depending on the level of personalization, the average wait time from when an order is confirmed to when it is ready to ship is four to six weeks. Our transportation team plans the shipping of containers to major ports around the world and helps with the paperwork needed to clear customs. As soon as they get there, installation technicians can be sent to oversee setup and give working training, which will help your crew get up to speed quickly.

We suggest preparing the construction spot with a level concrete base that can hold the weight of the machine plus any materials that need to be moved. The electrical system should provide steady three-phase power with the right circuit safety. The air compressor's ability must meet the supply needs of 0.8 MPa, plus enough extra to keep running all the time. Taking care of these requirements before delivery speeds up commissioning and avoids costly delays.

Maintenance Best Practices

To keep up top performance, you need to regularly check on a few key processes. The telescopic moving gears are checked every day to make sure they work smoothly and don't get stuck when they extend or retract. Welding gun balance should be checked once a week to avoid uneven weld placement. Lubricating spinning bearings and gear systems once a month according to the manufacturer's instructions greatly increases the life of these parts. The PLC control system is safer when data is backed up regularly and when dust builds up in electrical boxes.

Zhongji Luyuan gives out full repair guides that show how to do things and suggest where to find the right spare parts. Setting up a program for preventive maintenance that works with production cycles stops unexpected downtime during key project stages.

Customization and Upgrade Options

For most deep foundation uses, standard setups are enough, but some projects need specific features. Custom changes could include making the length longer than 12 meters for very deep piles or changing the fitting fixings to fit bars with sizes that aren't standard. The flexible design lets you make changes as your projects change, which protects your equipment investment over time.

Real-World Applications and Success Stories

When you look at different application cases, you can see how flexible pile cage welding automation is. In high-speed train building, centralized prefabrication yards make thousands of cages that are all the same. This makes sure that the structure is consistent, which is important for keeping the track stable at 350 km/h. The Telescopic pile cage welding machine LYGH-1600T can process thicker main bars needed for saltwater-resistant concrete buildings, which is good for coastal bridge foundations because it keeps its accuracy even when the climate is humid.

Urban Development Projects

Deep basement construction for high-rise buildings in busy urban centers comes with its own set of problems, such as limited access to the site, strict noise rules, and tight schedules. The small size of the machine and the limited welding process make up for these problems well. One metropolitan subway growth project cut the time it took to make the cages by 60% compared to the old manual methods. This allowed pile driving to start earlier and kept the total plan on track even though the building window was shorter.

Client Testimonials

In their comments, project managers always point out a number of performance issues. When foundation designs change across a site, being able to quickly switch between cage specs gets rid of production bottlenecks. Structural engineers can trust load-bearing estimates when the quality of the welding is consistent. This cuts down on inspection failures and rework. Going from six-person manual teams to two-person automated operations frees up skilled workers to do other important jobs and cuts direct labor costs by a large amount.

Looking ahead, we see automation growing faster in prefabrication as companies try to gain a competitive edge through quality and efficiency. Zhongji Luyuan keeps putting money into research and development to make machines smarter. They are looking into things like integrating automatic quality checking and predictive maintenance algorithms that can tell when parts are wearing out before they break.

Conclusion

The Telescopic pile cage welding machine LYGH-1600T is more than just a piece of equipment; it's a valuable tool for workers who want to be efficient, high-quality, and competitive in the tough infrastructure market. This system solves important business problems by automating tasks that used to require a lot of manual labor. These problems include keeping rising labor costs under control, finishing projects on time, and making sure that the quality of the structures meets higher and higher engineering standards. Because of its flexible versatility, PLC-controlled accuracy, and small size, it is especially useful for businesses that work on a wide range of projects. As infrastructure development speeds up around the world, contractors who are willing to think ahead can secure long-term growth and managerial success by investing in tried-and-true automation technology.

FAQ

What maintenance intervals does the LYGH-1600T require?

Every day, the welding gun is aligned, and the moving device is oiled for the Telescopic pile cage welding machine LYGH-1600T. Electrical lines and hydraulic fluid levels are checked once a week. As part of the monthly maintenance, the gear unit is oiled, and the PLC system's data is backed up. Every year, the system is fully calibrated, and worn parts are replaced as part of the service. Following this plan keeps things running at their best and stops unexpected downtime.

How does automated welding improve workplace safety?

The Telescopic pile cage welding machine LYGH-1600T keeps workers away from busy welding areas so they don't have to breathe in arc flashes or fumes. With automated material handling, you don't have to worry about getting hurt while moving big rebar assemblies by hand. Safety interlocks and emergency stop devices keep things from going wrong while they're running. When compared to physical methods, the rate of injuries goes down a lot, and work gets done faster.

Can the machine handle custom cage specifications?

Cages with widths from 300 mm to 1600 mm and lengths of up to 12 meters can be set up in standard ways. Customization lets you use longer cages for very deep foundations, bars with widths that aren't in the standard range, and spiral spacing needs that aren't met by standard options. The engineering team at Zhongji Luyuan works directly with clients to make changes that meet the needs of each project while keeping the structure's performance and dependability.

Partner with a Reliable Telescopic Pile Cage Welding Machine LYGH-1600T Manufacturer

With the Telescopic pile cage welding machine LYGH-1600T and our full line of automatic rebar processing options, Zhongji Luyuan is ready to help you with your deep foundation fabrication needs. Since we began doing business in 2016, we've formed long-lasting partnerships with big building companies like China Railway and China State Building, as well as foreign contractors from almost 100 countries. Our all-around method includes designing equipment that has been used before, providing responsive after-sales service, and offering technical advice that is tailored to the needs of your particular project. You can email our team at sales2@shandongluyuan.com to talk about how the Telescopic pile cage welding machine LYGH-1600T can help your production, or you can go to zjly2025.aixdb.cn to read full technical data and ask for a quote that fits your needs.
