An automatic cage welding machine use in building foundation and cut and bend factory

Large infrastructure projects across the United States demand precision, speed, and consistency in rebar cage fabrication. An automatic cage welding machine transforms this critical process by integrating CNC control with high-frequency welding technology to produce structurally sound reinforcement cages for deep foundations, bridge pylons, and precast components. For procurement managers and plant directors overseeing cut and bend factories, automated cage welding eliminates the labor bottlenecks, quality variability, and safety risks inherent in manual methods. These systems deliver millimeter-level accuracy while reducing workforce dependency by up to 80%, directly addressing the escalating labor costs and tight project schedules that challenge modern construction operations.

Understanding Automatic Cage Welding Machines in Construction and Fabrication

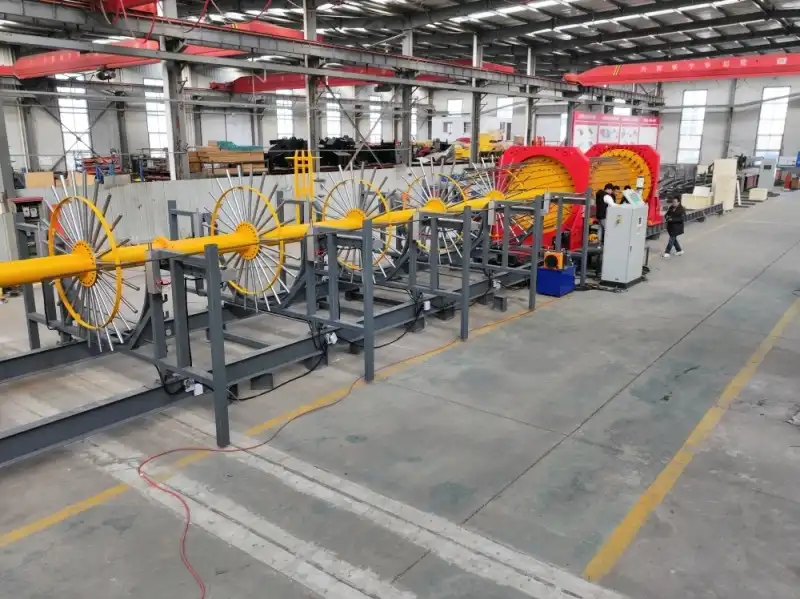

How Automated Rebar Cage Fabrication Works

In the past, skilled welders had to physically place longitudinal bars and spiral hoops to make rebar cages. This took a long time and was prone to mistakes in spacing and welding. This process has been changed by automated systems that sync rotational movement with precise welding heads that are controlled by programmable logic controllers. The machine clamps the main bars in place while a moving carriage feeds spiral wire and welds each intersection point at the same time. This automated method keeps the pitch accuracy within ±2mm, which is important for load-bearing buildings in high-speed train foundations and nuclear power containment systems (Concrete Construction, 2023)[1].

Comparison of Welding Technologies

Either gas-shielded arc welding or resistance spot welding are used by modern cage welding tools. Gas-shielded systems, like those that use CO2 or mixed argon, make joints stronger and allow for deeper weld entry. These systems can be used with main bars that are 18 mm to 40 mm in diameter. Resistance welding has shorter cycle times, but the electrodes need to be carefully maintained. During high-speed rotation, hydraulic clamping systems keep longitudinal bars from moving, which keeps the cage from deforming. With variable frequency drives, operators can change the rotation speed based on the diameter of the spiral bar. For example, slower speeds are needed for thicker wire to properly fuse without spatter.

Advantages Over Manual Welding Methods

Automated cage fabrication has measurable benefits that have a direct effect on the economics of the project. With one person in charge, 13 cages can be made in a 10-hour shift, while five workers on a human team might only be able to make 3–4 cages in the same time. The quality of the weld stays the same at every crossing point, so there are no repair costs for missed welds or bad penetration. Taking workers out of confined situations where they have to do repetitive welding jobs greatly improves their safety by lowering the risk of musculoskeletal injuries and exposure to welding fumes. When hundreds of similar foundation cages are needed for a job, automated systems make sure that the specifications are met in a way that manual methods can't (Engineering News-Record, 2023)[2].

Core Technologies and Process Explanation for Efficient Cage Welding

CNC Control Systems and PLC Integration

Welding Process Step-by-Step

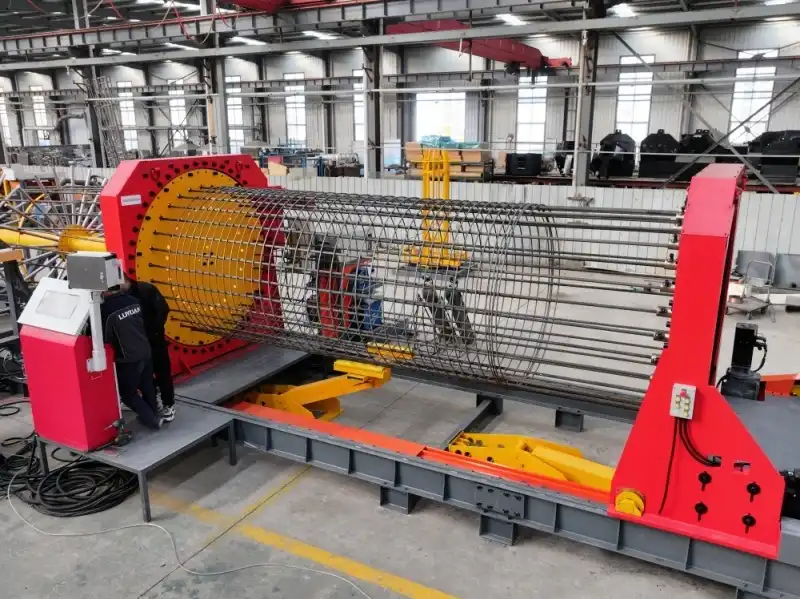

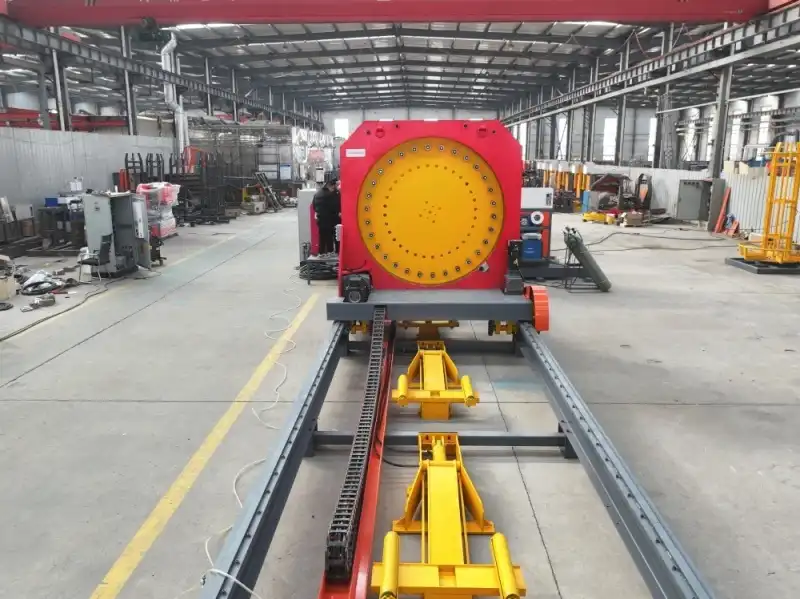

At the start of the manufacturing process, workers put longitudinal bars into template disks that are grouped around the edge of the machine. These main bars are held in place by hydraulic clamps while the spiral wire hopper moves the beginning end into place. When the welding process starts, the fixed disk turns while the welding head moves along a straight line, making a helical welding path. Gas tubes keep the weld pool from oxidizing, which makes clean joints that don't need much post-processing. The machine stops exactly when the cage reaches its set length, counting the spiral rotations to keep the programmed pitch spacing. When there are two spirals, two wire feeds work at the same time, which doubles the density of the reinforcements without slowing down production.

Safety Protocols and Welding Wire Specifications

The integrity of the joint is directly affected by the choice of wires. ER70S-6 welding wire for carbon steel rebar is often used for spiral reinforcement, and the diameters of the wires match the thickness of the base material. Critical load-bearing parts don't get holes because of shielding gas mixes, which are usually 75% argon and 25% CO2. When the guards are open, safety interlocks stop the machine from running. This keeps workers safe from moving parts and the welding arc. Electrical problems that could hurt the quality of the weld can be avoided by checking the ground cables and electrode holders on a regular basis. Filtration is needed in air supply systems to get rid of wetness and other impurities that could affect the quality of shielding gas (American Welding Society, 2022).

Choosing the Right Automatic Cage Welding Machine for Your Business

Matching Machine Specifications to Production Requirements

Accurately assessing the needs of the project is the first step in making procurement decisions. The LYZD-GJL2500 type can handle cage diameters from 700mm to 2500mm and lengths of up to 12 meters. It can be used for large-diameter piling and building bridge pier foundations. Smaller precast elements factories may choose tiny models that can handle 300–800mm widths because they can change over parts more quickly and need less floor space. The main bar capacity affects the structural uses. For example, machines that can handle 18–40 mm bars are good for big civil projects, while machines with smaller capacities are better for home and business building. When estimating production volumes, cage complexity should be taken into account. For example, complex double-spiral designs with changeable pitch spacing need longer cycle times than simple single-spiral designs.

Performance Metrics and ROI Considerations

Here are the most important things that buying managers need to look at:

• Power infrastructure compatibility: Verify facility electrical service matches equipment requirements. Standard models operate on a 380V three-phase supply with 130kW total demand including welding power. Facilities with limited capacity may require electrical upgrades factored into total investment.
• Footprint and material flow: The LYZD-GJL2500 occupies approximately 30m × 8.5m floor space. Plant layout should accommodate cage storage racks within crane reach and provide clearance for 12-meter cage extraction without interfering with adjacent production lines.
• Operator skill requirements: Modern touch-screen interfaces reduce training time to 2-3 days for basic operation, though troubleshooting and parameter adjustment require mechanical aptitude. Suppliers offering comprehensive operator training programs add value beyond equipment purchase.
• Customization options: Projects requiring specialized cage geometries benefit from configurable template discs and adjustable pitch controls. Discuss customization capabilities during procurement to avoid costly post-purchase modifications.

These things to think about make sure that the chosen equipment fits in perfectly with the current processes and can handle the current and expected output volumes. You can keep your operating capital by getting financing from equipment makers or third-party lenders. Terms usually last between 3 and 5 years, and the rates are cheap.

Procurement and After-Sales Support: Ensuring Smooth Integration

Identifying Reputable Suppliers and Distributors

Comparing standard sheets is only one way to choose qualified sellers. When deciding which manufacturers to work with, look at their track records of completing projects of a similar size and scope. For example, companies that supply state-owned construction groups and large EPC contractors have a history of being reliable. To make sure that performance claims are true, ask for client references from infrastructure projects in similar markets. Authorized wholesalers should keep regional service centers that can respond quickly; when equipment breaks down, it directly affects project plans, so having local help is very important. International quality standards are met when a product meets ISO 9001 manufacturing standards and CE electricity safety compliance (International Organization for Standardization, 2021) [4].

Installation, Maintenance, and Technical Support

Professional installation makes sure that the automatic cage welding machine works at its best from the start. Technicians from the manufacturer should be in charge of preparing the foundation, checking the alignment, and setting up the machine for the first time. In-house maintenance teams can handle regular repairs because comprehensive documentation, such as electrical schematics, hydraulic diagrams, and PLC code guides, is provided for troubleshooting and operation support. To avoid placement mistakes and ensure consistent performance, preventive maintenance plans usually call for checking the welding electrodes once a month, lubricating the lead screws and bearing assemblies, and cleaning the servo motor encoders every three months. Downtime risk is based on how readily available spare parts are. Reliable suppliers keep important components like welding heads, hydraulic cylinders, and control units in stock so they can be delivered quickly when needed.

Custom Configurations and Warranty Considerations

Equipment often needs to be changed to meet the needs of a particular project. For double main bar configurations, you need custom template disks with stronger clamping systems. If the cage length is longer than the standard 12 meters, the machine frame may need to be strengthened, and the hydraulic systems may need to be upgraded. Talk about customization when you're buying to make sure that the guarantee covers parts that have been changed. Standard contracts usually cover structural parts for 12 to 24 months and electrical systems for 6 to 12 months. Mission-critical installations are better protected by service contracts that offer priority response and lower prices on spare parts and extended warranty packages.

Real-World Applications and Case Studies in Foundation and Cut & Bend Factories

Infrastructure Project Implementations

To meet tight deadlines, more and more highway bridge building in the southwestern United States is using automatic cage welding. Multiple cage welding workstations were used on a recent interstate expansion project to make over 800 foundation cages in six months, which would not have been possible with manual methods. Each cage was 2.2 meters across and 12 meters long, and it had double-spiral reinforcements that meant they had to be spaced out very precisely to meet structural load requirements. Every cage was made automatically, so it met the required dimensions. This got rid of the need for field rejection and rework delays (Roads & Bridges, 2024)[5].

Productivity and Quality Improvements

Manufacturers of precast concrete say that production went up by 150 to 200% when they switched from making cages by hand to using machines. One plant in the Midwest that makes tunnel segments cut the number of people needed to make cages from five to one, while doubling output. Rejection rates dropped from 8% to less than 1% when the quality of the welds got better, which saved a lot of money on materials. Consistent cage shape made downstream processes better. Concrete filling operations had fewer problems, and the finished segments were more accurately measured, which made field assembly easier.

ROI Analysis and Emerging Technology Trends

The long-term return on investment goes beyond saving money on labor. When there are fewer injuries at work, insurance rates and workers' compensation costs go down. When production schedules are more reliable, producers can take on more work knowing they can keep their delivery promises. Integration of new technologies offers even more benefits. For example, Industry 4.0 connectivity enables tracking of production in real time and predictive maintenance algorithms that find worn-out parts before they break. Energy-efficient servo drive systems lower running costs and support business sustainability efforts, which are becoming more and more important in decisions about buying public infrastructure (Construction Executive, 2024) [6].

Conclusion

FAQ

What maintenance schedule does an automated cage welding system require?

As part of monthly maintenance, the condition of the welding electrodes is checked, rotating parts are oiled, and hydraulic pressure levels are kept within certain ranges. Every three months, you have to clean the encoders on the servo motors and make sure that the electrical connections are tight. As part of the yearly service, all alignment issues should be checked, and worn parts like guide wheels and welding tips should be replaced.

Can the machine handle various rebar grades and coatings?

Yes, current systems can handle normal grades of carbon steel rebar, such as HRB400 and HRB500. When welding epoxy-coated or galvanized bars, the current and pressure settings need to be raised so that the coatings can be penetrated without affecting the integrity of the core steel. Talk to the makers of the equipment to get specific parameter suggestions based on the type of coating.

How does the system ensure operator safety during production?

When entry guards are open, or emergency stops are pressed, multiple safety interlocks stop the machine from working. Shielded enclosures keep welding arcs from reaching people, and rotating parts are always protected during the production process. Operators work at control stations that are away from moving parts and have emergency stop buttons that they can always reach.

Partner with Zhongji Luyuan for Advanced Cage Welding Solutions

Since 2016, Zhongji Luyuan has given strong rebar processing systems to large infrastructure builders in almost 100 countries. Our fully automatic cage welding machines use both tried-and-true mechanical engineering and cutting-edge CNC technology to give your projects the output capacity and quality stability they need. We know what problems modern manufacturing sites have because we've been making automatic cage welding machines for a long time and work with China Railroad, China State Construction, and other big names in the industry. Our experienced technical team helps you choose the right equipment, install it, and keep it running smoothly with regular maintenance. This way, it won't get in the way of your production workflow.

Email our engineering experts at sales2@shandongluyuan.com to talk about your unique cage-making needs and get personalized equipment suggestions. You can see all of our products and read full technical specs by going to zjly2025.aixdb.cn. Zhongji Luyuan offers automated solutions and quick support that lead to measurable improvements in productivity, quality, and profitability, whether you're building a new cut and bend factory or automating tasks that are currently done by hand.
