What Projects Need a Steel Cage Welding Machine for Rebar Fabrication?
Sep 2, 2026
Projects requiring reinforcement cages for deep foundations, bridge piers, and high-rise building supports increasingly depend on automated welding systems. A steel cage welding machine transforms labor-intensive manual processes into streamlined operations, delivering uniform weld quality and dimensional accuracy across pile foundations, bridge engineering, and construction sites. Infrastructure contractors, metro construction companies, and precast concrete manufacturers turn to these machines when project schedules demand consistent output and when structural safety codes require traceable weld integrity that manual methods struggle to guarantee.
Understanding Steel Cage Welding Machines for Rebar Fabrication
What Defines Modern Rebar Cage Welding Technology
To make cylinder-shaped reinforcement structures, automated rebar cage welding systems use both precise mechanics and smart control platforms. At its heart is a PLC-based control system paired with an industrial HMI touch screen. This lets workers set the exact width, length, and space between spirals of the cage down to the millimeter. The machine uses gas-shielded arc welding to join longitudinal bars and spiral reinforcement, making sure that the weld goes deep enough to meet ASTM A706 and ACI 318 structural standards[1]. This method gets rid of the flaws that come with hand torch welding, where differences in skill and tiredness can weaken the joint.
Operating Principles and Equipment Categories

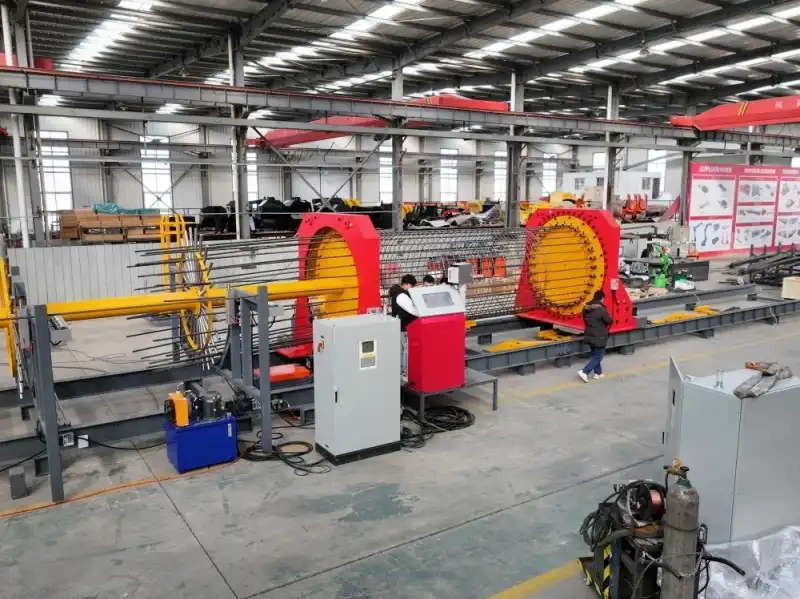

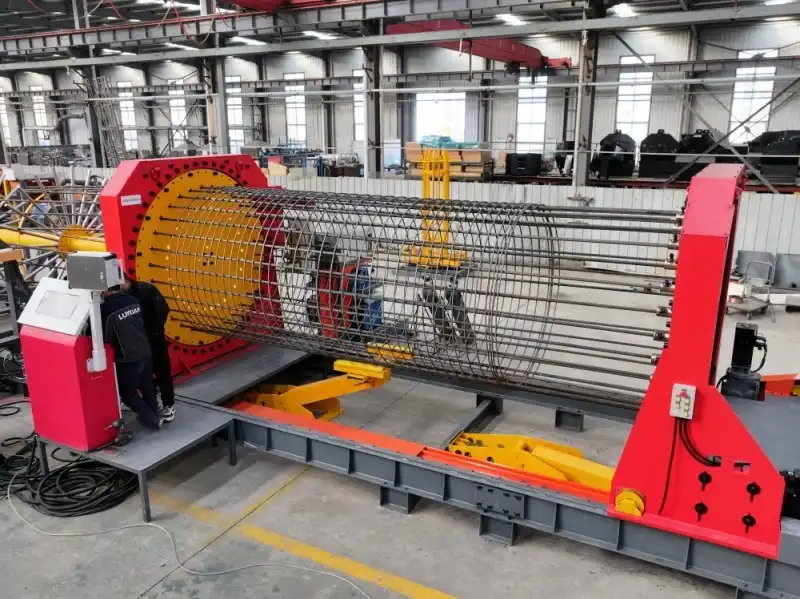

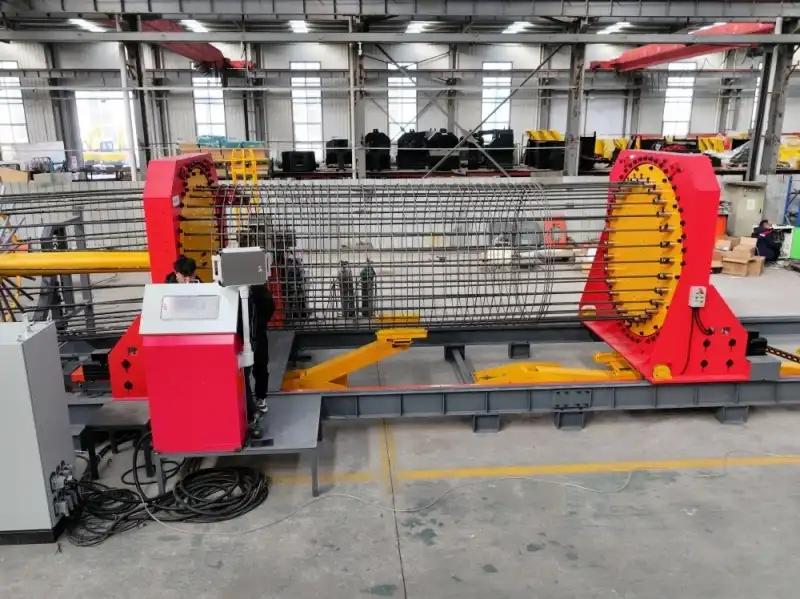

The LYGH series of automated systems has a rotating disk that keeps the main bars in place while a mobile trolley moves along the length of the cage, feeding and welding spiral reinforcement at set times. The diameter range for rebar is from φ16 mm to φ50 mm for main bars and from φ5 mm to φ16 mm for spiral bars, so it can be used for a variety of structural needs. Depending on the size of the project, operators can choose between semi-automatic models that need two to four people to help with manual welding and fully automatic models that only need one to two operators. The telescopic body design of small models makes it easy to move between job sites. On the other hand, the heavy-duty frames of bigger units allow them to be used 24 hours a day, seven days a week in manufacturing yards.
Core Benefits Driving Adoption Across Construction Sectors
When you switch from making cages by hand to using machines, you can see changes in three important areas. It is clear that the LYGH-2500 is more productive when it makes eight full cages in ten hours, a task that would take four times as many workers using standard methods. When weld quality is consistent, there are no more rework steps needed because of missed joints or not enough penetration. This cuts down on material waste and planning delays. The servo control system keeps the spacing between the spiral bars within ±5 mm over 12-meter cage lengths. This makes sure that engineering specifications are met, which is hard to do by hand.
An analysis of costs shows that labor costs go down a lot when skilled welders are replaced by machine operators who are trained in days instead of months. When workers move from high-heat welding areas to supervisory jobs using touch-screen interfaces from safe control desks, safety ratings get better. The equipment is reliable because the frames are reinforced and the parts are designed to fit together in a modular way. This cuts down on downtime and makes it easier to schedule repair around project deadlines.
What Types of Projects Require Steel Cage Welding Machines?
Large-Scale Infrastructure and Transportation Networks
Urban Rail Transit and Metro Expansion Projects
When building underground stations in crowded cities with little staging space, metro construction companies have to deal with special problems. The small models, which take up only 28 m² 6.5 m when they're not attached to an automatic welding system, can be used on building sites that are already very crowded. They can still make the 600 mm to 2000 mm diameter cages needed for diaphragm wall panels and station support columns. Rapid specification changeover is useful for railroad engineering groups because different structural elements in a single project may need dozens of different cage variations. PLC programming lets operators quickly change between cage sizes, keeping production going even as foundation work goes on and changes the soil conditions and load needs.
Commercial and Industrial Construction Applications
When prefabricated construction companies add reinforcement cage fabrication to their factory production lines, they look for equipment that works well with both the cutting and bending stations upstream and the concrete casting cells downstream. The modular structure makes it easier to connect to systems that move materials, and the touch-screen CNC control works with ERP software to keep track of production against project schedules. Contractors for nuclear power plants and engineering firms that work with hydropower choose machines that have been approved to meet strict quality management systems. They often ask for extra paperwork of the weld parameters and dimensional inspection reports that automated systems make as normal output. These high-stakes uses need steady performance that can only be provided by fully automatic welding over multiple years of building projects.
Specialized Applications in Rebar Processing Centers
Independent steel bar processing shops that work with a lot of different companies need flexible equipment that can handle a wide range of customer needs without having to do a lot of retooling. When making everything from small-diameter cages for residential building piles to heavy-duty assemblies for industrial facility foundations every day, the ability to adapt well to different cage specifications is very important. Distribution service providers like how high-efficiency equipment gives them a quick return on their investment. This is because the higher processing capacity lets them underbid rivals who are still using hand manufacturing methods while still meeting high-quality standards.
Decision-Making Guide: Choosing the Right Steel Cage Welding Machine for Your Project
Matching Equipment Capacity to Project Requirements
When purchasing managers look at cage welding systems, they first look at the project paperwork to see what sizes and shapes of cages their equipment needs to be able to work with. For a highway bridge project that needs drilled shafts with a diameter of 1200 mm to 1800 mm, the LYGH-1800 or LYGH-2000 types are a good choice because they can handle diameters from 500 mm to 2000 mm without the need for extra tools. Length requirements are just as important. A normal 12-meter capacity works for most jobs, but builders building offshore wind turbine foundations or deep pier structures may need custom configurations that go up to 18 meters. With a hydraulic pressure rating of -16 MPa, the support rollers keep the cage's shape even when working with heavy φ50 mm main bars over the longest lengths.
Evaluating Automation Levels Against Labor Availability
Whether to use fully automatic operation or help with welding by hand depends on the availability of workers in the area and the length of the job. Short-term projects in places where skilled welders are easy to find might be able to save money by using semi-automatic models with manual welding and a crew of two to four people in exchange for a lower initial equipment investment. On the other hand, long-term infrastructure projects in places where jobs are scarce justify fully automatic setups, such as a steel cage welding machine, that reduce the number of operators to just one or two while improving the consistency of the welding. When structural engineers set strict standards for seismic performance, the top-mounted automatic welding mechanism creates welding points that are straighter and more stable than side-mounted systems. This is a very important benefit.
Supplier Credentials and Technical Support Infrastructure
Reliability of equipment goes beyond the specs of the machine and includes the skills of the manufacturer and the service networks they offer. Working with big state-owned construction companies like China Railroad and China State Construction shows that Zhongji Luyuan can handle difficult projects where machine failures cost a lot of money and cause schedule delays[2]. The fact that the company exports to almost 100 countries shows that it can work with different power sources, site conditions, and regulatory settings. Procurement teams should make sure that suppliers offer full operator training, keep spare parts for important parts in stock, and offer quick response times for technical support. These are some of the things that set equipment vendors apart from real solution providers.
Procurement Insights: Where and How to Buy Steel Cage Welding Machines
Navigating New Equipment Acquisition Strategies
Direct ties with manufacturers are helpful for buyers who want to make changes to the designs or who are planning to buy a fleet of items for use on multiple projects. With a registered capital of 50 million yuan and dedicated research and development (R&D) capabilities, Zhongji Luyuan can make engineering changes to standard models that meet the needs of specific projects. For example, different power supply requirements for international deployments or special welding parameters for high-strength rebar grades [3]. When equipment arrival dates line up with project mobilization milestones, volume purchasing agreements make it possible to get better prices and faster delivery times.
Evaluating Total Cost of Ownership
The costs of buying equipment are only one part of the financial analysis. Power use, which can range from 16 KW for small models to 38 KW for heavy-duty units, is one of the operating costs that affects project budgets over multiple years. Stable operation with a low failure rate cuts down on maintenance costs and gets rid of the lost income that comes with unexpected downtime. To make accurate lifecycle cost models, buyers should ask for detailed information on parts that are used up quickly, such as welding wire feed systems and hydraulic fluid service intervals. When compared to the cost of labor for making something by hand, professionally designed systems often pay for themselves in months instead of years because they last a long time, work reliably, and don't break down often.
Logistics and Implementation Planning
The size of an equipment area affects how the site is laid out and can sometimes affect the choice between centralized manufacturing yards and production that is spread out on-site. Automatic steel cage welding machine models take up 28 m² to 28 m² × 13.5 m of space, based on their size, and need concrete pads and overhead safety protection for long-term installations. Compact designs are good for contractors who move tools between stages of a project or send resources to multiple job sites at the same time because they are easy to move and carry. For implementations to go smoothly, equipment delivery schedules must be coordinated with training schedules for operators, and upstream material supply chains must be able to maintain a steady flow of rebar that automated systems need to reach their full production efficiency.
Future Trends Impacting Steel Cage Welding Machine Use in Rebar Fabrication
Digital Integration and Smart Manufacturing
Modern fabrication software can now connect cage welding machines directly to platforms for building information modeling. This lets digital structural models create production plans instantly. When specs are sent from engineering models to machine control systems, transcription mistakes happen. This combination gets rid of those mistakes. Real-time monitoring dashboards for production keep track of output against project schedules, let supervisors know when maintenance is needed before failures happen, and compile the quality documentation that third-party inspectors need. These skills fit in with the larger trend in the construction industry toward using data to guide project management and plan ahead for maintenance needs.
Environmental Compliance and Energy Efficiency
In developed markets, stricter rules on emissions are pushing new developments in systems that remove welding fumes and get energy back. When contractors are fined for air quality violations on urban job sites, the safe, eco-friendly design that meets international standards stops being a nice-to-have and starts being a requirement. As a result, manufacturers have come up with better ways to use power and create low-emission welding methods that keep structures working well while leaving smaller environmental footprints. Machines made to work hard for a long time now have features that make parts last longer. This saves resources that would otherwise be used to make and throw away new parts.
Modular Construction and Prefabrication Acceleration
As the building industry moves more toward prefabrication in factories, there will always be a need for high-capacity automatic cage welding systems. More and more building codes are recognizing that controlled-environment manufacturing improves quality. As a result, more structural elements are switching from cast-in-place methods to precast components that need reinforcing cages. Fabricators are looking for partners who can help them adapt to new structural systems and changing manufacturing methods. This trend favors equipment providers who offer full technical support and continuous product improvement.
Conclusion
FAQ
What maintenance protocols ensure optimal machine performance?
Regular maintenance checks the condition of the welding electrodes, the integrity of the hydraulic system, and the cleanliness of the electrical connections. To keep the current flow steady, operators should dress the welding tips every 40 to 50 cages, check the hydraulic fluid levels once a week, and clean the transformer cooling systems once a month to avoid overheating, which shortens the life of parts.
How does automation improve cage dimensional accuracy?
PLC-controlled synchronization gets rid of the differences in pitch spacing that happen when operations are done by hand. Servo motors keep the exact travel speeds of the trolleys in sync with the rotation rates of the disks. This keeps the spacing between the spiral bars within ±5 mm limits along the full lengths of the cages, which is something that can't be done by hand.
Can these machines operate in remote construction locations?
Wide-voltage stabilizers are part of professional-grade tools that keep control systems safe from power grid changes that are common in remote locations. The 380V three-phase power requirement and flexible options make it possible to adapt to different electrical standards. The tough structural frames can handle the dust and extreme temperatures that are common in the field.
What production capacity should buyers expect?
In normal site conditions, automatic systems make about eight full cages in ten-hour shifts, but the real output depends on how complicated the cage is and how skilled the crew is. This is three to four times as productive as teams that make things by hand, and the quality is the same in all units, which is an added bonus.
Partner with Zhongji Luyuan for Advanced Cage Welding Solutions
Zhongji Luyuan makes automated rebar cage welding systems that meet the specific needs of infrastructure contractors and precast manufacturers. Our LYGH series machines are made with both PLC precision control and strong mechanical design. They make tools that big construction companies like China Railroad and China State Construction trust for important projects. We do more than just sell machines; we also offer full training for operators, quick technical help, and the ability to change standard configurations to fit the needs of each job. When people buy our equipment, they can use our vast after-sales service network, which covers almost 100 countries and makes sure that expert support is always available. If purchasing managers are looking for dependable steel cage welding machine suppliers, they can email sales2@shandongluyuan.com for detailed specifications and competitive quotes or visit zjly2025.aixdb.cn to learn more about how our smart manufacturing solutions lower labor costs while increasing production quality.
References
[1] American Concrete Institute. (2019). Building Code Requirements for Structural Concrete (ACI 318-19). https://www.concrete.org/store/productdetail.aspx?ItemID=318U19
[2] Engineering News-Record. (2022). China's Construction Giants Lead Global Infrastructure Rankings. https://www.enr.com/toplists/2022-Top-250-International-Contractors-Preview
[3] National Bureau of Statistics of China. (2021). Annual Report on Construction Industry Development. http://www.stats.gov.cn/english/PressRelease/202102/t20210227_1814177.html
[4] American Welding Society. (2020). Structural Welding Code—Reinforcing Steel (AWS D1.4/D1.4M:2018). https://www.aws.org/standards/page/d1-4-d1-4m
[5] International Journal of Construction Engineering and Management. (2021). Automation in Rebar Fabrication: Efficiency and Quality Improvements. https://www.sapub.org/journal/aimsandscope.aspx?journalid=1069
[6] Construction Industry Institute. (2023). Prefabrication and Modular Construction Research Report. https://www.construction-institute.org/resources/knowledgebase/best-practices/prefabrication-assembly-modularization
