Automatic Pile Wire Cage Welding Machine for Bridge and Highway Piles

When bridge and highway projects demand thousands of reinforcement cages at scale, an automatic pile wire cage welding machine becomes the operational backbone of the fabrication yard. Unlike manual welding teams that struggle with geometric inconsistency and fatigue-related defects, a fully automated rebar cage welding system delivers uniform spiral pitch, precise weld penetration, and repeatable cage geometry—critical parameters for bored pile foundations and bridge pier applications. This guide walks procurement managers, equipment engineers, and project directors through everything they need to evaluate, select, and deploy the right solution.

Understanding Automatic Pile Wire Cage Welding Machines

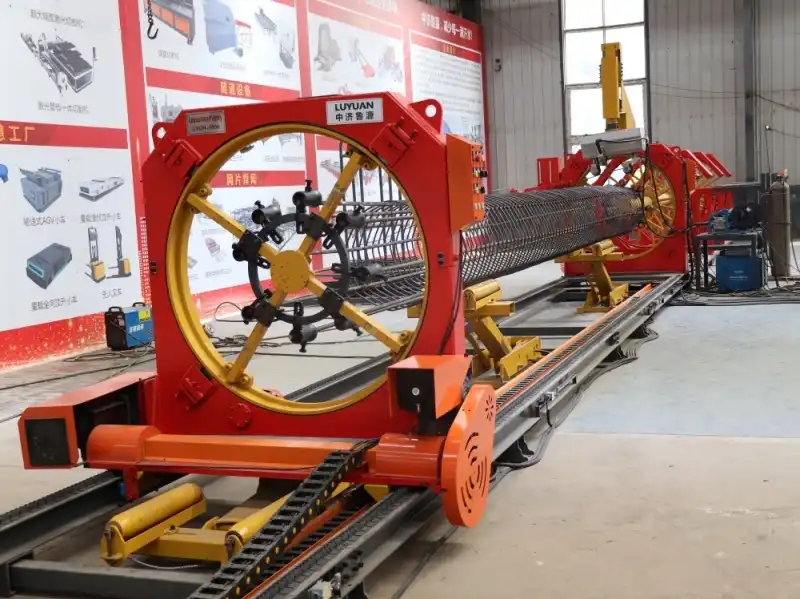

A reinforcement cage welding machine is made up of three main parts that work together to weld: longitudinal bar clamping, spiral bar winding, and continuous seam welding. These three parts are controlled by a PLC system. The Zhongji Luyuan Model LYZD-GJL2500 is a good example of this architecture. It has both a PLC and a touch-panel interface, so one operator can run the whole production cycle without having to learn special welding skills.

How the LYZD-GJL2500 Delivers Consistent Output?

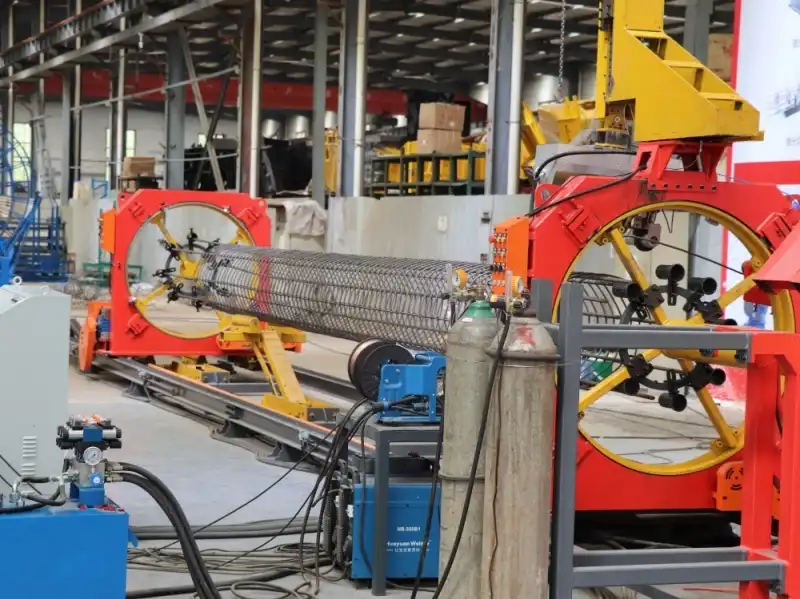

The LYZD-GJL2500 can work with rebar cages with diameters of φ700 mm to φ2500 mm and lengths of up to 12 meters per section. It can also work with main bars of φ18 mm to φ40 mm and spiral bars of φ8 mm to φ16 mm. Gas-protected welding gets rid of oxidation at the weld zone, and the automatic welding head placed on top makes join points that are straighter and more stable than those mounted on the side. A single machine can make 13 cages in 10 hours, which is the same amount of work that would normally take a welding crew of several people working long shifts.

Why Fully Automatic Outperforms Semi-Automatic?

Manual repositioning and individual weld triggers are still used on semi-automatic machines, which causes variation that builds up over hundreds of cages. An automatic pile wire cage welding machine with hydraulic pressure ≤16 MPa and air supply ≤0.8 MPa keeps the tightening force constant throughout the production run, so there is no need for workers to worry about getting tired. According to a study published in the Journal of Construction Engineering and Management (2019), automated rebar fabrication cuts down on dimensional reject rates by up to 40% compared to traditional methods. This saves a lot of material, which adds up quickly on big bridge projects.

Choosing the Right Pile Wire Cage Welding Machine for Bridge and Highway Projects

When you buy this much capital equipment, your choices will affect how you run your business for a long time. The machine specs must match the pile plan in your design sketches exactly. The configuration choice is based on the cage diameter, main bar count, spiral pitch, and section length.

Before making a purchase, buyers should check these key technical parameters:

• Cage diameter coverage: The LYZD-GJL2500 spans φ700–φ2500 mm, covering the majority of highway bridge pile specifications without retooling.
• Main bar configuration: Support for both single and double main bar arrangements, with double main bar customization available, makes the machine adaptable to varying structural load requirements.
• Spiral bar options: Single or double spiral bar capability allows fabrication of cages with reinforced end zones, which bridge codes frequently require.
• Footprint and site fit: At 30 m × 8.5 m, the workstation fits within a standard precast yard bay, and its modular structure simplifies on-site assembly.
• Power compatibility: Standard 380V / 50Hz / 3-phase supply, with customization available for project-specific grid configurations internationally.

All of these specs for an automatic pile wire cage welding machine together tell you if a machine can handle your current project and grow with your future contracts. Long-term value is much higher for a provider that gives flexible configurations instead of rigid catalog choices.

Flexibility in procurement is also important. Zhongji Luyuan supports large-order arrangements and custom planning to fit the needs of the project. This is especially useful for state-owned building groups that are in charge of infrastructure projects on multiple sites.

Enhancing Operational Efficiency with Automatic Pile Wire Cage Welding Machines

In a production line for reinforcing cages, efficiency isn't just about how fast the machines work; it's also about how long it takes from the raw bar to an approved cage, which includes setup, adjustment, and quality checks. The LYZD-GJL2500 is designed to handle each stage with care.

Reducing Setup Time Through Smart Control

The touch-screen CNC interface saves cage specs as programs that can be retrieved. This makes it possible for workers to quickly switch between pile types. The spacing between the spiral bars can be adjusted up to 300 mm, which fits most highway and bridge pile plans without having to be fixed by hand. With precise motor control and a strengthened high-strength steel frame rated for long-term heavy-duty operation, the machine keeps its measurements over a long production run, which is very important when a single highway contract calls for thousands of identical cages.

Preventive Maintenance That Protects Your Schedule

When equipment breaks down in a busy pile fabrication yard, it directly affects the schedules for concrete pours and cranes further down the line. The LYZD-GJL2500 is built in a way that lets parts be replaced without taking apart other assemblies. Cleaning the welding electrodes and checking the water-cooling circuit are the major maintenance tasks that need to be done every day. These tasks can be done during a normal shift transfer. Zhongji Luyuan offers operator training and quick technical support after the sale, so teams can quickly figure out and fix common problems without having to wait for outside service visits.

Safety and Compliance in Automated Pile Wire Cage Welding

To use an automatic pile wire cage welding machine with a 100 kW welding machine in a busy building yard, strict safety rules must be followed. The LYZD-GJL2500 has safety features like emergency stop protocols, guarding around the rotating cage assembly, and sensor-driven danger detection at key pinch points. As a direct result of full automation, less physical work means that workers are less likely to be exposed to welding fumes, spinning rebar, and surfaces that are very hot.

Zhongji Luyuan's manufacturing processes are in line with ISO 9001 quality management standards. The company's equipment has been used on projects governed by the China Railroad, China State Construction, and China Communications Construction procurement frameworks, all of which have strict requirements for equipment certification. For export markets like the US, South Korea, Malaysia, and Kazakhstan, the company supports paperwork needs that are in line with the industrial safety standards of the destination country.

Future Trends and Innovations in Pile Wire Cage Welding Technology

The next wave of tools for making rebar cages is moving toward three goals: digital integration, energy savings, and adaptive control. As part of Industry 4.0, manufacturers are putting real-time production monitoring into welding workstations. This lets project managers keep an eye on cage output, weld cycle counts, and the health of the equipment from afar. By looking at vibration and temperature data, predictive maintenance algorithms can find worn-out parts before they break. This directly protects schedules for long-term infrastructure contracts.

Compatibility between materials is also changing. More and more building codes call for HRB500 and higher grades of reinforcement steel. To keep the metal from breaking down at the weld zone, welding systems need to control the amount of heat they use. Gas-protection welding, like what is used in the LYZD-GJL2500, creates the safe environment needed for consistent fusion quality on high-strength bar grades.

Conclusion

When building bridges and highway piles, you need an automatic pile wire cage welding machine that can handle the size, accuracy, and consistency of the project plan. The LYZD-GJL2500 automatic rebar cage welding machine solves the problems that infrastructure builders face today, like high labor costs, tight tolerances, and the need for output that can be checked and repeated. With cage diameters of up to ±2500 mm, a throughput of 13 cages per 10 hours, and deployment by a single operator, it is a proven step toward more reliable and leaner pile production. Zhongji Luyuan backs up the equipment with technical support, training for operators, and the institutional knowledge of a company that has worked with national infrastructure projects in almost 100 countries.

FAQ

What cage diameters does the LYZD-GJL2500 support?

As long as the rebar cage diameter is between φ700 mm and φ2500 mm, the machine can handle most bridge and highway pile specifications without needing major mechanical changes.

How many operators does the machine require?

The fully automatic PLC system only needs one person to oversee the whole production process, from entering the parameters to finishing the cage.

How fast can a standard 12-meter cage be produced?

The LYZD-GJL2500 can make 13 cages in 10 hours for 12-meter parts at its rated efficiency. This is a lot faster than a normal hand welding team of the same size.

Can the machine handle both single and double spiral bar configurations?

Yes. The CNC control system can set up a single spiral bar, a double spiral bar, a single main bar, or a double main bar. It can also set up a double main bar layout as a custom choice.

What welding method does the machine use, and why does it matter?

Gas-shielded welding is used by the machine to keep the weld area from rusting in the air. When working with high-grade reinforcement steel like HRB400/500, this is especially important because it makes the weld joints cleaner and stronger.

Partner with Zhongji Luyuan for Your Next Infrastructure Project

Zhongji Luyuan makes automatic pile wire cage welding machines that are trusted by big contractors working on infrastructure projects all over the world. The LYZD-GJL2500 workstation from our company protects your project schedule with precise engineering, efficient single-operator use, and strong after-sales support. Our team is ready to help you whether you need a standard configuration or a setup that is made just for you. To get professional advice or a quote for a large order, go to shandongluyuan.com or email us at sales2@shandongluyuan.com.
