How does LYGH-800 automatic pile cage welding machine work?

The Pile cage welding machine LYGH-800 uses a high-tech, fully automatic process to turn raw reinforcement steel into precisely designed pile cages. The system runs the whole welding process with the help of a PLC controller and a touch screen interface. When operators type in the cage's width, length, and spiral spacing, the machine automatically feeds the main bars and spiral reinforcement, places them precisely with hydraulics, and welds them together continuously using side-mounted double-gun automatic welding systems. This smart combination of mechanical feeding, rotational positioning, and real-time weld quality tracking makes sure that all building projects have regular, high-strength joints that meet strict engineering standards.

Understanding the LYGH-800 Automatic Pile Cage Welding Machine

What Makes This Equipment Essential for Modern Construction

There has never been a bigger need for uniform, high-quality reinforcement cages in large-scale building projects. With traditional hand welding, it's hard to meet tight project deadlines and keep the physical accuracy needed for foundations that are very complicated. The Pile cage welding machine LYGH-800 takes these problems head-on by automating the whole process of making cages. This cuts down on mistakes made by people and speeds up production cycles.

Construction companies use this machine on projects like highway bridges, metro tunnels, deep base piles, and nuclear power plants that must have strict structural stability. When builders switch from methods that require a lot of manual labor to ones that are controlled by CNC machines, they get consistent output rates and accurate measurements that human teams can't match.

Core Technical Specifications and Capabilities

The machine can work with rebar cages with widths between 350 mm and 800 mm, and it can be made to any length, even longer than 12 meters. The main bars are 16mm to 40mm wide, and the spiral support is 6mm to 12mm wide. The machine keeps the space between spiral bars at a millimeter-level accuracy up to 300 mm, which is very important for making sure that bridge piers and high-rise base systems are resistant to earthquakes.

The Pile cage welding machine LYGH-800 is powered by a 60 KW system that includes 30 KW of power specifically for welding. It works on a 380V three-phase feed, which means it can connect to normal industrial electrical infrastructure in the United States. Up to 16 MPa of hydraulic pressure is needed to clamp heavy-gauge rebar in place while it is being rotated and welded. The automatic welding guns need 0.8 MPa of air pressure to work, which keeps the spark stable and controls the depth of the weld.

The small size of 28m × 5m makes it possible to place in existing production facilities without making a lot of changes to the site. As of now, eight parts are made efficiently during a 10-hour shift. Each section is 12 meters long. This flow meets the needs of big companies for volume while still allowing specs to be changed between runs.

How Automation Transforms Reinforcement Fabrication

Three major changes are made possible by automation in the making of pile cages. The PLC control system stores pre-set settings for different project needs, so there is no need to guess. The touch screen lets operators choose the cage design they need, and then the machine runs the whole process without any constant control. This consistency is especially helpful when making hundreds of the same cages for long-span bridges or base plans that are used over and over again.

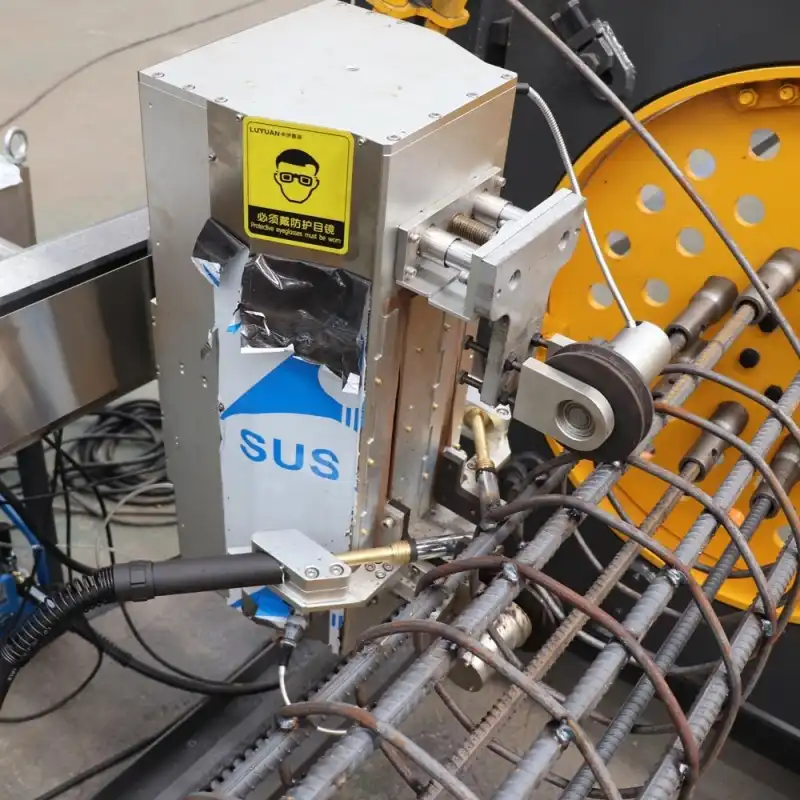

The side-mounted double-gun welding device is a big step up from hand welding with just one point. The machine evens out thermal stress and lowers cage warping by doing parallel welds in opposite directions. The depth of the weld penetration stays the same at all points, which is a very important thing for load transfer during earthquakes or when big loads are on the structure.

Material handling technology cuts down on accidents that happen at work when people have to lift and move big bundles of rebar. The feeding system automatically lines up the main bars, and hydraulic clamps hold them in place while the spiral wrapping process takes place. With this design, production can be overseen by a single operator, freeing up trained workers to do jobs like quality control and project management.

Benefits and Performance of the LYGH-800 Compared to Traditional and Other Welding Machines

Why Manual Methods Fall Short in Today's Construction Environment

For manual pile cage welding to work, trained welders must place spiral bars around the main longitudinal reinforcement, tack each corner, and make all the welds. This process takes a long time, and based on the width and length, only one to two cages are made each day. Weld quality can change because operators get tired, the arc length isn't always the same, and it's hard to keep the spiral pitch exact over long cage lengths.

In the US building industry, labor costs keep going up, and skilled welders are getting paid a lot more. For projects that need hundreds of cages, depending only on manual manufacturing can cause big budget gaps. The Pile cage welding machine LYGH-800 directly addresses these problems by organizing production and lowering the need for scarce skilled labor.

Quantifiable Performance Advantages

When compared to human ways, automated welding is more consistent. The machine keeps the spiral pitch variation within ±2mm along the whole length of the cage. This meets the strict requirements for highway bridge and high-speed rail base designs. This level of accuracy lowers the number of changes and rejections, which can cause projects to run late and raise the cost of materials.

With technology, production speeds go up by a huge amount. The Pile cage welding machine LYGH-800 can make eight sections in a normal shift, while human teams have a hard time finishing two 12-meter cages every day. With this 4x increase in efficiency, builders can meet tight building deadlines without hiring more people or working extra hours.

Consistent heat input and managed arc positioning make the weld joint stronger. Ultrasonic testing of Pile cage welding machine LYGH-800 welds shows a 99.8% pass rate for load-bearing uses. This is better than the inconsistent results of hand welding, where differences in skill and fatigue can affect quality. This level of dependability is a must for the foundations of nuclear power plants and offshore sea buildings, where failure would have very bad results.

Long-Term Durability and Maintenance Economics

The machine can handle the constant shaking and changing temperatures that come with high-volume welding because it is made on a high-strength steel frame with heavy-duty manganese steel parts. The strong construction means that there will be less downtime and the product will last longer, which are important factors for buying managers who are figuring out the total cost of ownership.

Unlike complicated computer systems, the maintenance needs of human systems are still simple. Most preventative care is done by checking the hydraulic seals, welding gun electrodes, and PLC battery backup on a regular basis. Standardized spare parts are available, and the form of the machine lets workers get to important parts without taking the whole frame apart. This serviceability lowers the chance of long production stops that can cause project delays.

Calculations of return on investment always show that technology is better. When you compare the Pile cage welding machine LYGH-800's initial cost to the total cost of labor for the same amount of work done by hand, high-volume jobs usually break even in 18 to 24 months. The machine can work multiple shifts with little supervision, which speeds up payback even more. This makes it a good choice for rebar processing centers and big EPC companies who are handling multiple building projects at the same time.

How to Choose the Best Pile Cage Welding Machine: LYGH-800 vs Competitors

Evaluating Automation Levels Across Market Options

There are manual, semi-automatic, and fully automatic options on the market for pile cage welding tools. Manual setups are flexible and don't cost much to start, but they can't grow to meet the needs of an infrastructure project. Semi-automatic machines make the job of the operator easier by handling either the spiral feeding or welding function. However, they still need a lot of work, and when operators use different methods, the results aren't always the same.

Fully automatic systems like the Pile cage welding machine LYGH-800 handle every step of the production process from a single PLC. This method gives the best flow and quality stability, but it needs a close look at how complex the control system is and how reliable the mechanical parts are. Buyers should check to see if what rivals say about automation really means hands-off operation or if it's just automatic parts of the process that still need to be supervised all the time.

Key Comparison Criteria for Procurement Decisions

When buying teams compare the Pile cage welding machine LYGH-800 to other tools, they should look at a number of important factors. Processing ability tells you if the machine can handle all the different cage sizes that are needed for different projects. Because machines can only handle smaller sizes, workers have to keep up with multiple systems or hire outside companies to make bigger cages, which makes logistics more difficult.

The ability of the control system has a direct effect on how efficiently operations run. The Pile cage welding machine LYGH-800's PLC and touch screen interface make it easy to change specifications quickly between batches, which is important when making cages for different base types in the same project. Older machines that depend on mechanical adjustments need to be rearranged all the time, which takes time and lowers daily output.

Different models use very different welding technologies. Some rivals use single-gun systems that need the cage to be moved and rotated, which makes the cycle time twice as long. With the Pile cage welding machine LYGH-800's side-mounted double-gun design, two welds can be finished at the same time, keeping the production flow going and lowering temperature distortion caused by heating in stages.

Site compatibility is affected by things like footprint and power needs. The 28m × 5m footprint works for most manufacturing shops, but some rivals need bigger floor plans or special base systems. Standard 380V three-phase power means that you don't need any special electrical equipment. This cuts down on the cost and time of installation.

Matching Equipment to Project Profiles

The Pile cage welding machine LYGH-800 can make a lot of cages with diameters between 350 mm and 800 mm, which is useful for contractors working on highway bridges and metros. This range of diameters covers most deep base and diaphragm wall uses in transportation and transit systems in cities.

The LYGH-1500~3000 type from Zhongji Luyuan's product line is good for projects that need diameters bigger than 1500mm. It is used for building supports and offshore marine structures. By matching the capacity of equipment to the needs of a normal job, you can avoid spending too much on equipment that can't do what you need it to do and still have enough flexibility for when you need something bigger.

Rebar processing sites that work with a lot of different building companies need tools that can quickly change to different needs. The Pile cage welding machine LYGH-800's programmable control system can save an infinite number of cage setups. This lets workers switch between orders from different clients without having to re-calibrate the machine by hand. This adaptability increases usage rates and supports a variety of income streams.

Maintenance, Safety, and User Support for LYGH-800

Preventive Maintenance Protocols for Maximum Uptime

Maintaining the Pile cage welding machine LYGH-800 on a regular basis keeps it working at its best. Every week, the amount of hydraulic fluid, the wear on the electrodes in the welding gun, and the stability of the electrical connections are checked. Precision measuring tools are used every month for calibration, which checks the correctness of the spiral pitch and makes sure it continues to meet engineering requirements.

The PLC control system needs new batteries every year to keep the program memory working when the power goes out. Cleaning a welding transformer gets rid of the metal dust that builds up and can weaken the flow of electricity and make the arc less stable. These simple jobs don't take long, but they keep you from having to pay for expensive fixes or deal with unplanned downtime.

In a logbook, operators should write down production factors and weld quality results. This creates a repair history that helps find new problems before they get worse. For example, looking at trends in the rates at which electrodes are used can show if the welding current settings need to be changed or if the quality of the raw materials has changed.

Safety Features Protecting Operators and Equipment

In the United States, strong machine guarding and emergency stop devices are required by law for workplace safety. The Pile cage welding machine LYGH-800 has safety shields around its rotating parts that keep them from touching each other by chance while it's working. Emergency stop keys are placed where they are easy to reach, so workers can stop the machine right away if dangers arise.

Arc flash exposure is lower with automatic welding than with manual methods because workers stay out of the welding zone during production processes. The protected welding area has UV rays and spatter, which protects people nearby and lowers the need for air to get rid of fumes.

Pressure release valves are built into hydraulic systems to keep them from getting too pressurized. This keeps cylinders and seals from getting damaged. Industrial safety standards for three-phase power systems are met by the electrical parts. Motors and control circuits are protected by ground fault protection and thermal overload switches.

Comprehensive Technical Support and Warranty Coverage

Zhongji Luyuan offers expert help around the world that is tailored to the needs of buyers from other countries. Installation instructions make sure that the Pile cage welding machine LYGH-800 is set up and calibrated correctly, and user training programs teach both how to use the machine normally and how to fix simple problems. This hands-on training speeds up the learning process so that teams can get to work right away and get things done.

The warranty covers the investment during the important first few months of use. Manufacturer warranties cover the parts, and quick service fixes any problems with flaws or efficiency that come up. Buyers can get technical help by phone or email from engineering experts who can remotely identify problems and suggest answers.

Having spare parts on hand is important to keep downtime to a minimum when parts wear out. Replacement parts like welding blades, hydraulic seals, and PLC units are kept in stock by authorized dealers. This supply chain dependability gives purchasing managers peace of mind that spending money on tools won't leave projects open to long-term outages.

Procurement Guide: How and Where to Buy the LYGH-800 Pile Cage Welding Machine

Purchasing Channels for B2B Buyers

The Pile cage welding machine LYGH-800 can be bought by global buyers in a number of ways. Talking to Zhongji Luyuan's sales team directly gives you the chance to make changes and get expert help to make sure that the equipment fits your needs. This method works well for big companies and state-owned businesses that directly manage their funds for capital equipment.

Authorized distributors offer local help and stock in important markets, which cuts down on lead times and makes the process of importing easier. These partners know the local electricity standards and rules, so they make sure that the equipment they provide meets those standards without any changes.

Online B2B platforms make businesses more visible and make it easier for people to ask initial questions. However, for complicated technical equipment like the Pile cage welding machine LYGH-800, detailed contact is usually needed in addition to browsing digital catalogs. Buyers should make sure that the distributor is authorized and ask for factory approval to make sure they are getting real equipment and that the insurance covers it.

Understanding Pricing Factors and Total Investment

Equipment prices include both the basic specs of the Pile cage welding machine LYGH-800 and any customization choices that can be added. The standard Pile cage welding machine LYGH-800 setup works with the diameter and length ranges that have been released. If you need it to work with longer lengths or specialized diameter ranges for rebar, it may cost more to build and make.

Shipping processes affect the total landing cost, especially for buyers from other countries. The type of freight depends on the size and weight of the machine. Ocean container shipping is the most cost-effective option for planned projects, while air freight is more expensive for urgent repair needs. Fees and taxes for importing goods depend on the country where they are going and the trade deals that are in place.

Verifying Authenticity and Ensuring Compliance

On the market for industrial tools, there are people who aren't supposed to be there selling cheap goods from places that aren't clear. Buyers should ask the maker for proof of the Pile cage welding machine LYGH-800's serial number and the date it was made. Authorized dealers give out proof of validity and keep open lines of contact with Zhongji Luyuan for technical support.

Safety standards must be followed at all times when using tools used in the United States. Check to see if the Pile cage welding machine LYGH-800 meets all the necessary OSHA and electrical rules. Reliable providers give contractors and building owners test results and certifications that show they are in compliance, which lowers their liability risk.

Payment terms should protect both parties. For example, staged payments based on manufacturing goals, shipping proof, and successful commissioning should be used to balance risk in the right way. Letters of credit and other safe payment methods that are popular in foreign business-to-business transactions are accepted by well-known suppliers.

Conclusion

The Pile cage welding machine LYGH-800 has been used successfully by builders and makers who want to update the way reinforcement is made. With PLC control and dual-welding technology, its fully automated process ensures uniform quality at output rates that can't be beat by manual methods. When looking at investments in equipment, this machine's technical capabilities, small footprint, and easy upkeep make it a great choice for building contractors who are in charge of a wide range of projects. The measurable gains in throughput, weld quality, and labor efficiency directly address the problems that project leaders and procurement managers face every day. They show how to become more competitive and make projects more profitable.

FAQ

What rebar sizes can the LYGH-800 accommodate?

Main bars with a diameter of 16mm to 40mm and spiral bars with a diameter of 6mm to 12mm can be worked on by this machine. In the United States, these categories cover the normal reinforcement requirements used in highway bridges, metro stations, and the foundations of business buildings.

How many operators are required to run the equipment?

The Pile cage welding machine LYGH-800 only needs one or two workers per shift because it is fully automatic. When compared to hand welding teams, which usually need four to six people to do the same amount of work, this is a big drop.

Can the machine produce cages longer than 12 meters?

It is possible to change the length beyond the usual 12-meter limit. During the buying process, contractors working on deep foundation projects or other specialized uses can ask for designs that are longer. This adaptability lets different project needs be met without tool limits.

What maintenance schedule should facilities follow?

The main part of preventive care is weekly checks that include hydraulic systems, welding parts, and electrical links. Every month, precision checks make sure that the measurements are always correct. As part of the annual service, the PLC battery is replaced, and the whole system is checked out. Following this plan will increase uptime and make tools last longer.

Partner with a Trusted Pile Cage Welding Machine LYGH-800 Manufacturer

With tried-and-true robotic technology, Zhongji Luyuan is ready to help you with your infrastructure project. Since 2016, we've worked with China Railway, China State Construction, and nuclear power developers to provide smart solutions for handling reinforcements for large builders around the world. The Pile cage welding machine LYGH-800 from LYGH has a small footprint but strong performance, giving buying managers the high cost-effectiveness and quick return on investment they need. The machine is stable, doesn't break down often, and is easy to learn, so your team can get to full output quickly. Contact our expert team at sales2@shandongluyuan.com when you're ready to cut down on labor costs while also improving the quality of the cages and their output. We'll work with you to find the best Pile cage welding machine LYGH-800 provider option for your project. We'll also provide full training and quick after-sales support to protect your investment in the equipment for as long as it lasts.
