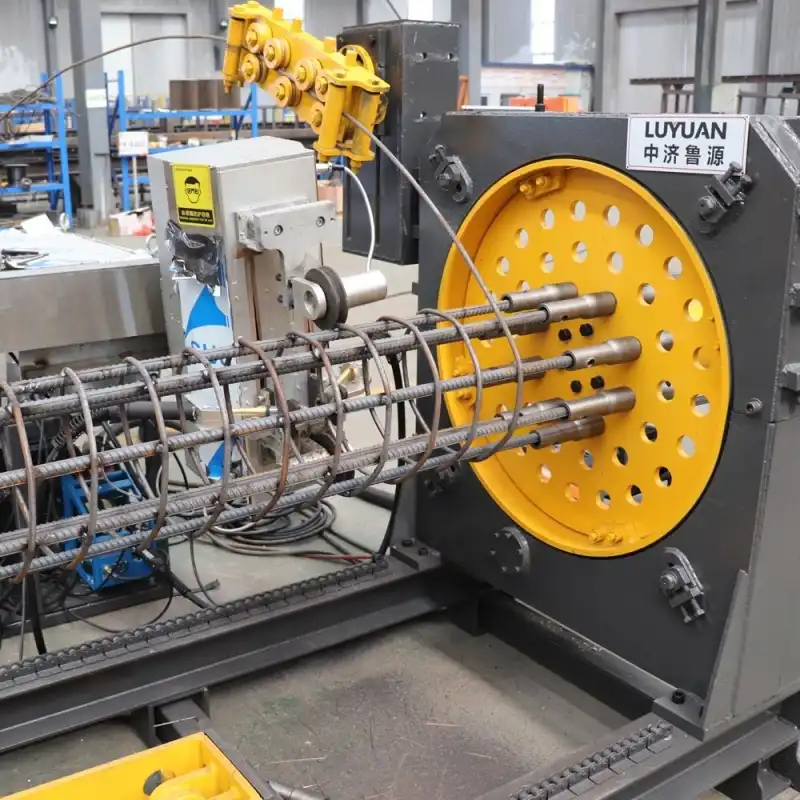

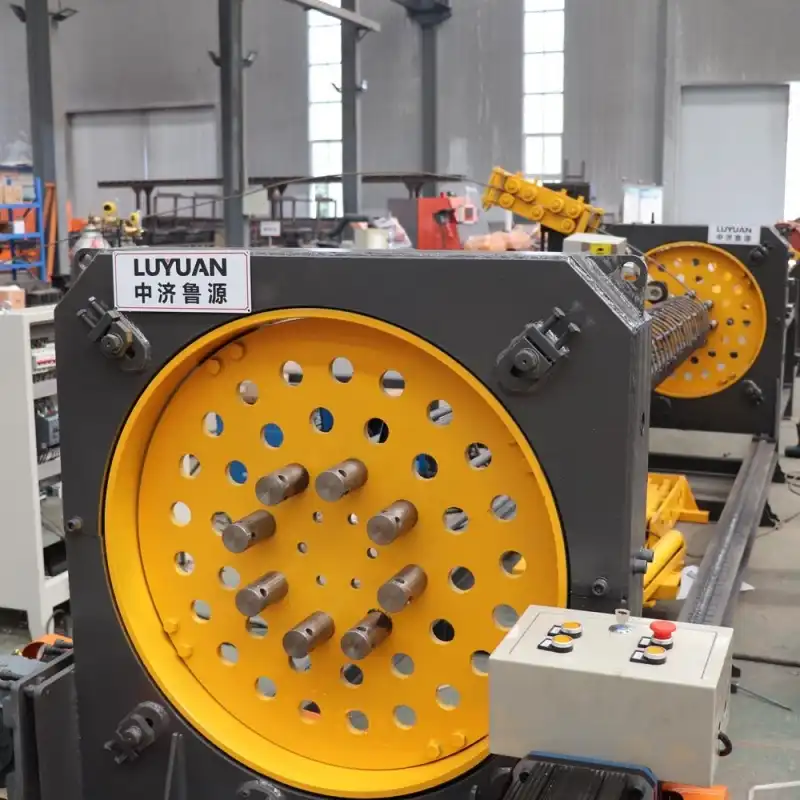

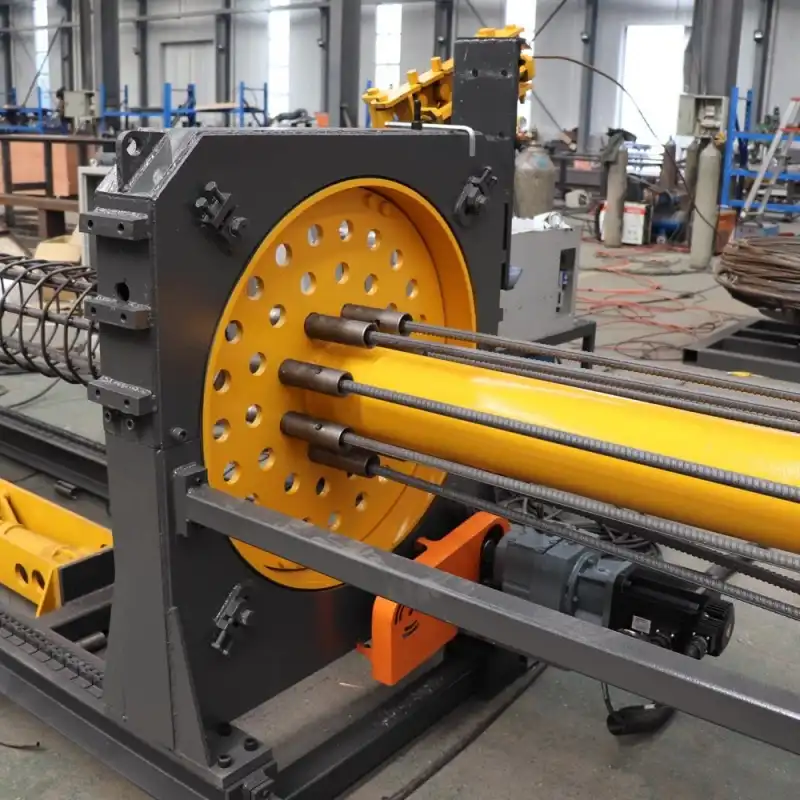

LYGH-800 pile cage welding machine for reinforced concrete pile cages

Pile cage welding machine LYGH-800 is a game-changer when foundation work for major projects needs to be done quickly and accurately. This fully automated equipment changes the way construction teams make reinforced concrete pile cages. It does this by combining PLC-controlled accuracy with dual-gun welding systems to make structural parts that can handle the tough needs of modern infrastructure. This machine is made to handle cage diameters from 350mm to 800mm and lengths of up to 12 meters. It solves the major problems that procurement managers in bridge construction, rail transit, and deep foundation engineering face every day, such as a lack of workers, inconsistent quality, and short project deadlines.

Understanding the LYGH-800 Pile Cage Welding Machine

What Makes This Equipment Essential for Modern Construction

When compared to hand manufacturing methods, the LYGH-800 is a big step forward. At its core, this automatic system turns raw rebar into pile cages that meet structure standards by combining precise mechanical systems with smart control systems. When the machine is running, lengthwise main bars (φ16mm–φ40mm) are put in place while spiral reinforcement (φ6mm–φ12mm) is wound and welded at set times, with accuracy of up to ±2mm in the space between each bar.

This equipment stands out in the business-to-business market because it takes two approaches to efficiency. The side-mounted double-gun welding system makes sure that joints are formed at the same time, and the PLC tablet interface lets workers change settings in real time without stopping work. The machine stays stable even when working with heavy-gauge rebar kits because it has a 60 KW power system and hydraulic pressure that can reach 16 MPa.

Technical Specifications That Drive Productivity

From our experience with buying a lot of equipment, we know that equipment managers care most about three types of measurements: the ability to change dimensions, the power to run, and the size of the equipment's volume. Even though it only takes up 28m²5m of floor space, the LYGH-800 can make eight 12-meter cage pieces in a 10-hour shift. This small design is very useful for building sites in cities, where room constraints often limit the types of tools that can be used.

The machine needs 380V three-phase power, which is normal in industrial electrical systems across the United States. This means that expensive changes to the infrastructure are not needed. Specifications for the air supply pressure of ≤0.8 MPa for automatic welding gas make sure that it can work with compressor systems that are already in place at production facilities. The high-strength steel frame construction ensures long-term durability under continued operation, which is an important factor when figuring out the total cost of ownership over the 10-15 year lifespan of an item of equipment.

Adaptability Across Infrastructure Applications

Pile cage welding machine LYGH-800 is designed to meet the basic needs of different building projects, which are very different. When building a highway bridge, builders need pile cages with spiral shapes that can withstand earthquakes. When digging a subway tube, they need to quickly make standard parts. The Pile cage welding machine LYGH-800’s adjustable settings make it easy to use in either situation. Adjustments to the main bar width allow a wide range of tasks, from laying the foundations for homes to supporting the structure of nuclear power plants.

The machine can be programmed to work with spiral bar spacing configurations, which let sets be made at 50mm intervals for jobs that need better load distribution. This flexibility gets rid of the need for multiple specialized tools, making it easier for rebar processing centers with a wide range of clients to keep track of their supplies.

Advantages of Choosing LYGH-800 Over Traditional and Competitor Welders

Labor Cost Reduction Through Intelligent Automation

To keep quality standards high, manual pile cage construction usually requires teams of four to six skilled welders working in shifts. Pile cage welding machine LYGH-800 reduces this requirement to just two operators: one handling the material feed and the other monitoring the control interface. This 60–70% reduction in labor demand directly lowers project costs, which is particularly important as the U.S. construction industry continues to face a shortage of skilled workers.

In addition to reducing the number of jobs, technology gets rid of the variations that come with hand welding. When people work long shifts, they often get tired, which can cause weld penetration and spacing mistakes that need expensive repairs. Computerized control of the machine makes sure that the quality is the same for every production run. This cuts down on material waste and the number of items that fail review. Project managers say that the rate of defects is less than 0.2%, compared to 3–5% when using old methods.

Production Speed That Transforms Project Timelines

Cutting down on time during foundation work helps the plan in later stages of the building project. Because the LYGH-800 can make eight full 12-meter cages in a normal shift, contractors can keep tight installation plans without putting the structure at risk. The output multiplier is clear when you compare it to manual ways that could finish three cages in the same amount of time.

The Pile cage welding machine LYGH-800's faster speed benefit is especially useful when the weather changes. Contractors who need to drive piles but only have small windows of good weather can store manufactured cages during peak production times, making sure they have the right materials on hand when the weather permits installation. The machine's steady output rate also makes logistics planning easier, making it easier for procurement teams to organize supply times.

Cost-Benefit Analysis for Long-Term Investment

Investing in equipment depends on estimates of returns that go beyond the cost of the equipment itself. When buying managers look at the LYGH-800, they should look at a number of cost factors. The machine requires fewer operators, which saves sites with two shifts between $120,000 and $180,000 a year in labor costs. Cutting more precisely and making better welds saves another $40,000 to $60,000 by lowering the amount of waste.

Maintenance costs are very low because the building is strong and the parts are easy to get to. The stable operation profile cuts down on unexpected downtime, which is very important because every hour of equipment failure can push back whole project phases. The low failure rate is due to a well-tested mechanical design, not systems that are too complicated and need specialized expert help.

Procurement Guide: How to Buy and Source LYGH-800 Effectively

Identifying Authorized Distribution Channels

Checking the supplier's credentials and help skills is the first step to buying equipment that works. Zhongji Luyuan has direct ties with infrastructure companies in more than 100 countries, so they have a track record of deploying equipment across borders. When looking at LYGH-800 providers, make sure they can provide full technical paperwork that meets U.S. building standards and are willing to meet with you for technical advice before you buy.

When you work directly with a producer of the Pile cage welding machine LYGH-800, you often get benefits that go beyond price. Customizing equipment for a particular project, like making the cage longer than the standard 12 meters, requires technical teamwork, which is something that approved sellers help with. Technical help and training tools for operators that are available in English should be a big part of how suppliers are chosen.

Understanding Total Acquisition Costs

The prices of equipment, such as the Pile cage welding machine LYGH-800, that are made public are just starting places, not full project funds. Shipping management, customs clearance processes, installation supervision, and operator certification programs are all part of detailed cost planning. Shipping containers from factories usually adds 8–12% to the cost of the equipment, based on the port of arrival and the amount of handling that needs to be done.

When making a budget, you should include extra parts inventory for parts that wear out quickly, like welding tools and hydraulic system seals. Setting up agreements for parts supply during the original procurement talks stops supply chain problems that could delay production plans in the future. For this size of industrial equipment, payment terms are usually based on milestones, with a 30% to 40% deposit due when the order is confirmed and the rest due before the equipment is shipped.

After-Sales Service Considerations

The level of help after installation for the Pile cage welding machine LYGH-800 has a significant impact on how reliable the equipment is. During the commissioning phase, when operators encounter initial production issues, the value of fast and professional technical support becomes especially clear. Zhongji Luyuan’s service framework includes online diagnostic tools that allow workers to troubleshoot control system problems without needing on-site visits, thereby significantly reducing downtime and improving maintenance efficiency.

The warranty terms should make it clear how long building parts, electrical systems, and consumables are covered. Standard coverage usually lasts between 12 and 18 months from the date of commissioning. For sites that want to prioritize uptime promises, longer service agreements are available. Keeping track of service reaction times for both normal maintenance and emergency repairs helps set realistic planning parameters for operations.

Maintenance, Safety, and Optimal Use of LYGH-800

Preventive Maintenance Protocols

Maintenance habits directly affect how long a piece of equipment lasts. The LYGH-800 needs to have its welding wire feed systems, hydraulic fluid levels, and electrical connections checked every day. As part of weekly maintenance plans, moving parts should be oiled, and positioning systems that make sure the cage's dimensions are correct should be checked. Welding gun electrode state and PLC system backup methods are the main things that are checked every month.

When trained repair workers do these regular tasks, they usually take two to three hours a week. When you spend in preventive care, you get big returns in the form of less need for emergency repairs and steady production. Detailed repair logs also help with guarantee claims if a part breaks down during the warranty time.

Operator Training Requirements

To safely use automated welding equipment, you need more than just general construction machine knowledge. Training classes that last between 40 and 60 hours are recommended. They cover how to use the PLC interface, how to enter material specifications, how to do quality inspections, and how to fix common production problems. Operators gain trust in parameter changes and emergency shutdown procedures through hands-on practice while being supervised.

Because the operation interface is pretty easy, most staff can get basic skills within a week of training. More teaching time is helpful for advanced features like custom cage setup programming. Facilities say that giving operators thorough training cuts down on mistakes in production and overuse of equipment that could void warranties.

Safety Standards and Risk Mitigation

Pile cage welding machine LYGH-800 is an industrial welding equipment that has built-in risks that need to be managed through organized safety practices. It has safety interlocks that stop it from working when the protection guards are taken off. This lowers the risk of accidents happening while adding materials. To control exposure to welding fumes, the right ventilation systems must be put in place, which is required by OSHA guidelines for protecting workers' lungs in industrial settings.

Face covers that can withstand heat, heat-resistant gloves, and steel-toed shoes are all required pieces of personal safety equipment. Lockout-tagout methods during repair work and the right way to handle high-pressure hydraulic systems should be emphasized in safety training. Regular safety checks make sure that operating procedures are in line with what the maker recommends and what the law requires.

Customer Insights and Industry Reviews of LYGH-800

Performance Validation Through Case Studies

The most reliable way to judge success is with data from real-world deployments. After adding the LYGH-800 to their fabrication process, a highway builder in the southeastern United States said they finished the base work for a 12-mile elevated interchange project three weeks early. The project needed 1,200 pile cages of different sizes and shapes. The machine's customizable factors cut down on the time needed to set up, which would have been needed with fixed-configuration equipment.

Similar gains in efficiency can be seen in projects to expand subways in cities, where meeting tight deadlines costs a lot of money. Contractors working on underground station base systems, like how the machine can make consistent-quality cages that pass structural tests on the first try. This keeps costly delays from happening because of rejected parts.

Comparative Advantages in Competitive Analysis

When equipment managers compare automatic welding systems, they look at a number of things that make each one unique. The LYGH-800's small footprint makes it better than competing machines that need 35m x 8m installation areas. This is especially helpful for manufacturing sites in cities where real estate costs are high. When compared to single-gun options, the dual-gun welding setup is faster and maintains better joint quality through even heat spread.

Energy economy tests show that the 60 KW power use is better than competing models that need 75–80 KW to produce the same amount of goods. This 20–25% drop in electricity use helps save money on running costs and supports environmental goals that are becoming more important in the process of buying public infrastructure.

Zhongji Luyuan's Market Position and Innovation Commitment

The fact that the company has worked with big infrastructure builders like China Railway, China State Construction, and China Communications Construction shows that it can meet strict technical requirements. This experience helps you understand the needs of foreign projects and change the designs of tools to fit those needs. Exports to almost 100 countries show that the company is good at working with different building standards and legal settings.

The LYGH line stays up to date with changing building methods thanks to ongoing investments in research and development. From earlier models to the current LYGH-800 specification, it's clear that the company listened to customer feedback about the amount of automation, how easy it was to use, and how easy it was to do upkeep. This dedication to always getting better means that investments in tools will continue to be useful for as long as they are in use.

Conclusion

The Pile cage welding machine LYGH-800 solves some of the biggest problems that building companies face, like rising labor costs, strict quality standards, and short project timelines. Through its automated accuracy, small size, and easy operation, it provides measured value in a wide range of building tasks. The technical standards make it possible to easily adapt to the needs of each project while still delivering the high-quality results that structural engineering requires. When procurement teams look at investments in manufacturing equipment, the LYGH-800 stands out because it has lower running costs, higher efficiency, and stable long-term performance backed by full maker support.

FAQ

What is the typical lead time from order to delivery?

Depending on the level of customization and the details of the location, standard production and shipping times range from 60 to 90 days. To allow for manufacturing schedules, foreign shipping transportation, customs clearance procedures, and on-site installation monitoring, equipment managers should start the purchase process well before the project production deadlines. For projects that need to be done quickly, express production choices may be offered.

Can the machine be customized for larger cage dimensions?

The basic LYGH-800 can hold bars up to 800 mm in diameter and 12 m in length, but these limits can be pushed further with engineering changes. Projects that need more specific standards should talk about them during the initial purchase meetings to find out if they are possible and how much they will cost. Customization usually adds two to three weeks to the arrival time.

What training support comes with equipment purchase?

Full operator training packages come with full operation guides, video tutorials, and on-site training during commissioning. Training plans can be changed to fit the needs of each facility's output, and each piece of equipment usually certifies 4 to 6 workers. Through ongoing professional help ties, you can get both basic and expert programming training.

Partner with a Trusted Pile Cage Welding Machine LYGH-800 Manufacturer

Buying things has long-lasting effects on how well they are made and how well the job turns out. Zhongji Luyuan combines manufacturing know-how with a global support system to make sure that investments in tools pay off over the course of their useful lives. We have worked with big building companies in the infrastructure, rail transit, and energy sectors, which shows that we can meet strict technical and service standards. The Pile cage welding machine LYGH-800 uses tried-and-true technology and comes with quick expert help and full service after the sale. We want equipment managers and buying experts to look into how this automated system can change the way you build pile cages. Email our technical team at sales2@shandongluyuan.com to talk about your unique project needs and get full specs that are made to fit your needs.
