How Steel Cage Welding Machines Automate Reinforced Concrete Production
Sep 8, 2026
Automated reinforcement cage production systems have fundamentally transformed how infrastructure projects approach deep foundation work and structural concrete fabrication. At the heart of this transformation lies the steel cage welding machine—a specialized piece of equipment that combines mechanical precision with gas-shielded arc welding to produce cylindrical or polygonal reinforcement cages with millimeter-level accuracy. These machines eliminate the variability inherent in manual welding by synchronizing longitudinal rebar positioning with spiral winding through PLC-controlled automation, delivering consistent weld quality that meets rigorous standards like ASTM A706 and ACI 318 (American Concrete Institute, 2019). This capability directly addresses critical bottlenecks facing contractors today: rising labor costs, inconsistent structural integrity, and the pressure to accelerate construction schedules without compromising safety.

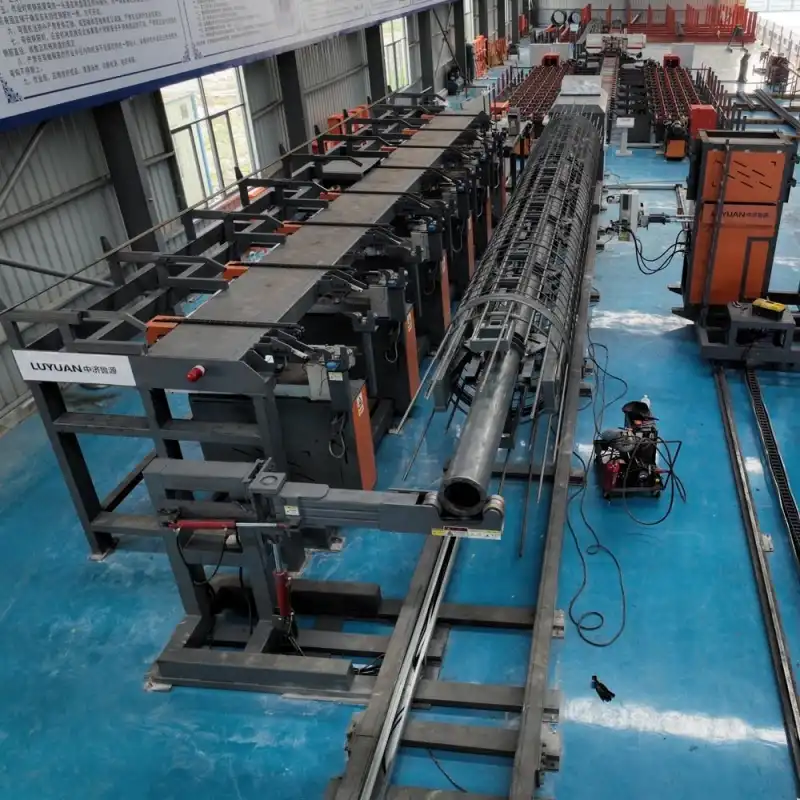

Understanding Steel Cage Welding Machines and Their Role in Automation
What Makes Automated Rebar Cage Systems Essential
Modern automated rebar cage welding systems are very different from the old way of making things by hand. In traditional methods, skilled welders spend hours aligning bars and making joints that don't fit together correctly. These machines, on the other hand, have hydraulic support systems, servo-driven rotation mechanisms, and industrial-grade control interfaces. The main process starts with workers putting longitudinal rebars (usually 16–50 mm in diameter) into clamps that can be adjusted and are attached to a moving disk. A welding tool moves along the length of the cage while the disk spins at a frequency-controlled speed. It places spiral reinforcement (φ5–φ16 mm) at exact intervals and uses gas-shielded methods to make strong weld joints at the same time.
What makes these systems unique is that they can keep measurement tolerances within ±5mm across cage lengths of up to 12 meters, which is almost impossible to do by hand on big projects. The PLC control system keeps an eye on important factors all the time, like the speed of spinning, the timing of trolley movement, the welding current, and the hydraulic pressure. This closed-loop input makes sure that every cage made meets the same standards. This cuts down on the costs of redoing work that come up with human processes when cages fail inspection.
Differentiating Automation Levels for Procurement Clarity
When procurement teams look at their options, they come across different levels of automation. For semi-automatic types, workers have to place the spiral bars by hand, but the machine does the welding and turning. Fully automatic configurations, like the LYGH series, have welding manipulators that feed spiral reinforcement and make joints without any help from a person after the initial setup and monitoring. Fully automatic systems can make 8 cages with only 1-2 workers during a 10-hour shift, while semi-automatic systems can only make 4-6 cages with 2–4 workers (Zhongji Luyuan Technical Documentation, 2023) the difference in production efficiency is big.
When set up with automatic welding, the LYGH-2500 model has a footprint of 28m × 11.5m and can process cage diameters from 800mm to 2500mm. It is an example of advanced automation. This scalability lets contractors work on a wide range of projects, from urban underground diaphragm walls that need 600 mm diameter cages to huge bridge pier foundations that need 3000 mm structures, without having to buy a bunch of different machines. The flexible design philosophy includes quick-change width templates, which cut the time it takes to change specifications from hours to less than 30 minutes.
Technological Advancements Driving Automation in Steel Cage Welding

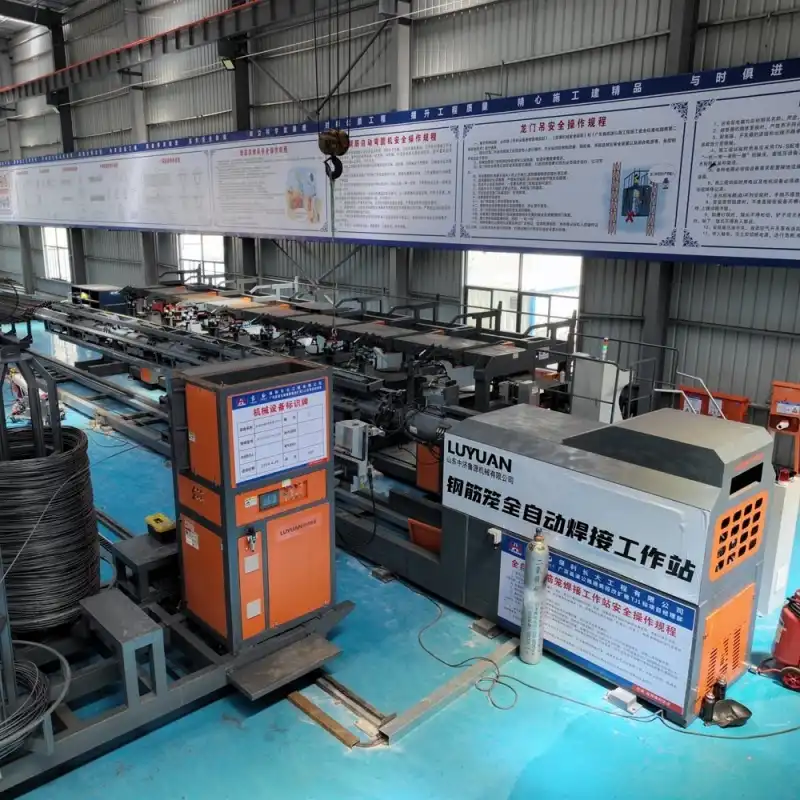

From Manual Labor Limitations to Digital Control Systems
These problems can be solved by modern automated systems that use integrated technology stacks. The PLC + industrial HMI touch screen control design gives workers visual cues for every step of the production process, from adjusting the diameter to finding the best welding parameters. Resistance spot welding doesn't go as deep as gas-shielded arc welding, especially when joining HRB400 or HRB500 high-strength rebar grades. The controlled protective environment stops oxidation and makes sure that weld points meet or beat the tensile strength ratings for the base metal (Construction Industry Research, 2021).
Emerging Intelligence in Modern Fabrication Equipment
New technologies have made robotics even more useful in predictive and adaptable areas. More advanced models have load sensors that can tell when the straightness of the rebar changes and change the clamp pressure automatically to keep the bar from bowing while it's turning. Some companies now make IoT units that send information about finished cages, welding fault codes, and trends in hydraulic system pressure to cloud-based dashboards that project managers and equipment workers can access. This makes maintenance less reactive and more proactive, planning to replace parts during planned breaks instead of after major failures that stop production.
In the future, adding machine learning algorithms should make things even more efficient. Pilot programs are currently testing systems that look at past welding data to automatically find the best current and wire feed speed for different grades and sizes of rebar. This would save operators the time and effort they currently use to switch between specs. These improvements make automated cage welding more than just a tool for increasing productivity. They also make it a strategic asset for contractors bidding on complicated, high-value infrastructure projects where quality documentation and traceability are becoming more and more important in deciding who gets the job.

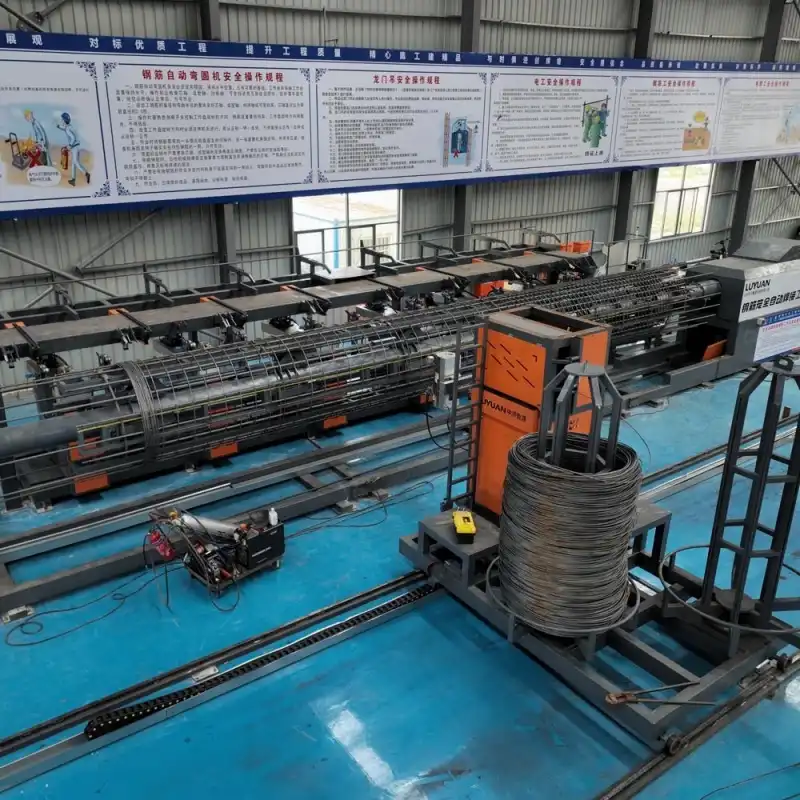

Operational Guidance for Optimizing Steel Cage Welding Machines
To get the best return on investment, you need to follow strict operating and repair rules. According to top workers, this is the complete plan they use to keep up performance:
Daily Startup and Production Procedures: Before starting each shift, operators go through a systematic pre-operation checklist that checks the levels of hydraulic fluid, the air supply pressure (making sure it's ≤0.8 MPa), and the continuity of the electrical system. The PLC interface walks users through a calibration process that makes sure the moving disk and fixed disk stay perfectly centered. This is important to avoid the "banana shape" defects that happen when cages bend during welding. After the machine is calibrated, the diameter, length, spiral spacing, and rebar grades of the cage are entered by operators. The touch screen shows how long the production is expected to take and sounds an alarm if any of the setting combos go over what the machine can handle.
During production runs, the accuracy of the welds and the smoothness of the cage spinning are closely watched. Modern machines with automatic welding setups placed on top make it easier to see the welding points. This lets workers spot problems like wire feed gaps or shielding gas depletion sooner, before they damage the whole cage. The easy-to-use control panel lets you change the welding speed in real time if an eye check shows that the fusion isn't complete or there is too much dust.
When working on building sites that are rough, the electrical system needs extra care. PLC reliability is lowered when dust gets inside, so cleaning control cabinets with compressed air and checking that IP-rated seals are in place on a regular basis protects these important parts. Logs should be kept by operators that include thorough information about repair tasks, strange notes, and part replacements. These records are very helpful when filing a guarantee claim and give predictive information that helps decide what new parts to stock.
Safety Rules and Troubleshooting Tips: To operate safely, you must first get the right training, which should focus on recognizing electrical hazards and pinch points around moving parts. There are emergency stop buttons all over the machine that can be used right away if operators see anything that seems unsafe. Smaller models, like those that handle 300–800mm widths, are more compact and flexible, which makes the work site safer by lowering the size of the footprint in crowded areas.
Systematic debugging cuts down on downtime when production problems happen. If the cages have uneven spiral spacing, operators should first use the PLC diagnostic menu to make sure that the disk spinning speed and trolley movement rate are in sync. Weak or uneven weld joints are often caused by wire feed devices that are clogged or shielding gas flow rates that are too low or too high. The modular structure design philosophy used in high-quality machines makes maintenance easier by letting technicians get to and replace problematic subsystems like welding transformer modules, hydraulic pumps, or servo motors without having to take apart major structural parts.
Selecting the Right Steel Cage Welding Machine for Your Business Needs
Matching Equipment Specifications to Project Portfolios
Honest evaluation of current and expected workload is the first step in making procurement decisions. Semi-automatic systems may work well for contractors who mostly work on residential and light commercial projects. These contractors may be willing to accept slower production rates in exchange for a lower initial investment. But companies that want to bid on infrastructure megaprojects like highway interchanges, rail transit extensions, and hydropower dams need fully automatic features that can meet the high production volume and consistency needs of these contracts.
The range of cage diameters is an important feature. The LYGH-1500 model can hold cages with a diameter of 500 to 1500 mm and 16 KW of equipment power. It can be used for standard building foundations and smaller bridge piers. For projects that need large-diameter punched shafts or diaphragm wall panels, you need tools like the LYGH-3000, which can handle cages up to 3000 mm in diameter and 38 KW of power. It's also important to think about the footprint. Automatic welding configurations take up more floor space (28m × 13.5m for LYGH-3000), but they get rid of the need for labor and the uneven quality of manual welding.
Production efficiency claims should be looked at in more depth than just the numbers. Manufacturers often talk about output rates in "optimal conditions," but how well they work in real life rests on things like the quality of the rebar, the experience of the user, and how well they take care of their machines. The stated 8 boxes per 10-hour shift is a realistic goal for systems that are well-kept and run by trained workers using good materials. Contractors should ask reference sites that handle similar cage specifications in similar conditions for production data.
Evaluating Total Cost of Ownership Beyond Purchase Price
Costs of operations include clear things like electricity use (16–38 KW for tools and 30 KW for welding) and consumables (welding wire, shielding gas). Less visible but just as important are labor costs. Going from two to three workers to one or two employees saves a lot of money over the life of the equipment. Precision cage fabrication cuts rebar waste by 8–12% compared to manual methods by preventing cut-off mistakes and making sure accurate spiral spacing that matches engineering drawings without using too much material (Construction Equipment Review, 2022).
Access to the service network should be taken into account when evaluating vendors. Technical support is always needed for equipment, whether it's to fix problems with the control system or find new hydraulic parts. Costly production interruptions are less likely to happen when manufacturers have established networks of distributors and technical teams that can respond quickly. Together with big Chinese building companies, Zhongji Luyuan does business in almost 100 countries and has the operating scale and support infrastructure to make long-term partnerships work.
Procurement Best Practices for Steel Cage Welding Machines
Strategic buying includes more than just choosing the right standards. It also includes smartly arranging transactions and managing relationships with suppliers. When setting up multiple project sites or regional processing centers, large contractors can often save money by buying in bulk and getting volume prices and coordinated delivery plans that lower the cost per unit. On the other hand, smaller businesses might look into leasing or shared ownership models that help them save money while still getting the benefits of automation.
Because of the need for customization, it's important to communicate clearly during the quotation process. Standard machines can handle most jobs, but if a project calls for odd cage diameters, extra-long lengths longer than 12 meters, or special welding setups, engineers may need to make changes. Reliable suppliers give buyers detailed customization proposals with clear pricing for non-standard features. This helps buyers know exactly what they're buying and keeps them from being surprised by costs during commissioning.
Because these systems are so complicated, planning ahead for lead time is very important. Manufacturing, quality testing, shipping, and installation usually take between 8 and 16 weeks, but this depends on how complicated the configuration is and how many orders are already in the queue. When contractors order equipment, they should make sure that it arrives on time for the project and that operators have enough time to learn how to use it before the deadline. Rush orders might cost more and might not go through the right plant testing procedures that make sure they work well.
When buying things across borders, it's very important that the supplier's qualifications are checked. Buyers should make sure the company is certified by ISO 9001, look at case studies from similar projects, and, if they can, visit live sites to see how the equipment works for themselves. U.S. builders can avoid expensive problems after delivery by making sure their electrical systems can handle the 380V/50Hz power sources that come with foreign equipment or by making sure they can get 480V/60Hz configurations.
It's important to be careful when negotiating payment terms and warranty structures. A 30% payment is usually required when the order is placed, 60% before shipping, and 10% is kept after the job is finished successfully. Major parts like PLC controls, hydraulic systems, welding transformers, and the structural frame should be covered by full warranties for at least 12 to 24 months, with clear terms for when parts will be replaced and when technical help will respond. Companies that don't have their own technical staff can get extra protection from extended service agreements that include preventative maintenance visits and faster access to parts.
Conclusion
Automated production of reinforcement cages is not just an improvement to the equipment; it is a fundamental change in how things are done that solves the most important problems that modern infrastructure construction faces. The accuracy, speed, and regularity of modern steel cage welding machine systems get rid of the quality variations and production limits that come with making things by hand. This cuts down on the need for labor and raises safety on the job site at the same time. As North America's infrastructure investment speeds up, from replacing old bridges to expanding urban transit networks, contractors who use tried-and-true automation technology are better able to win bids and complete complicated projects profitably. These systems aren't just nice-to-haves for companies that want to grow sustainably in the infrastructure construction sector. They have measurable benefits in areas like material utilization, production throughput, and documentation of structural integrity.
FAQ
How long does installation and commissioning take for automated cage welding systems?
Standard installations usually take three to five days, but this depends on how ready the spot is and how complicated the equipment is. This includes putting together the mechanical parts, connecting the electrical parts, setting up the hydraulic system, and checking the PLC code. Commissioning includes test runs with real rebar to set the right welding parameters and teach operators how to use the machine. This takes an extra two to three days before full production starts.
Can these machines handle custom cage designs beyond standard cylindrical shapes?
Programmable control systems let the most advanced models work with irregular shapes and variable-pitch spiral reinforcement. But forms that are very different from one another might need manual welding machines. During the procurement process, you should show detailed engineering drawings to make sure the machine can meet the needs of the project without needing major modifications.
What advantages do automatic welding systems offer over semi-automatic configurations?
Fully automatic systems cut the amount of work that needs to be done by 50–60% while improving the accuracy of the weld through robotically controlled placement and current delivery. This gets rid of the quality changes that come from stress that happen with hand welding and speeds up the process by 30–40%. On medium to large project portfolios, the higher original investment usually pays for itself in 18 to 24 months.
Partner with Zhongji Luyuan for Advanced Automated Rebar Cage Solutions
Comprehensive steel cage welding machine systems are made by Zhongji Luyuan for infrastructure contractors who need dependability, accuracy, and measurable productivity gains. Our LYGH series combines robust construction quality with PLC-controlled automation. It is backed by a lot of project experience in building high-speed rail, metros, and other big civil works in Asia, the Middle East, and other places. We know what equipment managers and project directors are worried about when it comes to buying things because we've worked with big names in the industry, like China Railroad and China State Construction, to make solutions that work well in the real world. Get in touch with our technical team at sales2@shandongluyuan.com to talk about your unique cage production needs and find out how our automatic systems can change the way you make reinforcements. You can find detailed specifications and get in touch with a steel cage welding machine supplier that wants your project to succeed at zjly2025.aixdb.cn.
