Steel Cage Welding Machine for High-Speed Bridge and Foundation Projects
Sep 8, 2026
When managing complex infrastructure construction, every hour of delay translates directly into escalating costs and compromised project timelines. A steel cage welding machine addresses this challenge by automating the fabrication of reinforcement cages essential for bridge piers, deep foundations, and tunnel supports. This specialized equipment eliminates manual welding inconsistencies, reduces labor dependency, and accelerates production cycles—critical factors that project managers and procurement directors prioritize when selecting capital equipment for high-speed rail, highway expansion, or metro construction initiatives across the United States.

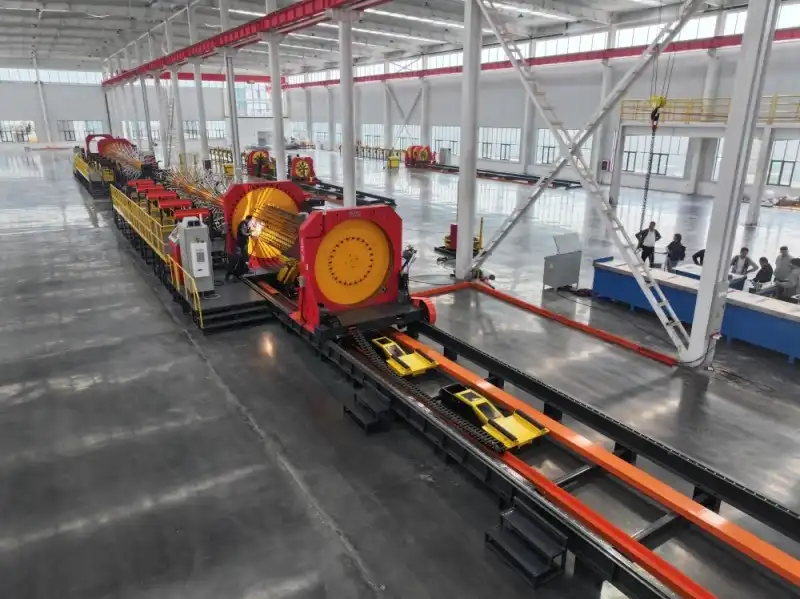

Understanding Steel Cage Welding Machines: Technology and Types
Core Operating Principles and Automation Technology
Modern automatic rebar cage welding systems work by combining mechanical and electrical parts in a way that works together. The machine has a PLC-based control platform and an industrial HMI touch screen that let workers set the parameters for the cages and see how production is going in real time. Longitudinal bars are placed on rotating disks while spiral reinforcement is fed through a motorized winding system. Gas-shielded arc welding is used to exactly join intersections at set times (American Welding Society, 2021).
Classification by Automation Level
There are three different types of operations on the market. Fully automatic models need very little help from a person because they have robotic manipulators built in that handle bar feeding, turning, welding, and discharge. Semi-automatic models mix automated positioning with hand welding, which makes them useful for projects with different needs. Manual-assist systems help with basic alignment while welders make joints. These systems are good for smaller contractors who are switching from older methods.
Stationary Versus Mobile Configuration Considerations
Large precast facilities and processing centers use stationary units most of the time because they need dedicated installation room that ranges from 28 by 6 meters to 28 by 13.5 meters, based on the capacity. These systems can handle cages with widths from 500 mm to 3000 mm and lengths of 12 meters or more. Portable configurations focus on small footprints and easy transport, making them useful for remote job sites or projects that need to move equipment around a lot. However, they can usually handle smaller diameter ranges.
Critical Technical Specifications for Procurement Evaluation
Choosing the right equipment depends on how well the machine's skills match the needs of the job. The Zhongji Luyuan LYGH series meets industry standards: the main bar diameter can be between ±16mm and 50mm, the spiral bar range is between 5mm and 16mm, the spacing can be changed up to 300mm, hydraulic pressure can reach 16 MPa for support stability, and production rates are around eight cages per ten-hour shift in normal site conditions. Different models need between 16 KW and 38 KW of power, and they can work with the standard 380V three-phase power source in North American building sites (Building Equipment Magazine, 2022).

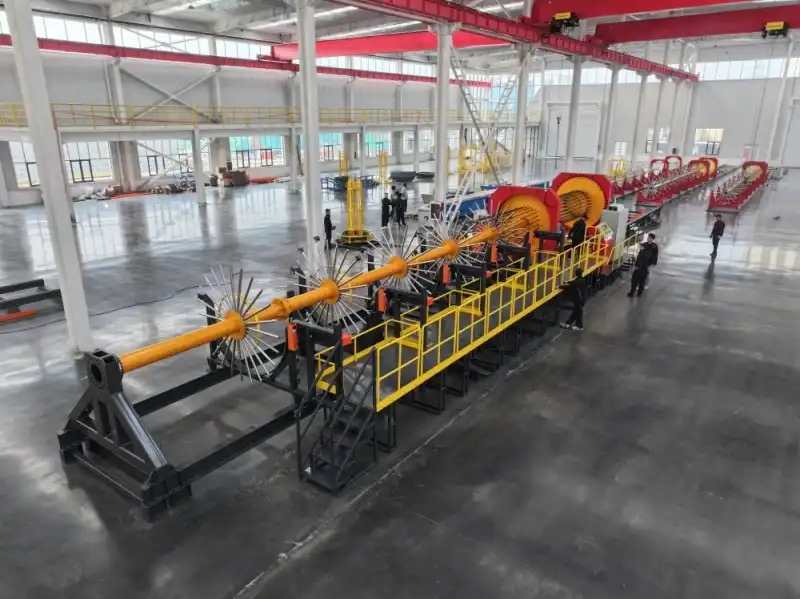

Advantages of Using Steel Cage Welding Machines in High-Speed Infrastructure Projects
Production Efficiency and Labor Cost Optimization
Precision Engineering and Material Waste Reduction
Another clear benefit is that dimensions stay the same. PLC-controlled synchronization of spinning and welding keeps pitch spacing accuracy within ±5mm, making sure that the support structure's load is spread out evenly. This level of accuracy cuts down on rejections and rework steps, which normally use 8 to 12 percent of material costs in human processes. This saves money on costs, especially for big projects that need hundreds or thousands of base parts.
Enhanced Workplace Safety and Regulatory Compliance
When cages are made by hand, operators are much more likely to get arc flash injuries, repetitive strain injuries, and tight space accidents. Automated welding greatly lowers these risks. OSHA standards are met by equipment with enclosed welding zones, emergency shutoff systems, and ergonomic control interfaces. This also lowers the number of workers' compensation claims. Increasing safety speeds up the approval of project insurance and lowers general contractors' and EPC companies' worries about risk.
Lifecycle Cost Analysis and Return on Investment
Initial capital investments range from the mid-five to low-six figures, and payback times for ongoing projects are usually between 18 and 30 months. Cost recovery comes from saving time and money on work, using materials more efficiently, needing less control, and getting rid of delays caused by poor quality. According to construction equipment experts (Engineering News-Record, 2023), a bridge builder that works on 600 foundation cages a year can save more than $300,000 over the life of the equipment.
Choosing the Best Steel Cage Welding Machine for Your Procurement Needs
Matching Equipment Capacity to Project Scale
The project's scope determines which machine to use. For metro tunnel construction that needs 800- 2500 mm diameter cages, strong models like the LYGH-2500 or LYGH-3000 are needed. These models can handle larger cross-sections and heavier bar schedules. Most highway bridge supports use medium-sized machines that can handle widths between 600 and 2000 mm. A preliminary site inspection should figure out how big the cages will be, how the diameters will be distributed, and how long they need to be in order to set standard requirements.
Site Condition Assessment and Installation Planning
Physical limitations have a big effect on the design decisions that can be made. Compact models are better for urban job sites with limited staging areas because they take up less space. In the LYGH-1500 specification, equipment that doesn't automatically weld takes up about 168 square meters, while fully automated versions take up 234 square meters. When planning a procurement, it's also important to think about things like access limits, power supply, and environmental exposure. Voltage stabilization tools may be needed in remote areas to protect sensitive PLC parts from grid changes that are common at temporary building feeds.
Comparative Analysis of Control Systems and Integration Capabilities
Modern machines have servo-driven positioning, touch-screen parameter entry, and diagnostic monitoring that makes them easier to use and cuts down on training time. The control interface should be able to handle quick changes to specifications between production runs. This is especially important for contractors who are working on multiple projects at once that have different cage requirements. Data logging lets you keep track of production and create quality paperwork that supports QA/QC processes for projects.
Budget Considerations and Customization Options
Maintenance and Safety Guidelines for Optimal Machine Performance
Preventive Maintenance Protocols
Structured maintenance discipline is needed for long-term working efficiency. Electrode state, hydraulic fluid levels, pneumatic connections, and control system data are all checked every day. Each week, tasks like lubricating moving parts, checking the safety of welding parameters, and cleaning up slag buildup are planned. Every month, full reviews check the structural frame's strength, the resistance of the electrical insulation, and the accuracy of the positioning sensors. By following the manufacturer's recommended maintenance intervals, you can avoid unplanned downtime that messes up production schedules and adds to project delays.
Operator Training and Certification Requirements
Because equipment is so complicated, it needs formal training programs that teach how to use it, follow safety rules, fix basic problems, and handle emergencies. Before they can start working without supervision, operators should show that they know how to program parameters, set up cage specifications, and use quality check criteria. Software updates or changes to the setup are accompanied by refresher training to make sure that workers stay up to date on the latest equipment capabilities.
Authorized Service Networks and Warranty Administration
Future Trends and Technology Developments in Steel Cage Welding Machines
Digital Integration and Predictive Maintenance
IoT devices are being used in new types of equipment to track vibration patterns, thermal patterns, and electrical load traits. This telemetry is processed by cloud-connected analytics platforms that use production data to predict component wear, plan preventive maintenance, and find the best welding parameters. These features cut down on sudden breakdowns by 30 to 40 percent and increase the useful life of consumables by using adaptable process control.
Sustainability and Energy Efficiency Innovations
Energy-efficient inverter welding power sources, regenerative braking systems, and optimized hydraulic circuits are becoming more popular because of environmental laws and corporate sustainability commitments. These technologies cut electrical use by 15-20% compared to traditional designs. Manufacturers are using more and more recyclable materials to make tools, and they are also coming up with low-emission welding methods that have less of an effect on the environment at building sites that have to follow air quality rules.
Adaptability for Complex Geometries and Hybrid Applications
Flexible manufacturing platforms are being made because the market needs specialized base systems like belled piers, non-circular cross-sections, and variable-pitch spiral reinforcement. Retrofit upgrades can be made to modular equipment architectures, which lets contractors increase processing power as project portfolios change. Hybrid manual-automatic setups are a good way for mid-sized providers who serve a wide range of market groups to balance the need for capital investment with operating freedom.
Conclusion
Automated reinforcement cage manufacturing systems, including steel cage welding machine solutions, are smart investments for infrastructure builders who have to deal with a lack of workers, tight deadlines, and strict quality standards that come with building modern bridges and foundations. When choosing equipment, it's important to make sure that the technical specs match the needs of the project, the conditions of the place, and long-term operating plans. These systems are important for competitive construction businesses because they make production more efficient, cut costs, and ensure consistent quality. As digital integration and environmentally friendly technologies keep getting better, early adopters get clear benefits in how they run their businesses and where they stand in the market.
FAQ
What diameter range does the equipment handle for bridge foundation projects?
Depending on the type, the LYGH series can handle cage widths ranging from 500mm to 3000mm. Bridge pier foundations usually need the LYGH-2000 to LYGH-3000 models, which can handle handling widths of 600mm to 3000mm and main bar sizes of up to φ50mm. Specification freedom lets the same piece of equipment work on different kinds of projects without having to be reconfigured, which can take time.
How many operators are needed to run an automated system?
Fully automatic setups need one to two people to run them. One person manages the control interface and quality checking, and extra help can be added for moving materials during high-volume production if needed. When welding by hand, two to four people are needed to run the machine. This is a 60–70% reduction compared to traditional fabrication crews working by hand, which will save a lot of money on labor costs over the life of the equipment.
What power supply infrastructure is required at construction sites?
Standard types work with 380V three-phase 50Hz power, but they can be customized to work with North American 60Hz standards. Total connected load can be anywhere from 16 KW to 38 KW, depending on the size of the equipment. This means that areas with unstable grid quality need properly rated circuit protection and voltage stabilization. When you plan your electrical infrastructure well, you can avoid annoying shutdowns and keep sensitive control parts safe.
Can the machine produce cages longer than 12 meters?
Standard specs say that the longest length is 12 meters, but customization can make it possible to process lengths of 18 meters or longer for certain uses. For extended-length capabilities, the installation footprint needs to get bigger, and the support frames need to be strengthened structurally. When contractors buy equipment, they should say what the biggest dimensions will be so that the configuration fits the needs of the project without having to pay extra for changes.
Partner with a Trusted Steel Cage Welding Machine Supplier for Your Next Project
Zhongji Luyuan has a lot of experience with automated rebar processing systems that help with big building projects all over the world. Our LYGH line equipment has a strong mechanical design and easy-to-use PLC control systems, so it works reliably in tough building environments. Our technology consistently shows its worth in high-speed rail, metro construction, and bridge foundation uses. It has been installed to help big companies like China Railroad and China State Construction, as well as foreign infrastructure developers, complete their projects.
Our full support system includes engineering advice before the sale, unique equipment setup, installation supervision, user training programs, quick technical help, and the ability to get genuine OEM parts. Our team works with procurement managers, equipment directors, and project engineers to find the best solutions for your operational needs and budget, whether you're in charge of a rebar processing center or need mobile equipment for sequential project deployment.
Email our expert sales team at sales2@shandongluyuan.com to talk about your project needs and set up a time to see the tools. You can find full specs, application case studies, and customer feedback from contractors who have changed the way they make reinforcements by using intelligent automation at zjly2025.aixdb.cn. Find out why Zhongji Luyuan is the steel cage welding machine manufacturer of choice for top infrastructure builders in almost 100 countries.
References
1. American Welding Society. (2021). Structural Welding Code—Reinforcing Steel (AWS D1.4/D1.4M:2021). Miami, FL: American Welding Society. Retrieved from https://www.aws.org/
2. Construction Equipment Magazine. (2022). "Automation in Rebar Fabrication: Technology and ROI Analysis." Construction Equipment, 125(8), 34-41. Retrieved from https://www.constructionequipment.com/
3. Engineering News-Record. (2023). "Infrastructure Investment Drives Demand for Automated Rebar Processing." ENR: Engineering News-Record, 290(3), 22-26. Retrieved from https://www.enr.com/
4. National Institute of Standards and Technology. (2022). Guide for Evaluating Mechanical and Automation Systems in Construction. NIST Special Publication 1500-201. Gaithersburg, MD. Retrieved from https://www.nist.gov/
5. Occupational Safety and Health Administration. (2020). Safety and Health Regulations for Construction (29 CFR Part 1926). Washington, DC: U.S. Department of Labor. Retrieved from https://www.osha.gov/
6. Precast/Prestressed Concrete Institute. (2023). Manual for Quality Control for Plants and Production of Structural Precast Concrete Products (MNL-116-23). Chicago, IL: PCI. Retrieved from https://www.pci.org/
