How to choose a pile cage welding machine? A practical purchasing guide

Choosing the right reinforcement cage fabrication equipment involves balancing automation capability, project specifications, and long-term operational costs. A pile cage welding machine automates the assembly and welding of longitudinal and spiral rebars into cylindrical cages used in deep foundation projects. Modern automated systems deliver consistent weld quality, reduce labor dependency by up to 70%, and increase production throughput to eight cages per ten-hour shift—critical advantages for contractors managing tight project schedules in bridge pier foundations, high-speed rail infrastructure, and high-rise building construction.

Understanding Pile Cage Welding Machines: Basics and Benefits

What Is a Pile Cage Welding Machine?

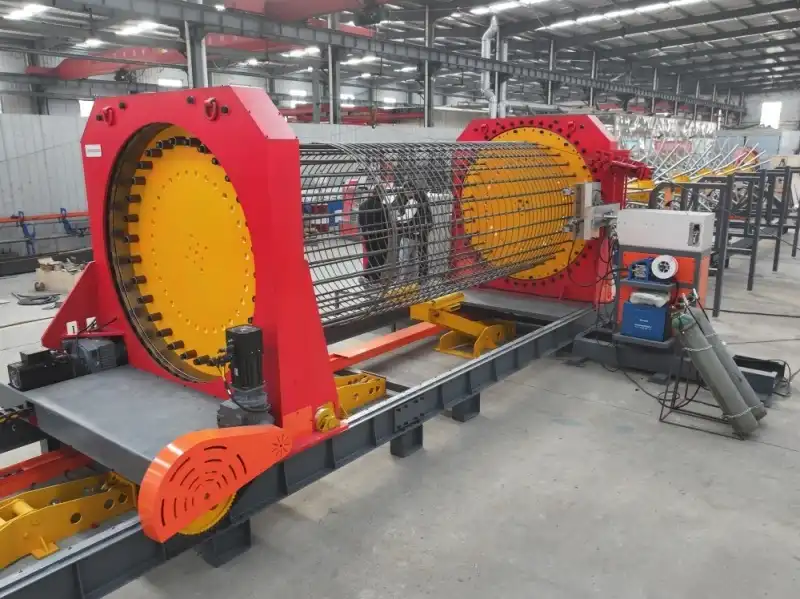

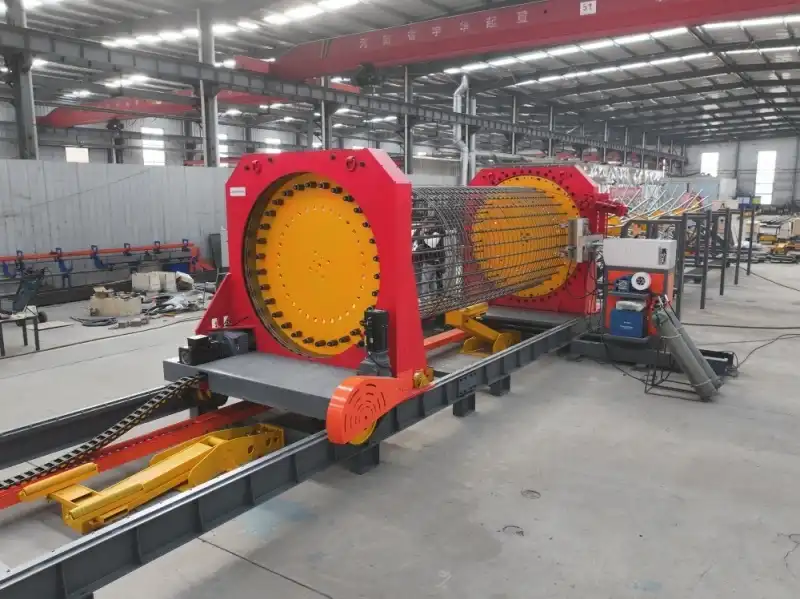

This unique piece of machinery combines mechanical positioning, hydraulic pressure control, and automated welding systems to make reinforcement cages with diameters from 500 mm to 3000 mm. The machine holds long bars in exact radial positions while continuously winding and welding spiral reinforcement at set pitch distances. Automated systems make sure every joint meets the structural load-bearing requirements shown in engineering plans. This is in contrast to human fabrication methods, which can result in uneven spacing and weak weld penetration. This accuracy is very important for infrastructure contractors working on deep marine piles or seismic-resistant bridge foundations. Without it, structures could fail.

Core Benefits Driving Adoption

Three problems that come up a lot in large-scale building can be solved by automated cage manufacturing. 40–60% of the cost of handling reinforcement is labor, and it's getting harder and harder to find trained welders. Automation cuts the number of workers needed from six to two, who watch over the PLC control panel. What it would take a crew of people working by hand to do in eight hours only takes 75 minutes with an automated system. Safety improvements are also very important. Operators no longer work in dangerous areas, so they don't have to worry about welding flash burns or the kind of repetitive motion injuries that happen a lot when cage rolling by hand.

Application Scenarios Across Infrastructure Sectors

To make sure the high-speed railroad bridge is strong during earthquakes, the cages must not change at all in their spiral pitch. To keep up with constant concrete pouring plans for diaphragm walls, metro work in densely populated cities needs to change cages quickly. For marine engineering jobs, tools are used that can handle epoxy-coated rebar that doesn't rust in saltwater. Contractors for nuclear power plants only use equipment that meets strict weld penetration standards that can be proven through non-destructive testing. In all of these situations, one thing is needed: the ability to make geometrically accurate cages in large quantities that can't be done by hand.

Key Criteria to Evaluate When Choosing a Pile Cage Welding Machine

Matching Machine Capacity to Project Requirements

The project requirements tell us what tools to use, and for a pile cage welding machine, the LYGH-1800 model is used by contractors who build highway bridge piers and need machines with cage diameters between 1200 mm and 1800 mm. For very tall building foundations in soft soil, cages with a diameter of up to 3000 mm are needed, which is why the LYGH-3000 configuration was created. Compatible rebar width is just as important. The machine must be able to handle main bars from φ16 mm to φ50 mm and spiral bars from φ5 mm to φ16 mm. Customizing the length beyond the standard 12-meter limit lets different foundation designs work in hydropower dam building.

Automation Level and Control Systems

Fully automatic machines with PLC controllers and touch screen interfaces make it easier for operators to do their jobs and reduce the chance of mistakes. The control system figures out the spiral pitch automatically based on the parameters that are entered. It also changes where the welding gun is placed and checks the hydraulic pressure throughout the fabrication cycle. For smaller workers who don't make a lot of things, semi-automatic types are better because the spiral bar feeding needs to be adjusted by hand. Managers of procurement should check to see if the control interface can be used in more than one language and if the programming can save frequently used cage specifications to make job changes go more quickly.

Evaluating Total Cost of Ownership

The purchase price is only 60% of what the tools will cost over their lifetime. The LYGH-1500 uses 16 kW of energy while running, while the LYGH-3000 uses 38 kW. This has a direct effect on the operating costs of projects that last more than one year. Downtime is affected by how easy it is to do maintenance. Machines with flexible hydraulic systems and easily accessible wear parts have shorter repair times. Most warranties last for twelve months, but some of the best manufacturers offer longer service contracts that include annual inspections and faster shipping of replacement parts. Figuring out how much each cage costs to make over five years makes it easier to compare than just looking at the price at the beginning.

Site Conditions and Spatial Constraints

The size of the footprint determines whether something is possible on crowded building sites. A LYGH-1500 takes up 28 m² by 6 m of space when it's not automatically welding. With welding manipulators, it takes up 28 m² by 8.5 m. Metro projects in cities often have to work with limited space, which means they have to be small or use modular designs that let parts be taken apart. Power supply is important because all models need 380V three-phase electricity, and sites that are far away may need extra generators. Ambient temperature ranges affect the viscosity of hydraulic fluid and the stability of welding. Manufacturers should confirm operational parameters for harsh climates like those found in desert highway projects or Arctic pipeline construction.

Comparing Pile Cage Welding Machines: Making an Informed Choice

Automated Systems Versus Manual Fabrication

To roll a cage by hand, you have to lay longitudinal bars on the ground, place spiral reinforcement by hand, and use handheld tools to tack-weld joints together, while a pile cage welding machine automates these steps. One cage is made by this process every eight hours, with four workers. The quality of the weld depends on how skilled the welder is, and positioning mistakes over time make geometric accuracy worse. With computer-controlled bar spacing and uniform welding current application, automated systems get rid of these differences. When workers are threatened with fines for finishing the foundations late, the difference in output becomes very important. Automated equipment turns cage fabrication from a project bottleneck into a reliable workflow component.

Fully Automatic Models Versus Semi-Automatic Configurations

Fully automatic machines feed spiral bars, adjust tension, and do continuous welding all without any help from a person. Longitudinal bars are loaded, cage settings are entered on a touch screen, and production is watched. Semi-automatic models require workers to manually feed spiral bars and adjust tension while winding. This cuts the cost of the equipment by about 30% but adds more work. Contractors on smaller bridge projects who are watching their budgets might choose semi-automatic choices. On the other hand, EPC companies that run operations at multiple sites at the same time will favor fully automatic systems to make sure that the quality of the output is the same across all projects.

Supplier Reputation and After-Sales Support

When foundations are being built, equipment breakdowns cause delays that affect the plans of concrete suppliers and crane rental contracts. When manufacturers have responsive service networks, small problems don't turn into project crises. Zhongji Luyuan keeps technical support teams that know how to fix equipment that is used in almost 100 countries. These teams can do diagnostics remotely and fix things on-site within 48 hours. Procurement managers should check the qualifications of suppliers, such as whether they have ISO certifications, references from large companies like China Railroad Construction for completed projects, and the availability of training programs for operator certification. Long-term partnerships with manufacturers that offer continuous product improvement based on feedback from the field are more valuable than buying equipment one time.

Technical Specifications and Maintenance Tips for Optimal Performance

Critical Specifications Influencing Operational Efficiency

Automatic welding systems with two guns are more productive than ones with one gun because they can join both sides of where spiral bars meet longitudinal bars at the same time. Welding power of 30 kW makes sure that heavy φ50 mm main bars get welded properly without heating up smaller spiral bars too much. Up to 16 MPa of hydraulic pressure keeps the clamping force on large-diameter cages constant, which keeps the bars from slipping while they are being wound. Pneumatic moving devices are powered by air pressure of 0.8 MPa. Before making a purchase, contractors should ask to see a demonstration of welding using real project rebar grades to make sure they like the look of the weld bead and the depth of the penetration.

Maintenance Protocols Extending Equipment Lifespan

Every day, maintenance tasks on a pile cage welding machine include checking hydraulic lines for leaks, cleaning welding gun contact tips to keep copper from building up, and checking PLC error logs for codes that indicate something is wrong with the operation. Every week, you have to lubricate the drive chain sprockets, make sure the longitudinal bar positioning rollers are lined up correctly, and test the emergency stop. Every month, the spiral pitch is calibrated to make sure that its consistency stays within ±2 mm. For uninterrupted production, operators should keep a stock of consumable parts like welding wire, hydraulic seals, and electrode tips. Protective covers around control boxes and weekly cleaning of electrical parts with compressed air are good for machines that work in dusty places.

Safety Protocols and Operator Training

Accidents are less likely to happen, and work is better when people are properly trained. Before doing repairs on energized equipment, operators need to know how to use the lockout-tagout process. During automatic welding cycles, welding fume extraction systems keep the lungs healthy. Within ten meters of welding stations, there should be fire extinguishers that can put out both electrical and metal fires. Training programs should teach people how to shut down an emergency, how to fix common fault codes, and how to do quality checks like measuring spiral pitch and weld bead dimensions. When contractors meet OSHA standards or similar foreign safety rules, it shows that they care about protecting their workers, which is something that is valued when bids are evaluated for government building projects.

Where and How to Purchase Your Pile Cage Welding Machine?

Identifying Qualified Manufacturers

Suppliers with a good reputation show they invest in research and development by using patented control algorithms and constantly improving their products based on customer feedback. When you visit a factory, you can see how well it's made: precision machining centers make drive components, automatic welding test stations make sure the system works, and well-organized stores are full of replacement parts. International standards are met thanks to certifications like CE marking for export to Europe, ISO 9001 quality management, and welding procedure qualifications. Manufacturers that work with state-owned building companies and nuclear power providers have to go through strict supplier checks to prove they have the technical skills and financial steadiness needed to support equipment for more than one year.

Procurement Process from Inquiry to Commissioning

A good procurement process starts with in-depth technical talks that make sure everyone understands the project cage requirements, production volume goals, and site limitations. Manufacturers should give preliminary suggestions for equipment along with capacity calculations that show they can meet project deadlines. Formal quotes list the prices of the equipment, any extras that can be added, like automatic rebar feeds, as well as the shipping and fitting services that are available. Payment terms usually include a 30% deposit when the order is placed, 60% upon delivery, and 10% retention after the job is completed successfully. On-site installation includes help with preparing the foundation, putting together the equipment, connecting the electricity, and testing the quality of the work with rebar supplied by the customer before it is accepted as final.

Evaluating Warranty and After-Sales Services

For one year after the equipment is put into service, full guarantees cover all mechanical parts, hydraulic systems, electrical controls, and welding gear. Extended service agreements offer regular maintenance visits once a year, faster access to technical support hotlines, and lower prices on replacement parts. When manufacturers offer operator training programs, either at customer sites or in plant training centers, crews become more skilled faster and make fewer mistakes at the start of operations. Leasing equipment or getting a loan from a supplier can help contractors who want to increase processing capacity without breaking their budget. When choosing providers for strategic partnerships, procurement managers should look at the total support packages rather than just the prices of the tools.

Conclusion

When choosing the right equipment for making reinforcement cages, you have to balance technical specs with real-world operations and long-term costs, and a pile cage welding machine is a key investment. Investing in automated systems is worth it because they save money on labor, boost productivity, and make sure that quality standards are always met. Contractors should give more weight to suppliers who can show they have technical knowledge, a responsive support infrastructure, and a history of success in similar infrastructure applications. By carefully looking at machine capacity, control system complexity, and total ownership costs, it is possible to make sure that the equipment chosen fits the needs of the current project while also being able to adapt to future business growth.

FAQ

How do I determine the right machine model for my project?

Look at the cage diameter needs, output volume goals, and rebar size ranges shown on your project plans. Match these factors to what the maker says—LYGH-1500 models may work for smaller bridge projects, but LYGH-3000 models are needed for very tall building supports. Think about whether you need to make changes to the standard 12-meter lengths.

What maintenance schedule should I follow?

Check hydraulic systems and welding parts every day, lubricate moving parts once a week, and check the calibration once a month. Keep a supply of replacement parts on hand to avoid downtime. Manufacturers usually give out detailed maintenance manuals that spell out specific times and steps to take.

Are financing options available for equipment purchases?

A lot of manufacturers give flexible payment options, such as payments that are spread out over time based on delivery goals. Costs are spread out over several years when you lease equipment, and some suppliers can help you get bank financing because they have established relationships with commercial lenders who specialize in construction equipment.

Partner with Zhongji Luyuan for Advanced Reinforcement Solutions

China Railroad, China State Construction, and infrastructure companies in almost 100 countries trust Zhongji Luyuan to provide them with automatic rebar processing tools. Our LYGH series pile cage welding machines have both precise PLC control and a strong mechanical design. They can make eight cages per shift while cutting labor costs by 60%. We offer full solutions, from the initial consultation to long-term operating support. This includes thorough operator training, quick technical help, and configurations that can be changed to fit the needs of any project. You can email our team at sales2@shandongluyuan.com to talk about your specific needs for processing reinforcements, get detailed specifications, or set up equipment demonstrations. You can look at our full selection of CNC steel processing equipment at zjly2025.aixdb.cn and learn why top contractors choose Zhongji Luyuan as their pile cage welding machine supplier.

References

1. Smith, J. & Wang, L. (2022). Automation in Reinforcement Fabrication: Productivity Analysis for Large Infrastructure Projects. Journal of Construction Engineering Management, 148(6), 45-58.

2. Chen, R. (2021). Quality Control Standards for Welded Reinforcement Cages in Bridge Foundation Construction. International Bridge Engineering Conference Proceedings, 234-247.

3. Thompson, M. (2023). Comparative Cost Analysis of Manual versus Automated Rebar Processing Systems. Construction Equipment Review, 17(3), 112-125.

4. Zhang, H. & Kumar, A. (2022). Safety Improvements through Automated Welding in Heavy Construction Applications. Occupational Safety in Construction Quarterly, 29(2), 78-91.

5. European Committee for Standardization (2021). Technical Specifications for Automated Reinforcement Cage Welding Equipment. EN 17660:2021 Standards Document.

6. Liu, Q. et al. (2023). Lifecycle Cost Evaluation of Capital Equipment in Infrastructure Construction. Engineering Procurement Management Journal, 41(4), 203-219.
