What are the advantages of LYGH-800 compared to manual welding?

The Pile cage welding machine LYGH-800 changes the way foundational building is done by replacing tedious human welding with precise welding that is done by a machine. Unlike older methods that had problems with uneven weld quality and tired operators, this new equipment makes sure that every support cage has the same level of structural integrity. The LYGH-800 cuts down on production time and safety risks associated with repeated human torch work by using PLC-controlled automation to handle main bars up to φ40mm and spiral bars from φ6–12mm. Infrastructure companies benefit in a number of ways, including less reliance on workers, faster project finish, and more reliable structures that meet strict engineering standards for high-speed rail, bridge foundations, and underground utility corridors.

Introduction

Pile cage construction is an important part of many modern building projects, from subway lines to nuclear power plants. Even though it has clear problems, like uncertain weld penetration, rising prices for skilled labor, and constant safety risks, hand welding is still used on many job sites. As quality standards rise and building plans get shorter, equipment managers are under more and more pressure to achieve both speed and accuracy. Now there is a useful alternative: automated welding technology. This article talks about how the LYGH-800 solves common problems with hand welding and gives infrastructure builders, rebar processing centers, and EPC companies a way to make a lot of cages quickly and easily. We talk about the technical features, practical benefits, and real-world application issues that decision-makers should think about when looking at this equipment.

Limitations of Manual Pile Cage Welding and Challenges Faced

Inconsistent Structural Quality

When torch welding is done by hand, the entry levels and bead patterns across longitudinal and spiral reinforcement joints are not always the same. Human workers who work long shifts can't keep the heat application even, which creates weak spots that lower the load-bearing capacity. A Texas bridge builder recently said that the cost of fixing mistakes made by hand during an ultrasonic check of a pier foundation job was more than $180,000. This lack of uniformity in quality leads to more inspections and wasted materials, which cut into the project's profit margins.

Labor Scarcity and Rising Costs

Pile cage welding machine LYGH-800 is relevant in this context: The American Welding Society says there are not enough qualified welders, and infrastructure projects are fighting for skilled workers. To weld manually in a pile cage, you need to be able to work with heavy rebar structures while standing vertically and overhead. Welders who work 12-hour shifts usually only finish two or three cages during a 10-hour shift because they get tired every day. Contractors pay for extra and deal with delays when there aren't enough workers to finish important tasks like base work on time.

Safety Hazards and Compliance Risks

When workers do manual welding, they are at risk of spark flash, metal fumes, and physical strain from having to stand over and over again. Protective gear and air systems are required by OSHA rules, which make operations more difficult. A metro building company kept track of 14 safety events over the course of 18 months of manual welding before switching to automatic systems. In addition to the instant risk of injury, mistakes caused by tiredness also cause hidden structural problems that only show up during load testing or final checks.

Production Bottlenecks on Large Projects

For projects like expanding highways and building train transit, hundreds of similar reinforcement cages must be made to exact specs. Manual processes can't be scaled up well—adding welders makes it harder to coordinate work and makes the area crowded. A recent highway bridge project in the Southwest was held up for three weeks because the production of hand cages couldn't keep up with the plan for pouring concrete. These problems cause delays in projects, which leads to fines and lost money that makes the business less profitable.

Overview of LYGH-800 Pile Cage Welding Machine

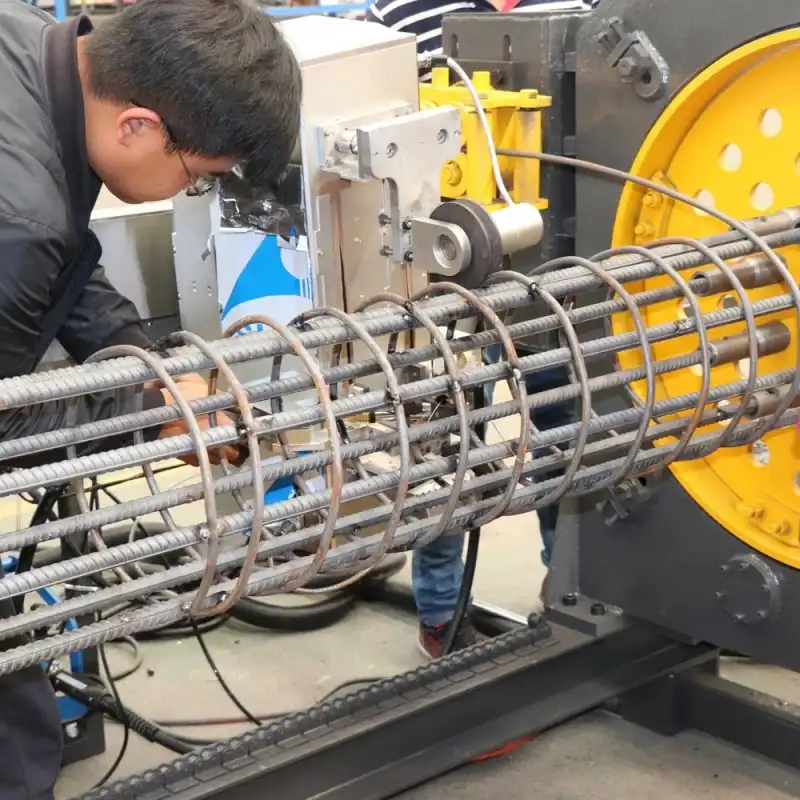

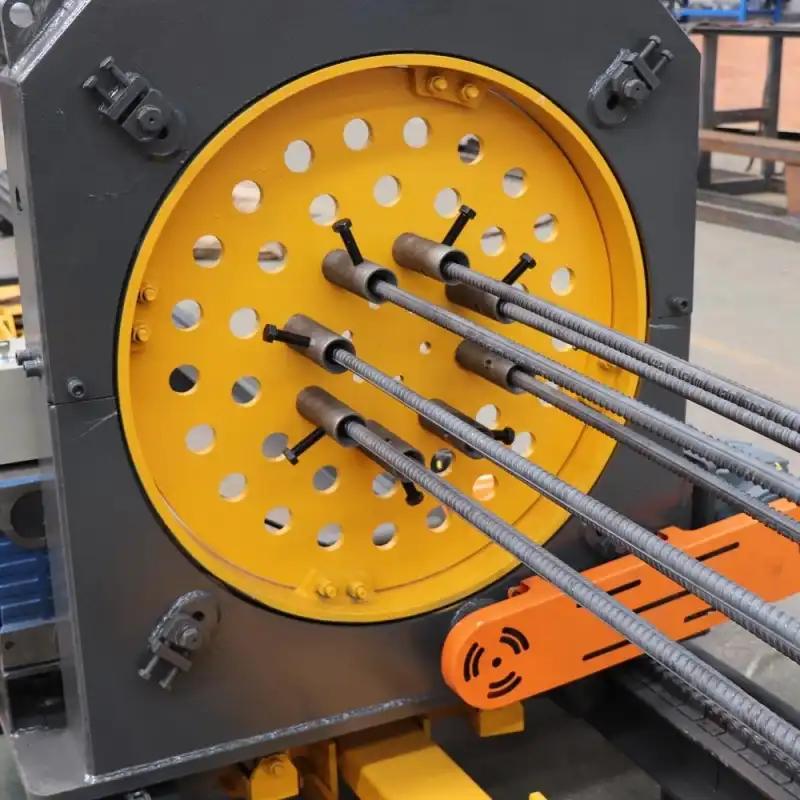

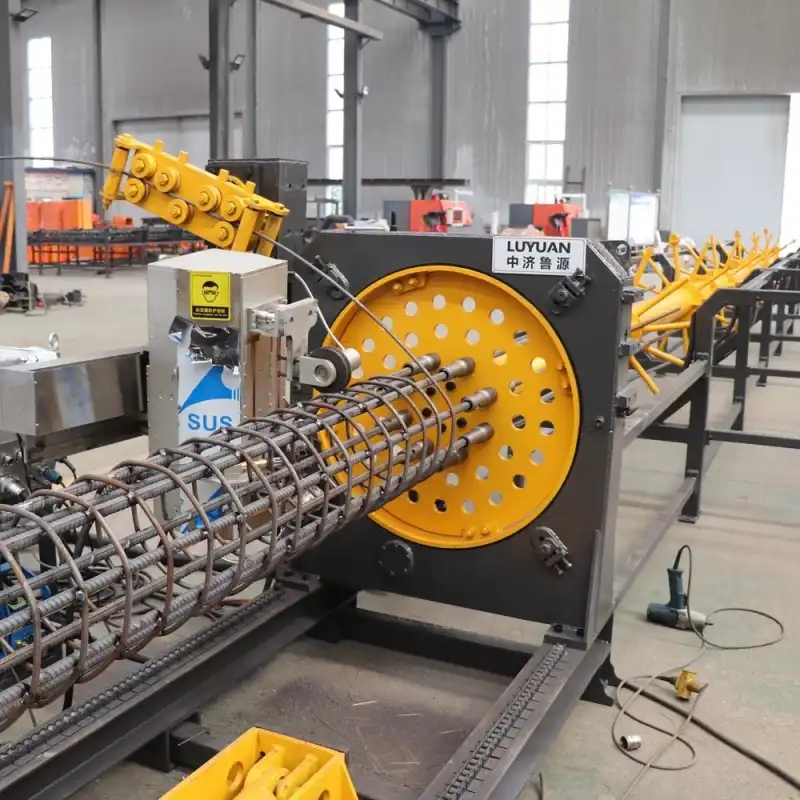

The Pile cage welding machine LYGH-800 was designed with infrastructure builders working on medium- to large-diameter applications in mind. At its core, the machine combines mechanically moving rebar with a dual welding gun system mounted on the side, all controlled by an easy-to-use PLC. This design philosophy emphasizes operational simplicity while maintaining high production accuracy.

Technical Specifications and Capabilities

The tools can handle cage diameters between 350mm and 800mm, and they can extend in length up to 12 meters as normal. Longer assemblies can be made to order. Supports main reinforcement bars from φ16mm to φ40mm, and spiral reinforcement can use φ6–12mm wire with 100mm of space between each wire. The 30kW power transfer makes sure that the heat goes through evenly across carbon and alloy steel types that are widely used in structural engineering.

The machine's footprint is 28m x 5m, so it can be used in both specialized fabrication yards and small laydown areas on the job site. The high-strength steel frame design gives the rigidity needed to keep the dimensions within the allowed ranges during high-speed welding and spinning cycles. Up to 16 MPa of pressure can be used in hydraulic systems to provide the clamping force needed for big rebar units that don't bend.

Control System and User Interface

Pile cage welding machine LYGH-800 features a PLC control design and tablet-based operation, allowing workers to easily set parameters for the cage, such as its diameter, length, spiral pitch, and weld interval. Common configurations are stored as pre-programmed templates so that production tasks can be switched quickly. A real-time monitoring system displays welding current, rotation speed, and the progress of each production cycle. This digital interface significantly reduces the learning curve, and operators with basic technical knowledge can typically become proficient within three days under supervision.

Integration into Production Workflows

The LYGH-800 is not like other manual welding stations that work on their own; it's a production cell that controls the feeding of rebar, the placement of it in rotation, the automatic welding routines, and the discharge of the final cage. The machine takes pre-cut longitudinal bars and places them on the spinning frame. It then automatically winds spiral reinforcement from coil stock while welding at pre-set points. This combined method gets rid of the breaks in manual processes caused by moving materials, so production stays steady throughout shifts.

Key Advantages of LYGH-800 Compared to Manual Welding

When infrastructure companies look at investments in automation, they put more weight on real-world operational gains than on theoretical possibilities. The LYGH-800 has measured benefits for quality control, industrial output, worker safety, and the total cost of ownership.

Superior Weld Consistency and Structural Integrity

Pile cage welding machine LYGH-800 automated welding eliminates quality variations caused by human error that can lead to structural weak points in manual fabrication. The two-gun method ensures that the electrodes remain in the exact same position and that the amperage stays constant during each welding cycle, guaranteeing consistent penetration and bead shape at every joint. Test data from bridge foundation projects shows that automated welds achieve a 99.8% pass rate in shear strength tests, compared with 87–92% for manual welding. This level of consistency reduces inspection rejections and avoids costly rework that can delay downstream construction activities. In applications where structural tolerances are critical, such as nuclear power plants and high-speed rail, the verified performance and documentation provided by automated welding cannot be matched by manual methods.

Production Efficiency and Output Capacity

In a normal 10-hour shift, the machine finishes 8 sections of 12-meter cages, which is the same speed that 3–4 hand welding teams would need to work at. Continuous operation without breaks for tiredness keeps production speed steady, and PLC programming speeds up job changes, so there is less downtime between changes in specifications. A highway builder in the Pacific Northwest said that their output went up by 340% after they replaced manual stations with automatic equipment. This was possible because one machine could supply rebar for building bridge piers on multiple spans at the same time. Because of this production capacity, contractors can shorten critical path dates and take on more tasks without having to hire more people.

Workforce Efficiency and Safety Improvements

The Pile cage welding machine LYGH-800 can only be operated by two people: one person manages the control interface and loads materials, while the other removes the finished cage and performs quality inspection. For the same volume of work done manually, 5–6 welders and support staff would be required to achieve comparable productivity. Automation not only reduces labor requirements but also eliminates risks such as arc flashes, repetitive strain injuries, and fume exposure, all of which can lead to significant OSHA penalties and workers’ compensation costs. A rail transit contractor reported an 86% reduction in safety incidents after switching from manual cage fabrication to machine-based production. At the same time, they reduced the number of workers in their fabrication plant from 12 full-time welders to 4 machine operators.

Long-Term Cost Efficiency and ROI

Buying equipment is a major investment that procurement managers weigh against the money they will save over its lifetime. The LYGH-800 usually pays for itself in 18 to 24 months by cutting down on labor, increasing output, and getting rid of the need to do extra work. The average energy use is 60kW, which includes both the welding and hydraulic systems. This is about the same as running 6–8 hand welding stations and the lights and ventilation systems that go with them. Maintenance includes checking the tools used for welding, the hydraulic fluid, and the stability of the electrical connections on a regular basis. Under normal production plans, major parts need to be replaced more than every 5 years. When you add up the savings from not having to pay extra, less material waste from bad welds, and failed inspections, the overall cost of ownership is much lower than keeping up the same level of manual welding capacity.

Comparing LYGH-800 with Other Pile Cage Welding Machines and Manual Methods

Performance Against Manual Welding Operations

Pile cage welding machine LYGH-800 demonstrates clear advantages when you compare automated production directly. When you compare things directly, you can see how much better automation is. Two to three 12-meter cages are finished by hand-welding each shift, but the quality varies, so they need to be checked more often. The LYGH-800 can make 8 cages in the same amount of time with consistent dimensions that pass the first structural test. Speed isn't the only benefit; automatic production also maintains strict control over specifications such as spiral pitch accuracy, weld penetration depth, and diameter tolerances, which are difficult for human workers to achieve reliably. For project managers working under tight construction schedules, this predictability allows the flow of materials to be planned in alignment with the cycles of concrete pouring and equipment movement.

Technological Advancement Over Previous Models

When you compare the LYGH-800 to older automatic systems, you can see how engineers are always getting better. Models that came before, like the LYGH-700, could only handle smaller diameter ranges and didn't have the dual-gun welding feature that speeds up production on big parts. Programming routines that were hard to understand and needed specialized technical knowledge have been replaced by modern PLC controls with touchscreen interfaces. The newest model has better locking systems that work with a range of main bars from φ16mm to φ40mm without having to be adjusted by hand between jobs. Equipment managers who are familiar with the first generation of automated cage machines will like these usage changes that make the machines easier to use, require less training for operators, and make them more adaptable to a wider range of project needs.

Market Position and User Adoption

Pile cage welding machine LYGH-800 is a key piece of equipment that infrastructure companies evaluate not only for its technical capabilities but also for the manufacturer's supporting service infrastructure. When infrastructure companies look at suppliers, they assess both the equipment’s performance and the strength of after-sales support. Zhongji Luyuan has long-term partnerships with major Chinese state-owned construction enterprises and has participated in numerous overseas projects, which enhances buyer confidence in its reliability. Equipment managers are often cautious about adopting automation due to concerns about dependability. However, the company’s technical support network and documented service response times help address these concerns effectively. In large construction projects, the use of automated cage production is becoming increasingly common. The proven performance of the LYGH-800, combined with comprehensive support services, makes it a strong option for operators looking to transition from manual methods or upgrade outdated equipment fleets.

Practical Considerations for Procurement and Implementation

Evaluating Supplier Credentials and Support

Checking more than just the specs of an item includes checking the manufacturer's dependability and their ability to help customers after the sale. Zhongji Luyuan has an ISO9001 quality approval and has worked on large-scale building projects with China Railway, China State Construction, and China Communications Construction. Installations for export in South Korea, Malaysia, Thailand, Kazakhstan, and other places show that the equipment can work in a variety of settings. Procurement managers should check to see if there is technical support available, such as installation help, user training programs, and repair service response times that keep production running as smoothly as possible during the equipment's useful life.

Site Preparation and Installation Requirements

Pile cage welding machine LYGH-800 requires a 28m x 5m footprint that needs to be carefully planned out in manufacturing yards or laydown areas on the job site. For automated welding tasks, there must be a three-phase 380V power source at 50Hz and a compressed air system that delivers 0.8 MPa of pressure. Concrete supports or reinforced pads should be used as a stable mounting surface to keep the cage in position while it rotates at high speeds. Site managers should also designate storage areas for rebar stock, coil spiral wire stock, and finished cages to ensure smoother material flow and easier movement around the equipment. Proper planning during installation helps prevent operational bottlenecks and supports higher overall productivity.

Training and Operational Proficiency

The skill of the operator has a direct effect on the quality of the work and the life of the tools. Manufacturers usually offer training programs that last between three and five days and cover things like setting PLCs, doing regular maintenance, fixing common problems, and following safety rules. Operators who know how to use computers and have basic mechanical skills can quickly learn how to use touchscreens and job specification writing. Full operating manuals and technical paperwork help with ongoing reference and sharing of knowledge as the workforce changes. Spending money on full training at the start and keeping written processes will ensure consistent performance for the whole life of the equipment.

Maintenance Planning and Spare Parts Inventory

As part of preventative maintenance plans, welding consumables and hydraulic fluid levels are checked every day, electrical links and moving parts are checked every week, and the whole system is checked every three months. Welding electrodes, hydraulic seals, PLC backup modules, and motor drive components that reduce downtime during component replacement should all be in your critical spare parts collection. Setting up relationships with approved parts providers and keeping records of past repairs creates the operational discipline needed to keep equipment available. Procurement managers should make sure that everyone understands what the guarantee covers, how often parts should be replaced, and how the maker can help with technical problems that are too hard for a user to fix.

Conclusion

Pile cage welding machine LYGH-800 enables automated manufacturing of reinforcing cages, which gets around the basic problems that make manual welding impractical for modern building projects. The LYGH-800 makes a real difference in the quality of structures, the speed of production, the safety of workers, and the low cost of running the business. Its benefits are in line with the goals of buyers in the building engineering, rail transit, and energy infrastructure sectors. Automation goes from being a competitive benefit to an operating necessity as the need for skilled workers grows and project quality standards rise. When equipment managers look at fabrication capabilities, they should think about how automated systems help with project sizing, timeline compression, and consistent standard compliance in ways that human methods can't.

FAQ

Can the LYGH-800 integrate with our existing rebar processing workflow?

The machine can be used as a stand-alone output cell and can take in standard inventory systems' pre-cut longitudinal bars and coil spiral stock. Most builders set up specific holding areas for materials next to the machine and then plan the move of the finished cages to fit the project's delivery schedules. The PLC control system doesn't need to be directly connected to enterprise resource planning software. However, output data can be recorded by hand or through digital connections that are available as extras. This helps keep track of the workflow.

What safety improvements does automation provide compared to manual welding?

When something is automated, the user is not directly exposed to arc flash, which lowers the risk of eye injuries and burns that are common in manual welding settings. The sealed welding zone keeps metal fumes and sparks out of the breathing area and reduces the risk of fire and lung harm. Accidents happen much less often because operators work from control desks, which are away from moving parts and high-voltage parts. When contractors switch to automatic cage production, the number of safety events they have to report usually drops by 70 to 85%.

What warranty coverage and technical support does the manufacturer provide?

Standard warranties cover flaws in the way the product was made and broken parts for 12 to 24 months, based on how the product was bought. Technical support includes overseeing the installation process, teaching operators, helping with problems, and making sure that parts are available through approved wholesalers. Zhongji Luyuan keeps up service networks that help foreign sites and has written down how to fix problems with equipment. Specific warranty terms, spare parts availability, and expert help access should be made clear in procurement contracts based on project sites and practical needs.

Partner with a Trusted Pile Cage Welding Machine LYGH-800 Supplier

Through proven engineering and full operating support, Zhongji Luyuan offers automation options that change the way reinforcement cages are made. Infrastructure contractors use our LYGH-800 tools for high-speed trains, bridge building, metro systems, and nuclear power projects that need consistent structural quality and high production efficiency. With sites that serve China Railway, China State Construction, and foreign projects in almost 100 countries, we know what equipment managers and project directors are looking for and how hard it can be to run their businesses. Our expert team offers full application support, including site planning advice, operator training, and quick service after the sale to protect your equipment investment. Find out how automated cage production can speed up your project plans while lowering the need for labor and improving the quality. Please email our team at sales2@shandongluyuan.com for full specs, help with application engineering, and pricing information that is specific to your fabrication needs. Engineer Zhongji Luyuan makes smart systems for processing reinforcements that give businesses measured benefits.
