LYZD-WQ32 Automatic reBar Bending Center Delivers Flexible Reinforcement Solutions for Construction Material Suppliers

The construction material supply sector faces growing pressure to deliver faster, more precise reinforcement components without ballooning labor budgets. The Full Automatic ReBar Bending Center LYZD-WQ32, developed by Shandong Zhongji Luyuan Machinery Co., Ltd., directly addresses this gap. By integrating CNC servo control with a dual-bending head configuration, this machine automates the entire rebar fabrication cycle — from feeding and fixed-length measurement to multi-angle bending and finished-part collection — giving suppliers a reliable production tool for high-volume, specification-driven orders.

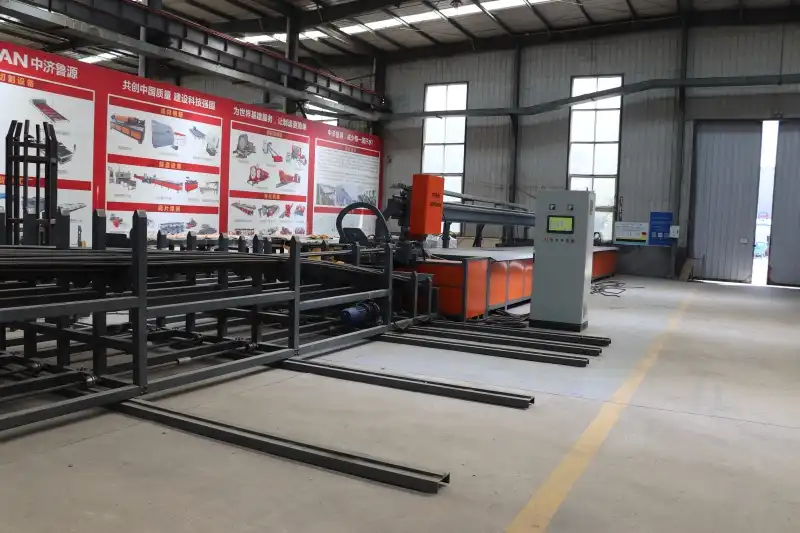

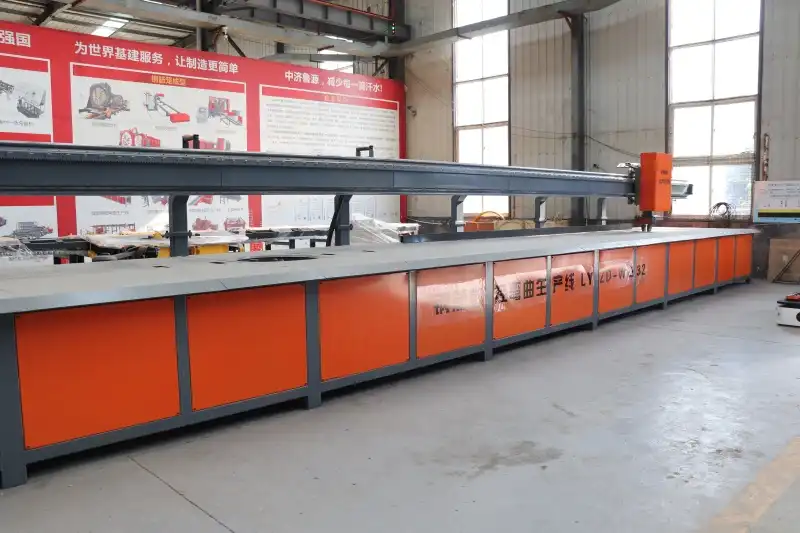

Understanding the LYZD-WQ32 Automatic reBar Bending Center

How does the Automated Workflow Operate?

The LYZD-WQ32 has its own CNC system that can directly import CAD drawings, so you don't have to enter parameters by hand. Once a bending schedule is loaded, the machine does feeding, positioning, bending, and stacking without any help from the operator. The fastest the trolley can go is 60 m/min, which means that cycle times are short even for bars with big diameters.

Core Technical Specifications

The machine can bend HRB400 grade rebar up to 32 mm in diameter and is accurate to within 1° when it comes to the angle. It can process multiple bars at the same time, like two 20 mm bars or three 16 mm bars, which increases output per cycle. Mitsubishi or Siemens servo drives allow for precise positioning, and the built-in hydraulic system can work 24 hours a day, seven days a week, with little heat output.

Safety Design and Operator Protocols

The IP54 rating on the control box keeps dust and water out of the electronics inside, which is very important on building sites. The risk of operator injury is lower thanks to emergency-stop circuits, physical guarding around bending heads, and automatic problem alerts. New operators can quickly learn how to use the CNC by following the step-by-step on-screen instructions. This means that they can get up to speed in days instead of weeks.

Comparing the LYZD-WQ32 with Other Bar Bending Solutions

Performance Against Manual and Semi-Automatic Machines

To keep angle tolerances on manual bending tables, workers need to be skilled, and in the field, differences in size of ±3° to 5° are common. The LYZD-WQ32 keeps ±1° on every piece and every shift. According to data from a Chinese national building equipment expo that was made public, one machine with a 60 m/min trolley speed can replace four to six human bending stations.

This is where you can see the speed gap the most in straight benchmarking:

• Geometric consistency: The LYZD-WQ32 produces 100% geometrically consistent parts across a production run, which is essential for modular precast assembly where even minor dimensional drift causes downstream fit-up failures that require costly rework.
• Labor dependency: A manual bending line for 32 mm bar typically needs three to four skilled workers per shift. The LYZD-WQ32 runs under continuous monitoring by one operator, cutting per-unit labor cost significantly on large-volume contracts.
• Throughput stability: Semi-automatic machines lose speed when operators fatigue or rotate. The LYZD-WQ32 maintains consistent cycle times across an entire 24-hour production window because the servo drive system does not degrade with hours of operation.

These differences directly lead to lower cost-per-ton and tighter on-site delivery plans, which are always at the top of the list for buying managers when making decisions about the Full Automatic ReBar Bending Center LYZD-WQ32

Maintenance and Energy Efficiency

The centralized automatic lubrication system keeps the rails' 0.1 mm positioning accuracy over time by oiling them every day without any help from a person. Rockwell tests show that bending pins and mandrels are made to an HRC 58–62 hardness, which means that wear parts don't need to be replaced as often as they would on standard-grade tools found on machines with lower specifications.

Buyer Confidence Through Verified Performance

In the past, Zhongji Luyuan has worked on projects with China Railroad, China State Construction, and China Communications Construction. Before buying big-ticket things, procurement teams look into possible sellers. These relationships give them suggestions that they can check out.

Maximizing Performance and Maintenance of the LYZD-WQ32

Operational Settings for Different Applications

Bridge pier stirrups that need to bend HRB500 grade bars with a small radius should use the built-in database to account for springback and pick the material batch profile that is closest to the tested yield strength. The basic HRB400 shapes give good results for most highway project stirrups; you don't need to change any settings.

Structured Maintenance Schedule

A simple three-step plan will keep the machine in great shape:

• Every day, you should clean the guide rails, make sure the automatic lube has run, check the bent mandrels for surface scoring, and make sure the motor home position is correct when the machine first starts up.
• Check the amount of hydraulic fluid and the state of the filter once a week. Also, look over the electrical connections in the control box and the CNC error logs for problem codes that keep showing up.
• Every month, check the servo motor's torque reaction under full load, measure rail wear at five points along the track, and compare the bent angle to a measured reference piece to make sure it's correct.

It is recommended that the main bent parts last more than ten years. If you follow this plan, they should last that long.

Troubleshooting Common Faults

Positioning drift is the most common issue, and it's usually because the guide rails are dirty or the machine didn't get oiled again. Getting rid of the dirt and doing a hand lubrication purge fixes it in less than fifteen minutes. Usually, CNC logic mistakes happen when there are a lot of complicated multi-segment plans, and the file got broken while being sent via USB. You don't need technical help to fix the problem; just import the original CAD file again.

Procurement Guide for Construction Material Suppliers

Ordering Channels and Authenticity

Managers who buy things should only get the Full Automatic ReBar Bending Center LYZD-WQ32 through Zhongji Luyuan's official channels to be sure they get real parts with a valid warranty. On its website, zjly2025.aixdb.cn, the company gives current details about its goods, available configurations, and how to get in touch with the sales team in your area.

Pricing Structure and Payment Terms

The price of the machine is based on the bar's diameter, the servo drive brand (Mitsubishi or Siemens), and any custom tooling designs that are needed for the job. Medium- to large-sized contractors can choose how to pay Zhongji Luyuan, and they offer discounts for orders of multiple units that cover more than one project site. This is a common way for EPC contractors to buy things while running multiple infrastructure projects at the same time.

Delivery, Warranty, and After-Sales Support

There is a direct link between the project timeline and normal shipping times and finishing the work. The manufacturer offers both on-site installation help and training for operators. They also back up the main electrical and mechanical parts with a warranty. After the sale, there is an expert team whose only job is to help customers. They can figure out what's wrong and send out new parts quickly.

Why Choose Zhongji Luyuan as Your Bar Bending Center Partner?

Company Background and Manufacturing Standards

Shandong Zhongji Luyuan Machinery Co., Ltd. was founded in 2016 and has 50 million yuan in registered capital. The company has sent goods to almost 100 countries, including South Korea, Malaysia, Thailand, Kazakhstan, and Israel. The CNC equipment it makes is used to work with reinforcements.

Quality Control Protocol

There are five areas of quality control that every LYZD-WQ32 unit goes through before it is shipped: geometric accuracy testing according to ISO 6935-2; servo repeatability testing over 1,000 continuous cycles; Rockwell hardness verification of bending mandrels; CNC software stress testing under complex multi-segment bending schedules; and a full electrical safety and EMI compliance inspection of the IP54 control cabinet.

Industry Application Track Record

The LYZD-WQ32 is used on high-speed train and bridge building projects that need to be very precise when bending because of seismic protection requirements. It works in rebar fabrication shops on-site at nuclear and hydroelectric power projects, where heavy reinforcement cages need bending forces and tolerances that can't be reliably achieved by hand.

Conclusion

For construction material suppliers who need consistent output, less reliance on labor, and equipment that can handle heavy industrial use, the Full Automatic ReBar Bending Center LYZD-WQ32 is a useful and well-specified automatic bar bending center. Because it has CNC control, two bending heads, and a quality control process that has been proven to work, it is a good investment for infrastructure contractors, precast producers, and rebar processing centers that want to improve the quality of their work.

FAQ

What rebar grades and diameters does the LYZD-WQ32 process?

The machine handles HRB400 grade rebar up to 32 mm diameter as a single bar and supports simultaneous multi-bar processing, such as dual 20 mm or triple 16 mm bars, to increase throughput.

How does the system manage springback variation between different steel batches?

The CNC includes a built-in springback compensation database. Operators select a material profile matching the batch's yield characteristics, and the system automatically adjusts the bending angle command to hit the specified finished geometry.

What warranty and after-sales terms apply?

Zhongji Luyuan provides warranty coverage on primary mechanical and electrical components, backed by a dedicated technical support team offering remote diagnostics and on-site service dispatch. Contact sales2@shandongluyuan.com for specific warranty terms applicable to your region and order volume.

Can the LYZD-WQ32 connect to BIM or ERP platforms?

Yes. The machine supports USB and Ethernet data interfaces for direct synchronization with project management and ERP software, enabling real-time production tracking across multiple project sites.

What is the expected service life of the bending heads?

With the recommended maintenance schedule, primary bending heads are designed to exceed ten years of service, with only the contact mandrels requiring periodic replacement based on cumulative tonnage processed.

Request a Quote from Zhongji Luyuan — Full Automatic ReBar Bending Center LYZD-WQ32 Supplier

The sales team at Zhongji Luyuan is ready to make a plan that fits the needs of your project. We offer reasonable pricing, flexible delivery, and full operational support for the Full Automatic ReBar Bending Center LYZD-WQ32, whether you need a single unit for a processing center or a group of machines for a large infrastructure project. To start talking, go to shandongluyuan.com or email sales2@shandongluyuan.com with your question.
