Wire cage welding machine - Types & Advanced Technology

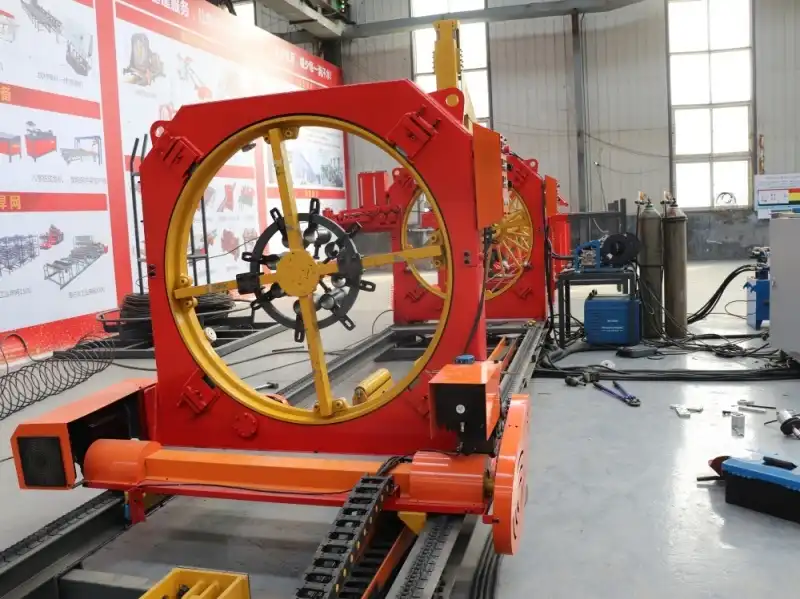

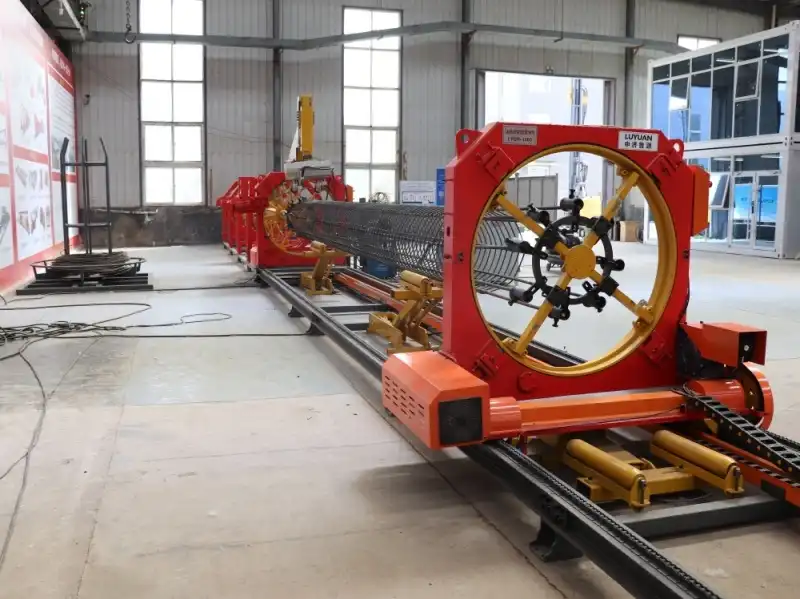

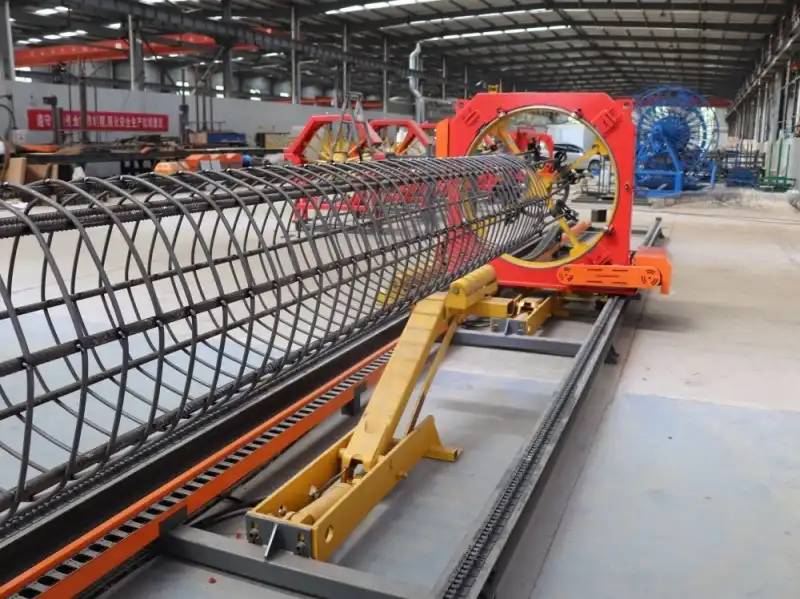

Modern construction demands reliability, and that starts with reinforcement. A wire cage welding machine is a high-precision automated industrial system designed to weld longitudinal and peripheral reinforcement bars into cylindrical or polygonal reinforcement cages used in concrete structures. These machines primarily address critical industry pain points: manual welding inconsistency, high labor costs in precast concrete production, and the inability to maintain precise pitch accuracy over long spans. By integrating PLC-controlled synchronized feeding and welding, these systems eliminate human error and significantly accelerate the production cycle for infrastructure projects.

Understanding Wire Cage Welding Machines: Types and Features

Making reinforcement cages has changed a lot from binding them by hand to using machines for precision. Knowing the different kinds of tools that are out there helps procurement managers match the skills of machines with the needs of the project.

Core Functionality and Welding Processes

Resistance welding or gas-shielded welding are the two main ways that wire cage welding machines work. Resistance welding uses electricity to heat up the places where the metals touch, joining longitudinal and spiral rebar without using any extra materials. In gas-shielded welding, inert gases keep the weld pool from oxidizing, which makes sure that the weld goes deep and there aren't many hot spots. Both methods provide consistent joint strength, which is important for load-bearing uses in tunnel linings and bridge pile foundations.

Manual, Semi-Automatic, and Fully Automatic Models

People who use manual machines have to place the rebar and start the welding cycle. These units work well for small jobs with small funds, but they have low throughput and quality that varies. Semi-automatic systems feed or rotate on their own, but workers set them up and keep an eye on them. Fully automatic production lines, like the LYZD-GJL2500 type, use PLC control systems and HMI touchscreens to run the whole process, from feeding the rebar to welding with little help from a person. These high-tech systems make 13 12-meter-long cages in a 10-hour shift, which cuts down on labor costs by a huge amount while keeping the quality of the welds the same.

Material Compatibility and Welding Capacity

The diameter of rebar can be anywhere from 6 to 40 mm, and its shape can be changed to fit the needs of a project. The diameters of the cages range from 500 mm to 2500 mm, making them useful for everything from large-diameter bridge piers to city sewage lines. The distance between spiral bars can be changed to 300 mm or less, which meets many structural engineering standards. High-strength steel frames that are welded together make sure that machines can handle heavy-duty work all the time. Hydraulic systems that work at up to 16 MPa provide stable welding by providing a constant clamping force.

Industry Benchmark Brands and Selection Criteria

Global names like Lincoln, Miller, and ESAB control most of the general welding market, but solutions made just for making rebar cages are needed. Equipment managers judge machines by how strong the weld joint is, how even the pitch is along the whole length of the cage, and how centered the welding disks are. Continuous 24-hour dry-run cycles are part of factory acceptance tests that check the accuracy of laser motion sensors used for pitch control and the thermal stability of transformers. Procurement teams give more weight to suppliers who have worked with big construction companies before and have project references that show they can do the job.

Advanced Technology in Wire Cage Welding Machines

As technology has improved, cage welding has gone from being a labor-intensive way to join things together to smart manufacturing, and a wire cage welding machine is at the forefront of this evolution. Modern systems have new features that address the main concerns of project managers, which are speed, accuracy, and dependability.

Computer-Controlled Precision and Automation

Fully automatic systems managed by PLCs get rid of mistakes made by hand and inconsistent performance. Positioning is accurate to within ±1 mm with servo control systems, which makes sure that the cage measurements meet strict technical tolerances. Touch-screen CNC interfaces let operators enter cage parameters like diameter, length, main bar count, and spiral spacing, and the machine then runs the whole sequence by itself. This level of automation makes it less important to have skilled welders, which helps construction markets that are short on workers.

Energy-Efficient Design and Reduced Waste

High-frequency inverter welding technology makes the best use of power while achieving deep joint penetration. A typical system needs only 30 kW to run with 100 kW of welding power, which is a lot less than older units that used transformers. Accurately feeding materials gets rid of overlap waste and rebar offcuts, which increases the use of materials by up to 15%. Gas-shielded welding methods cut down on dust and cleanup after the weld, which lowers overall costs.

Enhanced Safety Features and Operator Protection

Top-mounted automatic welding setups keep workers away from areas with high temperatures, which lowers the risk of burns. International safety standards are met by emergency stop keys, safety interlocks on moving parts, and enclosed welding zones. Less manual work means fewer repetitive strain injuries, which are a big problem in places with a lot of production. These features are in line with company safety rules and lower contractors' insurance costs.

IoT Integration and Industry 4.0 Readiness

Manufacturers who are on the cutting edge now use IoT sensors to keep an eye on production rates, machine temperatures, and maintenance plans in real time. Cloud-based dashboards let operations managers see what's going on at multiple fabrication sites. This lets them do preventative maintenance before problems cause downtime. AI-powered quality control systems look at pictures of welds to find flaws that human inspectors can't see. This makes sure that every cage meets standards for structural stability. This move to digital supports the needs of modern construction companies for smart manufacturing.

How to Choose the Right Wire Cage Welding Machine for Your Business?

When choosing a wire cage welding machine, you have to weigh the needs of the current project against the needs of long-term operational efficiency. Procurement managers have to make tough choices that need to be based on both technical and financial research.

Production Volume and Welding Speed Requirements

Machine capacity is based on the size of the project. For high-speed rail contractors to build bridge pile foundations for many kilometers, they need machines that can make three or more cages an hour. Continuous tunnel boring operations for metro building projects require uptime 24 hours a day, seven days a week. This makes production productivity very important. The LYZD-GJL2500 model can build 13 cages in 10 hours at 12-meter lengths, making it a good choice for big infrastructure projects. Modular structure designs make it easy to change the specifications between production runs at rebar processing sites that work with various companies.

Material Handling and Cage Specification Flexibility

Machines have to be able to work with rebar and cages that have different diameters and sizes between projects. Heavy-gauge main bars (φ18–φ40 mm) are needed for seismic resistance in nuclear power plants, but lighter reinforcement (φ8–φ16 mm) is used in utility tunnels for cities. Handling equipment with cage diameters ranging from φ700 to φ2500 mm makes it flexible for a wide range of uses. With customization choices for double main bars or double spiral bars, you can do more without having to buy more equipment.

Equipment Durability and Maintenance Demands

For construction jobs that last for years, tools need to keep working well. Frames that are reinforced and made to handle heavy loads for a long time keep structures from wearing out. Modular structure designs make it easier to change parts, which cuts down on repair downtime. When technical directors compare sources, they look at the mean time between failures (MTBF) and the number of extra parts that are available. Machines that don't break down often keep projects on schedule and avoid costly delays caused by broken equipment.

After-Sales Support and Total Cost of Ownership

Installation instructions, operator training, and quick technical support all have a big effect on how well an operation runs. Suppliers who offer full start-up services make sure that tools start producing at the right rate right away. Procurement managers feel confident when they can always talk to expert engineers who understand the difficulties of their projects. Total cost calculations are heavily influenced by warranty terms, the availability of spare parts, and service response times. Higher-priced equipment may give you a better return on investment (ROI) because it will last longer and have less downtime.

Operating, Maintaining, and Ensuring Safety of Wire Cage Welding Machines

To get the most value out of your equipment, you need to know how it works and follow disciplined maintenance procedures. Operations managers have to find a balance between how much production is needed and how long the equipment will last.

Workflow Protocols and Operator Training

Single-operator systems like the LYZD-GJL2500 reduce the need for workers, but they still need to be properly trained. Operators learn how to correctly enter cage specifications, keep an eye on the quality of the welding while it's being done, and spot strange sounds or vibrations that mean there are problems with the machine. Touch-screen CNC settings with easy-to-use screens make learning faster, so new employees can become proficient in just a few days instead of weeks. Standardized workflows make sure that the quality of the output is the same no matter how experienced the operator is.

Routine Maintenance and Troubleshooting

Through preventive maintenance, a wire cage welding machine lasts longer and doesn't break down when it's least expected. As part of daily checks, the amount of hydraulic fluid, the air supply pressure (≤0.8 MPa), and the condition of the welding electrode are all checked. Cleaning dust out of electrical cabinets and greasing moving parts are weekly tasks. Every month, audits check the calibration of the laser displacement sensor and look at samples of weld joints to see how deep they go. Troubleshooting guides help maintenance teams quickly figure out what's wrong with common problems like inconsistent pitch, weak welds, and feeding jams. Maintenance plans that cover everything keep machines reliable for decades of use.

Safety Procedures and Protective Equipment

As a basic safety measure, operators wear clothes that don't catch fire, welding caps with the right shade ratings, and steel-toed boots. Machines that meet CE and ISO9001 standards have safety interlocks that stop them from working with the guards open. When activated, emergency stop systems stop all motion in milliseconds. Electrical systems are safer when they are properly grounded and have their shielding tested. Regular safety checks make sure that the AWS D1.4/D1.4M standards for structural welding of strengthening steel are being followed. This protects both the workers and the structure of the project.

Procurement Insights – Where and How to Buy Wire Cage Welding Machines?

When choosing a supplier, you need to look at their professional skills, image, and service infrastructure. To lower business risks, procurement managers must do a lot of research.

Evaluating Manufacturer Credentials and Project References

Good suppliers have worked with big construction companies like China Railroad, China State Construction, and China Communications Construction in the past. The fact that the product has been exported to high-demand markets like South Korea, Israel, and Kazakhstan shows that it meets international quality standards. Factory tours show how things are made, how quality is checked, and how much money is spent on research and development to keep making products better. Checking references with past customers can give you information about the quality of post-installation help and how well the equipment works over a long period of time.

Assessing Price Proposals and Negotiating Terms

The cost of buying new equipment has to be weighed against the cost of less work and better production. Automatic production lines cost more to buy at first than human systems, but they pay for themselves faster because they use less labor and make more. Quotes should include specifics about the machine, installation services, training for the operator, and guarantee coverage. Cash flow and project schedules can be aligned by negotiating flexible payment terms, such as deposits, milestone payments, and retention. Unexpected costs can be avoided by making it clear who is responsible for clearing customs, shipping, and commissioning on-site.

Installation, Commissioning, and After-Sales Services

Supplier technical teams should be in charge of installation and make sure that the foundation is properly prepared, that electrical connections are made, and that the hydraulic system is set up. During commissioning, test runs are used to make sure that the sample cages meet the requirements for weld strength and size tolerances. Full training for operators includes how to use the machine normally, do simple repairs, and fix problems that come up. After-sales support includes quick expert help over the phone, remote testing, and, if needed, service on-site. When parts need to be replaced, long periods of downtime can be avoided by having extra parts available with reasonable wait times.

New vs. Used Equipment Considerations

Buying used machines is cheaper up front, but there is a chance that they have hidden damage or technology that is out of date. Checklists for inspections should make sure that the structure is sound, the electrical system is in good shape, the welding transformer works well, and the control system works properly. Finding out about the maintenance past and leftover service life of important parts helps figure out how much future repairs will cost. New equipment comes with guarantees, the newest technology, and full maker support, which makes the higher prices worth it for projects that don't want to take risks and need the highest level of trustworthiness.

Conclusion

When choosing the right equipment for making reinforcement cages, you have to think about its technical capabilities, operational needs, and cost, and a wire cage welding machine is a critical investment. Fully automatic systems with PLC control, gas-shielded welding, and flexible designs give modern building projects the speed, quality, and adaptability they need. To get the best total cost of ownership, procurement teams need to look at production capacity, versatility in handling materials, durability, and support after the sale. When you work with experienced manufacturers that have a track record of project success and full service offerings, you can be sure that your equipment investments will help you meet project deadlines and provide long-term value.

FAQ

What is the typical lifespan of a wire cage welding machine?

Quality machines that have their frames reinforced and are well taken care of will work reliably for 15 to 20 years. Regular inspections, replacing parts when they break, and following the manufacturer's maintenance schedules are all ways to make equipment last longer. Machines that work single shifts get less wear and tear than machines that are used 24 hours a day, seven days a week.

How does automation reduce labor costs in cage production?

Fully automatic systems only need one person, while four to six people are needed to do hand binding. When feeding, positioning, and welding are controlled by a PLC, skilled labor is not needed. Multiple manual stations are replaced by a single LYZD-GJL2500 machine that makes 13 cages per 10-hour shift. This cuts payroll costs by 60% or more while improving output consistency.

Can machines accommodate custom cage specifications?

Modern tools can be changed in a lot of different ways. Cages with diameters between φ700 and φ2500 mm, lengths of up to 12 meters, and spiral spacing that can be changed to fit different project needs. Touchscreen controls make it easy for operators to quickly enter specific information. Manufacturers offer technical help to set up tools for specific uses that go beyond standard parameters.

Partner with Zhongji Luyuan for Advanced Rebar Cage Solutions

Zhongji Luyuan does business with China Railroad, China State Construction, and other large companies and has long-term ties with them; our wire cage welding machine, the LYZD-GJL2500, is a key part of our product line. They also sell to almost 100 countries around the world. Our robotic production line makes 13 cages in a 10-hour shift with just one person. It combines the accuracy of PLC control with the quality of gas-shielded welding. We offer full installation instructions, operator training, and quick after-sales support to make sure your equipment works at its best from the start. Email our team at sales2@shandongluyuan.com to talk about how our wire cage welding machine solutions can help your project run more smoothly and cost less. You can look at our whole selection of CNC equipment for processing reinforcements at zjly2025.aixdb.cn.
