How Does LYWQ-32 Help Fabricators Produce Accurate Bent Bars for Different Engineering Applications?

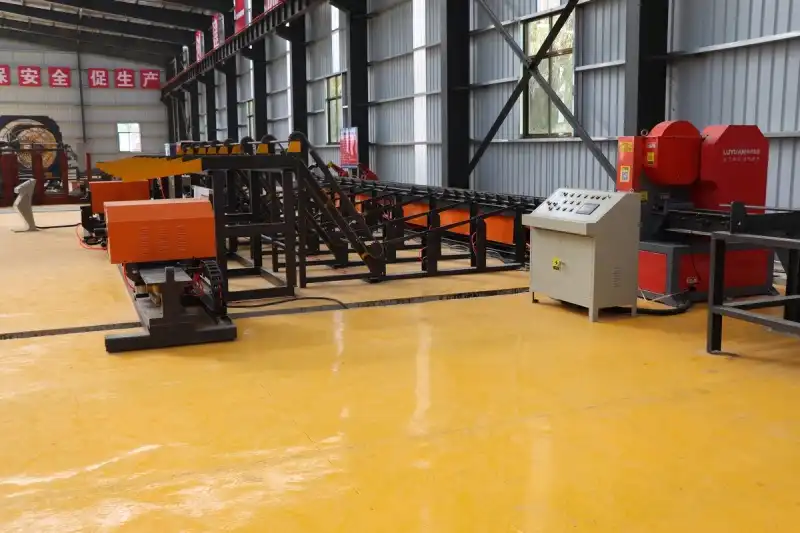

The CNC Vertical Rebar Bending Center LYWQ-32 addresses one of the most persistent challenges in rebar fabrication: producing geometrically consistent bent bars across high-volume, multi-specification projects. As a CNC Vertical Bending Center, the LYWQ-32 uses servo-driven feeding, a reinforced hydraulic clamping system, and a dual-head configuration to deliver ±1mm length precision and ±1° angle accuracy on bars up to 32mm in diameter. Whether you're fabricating stirrups for bridge piers or shaped components for prefabricated concrete factories, this machine produces repeatable results that manual methods simply cannot match at scale.

Understanding the Precision of the LYWQ-32 in Bar Bending

Fabricators who work on infrastructure projects know that even a small mistake in angle can affect hundreds of similar parts. Through technology and software acting together, the LYWQ-32 was made to get rid of that risk.

Fully CNC-Controlled Bending Process

A powerful PLC control system and servo-driven gears make the machine work. Every bend is done based on factors that were set, not on what the operator thinks is best. Before each cycle, the system automatically measures both angle and length. This gets rid of the problems that come with making adjustments by hand.

Real-Time Feedback and Deviation Correction

The LYWQ-32 has a real-time feedback loop that checks for angle variation during the bending stroke and fixes it before the cycle ends. In tests of dynamic angle repeatability, the difference between 1,000 consecutive bends stayed below 0.5°. Fabricators need this level of consistency when they are making thousands of identical parts for the lining of a highway overpass or metro tunnel.

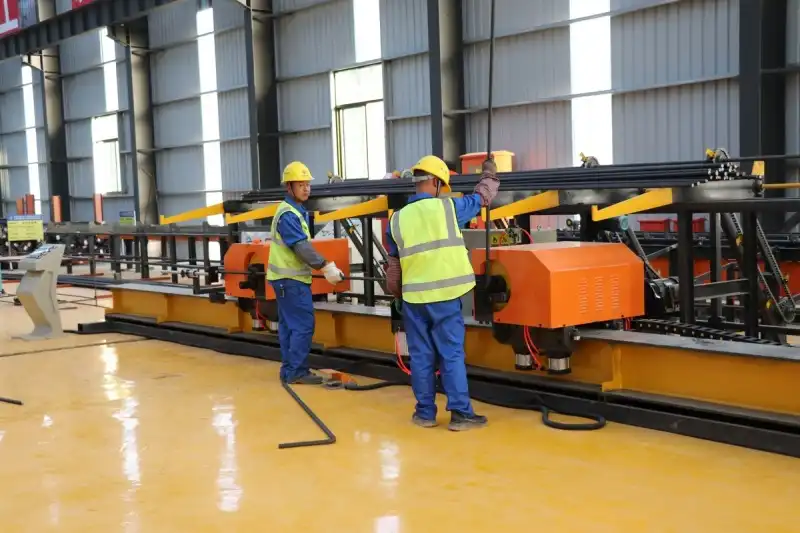

Vertical Orientation and Its Technical Advantage

Processing in a vertical direction does more than just save floor space. It makes moving things easier by letting gravity help line up the bars, which lowers the risk of slippage during high-tensile operations. The electronics are safe in the IP54-rated control box, even when the site is dirty or wet, which is common on highway and rail projects that are built outside.

Comparative Analysis: LYWQ-32 vs Traditional and Other CNC Bending Centers

Picking the right bending tools is an investment that will pay off in the long run. The LYWQ-32 stands out from other products on the market in these ways.

Manual Bending vs Automated CNC Performance

Manual bending isn't always the same because it depends on how skilled the worker is. It is well known that measurement mistakes, irregular bending force, and slower output rates happen a lot in places where things are made by hand. The CNC Vertical Rebar Bending Center LYWQ-32 can handle 5–8 tons of rebar in an 8-hour shift, which is a lot more than what can be done by hand without a lot more work.

Horizontal CNC Centers vs the LYWQ-32 Vertical Design

Horizontal bending centers usually need more energy to get the same output and take up more space. The LYWQ-32's vertical form makes better use of room and uses less energy while still meeting the same high standards of accuracy. One useful thing for fabricators who work in small workshops or on-site processing facilities is that this makes their jobs easier.

LYWQ-32 vs LYWQ-28: Capacity Comparison

This machine, the LYWQ-28, can work with bars up to 28 mm in diameter and is better for smaller fabrication jobs. The LYWQ-32 is the best choice for projects that need Grade III rebar at 32mm, which is common in bridge engineering, tunnel construction, and nuclear power infrastructure. Its alloy steel bent pins don't wear out easily and last 30% longer than normal industry options. This lowers the total cost of consumables over time.

When you're looking to buy things for a multi-year infrastructure deal, these differences matter. Having the right machine cuts down on the cost of rework, the number of times that consumables need to be replaced, and the time it takes to complete a project.

Core Benefits of Using the LYWQ-32 for Diverse Engineering Applications

The LYWQ-32 is used in a number of high-demand areas, each with its own operating needs. Its design allows for that range without needing big changes between jobs.

Here are some of the main ways this machine can be used to improve engineering:

• Bridge and Viaduct Construction: The machine produces large-scale pier reinforcement cages and complex stirrups with the structural accuracy that bridge engineering demands. Structural frame integrity was verified through load-bearing stress analysis at 120% of maximum rated capacity, confirming long-term stability for demanding fabrication work.
• High-Speed Railway Infrastructure: Standardized rebar components for box girders and tunnel linings require consistent output over long production runs. The LYWQ-32 performs reliably in harsh, dusty outdoor environments, supported by its IP54-rated control system and robust hydraulic pressure stability across 48 hours of continuous operation.
• Prefabricated Concrete (PC) Factories: CAD data imports directly into the machine's CNC system, allowing PC factories to switch between rebar shapes without manual reprogramming downtime. This makes it practical for high-mix production lines where component specifications change frequently.

Because of these strengths, fewer parts are rejected, less material is wasted, and cycle times for project-critical parts are sped up. That mix has a real effect on the overall cost of a project for producers who have to meet tight delivery windows for infrastructure contracts.

Maintenance and Operation Best Practices for Maximizing LYWQ-32 Performance

How a machine is used and kept is just as important to its dependability as how it was built. The LYWQ-32 has features that make upkeep easy, and following organized procedures will keep it running at its best.

Scheduled Lubrication and Mechanical Inspection

The servo drive parts and the hydraulic clamping system of the CNC Vertical Rebar Bending Center LYWQ-32 should be oiled at the times recommended by the manufacturer. It is very important to check the bent pins for wear on a regular basis, since the state of the pins directly affects how accurate the angles stay over time. When compared to horizontal designs, the vertical layout of the machine makes it easier to get to the moving motor and hydraulic lines.

Software Updates and CNC Parameter Management

The anti-collision algorithms and emergency stop response functions of the CNC system should be checked every time the software is updated. Before beginning a new production run, operators should also make sure that CAD import files are formatted correctly so that the cycle doesn't get interrupted. For new operators, it is suggested that they take a two-day certified training course on how to optimize CNC parameters.

Remote Diagnostics and Support Access

There is an IoT module built into the LYWQ-32 that allows for remote diagnostics. This lets Zhongji Luyuan's technical team check on the state of tools and give advice without having to go to the site very often. For mechanical problems that need to be fixed physically, there are also authorized service centers and dedicated customer support channels.

Procurement Considerations for B2B Clients Interested in the LYWQ-32

It takes more than just comparing specs to buy capital equipment for infrastructure projects. When making a good buying decision, you should think about lead times, after-sales support, and how reliable the supplier is.

Pricing, Volume Options, and Financing

Zhongji Luyuan offers flexible financing options and price models based on volume to business buyers. Since the LYWQ-32 is meant to be a long-term production asset, the total cost of ownership, which includes how long consumables last, how much energy it uses, and how much labor it saves, should be considered along with the initial purchase price.

Global Delivery and Warranty Terms

Around the world, Zhongji Luyuan has sent goods to almost 100 countries, including South Korea, Malaysia, Thailand, Kazakhstan, Israel, and South Africa. Logistics for international delivery are taken care of with planning ahead for lead times in mind. The usual guarantee for the PLC and servo systems lasts for 12 months, and the IoT module includes online diagnostic help.

Supplier Track Record and Industry Partnerships

Zhongji Luyuan was established in 2016 with 50 million yuan in listed capital. It works with China Railroad, China Railroad Construction, China State Construction, China Communications Construction, and China Nuclear Power Construction Corporation. When procurement teams do reviews of potential suppliers, this track record in national infrastructure projects gives them reason to be confident.

Conclusion

The CNC Vertical Rebar Bending Center LYWQ-32 is a reliable way for fabricators to make precisely bent bars for a lot of different engineering uses, from bridge stirrups to prefabricated housing parts. Its ±1mm length accuracy, dual-head design, real-time deviation adjustment, and CAD integration make it a good choice for production settings where accuracy and speed are important. It's a good investment for makers who want to cut down on rework and boost long-term processing output because Zhongji Luyuan has a well-established service network and has been used in major building projects around the world.

FAQ

What is the maximum processing output per shift?

It depends on how complicated the shape is.

Can the machine process different grades of rebar?

Yes. The system works with Grade I, II, and III rebar, and the software is already set up for different tensile strengths, so operators don't have to recalculate the bending parameters by hand when they switch materials.

Does the vertical design affect maintenance accessibility?

The vertical layout makes it easier to get to important parts. It's easier to get to the driving gear and hydraulic lines than with horizontal bending center designs, so it usually takes less time to fix.

What training do operators need?

The interface lets you import CAD files and is made to be easy to use.

What warranty applies to the electronic components?

The PLC and servo systems come with a standard 12-month industrial warranty from Zhongji Luyuan. Through the machine's built-in IoT gadget, you can also get remote troubleshooting help.

Get a Custom Quote for the LYWQ-32 from Zhongji Luyuan

Your next building project needs a rebar processing system that is backed by engineering that has been used before. Zhongji Luyuan is a reliable CNC Vertical Rebar Bending Center LYWQ-32 manufacturer that can customize the equipment you need, offer volume discounts, and provide dedicated after-sales support based on the size of your project. You can email our team at sales2@shandongluyuan.com or go to shandongluyuan.com to get a quote and talk to a technical expert.
