What Makes CNC Vertical Rebar Bending Center LYWQ-32 Suitable for Large-Scale Reinforcement Projects?

The LYWQ-32 is engineered specifically for high-volume rebar processing in infrastructure, rail transit, and commercial construction. It processes Grade III rebar up to 32mm in diameter with ±1mm length precision and ±1° angle accuracy, while its dual-head configuration cuts cycle times significantly. By integrating PLC control with servo-driven feeding, the CNC Vertical Rebar Bending Center LYWQ-32 eliminates the measurement errors and labor bottlenecks that plague conventional bending equipment, making it a dependable production asset for contractors managing tight project schedules and strict structural specifications.

Understanding the Core Capabilities of the LYWQ-32

There is a set of technical specs for the LYWQ-32 that directly meet the needs of big reinforcement projects. Before we look at each feature, it's important to note that the machine was designed to require less human input while maintaining accuracy in dimensions during high-output shifts.

High-Capacity Bending Performance

At a speed of 60°/s, the machine can bend rebar up to 32mm (Grade III). The filling system is powered by high-torque servo motors that keep the bars in the same place during each turn. The machine can handle anywhere from 5 to 8 tons of rebar in an 8-hour shift, based on how complicated the shape is. This is a throughput that not many systems that are run by hand can even come close to.

Dual-Head Configuration for Faster Cycles

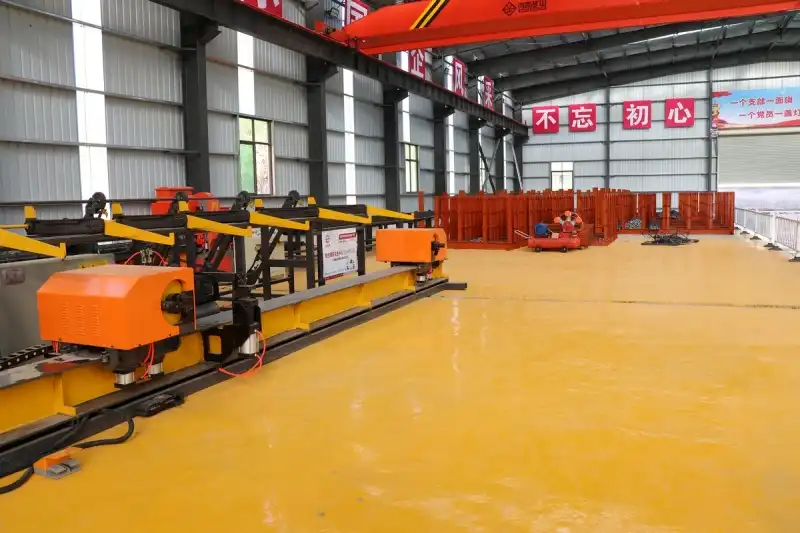

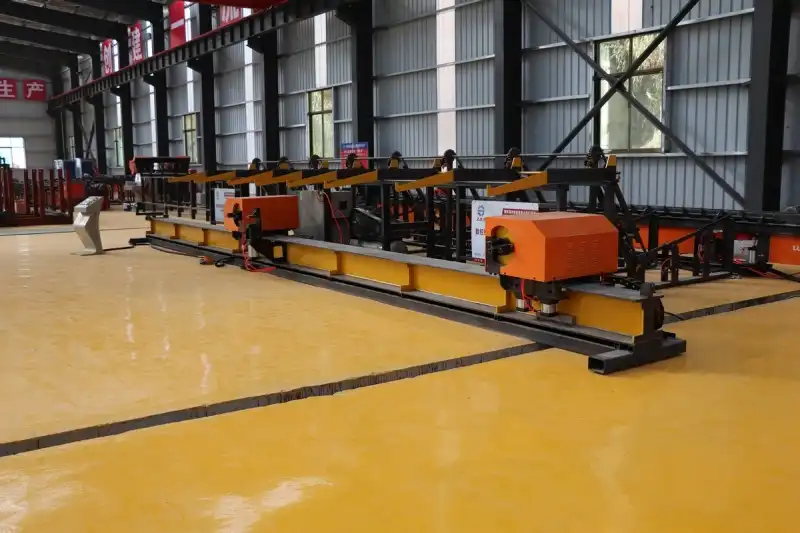

The two-head design lets both ends of a single bar be bent at the same time, which cuts cycle time per part directly. This setup increases daily output by measurable amounts without adding floor space or staff for projects like bridge pier cages that need thousands of identical stirrups or bent couplers.

CNC Control with CAD Import

The built-in PLC control system can directly import CAD data, so you don't have to enter parameters by hand. It only takes seconds for operators to switch between shape programs. The IP54-rated control box covers the electronics when they are on a dusty or humid building site outside. This means that they can keep working even in conditions that would break down a regular case.

These core capabilities work together to lower the skill level needed at the machine interface, cut down on scrap, and increase the number of parts that can be processed quickly. These are benefits that are useful whether you run a high-speed railroad fabrication yard or a factory that makes prefabricated concrete.

Why the LYWQ-32 Excels Over Traditional and Competing Machines?

Manual and semi-automatic bending equipment frequently produces angle variances exceeding 3°–5° across a production run, forcing rework that wastes both material and labor hours. The LYWQ-32 was designed to close that gap with verified, repeatable performance.

Verified Angle Repeatability

During quality testing, the CNC Vertical Rebar Bending Center LYWQ-32 machine undergoes a 1,000-consecutive-bend dynamic repeatability test with a required variance of less than 0.5°. This level of consistency is unachievable on conventional press brakes or manual benders, particularly when processing high-tensile Grade III bars that spring back more aggressively after forming.

Structural Integrity Under Load

The equipment frame is stress-tested at 120% of its maximum rated capacity to confirm long-term stability. The hydraulic clamping system is monitored over 48 continuous operating hours for pressure drops and micro-leaks. Wear-resistant alloy steel bending pins extend service life by approximately 30% compared to standard industry alternatives, reducing the frequency and cost of consumable replacement.

Competitive Positioning

Compared to older models in the same product line, the LYWQ-32 occupies a practical capacity range—large enough for the rebar diameters used in bridge and tunnel work, yet operationally simpler than larger multi-axis centers that require dedicated programming specialists. The result is a favorable return on investment for contractors who need production-grade accuracy without the overhead of managing a complex CNC machining cell.

Real-World Applications and Benefits for Large-Scale Reinforcement Projects

The LYWQ-32 is already being used in some of the toughest places for making reinforcements. Here are three examples of deployment that show how useful it is in real life:

• Bridge and Viaduct Construction: The machine produces large-scale pier reinforcement cages and complex stirrups where structural integrity is non-negotiable. Its ±1° angle accuracy ensures that each bent component meets the drawing specification without manual adjustment, reducing inspection failures at the rebar cage assembly stage.
• High-Speed Railway Infrastructure: Fabricating standardized rebar components for box girders and tunnel linings requires consistent output across extended operating periods. The IP54-rated cabinet and alloy bending pins allow the machine to operate efficiently even in harsh, dusty outdoor construction sites where conventional equipment degrades quickly.
• Prefabricated Concrete (PC) Factories: The CAD import function integrates directly into automated production lines for standardized housing components. Operators switch between rebar shape programs without manual recalibration, enabling mass production of diverse shapes with no downtime between product changeovers.

These uses show that the machine is useful for more than just bending things quickly. With software-driven flexibility, consistent tolerances, and few maintenance interruptions, project teams can be more sure of sticking to tighter schedules.

Maintenance, Safety, and User Support for Sustainable Operation

When it works, a machine is worth its weight in gold. From its physical layout to the structure that supports it, the LYWQ-32 is made to keep working for a long time.

Simplified Maintenance Access

When compared to horizontal rebar bending centers, CNC Vertical Rebar Bending Center LYWQ-32 vertical processing orientation makes it easy to get to the drive system and hydraulic lines. When maintenance is needed, this plan cuts down on Mean Time To Repair (MTTR), which is important on job sites where each lost hour of work costs a set amount.

Built-In Safety Systems

As part of the software logic proof procedure, the anti-collision algorithms and emergency stop response times for CNC machines are checked in the plant. There are safety features on this machine that keep people from getting hurt by the strong movements needed to bend big bars. These features meet international safety standards.

After-Sales Support from Zhongji Luyuan

The industrial warranty from Shandong Zhongji Luyuan Machinery Co., Ltd. covers the PLC and servo systems for 12 months and includes remote diagnostic access through the IoT module. The company's after-sales team offers a certified two-day course on how to change CNC parameters. Technical documentation is given in a variety of formats so that it can be used by both on-site operators and engineering managers looking over production data.

Procurement Insights: How to Source the LYWQ-32 for Your Project?

Before placing an order for a vertical rebar bending machine, procurement teams should align equipment specifications with actual project requirements—specifically the rebar diameter range, daily tonnage targets, and site environmental conditions. The LYWQ-32 is available through Zhongji Luyuan's authorized sales network and covers Grade I, II, and III rebar with software presets for different tensile strengths.

Key Procurement Considerations

Delivery lead times typically range from 4 to 8 weeks, with customized configurations requiring additional time. The company supports bulk order customization and provides installation guidance and commissioning assistance as part of the purchase agreement, reducing the burden on in-house technical teams during initial deployment.

Evaluating Supplier Credentials

Zhongji Luyuan, founded in 2016 with a registered capital of 50 million yuan, has established cooperation with China Railway, China Railway Construction, China State Construction, China Communications Construction, and China Nuclear Power Construction Corporation. Products have been exported to South Korea, Malaysia, Thailand, Kazakhstan, Israel, and South Africa, among nearly 100 countries and regions. This track record supports supplier credibility evaluations for procurement teams requiring verifiable project references.

Conclusion

The CNC Vertical Rebar Bending Center LYWQ-32 solves the real production problems that come up with big reinforcement projects: strict dimensional standards, high daily tonnage goals, a lack of skilled workers, and the need for equipment that works well in tough site circumstances. It has a 32mm capacity, a bending speed of 60°/s, an accuracy of ±1mm/±1°, and two heads. These specifications have been checked and are backed up by strict quality testing and a support structure from a manufacturer with a history of exporting. When purchasing and engineering teams look at rebar processing equipment, the LYWQ-32 strikes a good mix between performance, longevity, and help after the sale.

FAQ

What is the maximum production output per shift?

Based on the complexity of the shapes being made, the LYWQ-32 can handle anywhere from 5 to 8 tons of rebar in an 8-hour shift.

Can the machine process different rebar grades?

Yes. It can work with Grade I, II, and III rebar, and the software is set up with different tensile strengths so that it stays accurate with all of them.

Does the vertical design affect maintenance?

When compared to horizontal bending centers, the vertical structure makes it easier to get to the drive system and hydraulic lines because they are set up vertically.

What operator training is required?

The interface is easy to use and lets you import CAD files. Zhongji Luyuan suggests that new operators take a certified two-day course on how to change CNC parameters.

What warranty comes with the equipment?

The PLC and servo units are covered by a normal 12-month industrial warranty. The built-in IoT module lets the user and Zhongji Luyuan's expert team help with diagnostics from afar.

Request a Quote for the LYWQ-32 — Contact Zhongji Luyuan Today

The CNC Vertical Rebar Bending Center LYWQ-32 supplier team at Zhongji Luyuan is ready to help you find the right equipment configuration for your project's output and site needs. To get technical advice, product datasheets, or a plant tour, go to shandongluyuan.com or email the sales team at sales2@shandongluyuan.com. Our engineering and after-sales teams help with installation and train operators so that your production line can start up right away.
