Electric Rebar Bending Machine - Professional CNC Rebar Processing Solution

Modern construction projects demand precision, efficiency, and reliability in steel reinforcement processing. The electric rebar bending machine from Shandong Zhongji Luyuan Machinery Co., Ltd. represents advanced CNC automation technology designed specifically for high-volume rebar fabrication. With a registered capital of RMB 50 million and established partnerships with industry giants including China Railway Group and CSCEC, this equipment delivers enterprise-grade performance.

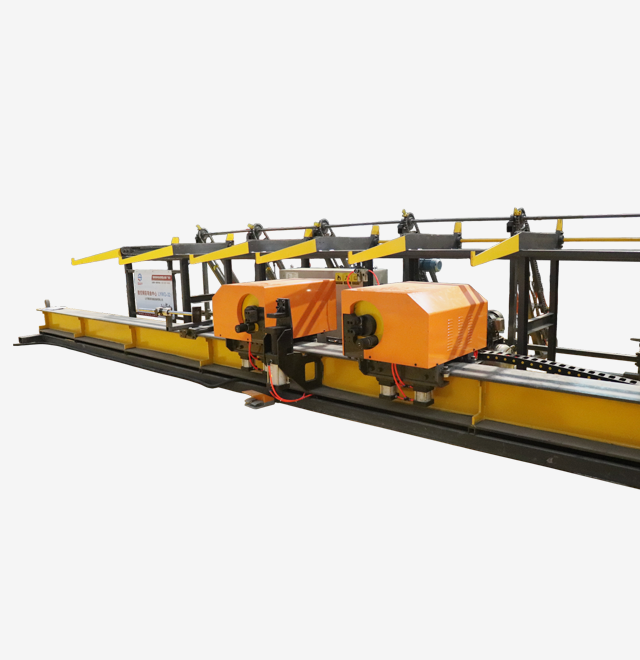

Our programmed rebar handling bowing center highlights double-head synchronized bowing capability, taking care of breadths from φ10–32mm with momentous generation proficiency of 120–180 units per hour. The brilliantly CNC touch screen controller guarantees bowing point exactness inside ±0.5° and length exactness way better than 1mm. Reasonable for handling ranges from 0.5–12m, this framework diminishes labor prerequisites from 5–8 laborers down to fair one administrator whereas cutting fabric misfortune by over 10%.

Key Technical Specifications

Multi-Bar Processing Capacity

Why Choose Our Rebar Bending Solution

Intelligent Automation

Your fabrication workflow transforms completely with fully automatic CNC processing. No manual intervention means consistent quality across thousands of units. The PLC touch screen control allows you to store parameters and switch specifications instantly.

New operators master the system within just one hour. One-key parameter storage enables continuous automatic processing of multiple shapes and specifications without production interruption.

Superior Precision Engineering

Achieving construction-grade accuracy demands mechanical excellence. Our electric rebar bending machine maintains bending angle errors within ±0.5° and length tolerances under 1mm through one-step forming technology.

The heavy-duty machine body incorporates servo drive systems built for 24-hour continuous stable operation. Torsion-resistant structural design prevents deformation during long-term heavy-duty cycles.

Exceptional Production Efficiency

Double-head synchronous bending technology processes multiple rebars simultaneously. This design dramatically increases throughput compared to single-head systems, making it ideal for large-scale projects.

The vertical bending configuration saves valuable on-site space while maintaining processing capability across φ6–50mm high-strength rebar. Moving speeds up to 1m/s with angular velocities between 48°–72°/s ensure rapid cycle times.

Significant Cost Reduction

Labor optimization stands out as a primary advantage. You replace 5–8 manual workers with a single operator, drastically reducing labor costs and management complexity.

Material waste drops by over 10% through elimination of human error and consistent precision. Lower actual power consumption at 12kW/h keeps operational costs manageable even during extended production runs.

Versatile Application Range

From right angles and hooks to stirrups and complex special-shaped reinforcements, this system handles diverse requirements. It processes both deformed bars and round bars across φ6–32mm standard range, with single-bending capability extending to φ50mm.

The comprehensive bending angle range (up to 180° positive, -120° negative) accommodates virtually any structural reinforcement specification your projects demand.

Industrial Applications

High-Rise Infrastructure Projects

On-site flexibility proves critical when modifying vertical column stirrups and beam-to-column joints in space-restricted environments. The portable electro-hydraulic system provides immediate fabrication capability without transporting materials off-site.

Precast Concrete Production Facilities

Assembly line integration allows high-volume production of consistent 'L' or 'U' shaped bars for modular walls. Dimensional repeatability ensures perfect fit during modular assembly, reducing installation time and quality issues.

Bridge and Tunnel Engineering

Complex, damp, or remote construction environments challenge equipment reliability. Our bending equipment delivers dependable heavy-duty performance for high-tensile rebar without requiring the massive footprint of stationary industrial benders.

The machine's robust construction withstands harsh conditions encountered in underground utility corridors, nuclear power projects, and hydropower installations.

Quality Assurance Standards

Hydraulic System Integrity

Hydraulic pressure stability testing ensures the piston maintains constant force throughout complete 180-degree bending cycles. High-pressure seal integrity inspections prevent fluid loss under extreme thermal expansion conditions.

Electrical Safety Compliance

Motor insulation and dielectric strength testing proves critical for operator safety in outdoor construction sites. Our equipment meets stringent electrical safety standards for industrial environments.

Mechanical Durability Verification

Bending rollers and head blocks undergo hardness testing to meet HRC 45-50 standards, preventing deformation during extended use. Angle load testing against maximum rated diameters (25mm to 32mm) for 500+ cycles verifies mechanical fatigue resistance.

The forged steel head blocks and copper-core motors feature high thermal resistance design, maintaining structural performance under continuous duty cycles without hydraulic fluid overheating.

Operational Advantages

User-Friendly Operation

Intuitive touch screen interfaces eliminate learning curves. Parameter storage functions allow quick switching between different product specifications without manual recalibration.

Full safety protection systems include emergency stops, protective guards, and overload prevention mechanisms that protect both operators and equipment.

Minimal Maintenance Requirements

Low failure rates and straightforward maintenance procedures suit demanding rebar processing plant operations. Accessible components and clear maintenance protocols minimize downtime.

The durable high-strength steel construction ensures long service life even under continuous heavy-duty operation. Servo drive reliability reduces mechanical wear compared to traditional systems.

Space-Efficient Design

Vertical bending configuration reduces the equipment footprint, allowing installation in constrained factory floors or on-site temporary facilities. This compact design doesn't compromise processing capability or output volume.

Frequently Asked Questions

Q: What rebar grades can this machine process?

A: The system handles high-strength rebar including ASTM A615 Grade 60 and equivalent international standards. It processes both deformed bars and round bars from φ6mm to φ50mm depending on bending mode.

Q: How quickly can operators learn to use this equipment?

A: New operators typically master basic operation within one hour due to the intuitive PLC touch screen interface. Advanced features and parameter optimization may require additional training, but daily production starts immediately.

Q: What makes your bending machine different from competitors?

A: Our double-head synchronous bending technology, ±0.5° angle precision, and proven deployment across nearly 100 countries set us apart. Long-term partnerships with China Railway, CRCC, and CSCEC validate reliability in the most demanding applications.

Q: Can this system integrate with existing production workflows?

A: Yes, the CNC control system supports integration with upstream cutting equipment and downstream handling systems. Parameter import/export functions enable coordination with design software and production management systems.

Q: What is the expected service life?

A: With proper maintenance, the heavy-duty construction and servo drive systems deliver 10+ years of reliable operation under typical industrial duty cycles. Components use high-grade materials specifically selected for longevity.

Q: Do you provide installation and training support?

A: Absolutely. Our professional after-sales team provides comprehensive installation, commissioning, and operator training. We maintain a nationwide service network with fast response mechanisms to minimize any potential downtime.

Contact Us

Ready to transform your rebar processing efficiency? Contact our team at sales2@shandongluyuan.com to discuss your electric rebar bending machine requirements. We'll provide customized solutions backed by eight years of expertise serving global infrastructure projects.
